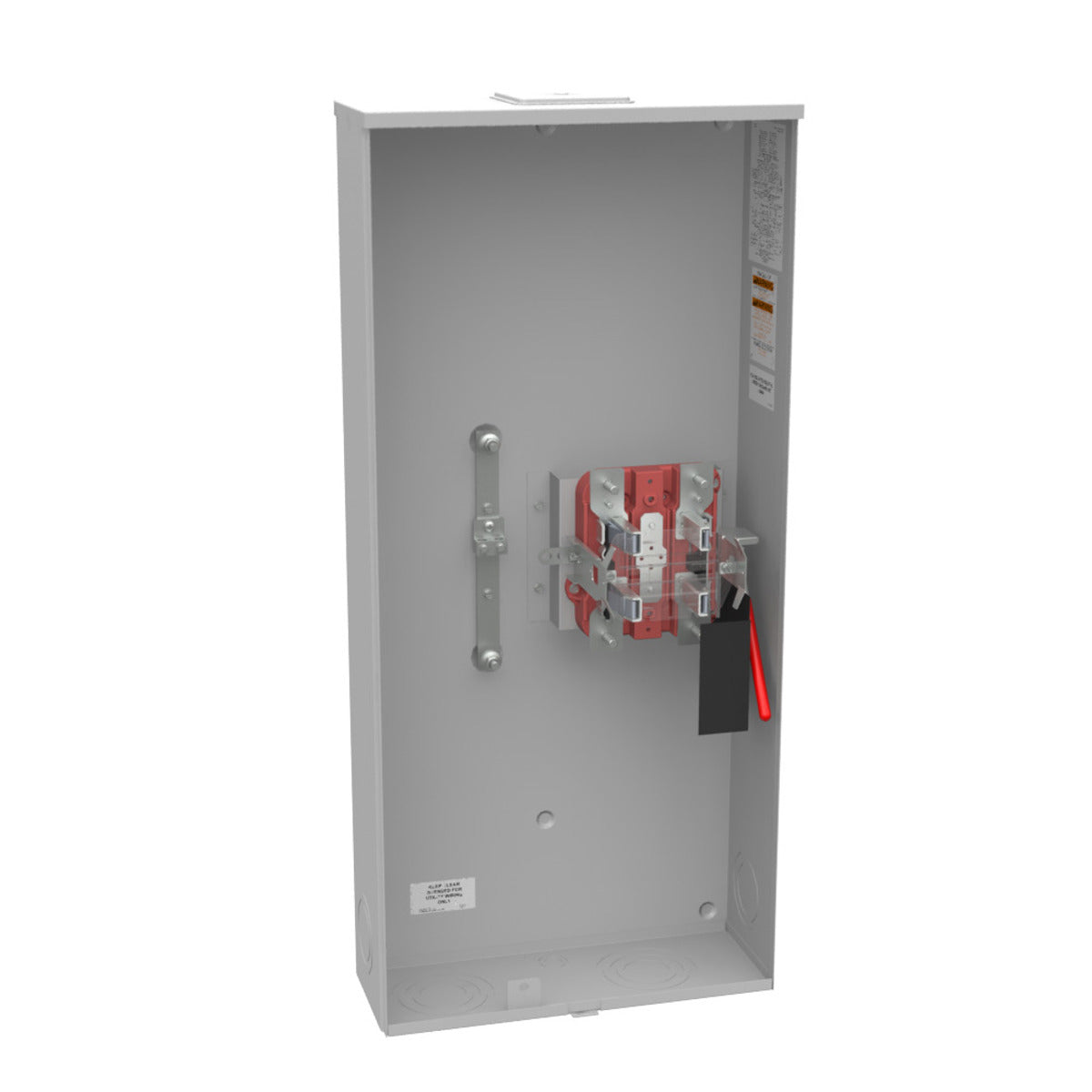

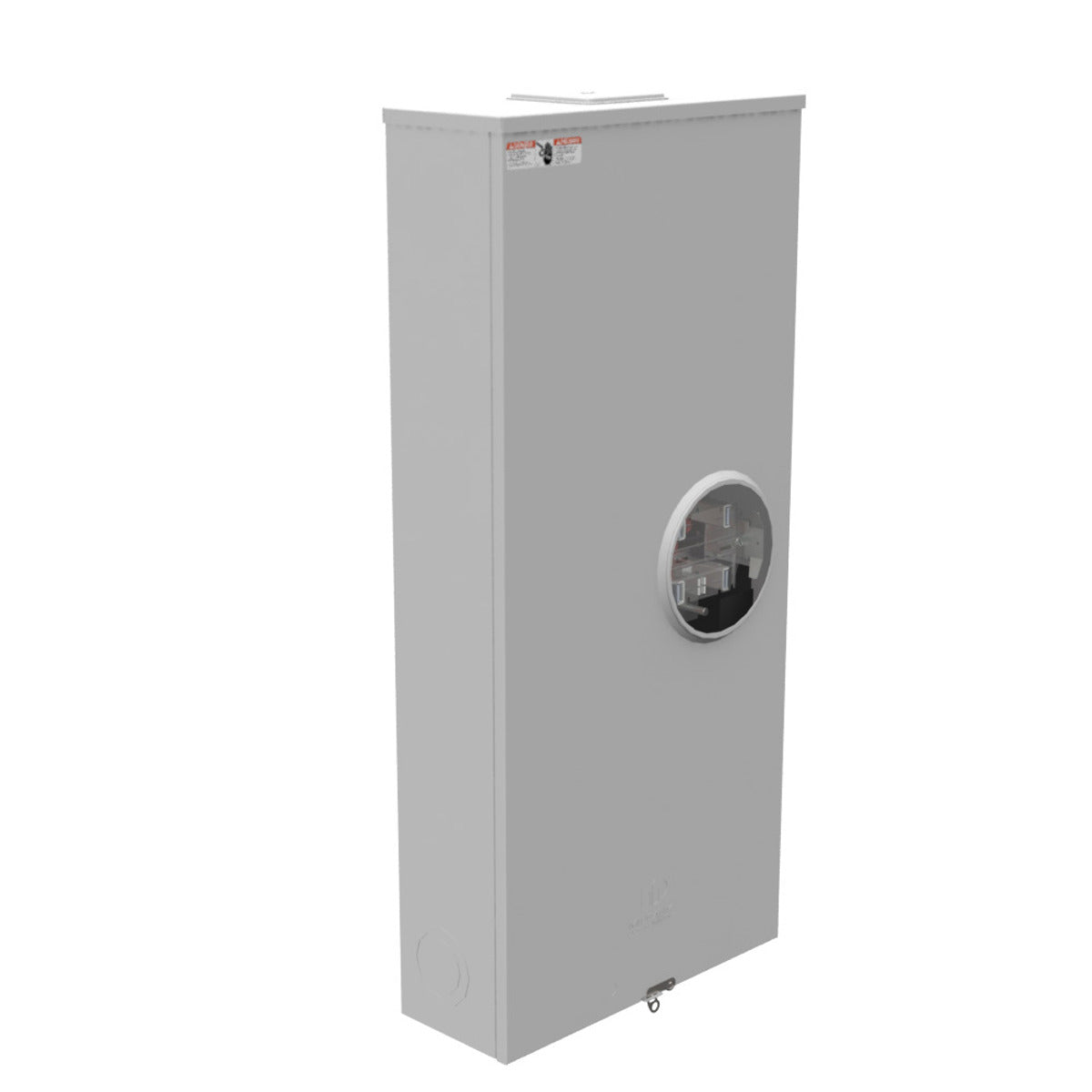

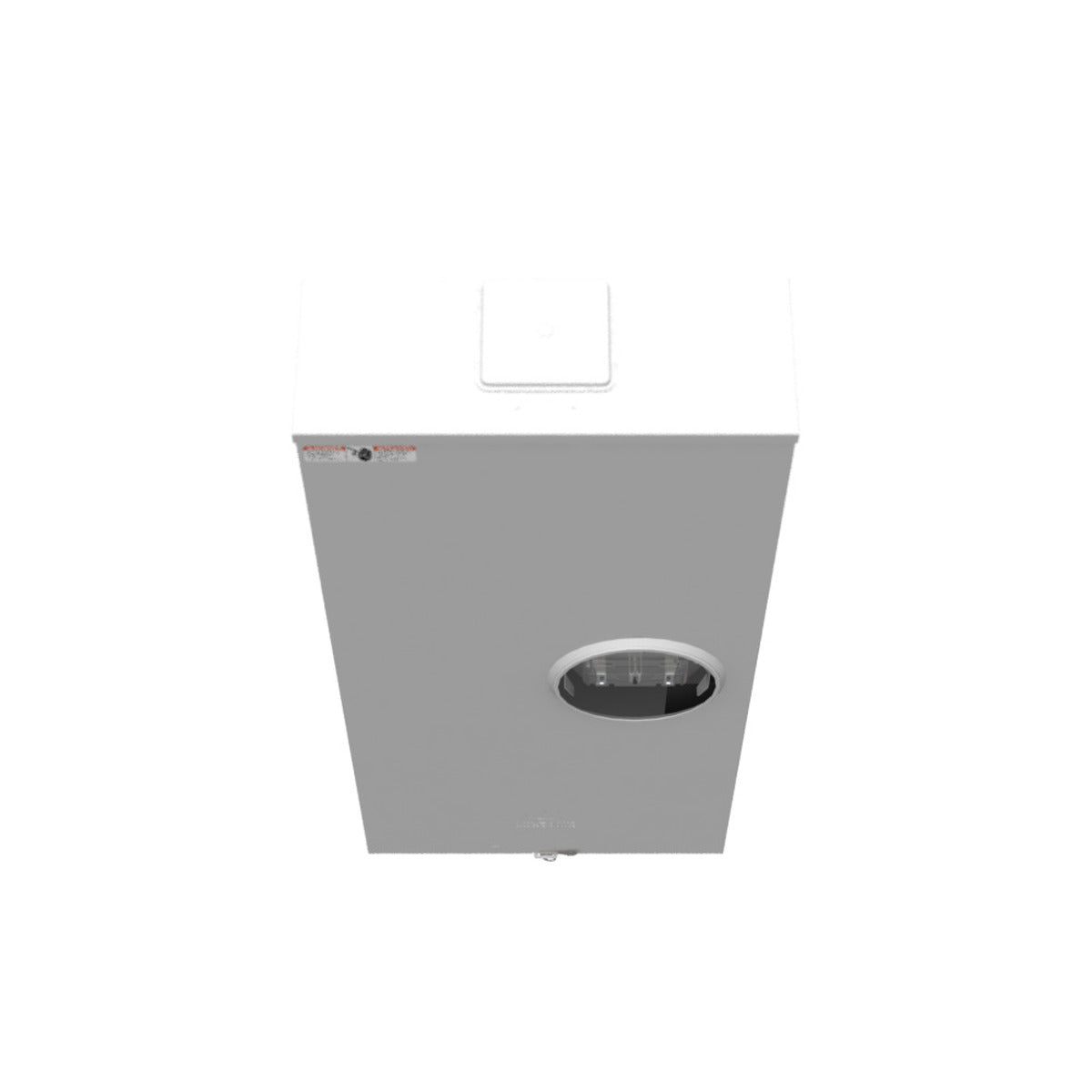

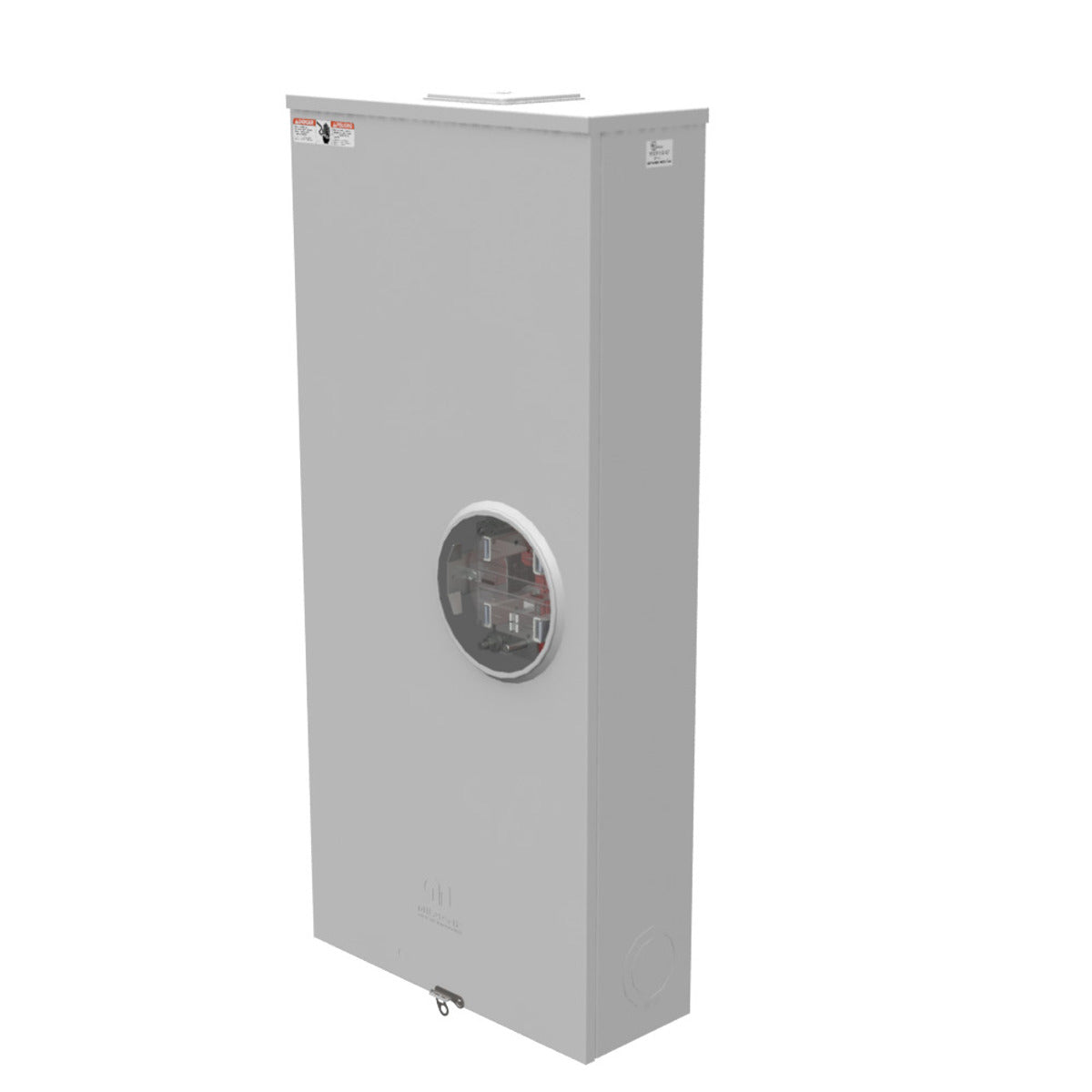

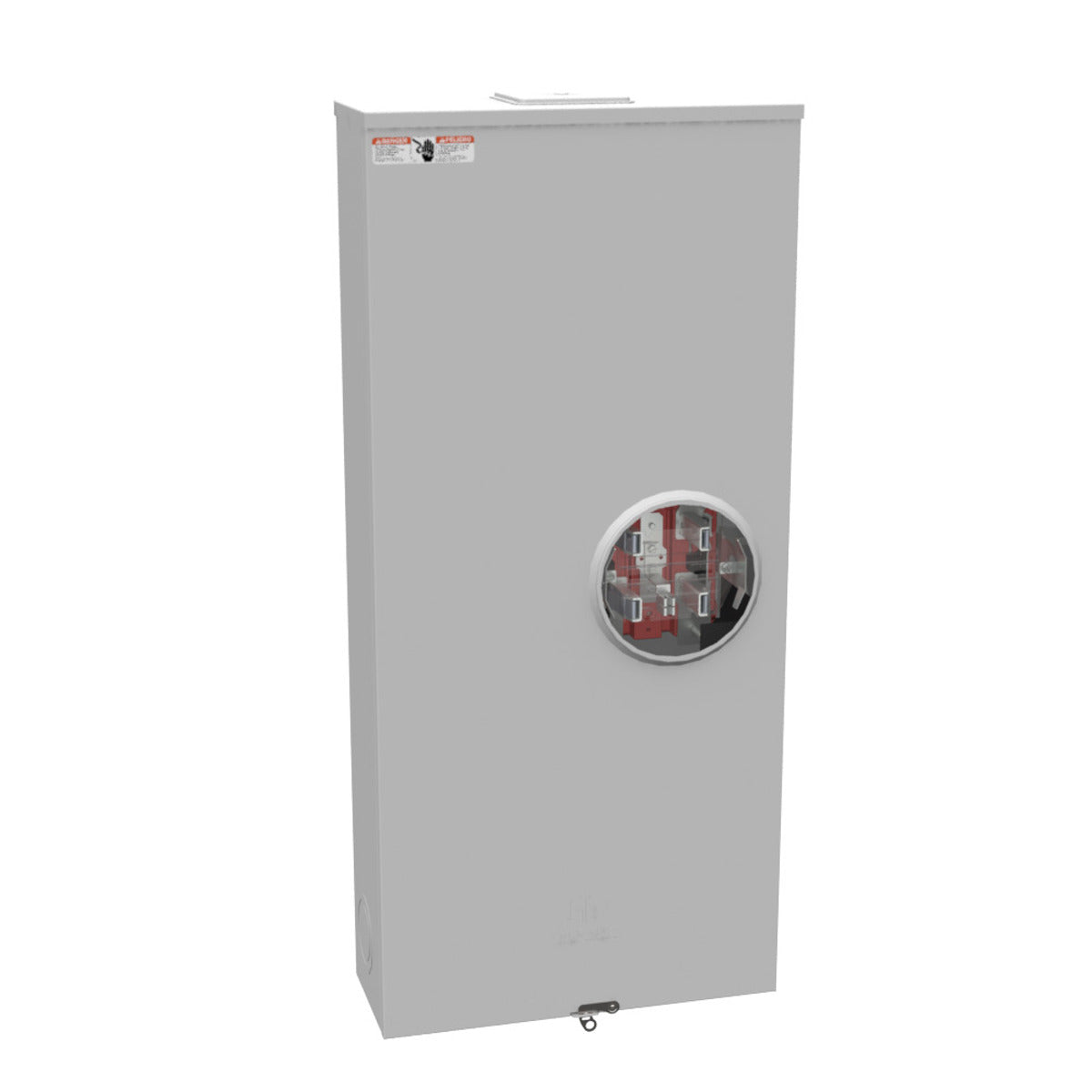

Milbank U4778-X-BL 4 Term Ringless Large Closing Plate Lever Bypass 9 to 16 Inch Barrel Lock with Bracket Provision

Product Description

The Milbank U4778-X-BL is a meter socket designed for reliable power distribution. This socket features a ringless design with a lever bypass, suitable for both overhead and underground service. It is crafted from G90 galvanized steel and has a powder-coated finish for durability.

• Rated for 320 Amps and 600 Volts AC.
• Four terminal jaws for strong electrical connections.
• Surface mounted with various knockout options.

Product Highlights

This meter socket offers a secure method for connecting electrical systems, meeting NEMA 3R standards. It is UL listed for safety and compliance in electrical applications.

Product Information

Standard Information

• Brand: Milbank
• MPN: U4778-X-BL

Technical Specifications

• Country of Origin: United States
• Material: G90 Galvanized Steel
• Mounting: Surface
• Enclosure: NEMA 3R
• Length: 6.5 inches
• Width: 17.75 inches
• Height: 38.75 inches
• Number of Jaws: 4
• Amperage Rating: 320 Amps
• Voltage Rating: 600 Volts AC
• Frequency Rating: 60 Hertz
