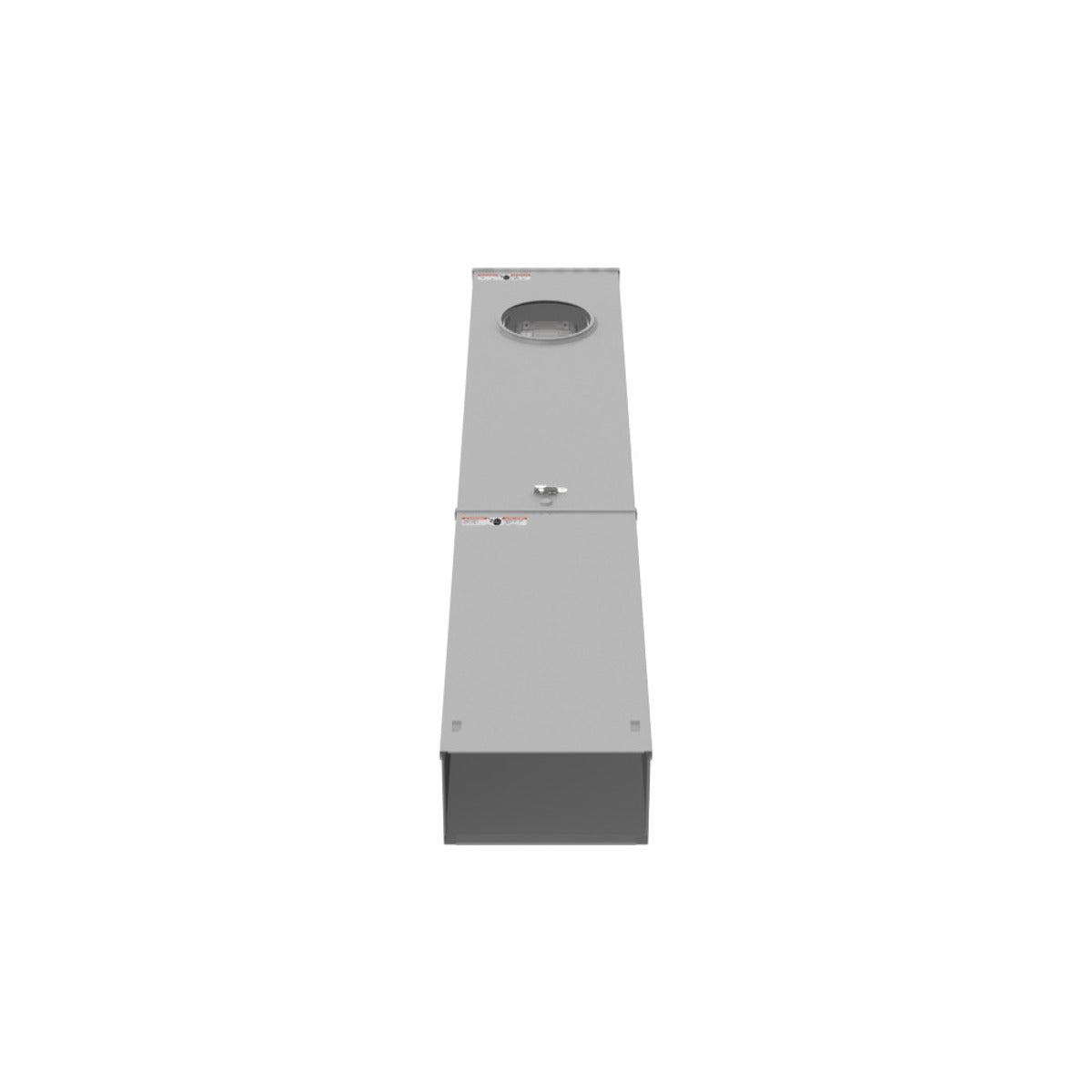

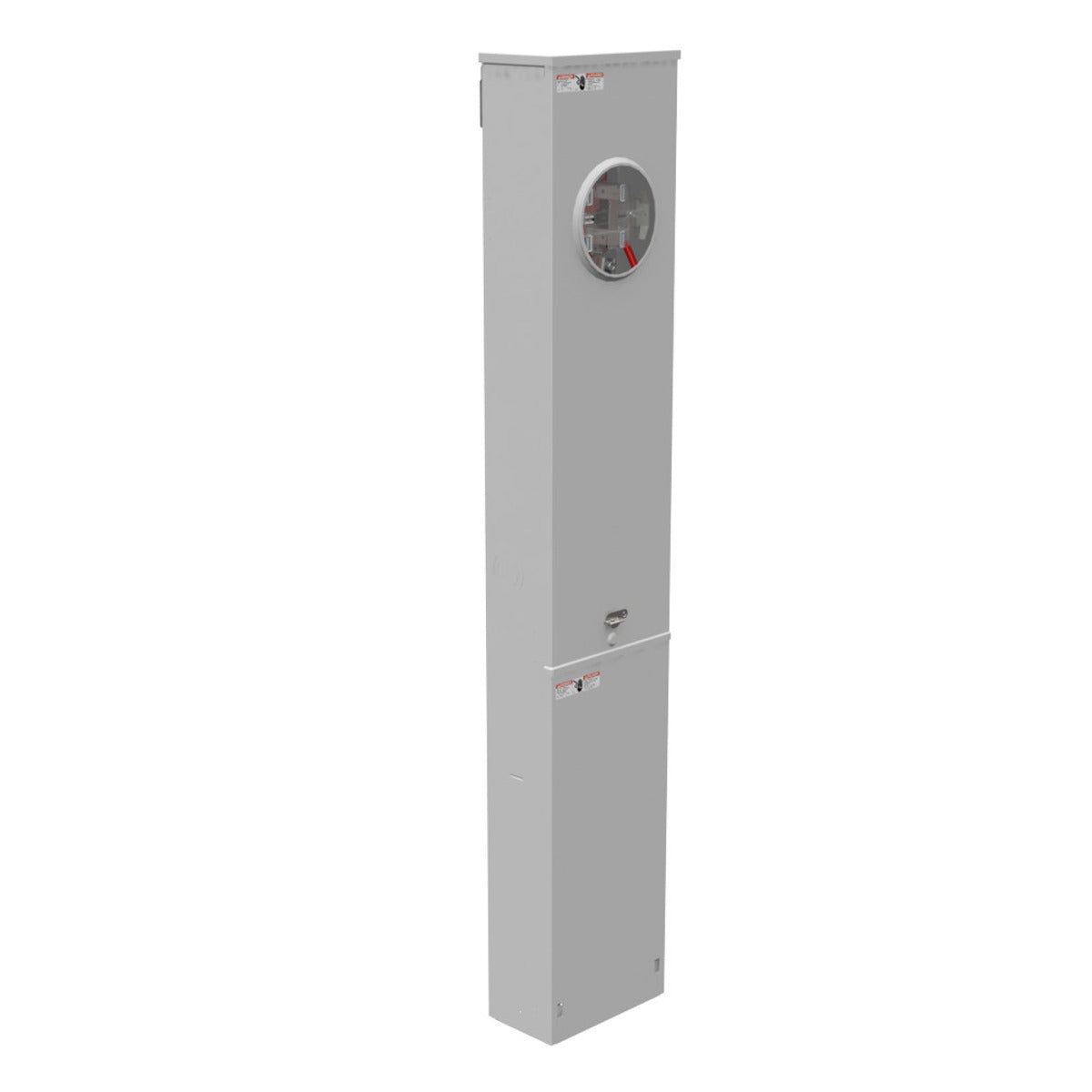

Milbank U4724-O-5T9 4 term ringless plain top lever bypass pedestal 5th term 9 o'clock position 200A 600V 6L x 11W x 64H

Product Description

The MILBANK U4724-O-5T9 is a 4 terminal ringless meter socket designed for pedestal mounting. This unit features a plain top, lever bypass, and a 5th terminal positioned at 9 o'clock. It supports a 200 continuous ampere rating and 600 Volts AC, suitable for underground cable entry. Constructed from G90 galvanized steel with a powder coat finish, it ensures durability and meets UL Listed and Type 3R standards for outdoor use.

• 4 terminal ringless design with a 5th terminal at 9 o'clock position.
• 200 continuous ampere rating and 600 Volts AC for reliable power distribution.
• Constructed from G90 galvanized steel with powder coat finish, UL Listed and Type 3R standard.

Product Highlights

Pedestal-mounted ringless meter socket with lever bypass, 200A 600V, and NEMA 3R enclosure for outdoor electrical service.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U4724-O-5T9
• Country of Origin: United States

Technical Specifications

• Catalog Number: U4724-O-5T9
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 200 Continuous A
• Application: Meter Socket
• Bypass Type: Lever Bypass
• Cable Entry: Underground
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency: 60 Hz
• Insulation Type: Glass Polyester
• Mounting Type: Pedestal
• Number of Jaws: 5
• Phase: 1 Phase
• Standard: UL Listed; Alliant Approved; RoHS Compliant
• Enclosure Rating: NEMA 3R
• Product Type: Ringless Meter Socket
• Terminal Type: Single Mechanical
• Voltage Rating: 600 VAC
• ECCN: EAR99
• UNSPSC: 39121102
• Main Breaker Size: No Main Breaker
• Equipment Ground: Triplex Ground
• Hub Style: Plain Top
• Knockouts: Yes
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Main Breakers: 0
• Number of Meter Positions: 1
• Number of Receptacles: 0
• Suitable For Use With: Type CH 3/4 in Loadcenter and Circuit Breaker
