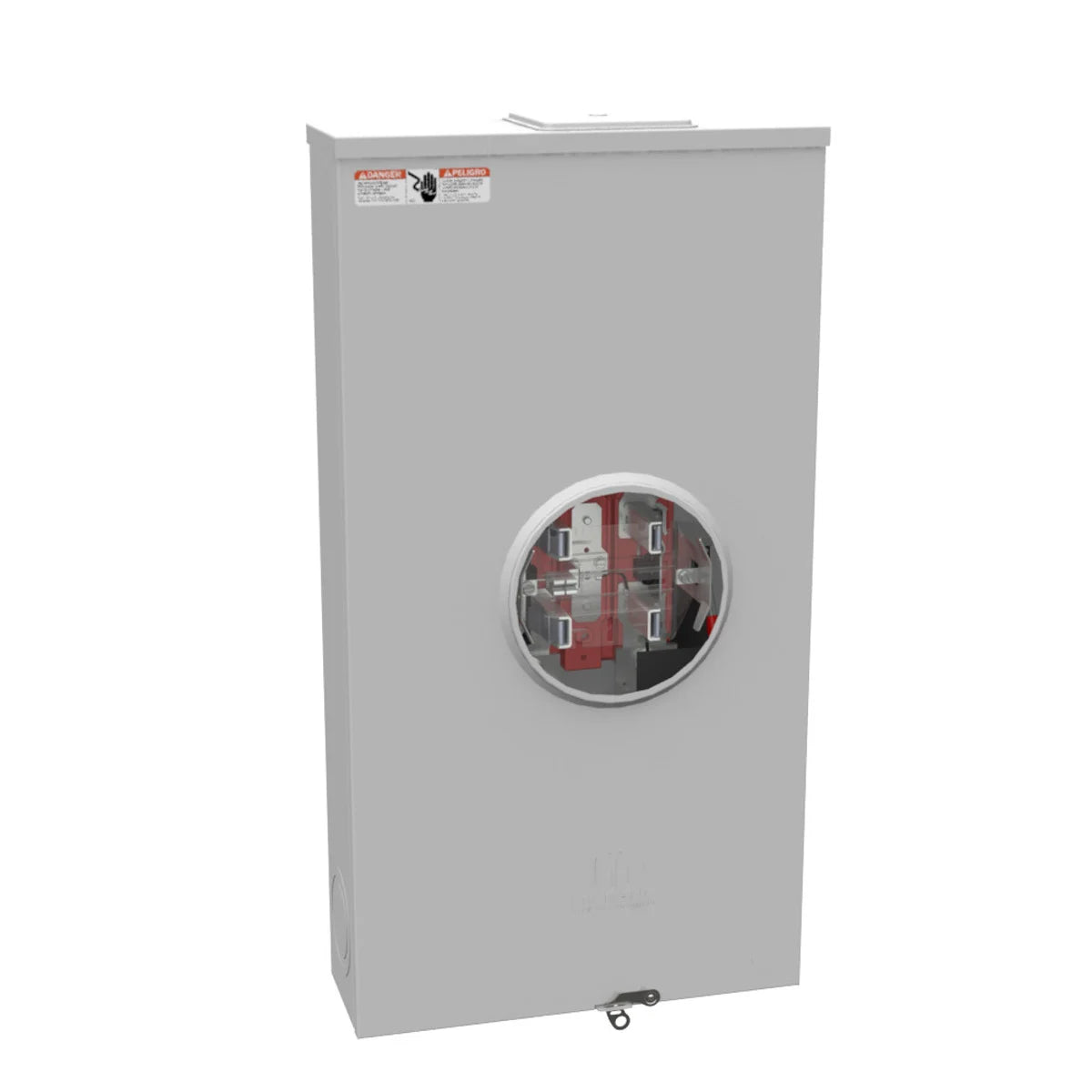

Milbank U4702-X-5T9-K3-K2-IL Ringless Meter Socket 600 VAC 320 A NEMA 3R

Product Description

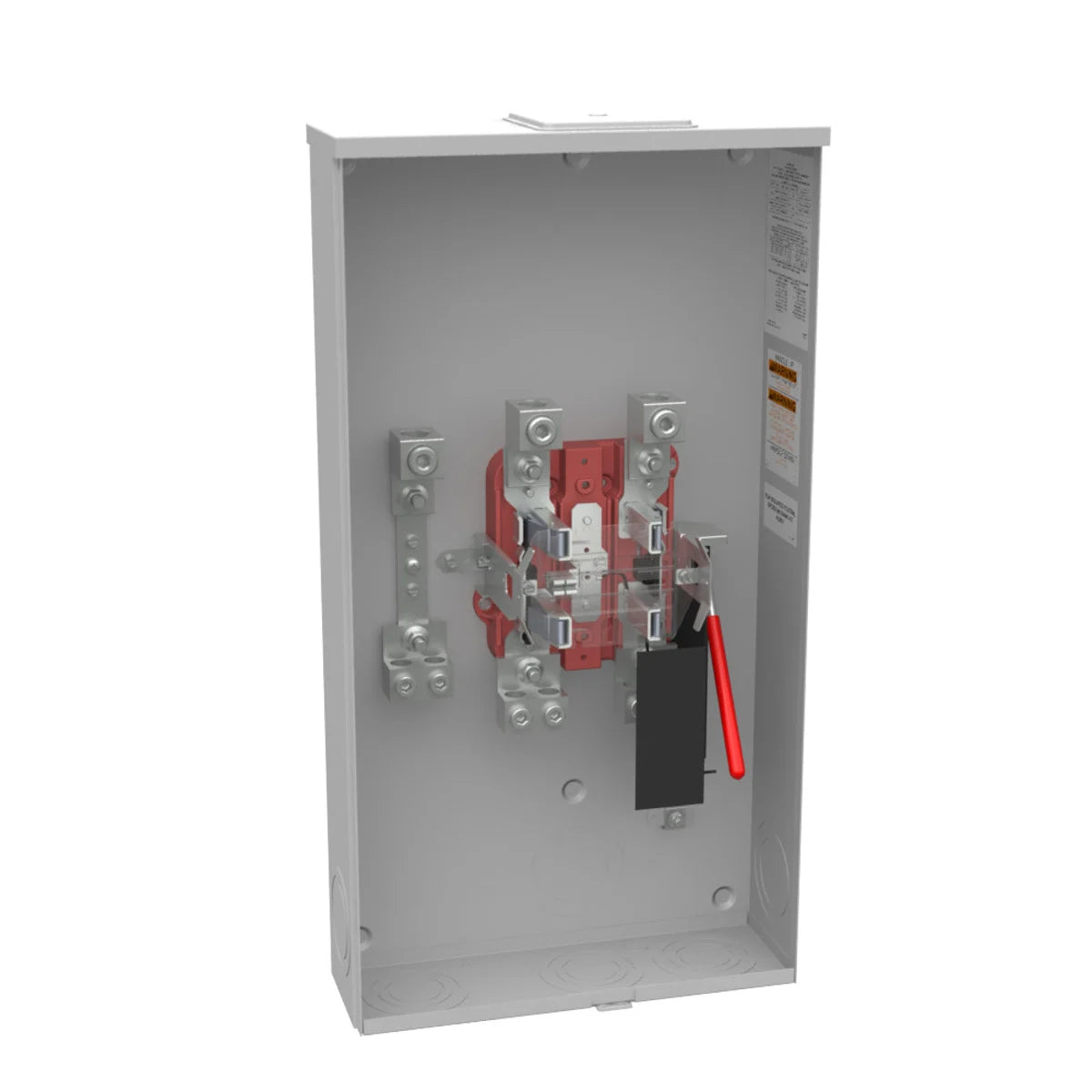

Milbank U4702-X-5T9-K3-K2-IL is a ringless meter socket designed for use in electrical metering applications. The product supports a voltage rating of six hundred volts alternating current and is rated for three hundred twenty amperes. This meter socket features five terminal jaws and a lever bypass for easy operation. It is suitable for both overhead and underground cable entry, with a robust NEMA three R enclosure that protects against outdoor conditions.

• Voltage rating: 600 VAC
• Amperage rating: 320 A
• UL listed for safety compliance

Product Highlights

The Milbank U4702-X-5T9-K3-K2-IL is built for durability and functionality in harsh environments. It is constructed of G90 galvanized steel with a powder coat finish, ensuring long-lasting protection against corrosion. This meter socket is ideal for residential and commercial installations, providing reliable electrical service connections.

Product Information

Standard Information

• Brand: Milbank
• Part Number: U4702-X-5T9-K3-K2-IL

Technical Specifications

• Dimensions: 4.844 inches Length x 15 inches Width x 28.25 inches Height
• Weight: 31 pounds
• Material: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Number of Jaws: 5
• Frequency Rating: 60 Hertz
• Country of Origin: United States
