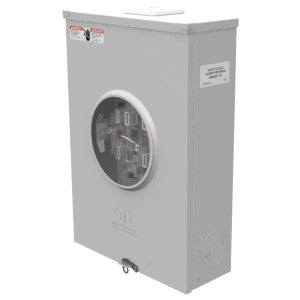

Milbank U4701-XL-BLG Meter Socket Ringless 200 A 600 V 3-Phase Phase 7 Terminal Overhead or Underground NEMA Type 3R

Product Description

Milbank U4701-XL-BLG is a ringless meter socket rated for 200 amperes and 600 volts. It is designed for three-phase applications and accommodates up to seven terminals for overhead or underground installations. This socket is suitable for NEMA Type 3R environments, ensuring performance in various conditions.

• Rated for 200 Amps and 600 Volts AC
• UL Listed for safety and reliability
• Constructed from G90 galvanized steel with powder coating for protection

Product Highlights

This meter socket is ideal for residential and commercial settings requiring dependable power distribution from utility providers. The design allows for flexible cable entry options, making installation straightforward.

Product Information

Standard Information

• Brand: Milbank
• MPN: U4701-XL-BLG

Technical Specifications

• Amperage Rating: 200 Amps
• Voltage Rating: 600 Volts AC
• Frequency Rating: 60 Hz
• Dimensions: 13 inches Length x 4-13/16 inches Width x 19 inches Height
• Material: G90 Galvanized Steel
• Mounting: Surface
• Number of Jaws: 7
• Cable Entry: Overhead and Underground
• Enclosure Rating: NEMA 3R
