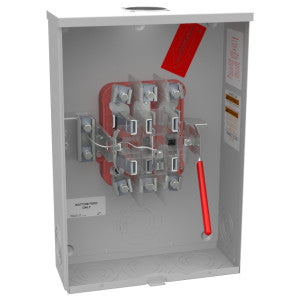

Milbank U4701-RL-QG Meter Socket Ringless 200A 600V 3-PH 7-Jaw OH/UG Lever Bypass Small Hub Opening Quadplex Ground Surface-Mount NEMA 3R

Product Description

The Milbank U4701-RL-QG is a meter socket that operates safely at six hundred volts and two hundred amps. It is designed for overhead and underground feed applications. The socket features a lever bypass and is compatible with quadplex wiring. The unit is constructed for surface mounting and is rated under NEMA 3R standards.

• Amperage rating of two hundred amps.
• Seven jaws for efficient connections.
• Compatible with wire sizes from six AWG to three hundred fifty kcmil.

Product Highlights

This product is ideal for residential and commercial metering solutions, ensuring reliable performance and safe connections.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank Manufacturing

Technical Specifications

• Voltage Rating: 600 VAC
• Frequency Rating: 60 Hz
• Enclosure Type: NEMA 3R
• Phase: 3
• Hub Type: Small
• Wire Size: 6 AWG to 350 kcmil
• Number of Jaws: 7
• Insulation Material: Glass Polyester
