Milbank U4544-XL Terminal Box 100A 120/240V 1-Phase 9-13/16 W x 18 H x 4-1/8 in. D NEMA 3R

Product Description

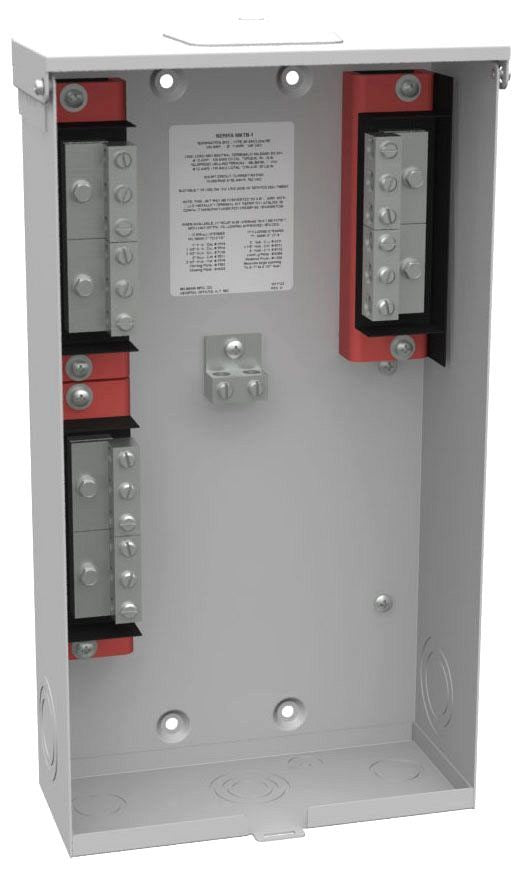

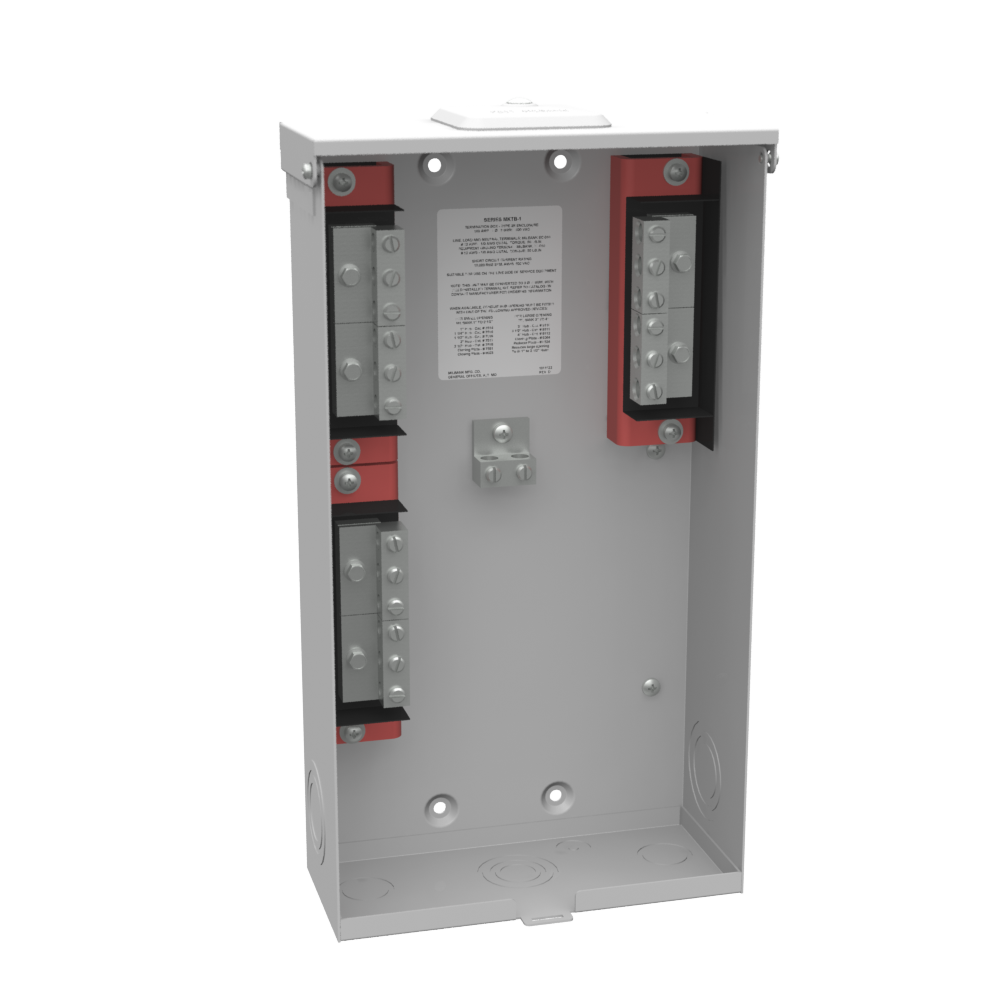

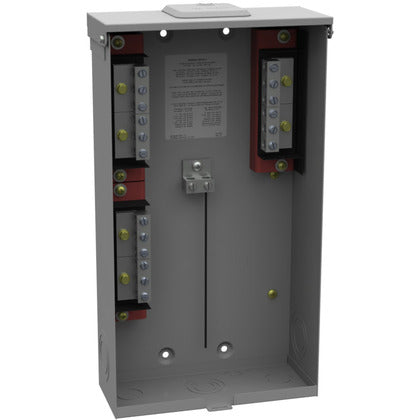

The MILBANK U4544-XL Terminal Box is a 100A 120/240V 1-Phase enclosure designed for line to load distribution applications. Constructed from G90 galvanized steel with a NEMA 3R rating, it measures 9-13/16 inches W x 18 inches H x 4-1/8 inches D. This surface-mountable unit includes six 12 to 1/0 AWG copper/aluminum connectors and is UL approved, making it suitable for various electrical installations requiring a robust terminal connection point.

• Features a 100 Ampere terminal current rating and 120/240 VAC terminal voltage rating for 1-phase systems.
• Constructed from durable G90 galvanized steel with a NEMA 3R enclosure for outdoor and indoor protection.
• Equipped with six 12 to 1/0 AWG connectors and various concentric knockouts for flexible wiring configurations.

Product Highlights

Durable G90 galvanized steel terminal box with NEMA 3R rating, 100A 120/240V 1-phase capacity, and UL approval for reliable electrical distribution.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U4544-XL
• Country of Origin: USA

Technical Specifications

• Finish: Galvanized
• Mounting Type: Surface
• Certifications: UL Listed, California Proposition 65
• Material: G90 Steel
• Category: Electrical Terminal Enclosures
• Short Circuit Current Rating: 10 Kiloampere
• Application: Line to Load Distribution Enclosure
• Knockouts: (1) (1/4 Inch - 1/2 Inch), (1) (3/4 Inch - 1 Inch), (1) (1/2 Inch - 3/4 Inch - 1 Inch - 1-1/4 Inch - 1-1/2 Inch - 2 Inch), (1) (1 Inch - 1-1/4 Inch - 1-1/2 Inch - 2 Inch) Concentric Knockout
• Voltage Rating: 120/240 VAC
• Current Rating: 100 Ampere
• Wire Size: (6) 12 to 1/0 AWG
• Enclosure Rating: NEMA 3R
• Sub-Category: Terminal Box
