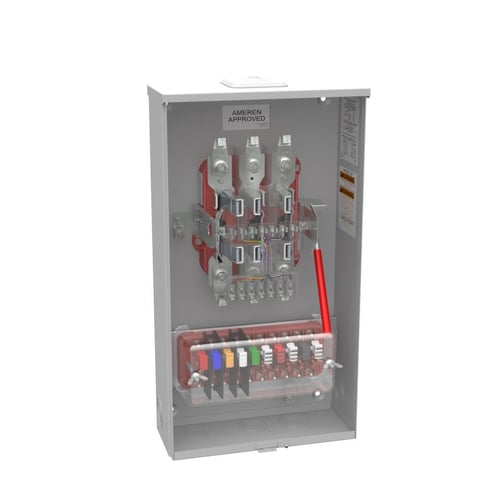

Milbank U4497-XL-WC-61-AMS 13 Terminal Ringless Meter Socket 80A

Product Description

The Milbank U4497-XL-WC-61-AMS is a heavy-duty transformer rated meter socket suitable for use in 600 VAC, 80 A, and 3-phase applications. This unit is equipped with a NEMA-3R rated enclosure and features a lever bypass for easy operation. The socket is prewired with the Ameren Configuration 61 for efficient installation.

• Heavy Duty Transformer Rated Meter Socket
• Lever bypass for easy operation
• NEMA-3R enclosure for outdoor use

Product Highlights

The Milbank U4497-XL-WC-61-AMS is designed for both overhead and underground installations, making it versatile for various utility settings.

Product Information

Standard Information

• Brand: Milbank Manufacturing
• UPC: 784572721531

Technical Specifications

• Applications: Meter Socket
• Cable Entry: Overhead or Underground
• Enclosure: Type 3R, G90 Galvanized Steel with Powder Coat Finish
• Frequency: 60 Hz
• Material: Steel
• Mounting Type: Surface Mount
• Number of Phases: 3 Phase
• Number of Terminations: 13
• Standard: Type 3R, UL Listed
• Terminal Type: Single Mechanical
• Type: Ringless Meter Socket
• Voltage: 600 Volt
• Height: 22 Inch
• Length: 4.84 Inch
• Width: 12 Inch
• Amperage Rating: 80
• Country of Origin: USA
• Special Features: Lever Bypass
• Terminal: Single Mechanical Line Side and Single Mechanical Load Side
• NEMA Rating: 3R
• No. of Jaws: 3
