Product Description

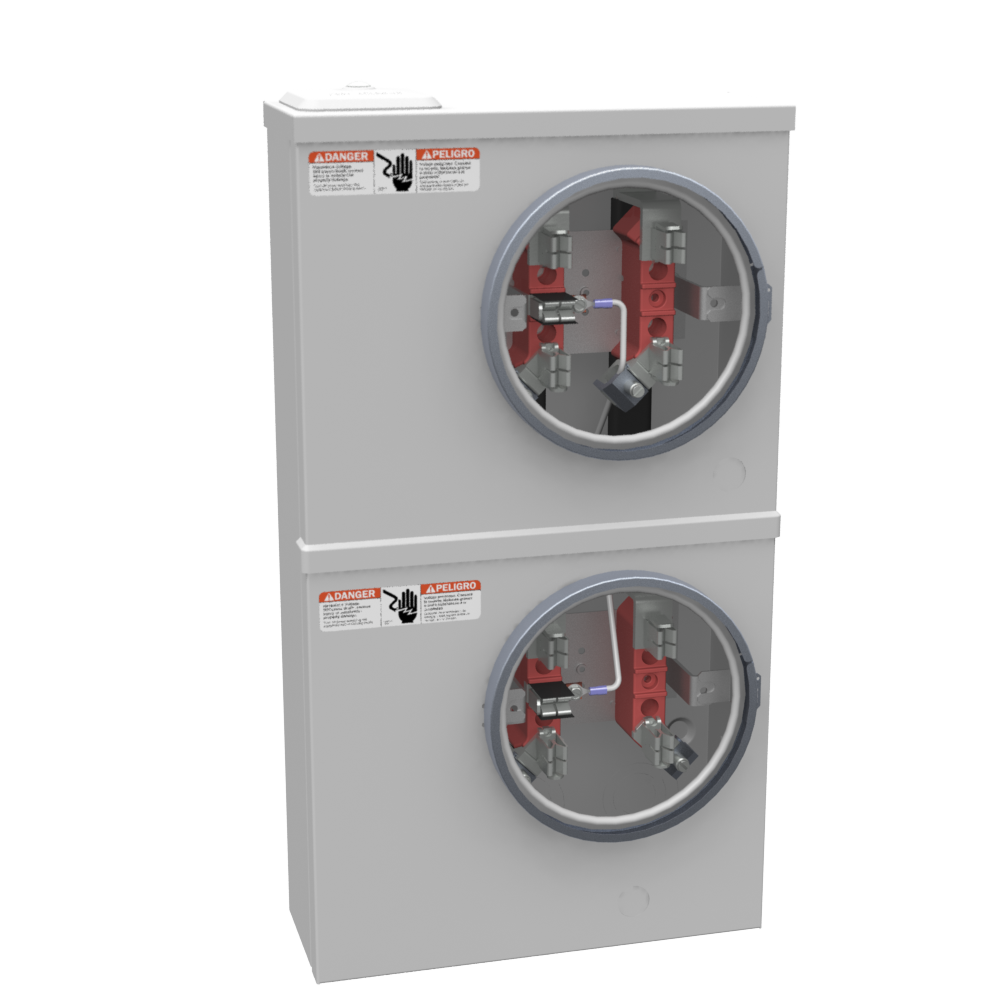

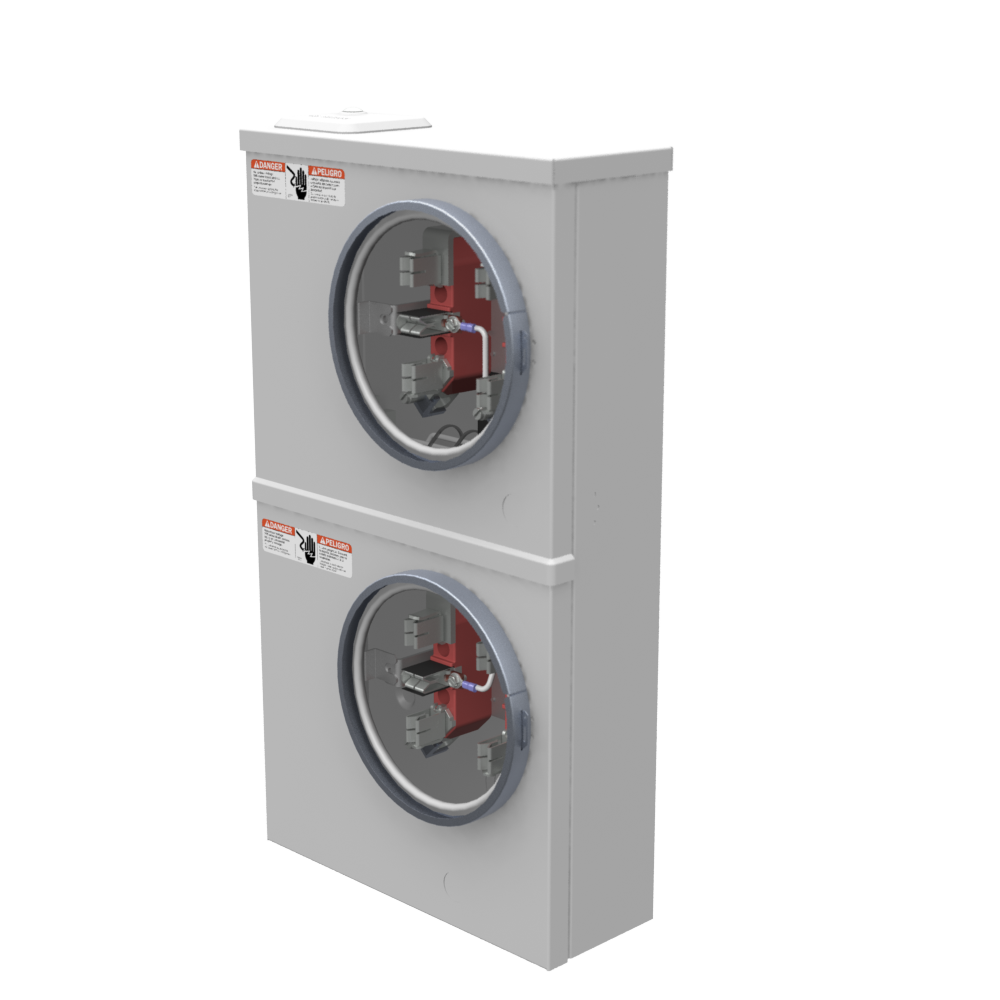

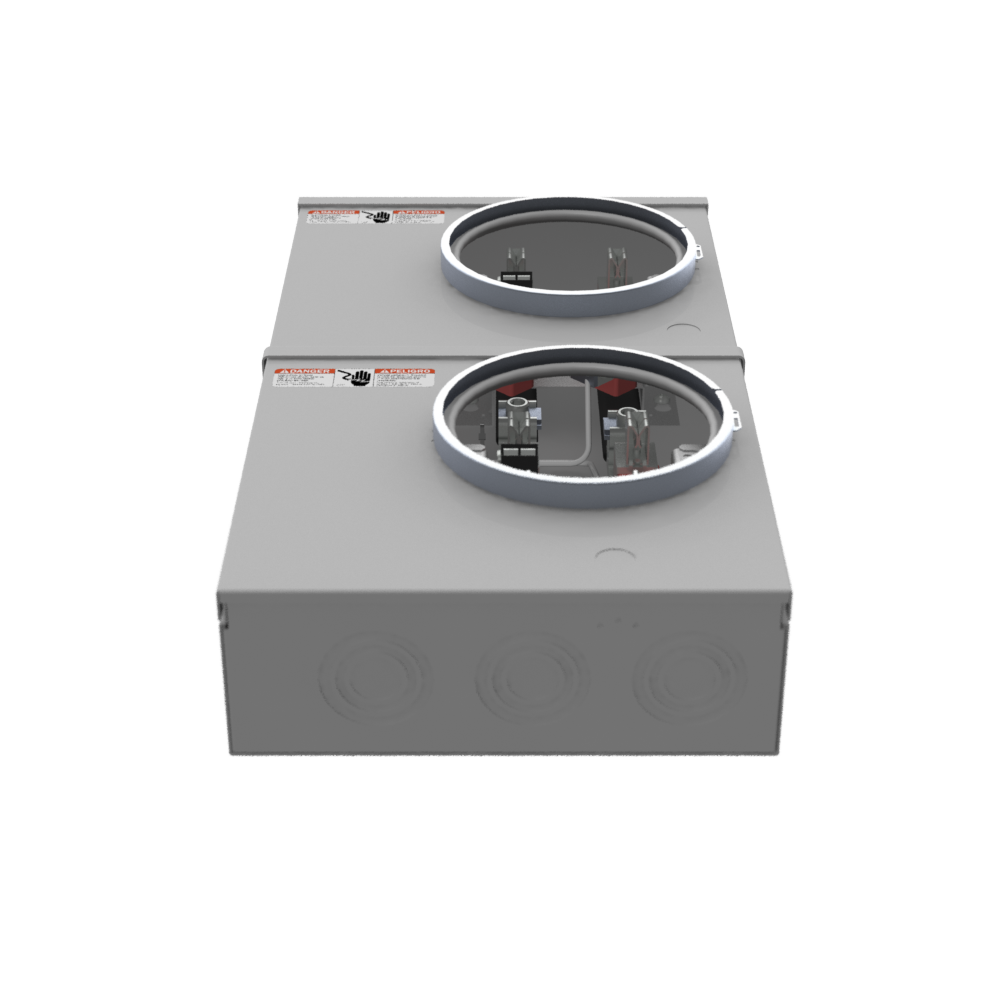

The Milbank U4382-XL-5T-BLG meter socket bank delivers reliable electrical metering for residential and commercial applications. It features a durable G90 galvanized steel construction with powder coat finish and a Type 3R enclosure rating. This surface-mount meter socket provides 100 continuous ampere capacity with 5 terminal ringless design.
- Provides reliable power capacity for demanding residential and commercial electrical loads
- Accommodates dual meter installations for multi-unit or split service applications
- Delivers superior corrosion resistance and long-term durability in outdoor environments
Product Highlights
This meter socket ensures protection against rain, sleet, and ice formation for reliable outdoor operation. Includes knockout and angle bracket for secure meter installation and theft prevention. Meets rigorous safety standards for professional electrical installations.
Product Information
Standard Information
-
Brand: MILBANK
-
Manufacturer Part Number: U4382-XL-5T-BLG
Technical Specifications
-
Amperage Rating: 100 Continuous Ampere
-
Application: Meter Socket
-
Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
-
Brand Name: Milbank
-
Bypass Provision: No Bypass
-
Cable Entry: Overhead or Underground
-
Main Breaker Size: No Main Breaker
-
Material: G90 Galvanized Steel with Powder Coat Finish
-
Equipment Ground: 3 Barrel Ground Lug and Ground Bar
-
Frequency Rating: 60 Hertz
-
Hub/Closing Plate: Small Closing Plate
-
Number of Jaws: 5 Terminal
-
Knockouts: True
-
Line Side Wire Range: 6 AWG - 250 kcmil
-
Load Side Wire Range: 6 - 2/0 AWG
-
Mounting: Surface Mount
-
Number of Main Breakers: 0
-
Number of Meter Positions: 2 Positions
-
Number Of Receptacles: 0
-
Phase: 1 Phase
-
Standard: UL Listed;Type 3R
-
Terminal: Lay in
-
Type: Ring Type Meter Socket
-
Voltage Rating: 600 Volts Alternating Current
-
Height: 21.5 IN
-
Length: 4.188 IN
-
Width: 12 IN
-
Amps: 100
