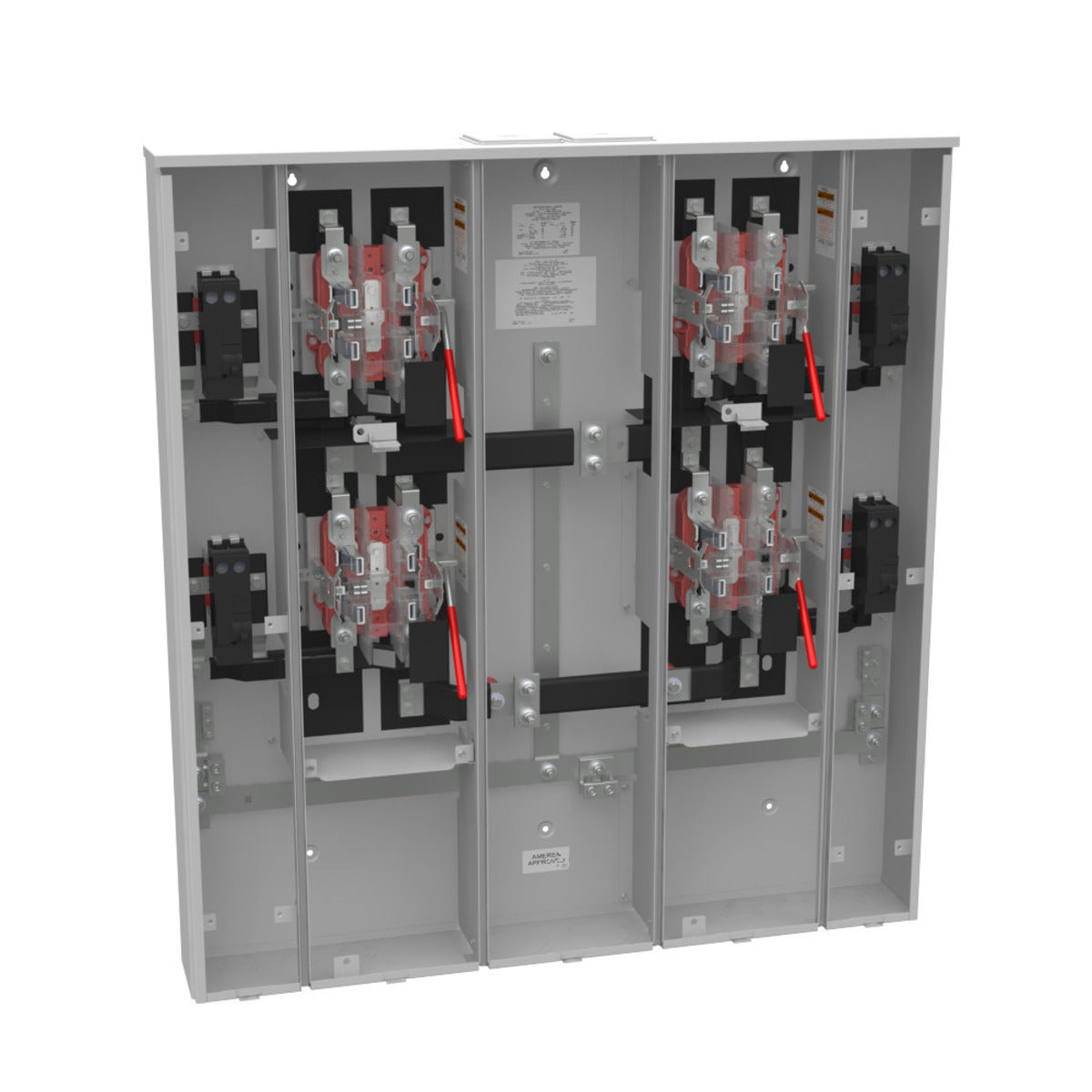

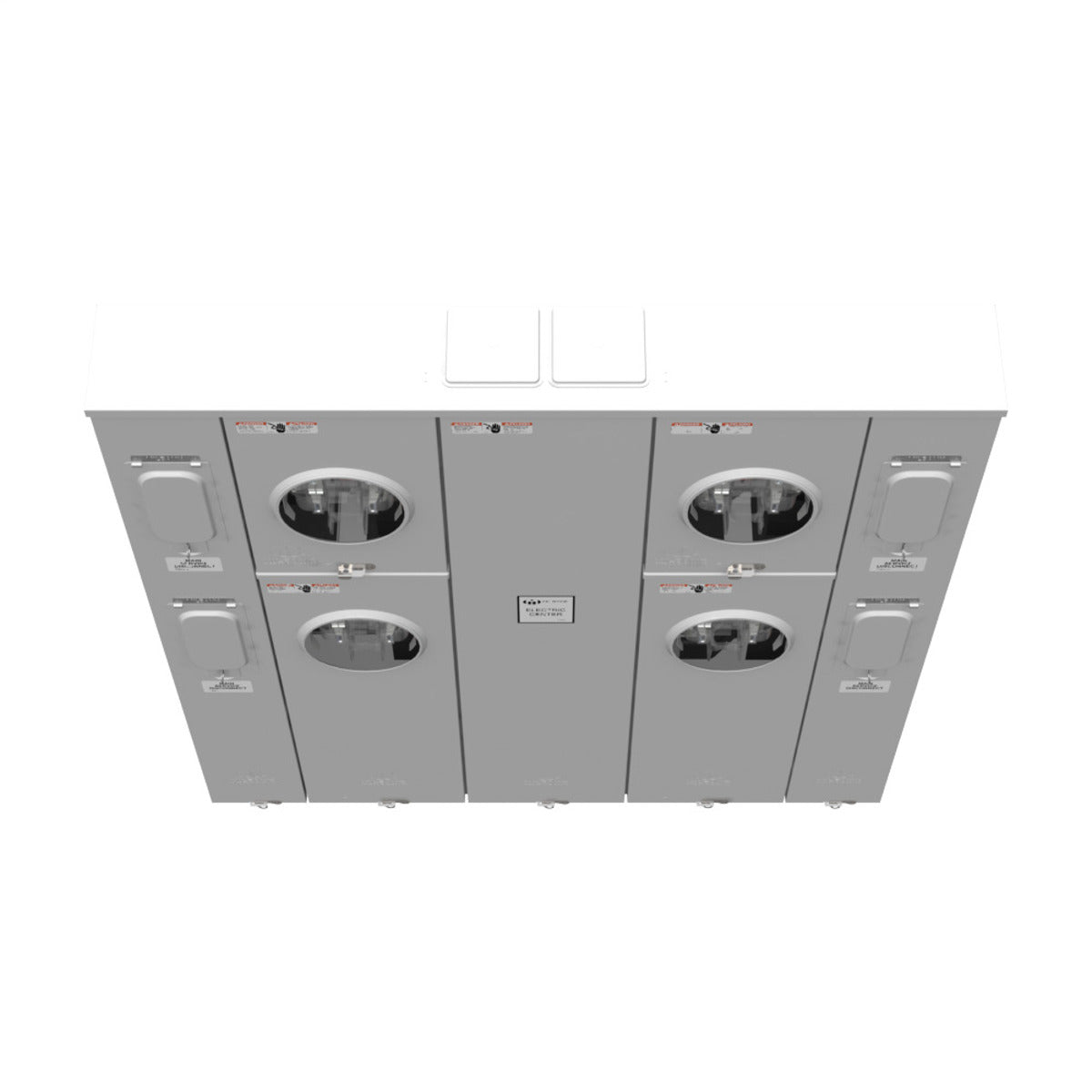

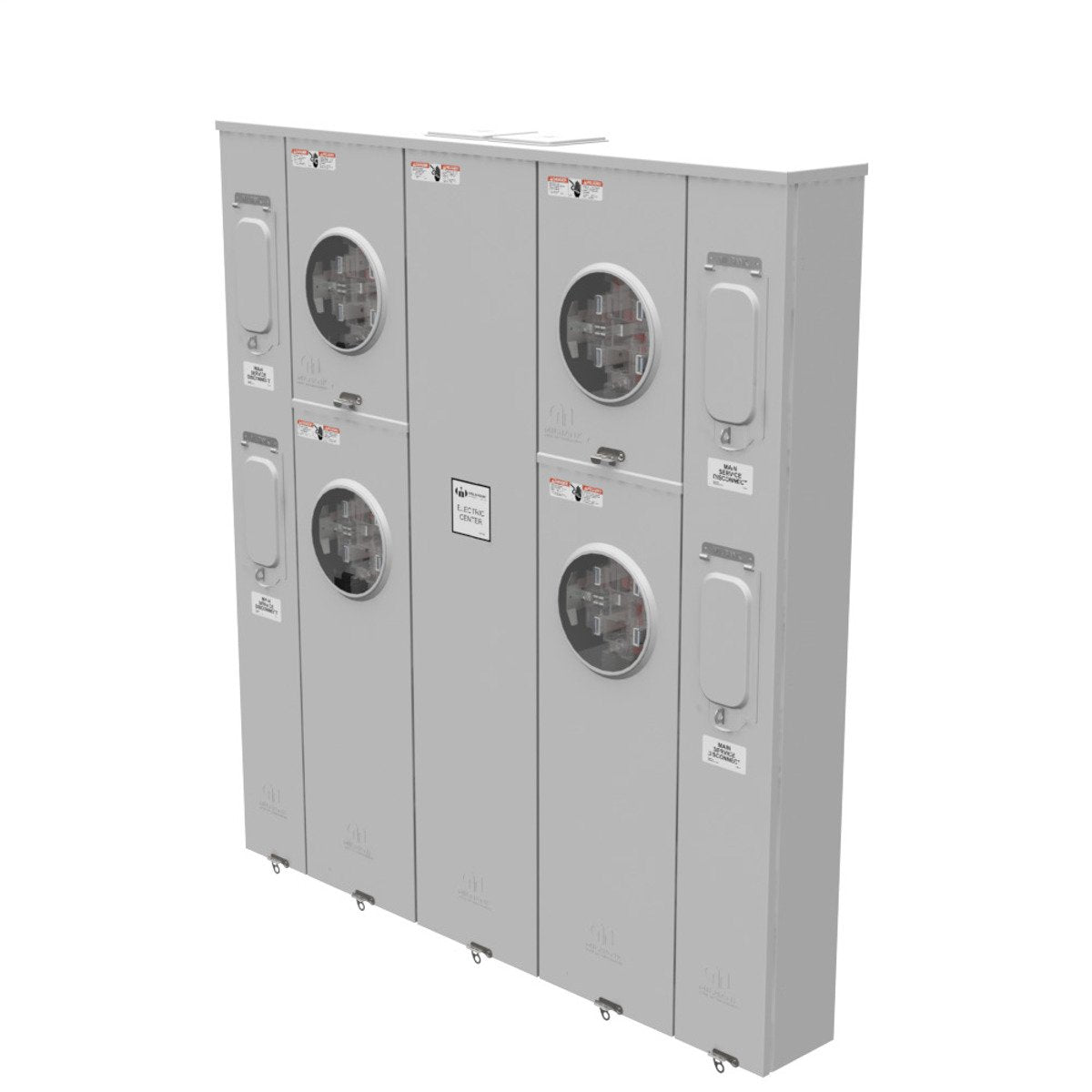

Milbank U4374-XT-5T9-AMS Ringless Meter Socket With Main 240 VAC 200 Ampere NEMA 3R

Product Description

The Milbank U4374-XT-5T9-AMS is a ringless meter socket designed for both overhead and underground cable entry. This product features a main connection with a capacity of two hundred amperes and a voltage rating of two hundred forty volts. It is built to comply with NEMA 3R standards and is UL listed for safety.

• Ringless design with a main connection
• Five terminal jaws for efficient connection
• Lever bypass mechanism for easy operation

Product Highlights

This meter socket offers four meter positions, a durable surface mount design, and a galvanized steel enclosure that resists rust and corrosion.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer Part Number: U4374-XT-5T9-AMS

Technical Specifications

• Voltage Rating: 240 V
• Amperage Rating: 200 A
• Dimensions: 6 inches Length x 45 inches Width x 48 inches Height
• Material: G90 Galvanized Steel
• Insulation: Glass Polyester
• Phase: 1
• Frequency Rating: 60 Hz
• Bypass Type: Lever
