Milbank U4373-XT-5T9-AMS Ringless Meter Socket with Main 240 VAC 200 Ampere NEMA 3R

Product Description

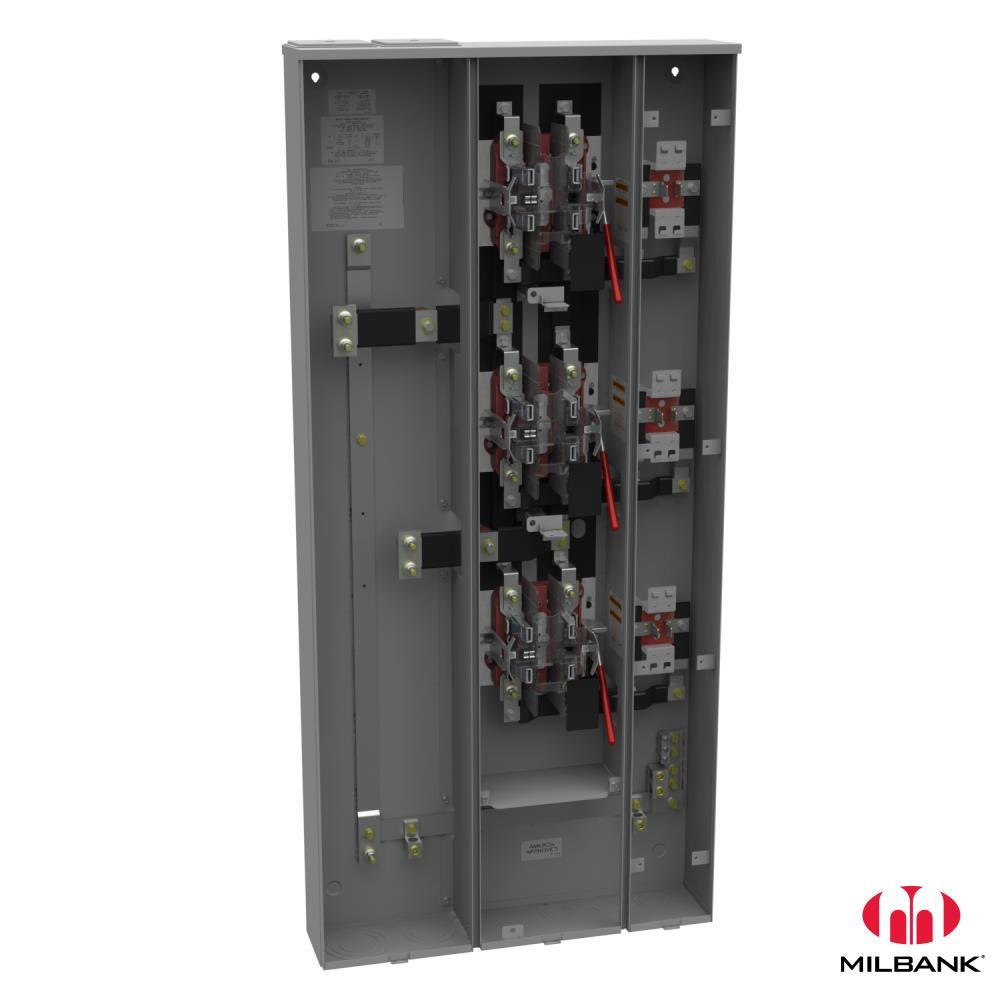

The Milbank U4373-XT-5T9-AMS is a ringless meter socket designed for efficient power distribution. It operates at 240 VAC and supports a maximum current of 200 amperes. The device is Enclosure rated to NEMA 3R standards, making it suitable for outdoor installations.

• Five terminal jaws for connection.
• Lever bypass type for operational flexibility.
• Overhead or underground cable entry options.

Product Highlights

This meter socket allows for three meter positions and is built with G90 galvanized steel for durability. Its glass polyester insulation adds to its safety features. The unit is UL listed and Ameren approved, ensuring reliability in various installations.

Product Information

Standard Information

• Catalog Number: U4373-XT-5T9-AMS
• Brand: Milbank

Technical Specifications

• Voltage Rating: Up to 240 Volts Alternating Current
• Amperage Rating: 200 Amperes
• Frequency Rating: 60 Hertz
• Enclosure Type: NEMA 3R
• Dimensions: Six inches (Length) x twenty-seven point seventy-five inches (Width) x sixty inches (Height)
• Material: G90 Galvanized Steel with Powder Coat Finish
• Application: Meter Socket with Main
• Bypass Type: Lever
• Number of Jaws: Five Terminal
• Country of Origin: United States
