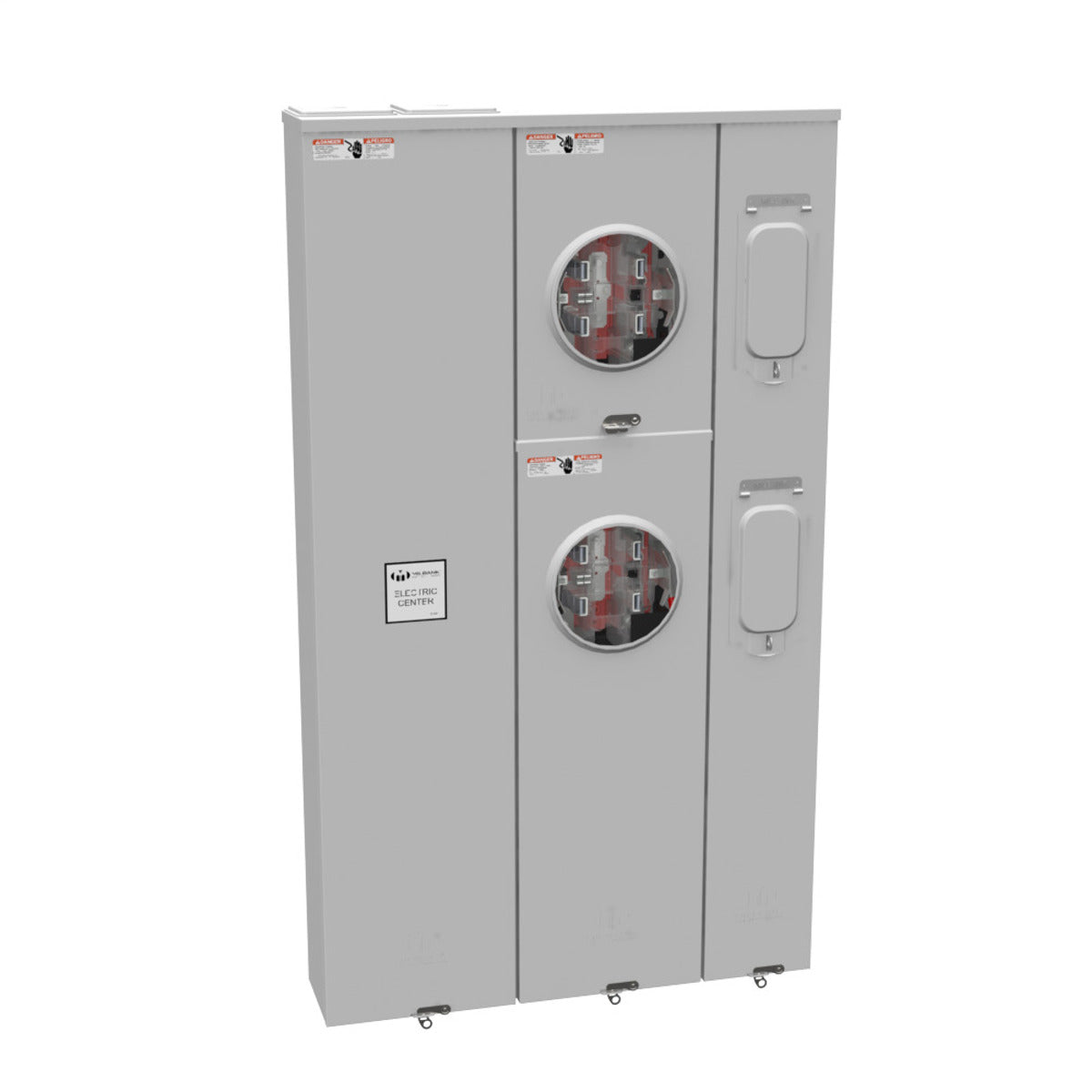

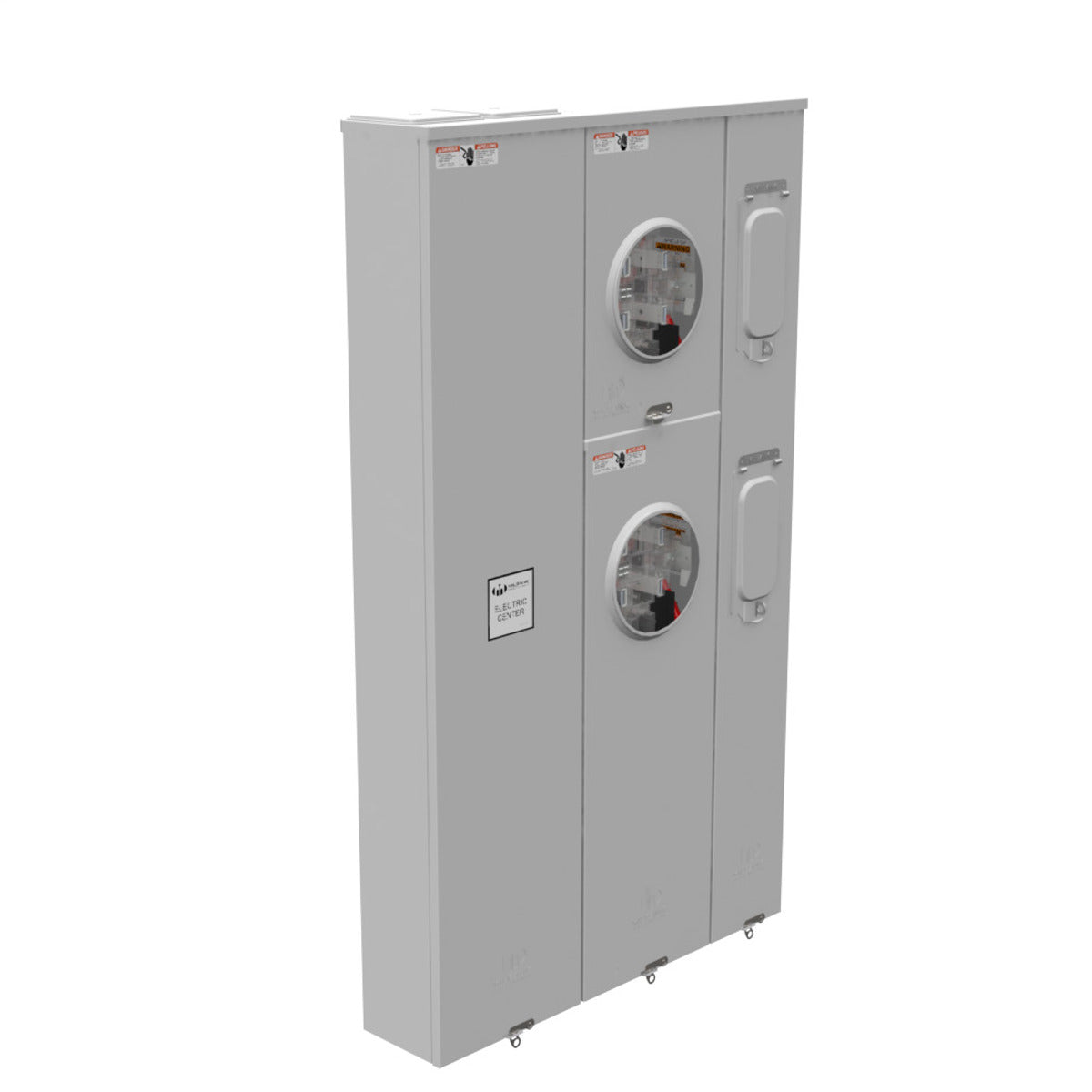

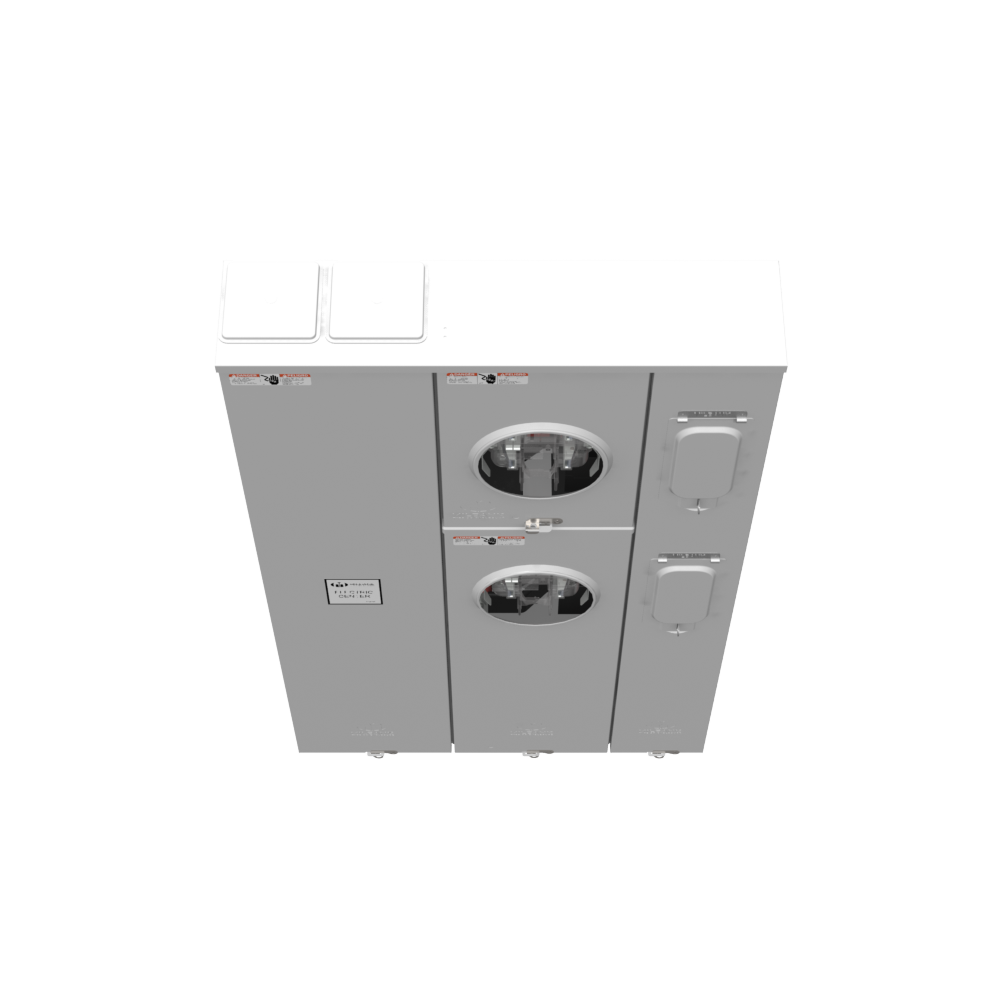

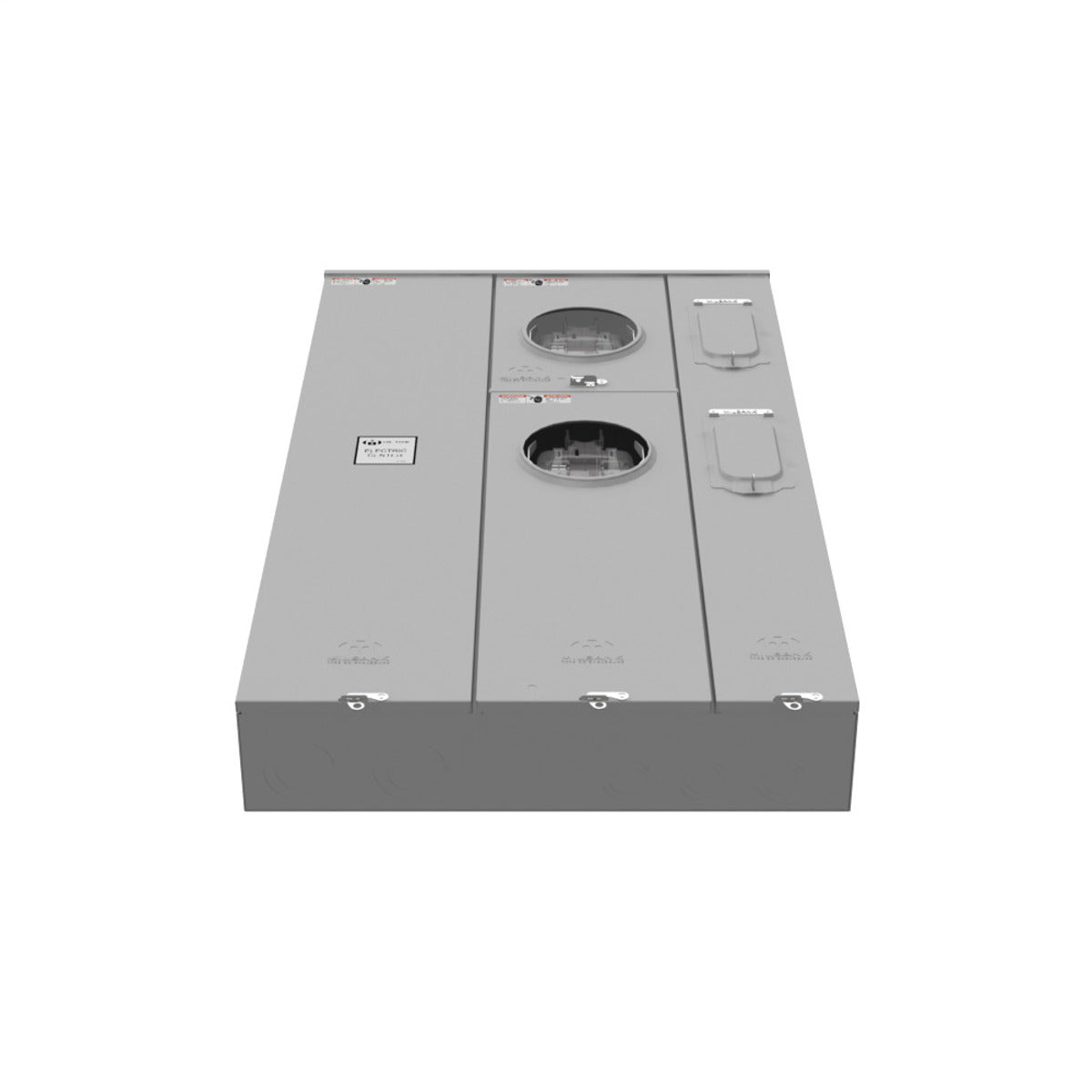

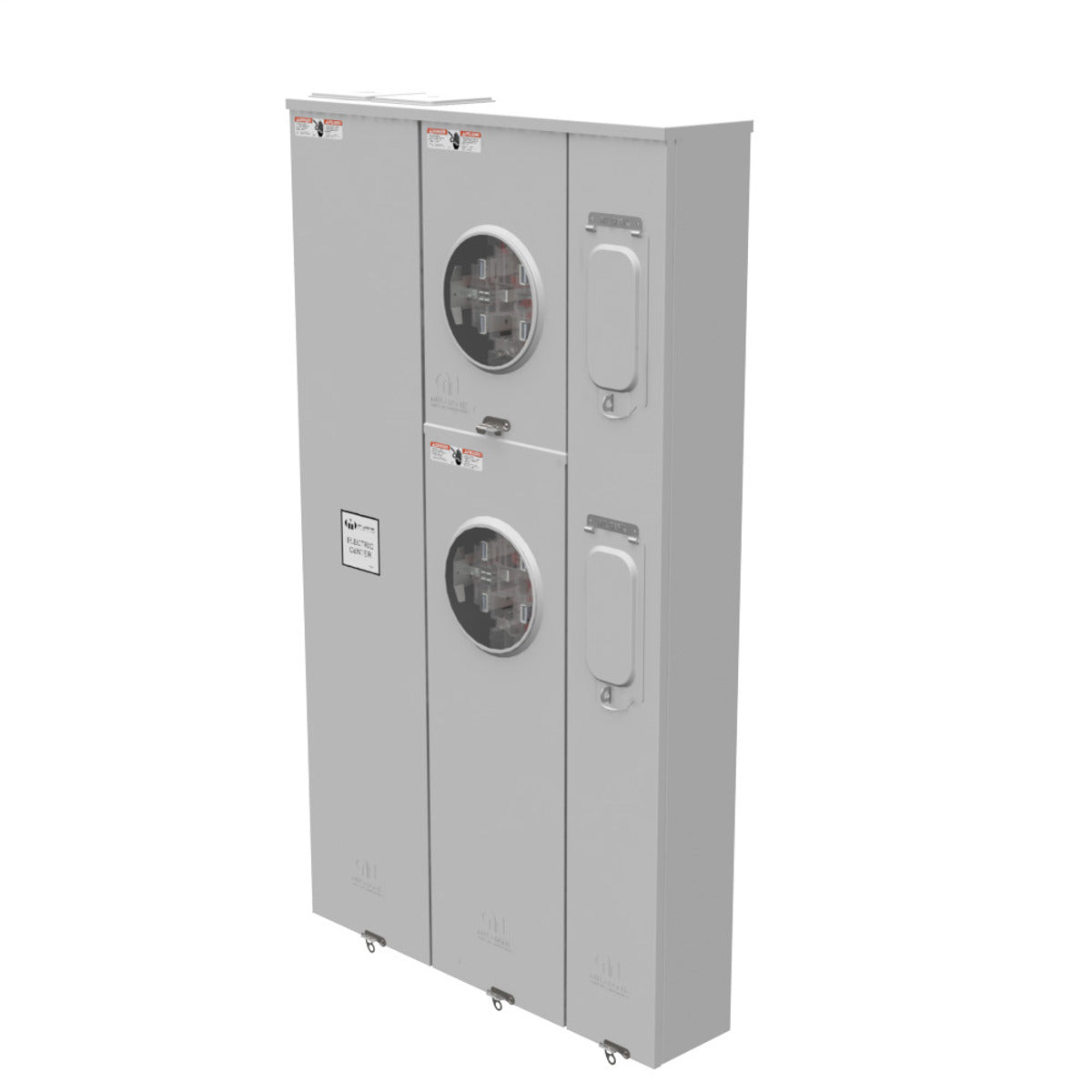

Milbank U4372-XT-5T9 5 term, ringless, 2 large closing plates, lever bypass, 2 position 2-200 amp, main breaker provision, 5th term 9 o'clock position

Product Description

The Milbank U4372-XT-5T9 is a ringless meter socket, featuring a 200 amperage rating and 240 V voltage rating for 1-phase electrical service. Constructed from G90 galvanized steel with a powder coat finish, this surface-mount unit meets Type 3R standards. It includes a lever bypass and provision for a main breaker, suitable for multi-position electrical distribution setups.

• 5 Terminal ringless design for secure connections.
• Lever bypass mechanism for service interruption.
• Main breaker provision with 2 position capacity.

Product Highlights

Multi-position meter socket with 5 terminals, lever bypass, and Type 3R enclosure.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U4372-XT-5T9
• Country of Origin: United States

Technical Specifications

• MPN: U4372-XT-5T9
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 200
• Application: Meter Socket
• Bypass Type: Lever
• Cable Entry: Overhead Or Underground
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hz
• Insulation Material: Glass Polyester
• Mounting Type: Surface Mount
• Number of Jaws: 5 Terminal
• Phase: 1
• Standard: Type 3R
• UPC: 784572263277
• GTIN: 00784572263277
• Product Type: Ringless Meter Socket
• Terminal Type: 3/8 Inch Stud
• Voltage Rating: 240 V
• Main Breaker Size: No Main Breaker
• Equipment Ground: Ground Lug
• Hub Style: Twin Large Closing Plates
• Knockouts: True
• Number of Branch Circuits: 2
• Number of Main Breakers: 2
• Number of Meter Positions: 2 Positions
• Number of Receptacles: 0
• Category: Meter Sockets - Multi Position
• Interrupt Rating AC: 10 kA
