Milbank U4322-O-200MB-5T9 5 Term, Ringless, Plain Top, Lever Bypass, 1-200 Amp, Main Breaker, 5th Term 9 Oclock Position, Single Pedestal Direct Bury

Brand: MILBANK
SKU: U4322-O-200MB-5T9
Availability: In Stock

Ships via freight in 1-3 business days

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$2,011.71
$2,011.71
LTL Delivery

This product weighs 80 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

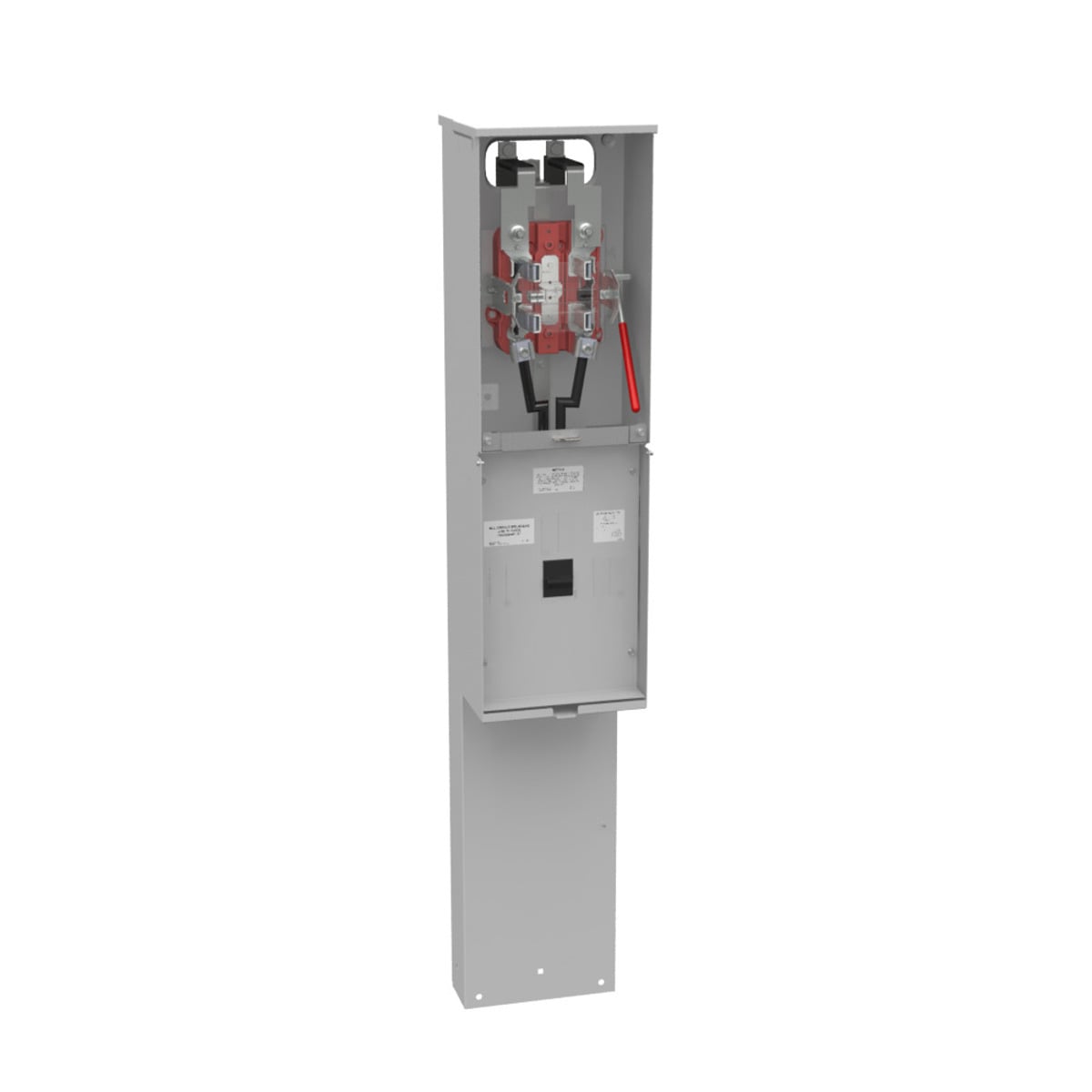

The MILBANK U4322-O-200MB-5T9 is a 5-terminal ringless meter socket with a plain top and lever bypass, designed for single pedestal direct bury applications. It features a 1-200 Amp main breaker and a 5th terminal positioned at 9 o'clock. Constructed from G90 galvanized steel with a powder coat finish, this unit is UL Listed and Type 3R standard, suitable for up to 240 Volts AC. It supports underground cable entry and includes glass polyester insulation.

  • 5-terminal ringless meter socket with lever bypass for efficient power management.
  • Integrated 1-200 Amp main breaker and 5th terminal at 9 o'clock position.
  • G90 galvanized steel enclosure with powder coat finish, UL Listed Type 3R standard.

Product Highlights

Single pedestal direct bury design for underground cable entry, featuring a 4 barrel ground lug and glass polyester insulation.

Product Information

Standard Information

  • Brand: MILBANK
  • Manufacturer Part Number: U4322-O-200MB-5T9
  • Country of Origin: United States

Technical Specifications

  • Part Number: U4322-O-200MB-5T9
  • Made in USA: Yes
  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main And Load Center
  • Bypass Type: Lever Bypass
  • Cable Entry: Underground
  • Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Mounting: Pedestal
  • Number of Jaws: 5 Terminal
  • Phase: 1 Phase
  • Standard: UL Listed;Type 3R
  • Product Type: Ringless Meter Socket
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Brand: Milbank
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Equipment Ground: 4 Barrel Ground Lug
  • Hub/Closing Plate: Plain Top
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number of Main Breakers: 1
  • Number of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Terminal: Double Mechanical
  • Height: 55.0 IN
  • Length: 10.157 IN
  • Width: 9.875 IN
  • UPC: 784572656529
  • Manufacturer: MILBANK MFG CO
  • Country of Origin: United States
  • GTIN: 00784572656529
  • Sub-Category: Outdoor Pedestal Mount Power Outlet Panel
  • UNSPSC: 39121102
  • Unique Product Key: 7133859
  • Comm Code Enhanced: 33240
