Milbank U4257-X Meter Socket Ringless 320A 4-Jaw UG 1-Position Lever Bypass Large Closing Plate

Product Description

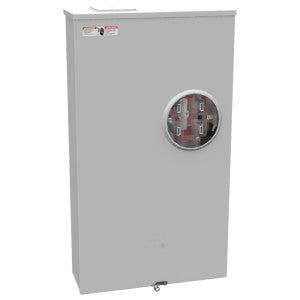

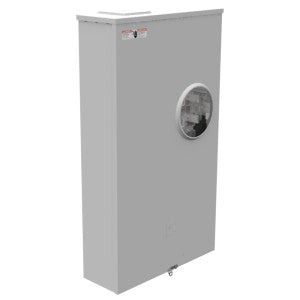

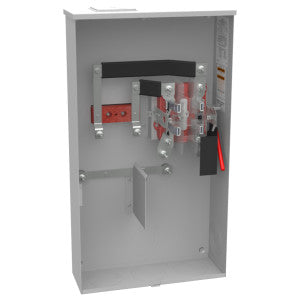

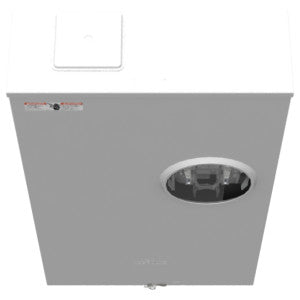

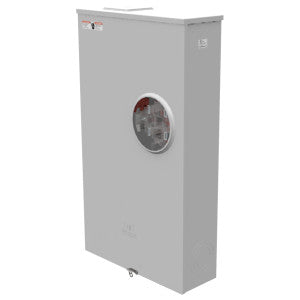

The Milbank U4257-X is a ringless meter socket designed for overhead or underground service. It offers 320 amperes and operates at 600 volts. This meter socket is made from glass polyester insulation and features a NEMA 3R enclosure. It has four jaws that allow for robust connectivity in various applications.

• Rated for overhead and underground use
• Includes four jaws for enhanced performance
• Constructed with durable glass polyester insulation

Product Highlights

This meter socket is suitable for use in residential and commercial settings where reliable power metering is essential.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank Manufacturing

Technical Specifications

• Amperage Rating: 320 A
• Voltage Rating: 600 VAC
• Phase: 1
• Frequency Rating: 60 Hz
• Dimensions: 6.5 inches L x 19 inches W x 34.125 inches H
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
• Number of Jaws: 4
• Terminal Type: Stud
• Hub Type: Large Closing Plate
• Insulation: Glass Polyester
• Feed Type: Overhead/Underground
