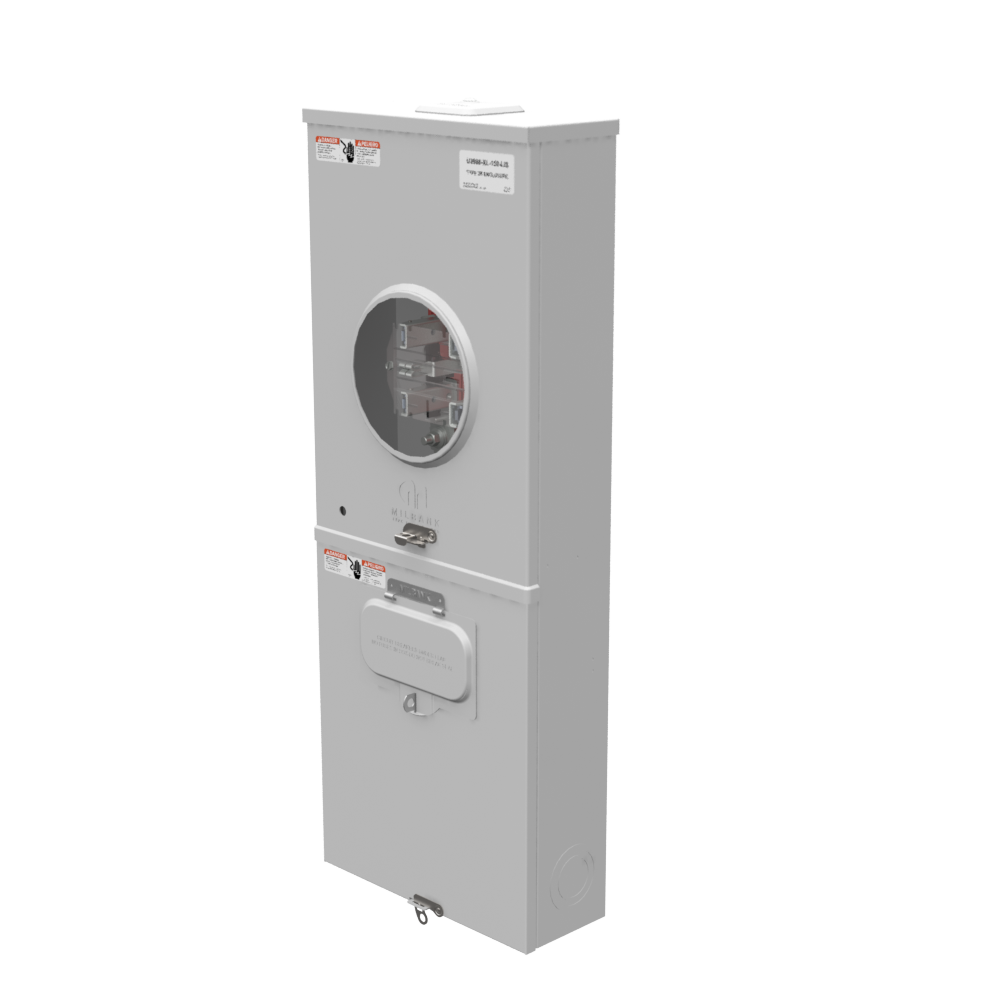

Milbank U3986-XL-150-LIS Meter Socket With Main 150 Ampere Long Island Lighting Company

Product Description

The MILBANK U3986-XL-150-LIS is a 5 terminal ringless meter socket with a 150 ampere main breaker, designed for use with the Long Island Lighting Company. It features a small closing plate and lever bypass. Constructed from G90 galvanized steel with a powder coat finish, it ensures durability and corrosion resistance for overhead or underground cable entry.

• Equipped with a 150A main breaker for overcurrent protection.
• Features a lever bypass for uninterrupted power during meter maintenance.
• Constructed with G90 galvanized steel and powder coat finish for Type 3R weather rating.

Product Highlights

This meter socket provides a reliable solution for single-phase electrical service, offering integrated main breaker protection and lever bypass operation. Ideal for both overhead and underground cable entry applications.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U3986-XL-150-LIS

Technical Specifications

• Amperage Rating: 150 Continuous Ampere
• Application: Meter Socket With Main
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Main Breaker Size: One 150 Ampere Main Breaker
• Material: G90 Galvanized Steel with Powder Coat Finish
• Equipment Ground: 3 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Hub/Closing Plate: Small Closing Plate
• Number of Jaws: 5 Terminal
• Knockouts: True
• Line Side Wire Range: 2 AWG - 350 kcmil
• Load Side Wire Range: 1 AWG - 300 kcmil
• Mounting: Surface Mount
• Number of Main Breakers: 1
• Number of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Special Features: Long Island Lighting Company
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Type: Ringless Meter Socket
• Voltage Rating: Up to 240 Volts Alternating Current
• Height: 34.0 IN
• Length: 4.875 IN
• Width: 13.0 IN
