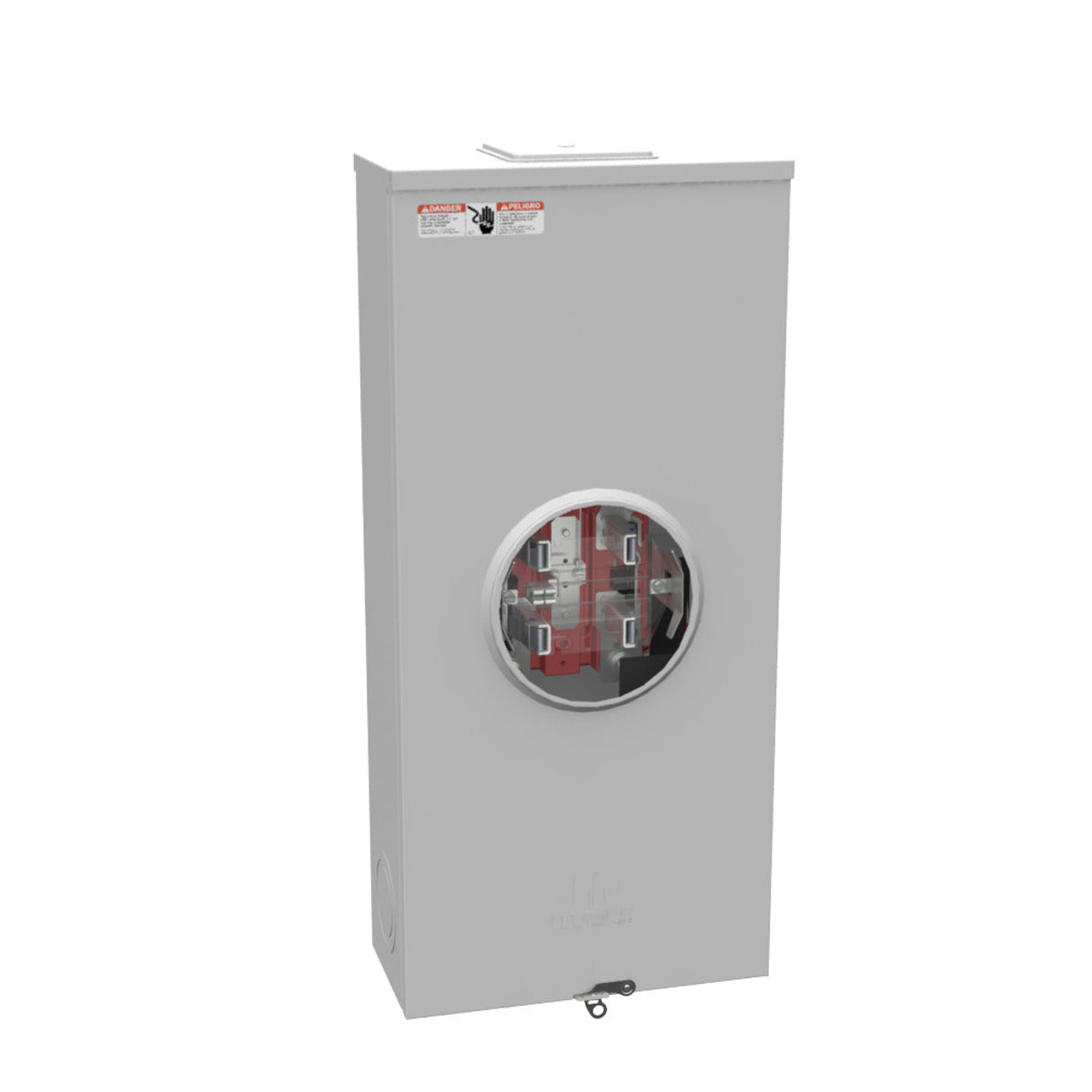

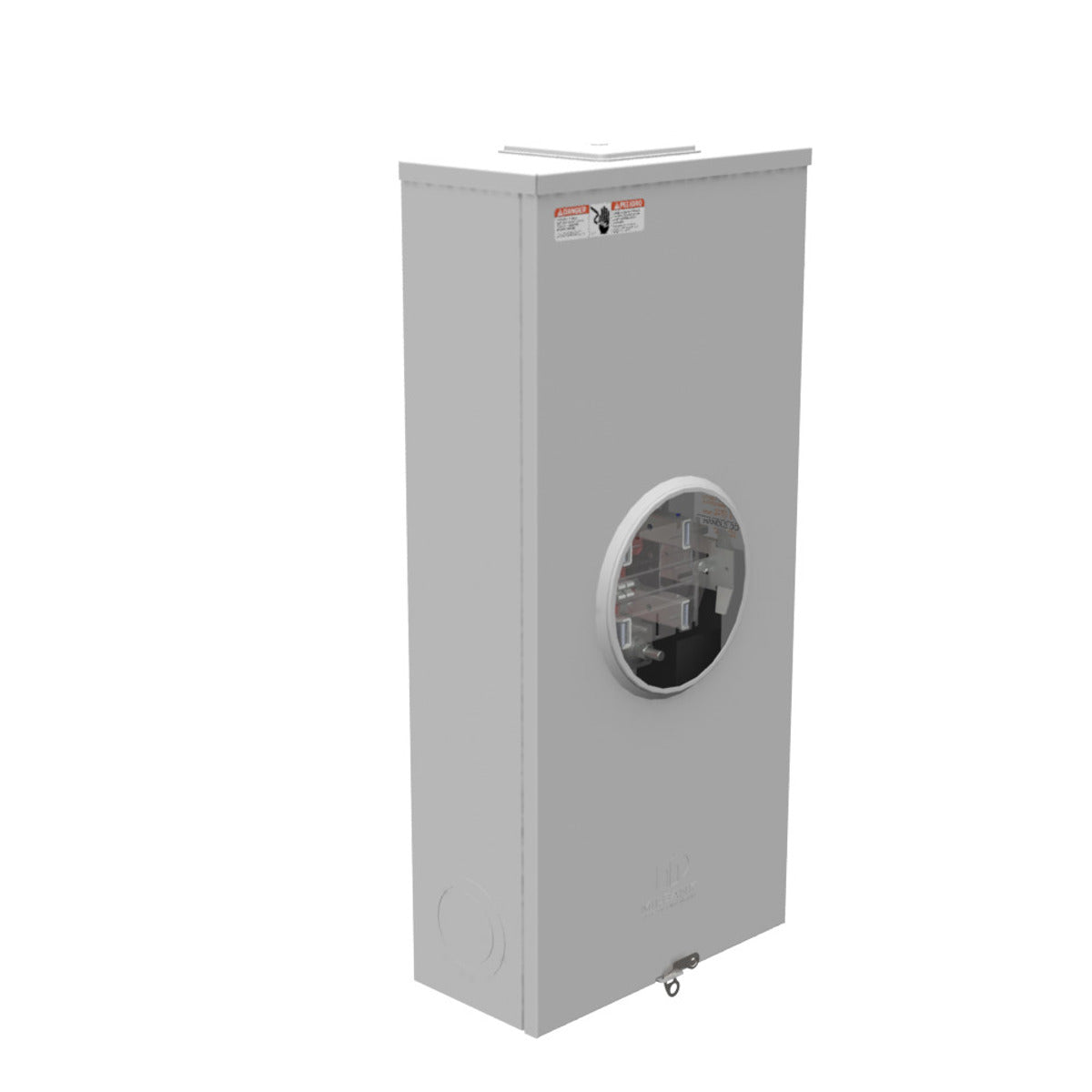

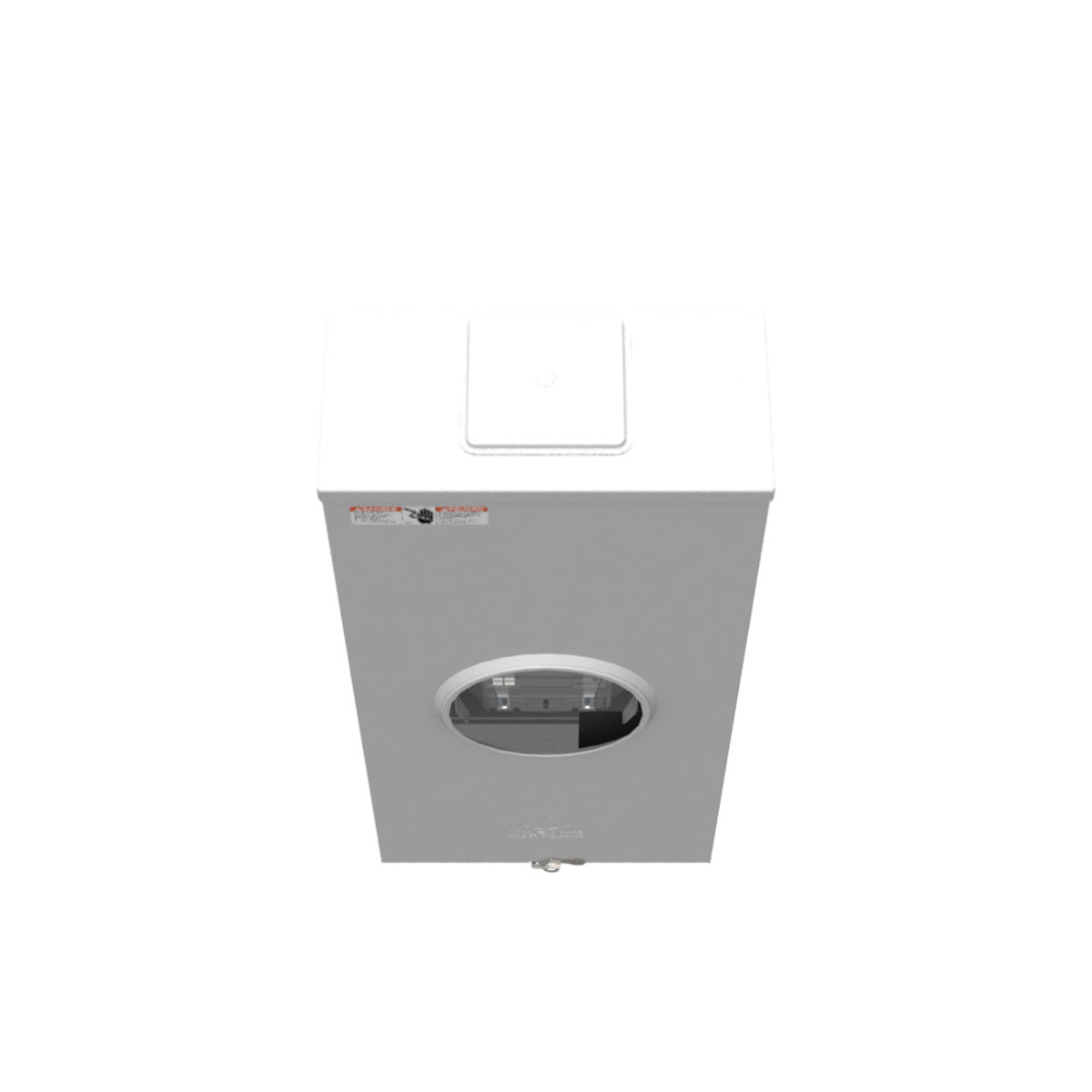

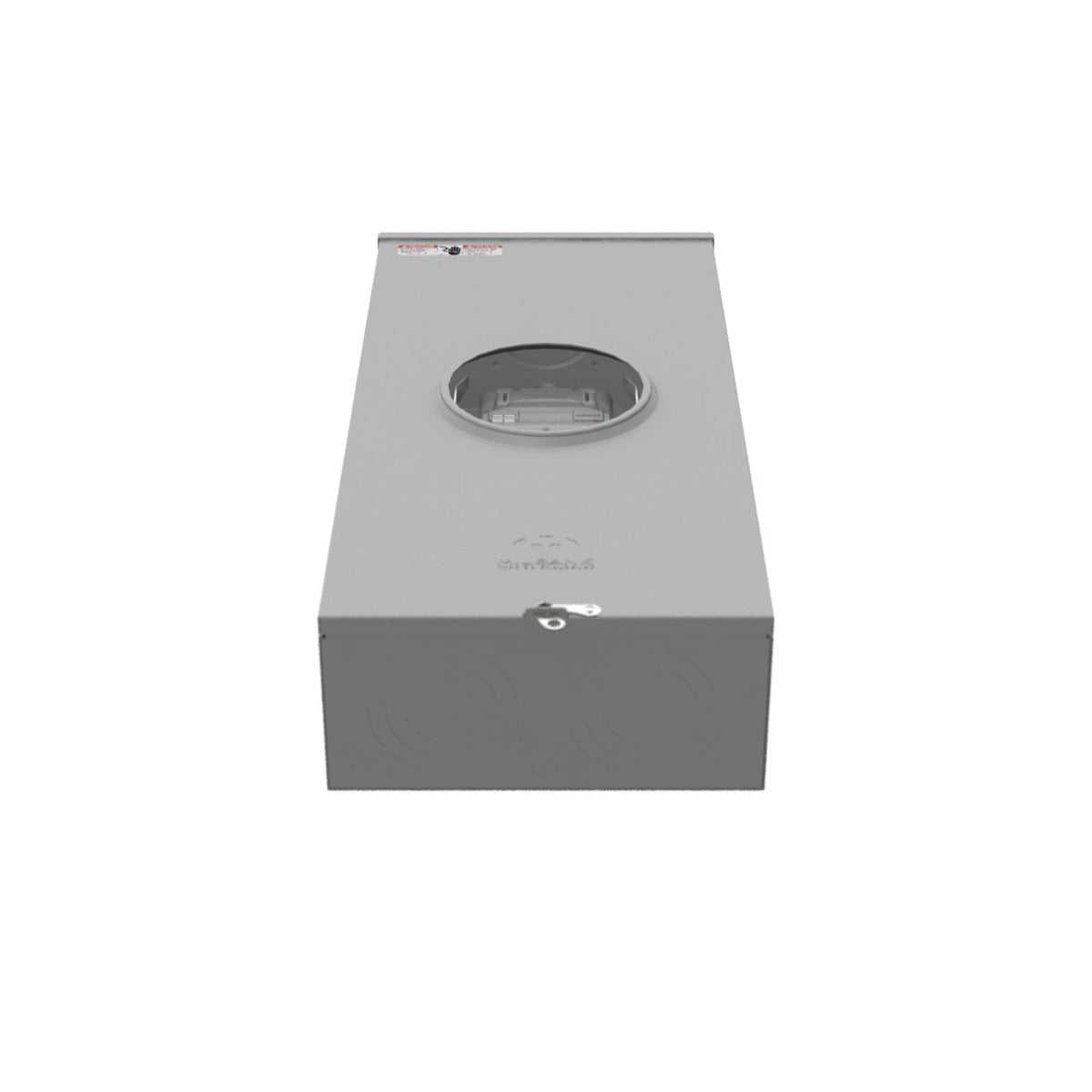

Milbank U3949-X-HSP 5 Term, Ringless, Large Closing Plate, Lever Bypass, Stainless Steel, Hasp 320A

Product Description

The MILBANK U3949-X-HSP is a 320A, 1-phase ringless meter socket designed for overhead service applications. This surface-mount unit features a 5-terminal configuration and a lever bypass provision, allowing for safe maintenance. Constructed from G90 galvanized steel with a powder coat finish, it offers durability and corrosion resistance. The Type 3R enclosure ensures protection against environmental elements, making it suitable for outdoor electrical metering installations up to 600 Volts AC.

• 320 continuous ampere rating for substantial electrical loads.

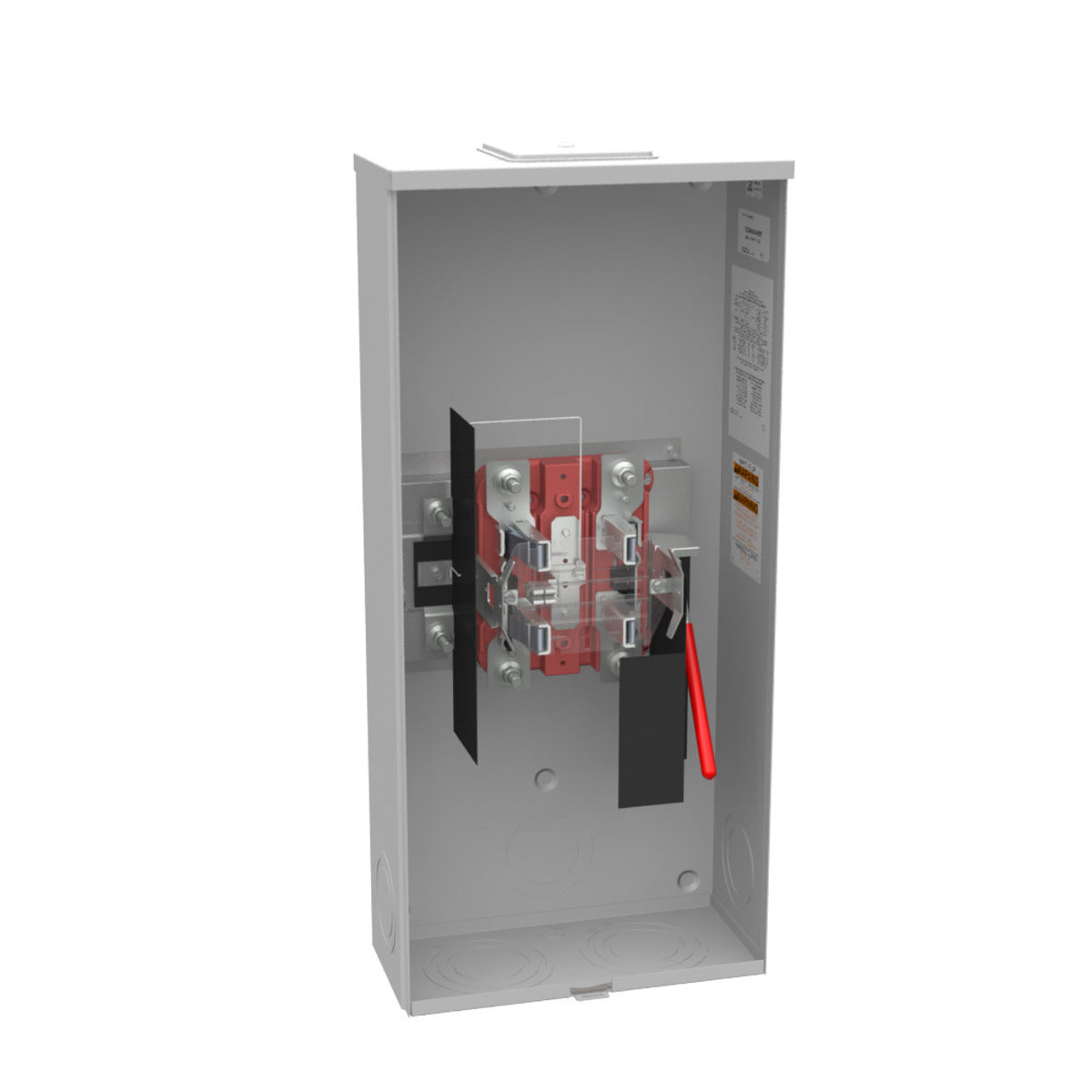

• Integrated lever bypass enables safe meter maintenance without service interruption.
• Type 3R enclosure provides weather-resistant protection for outdoor installation.

Product Highlights

Features a 5-terminal ringless design, G90 galvanized steel construction, and a stainless steel hasp for secure, durable electrical metering.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U3949-X-HSP
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead
• Certifications/Standards: UL Listed; Type 3R; California Proposition 65
• Frequency Rating: 60 Hz
• Grounding: Ground Lug
• Hub/Closing Plate: Large Closing Plate
• Insulation Material: Glass Polyester
• Knockouts: Yes
• Main Breaker: No Main Breaker
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting Type: Surface Mount
• Number of Jaws: 5 Terminal
• Number of Meter Positions: 1 Position
• Number of Receptacles: 0
• Phase: 1 Phase
• Product Type: Ringless Meter Socket
• Terminal Type: 3/8 Inch Stud
• Voltage Rating: 600V AC
