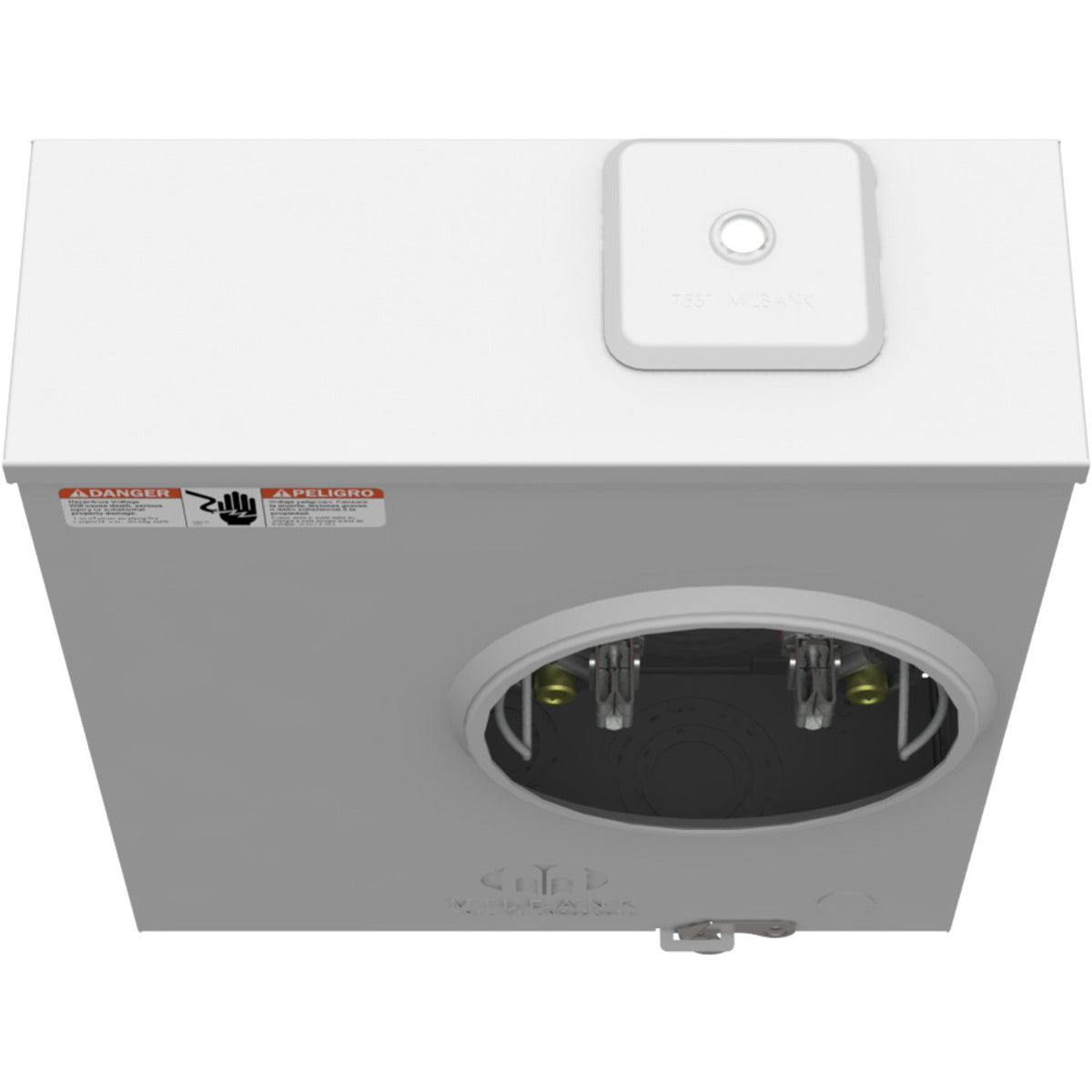

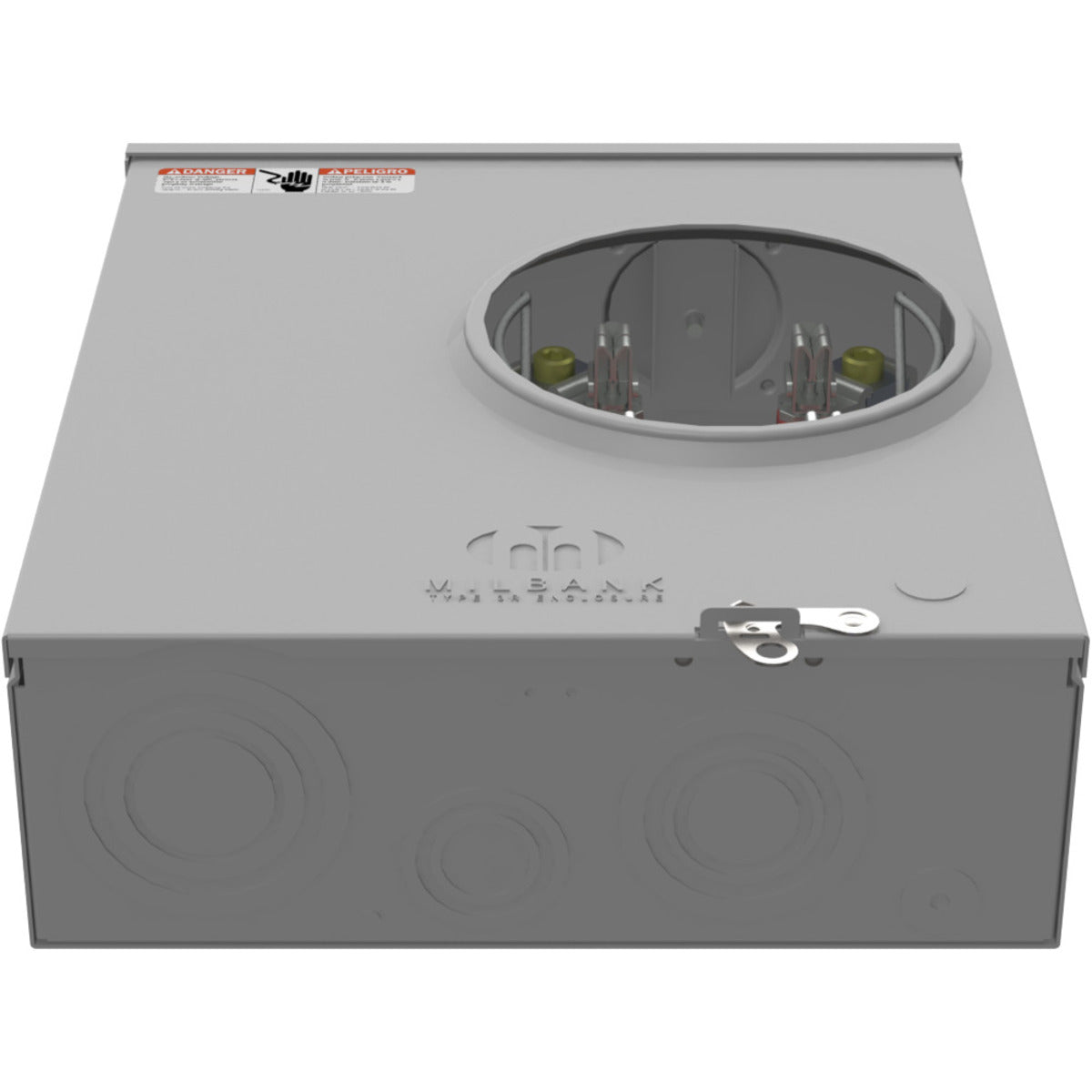

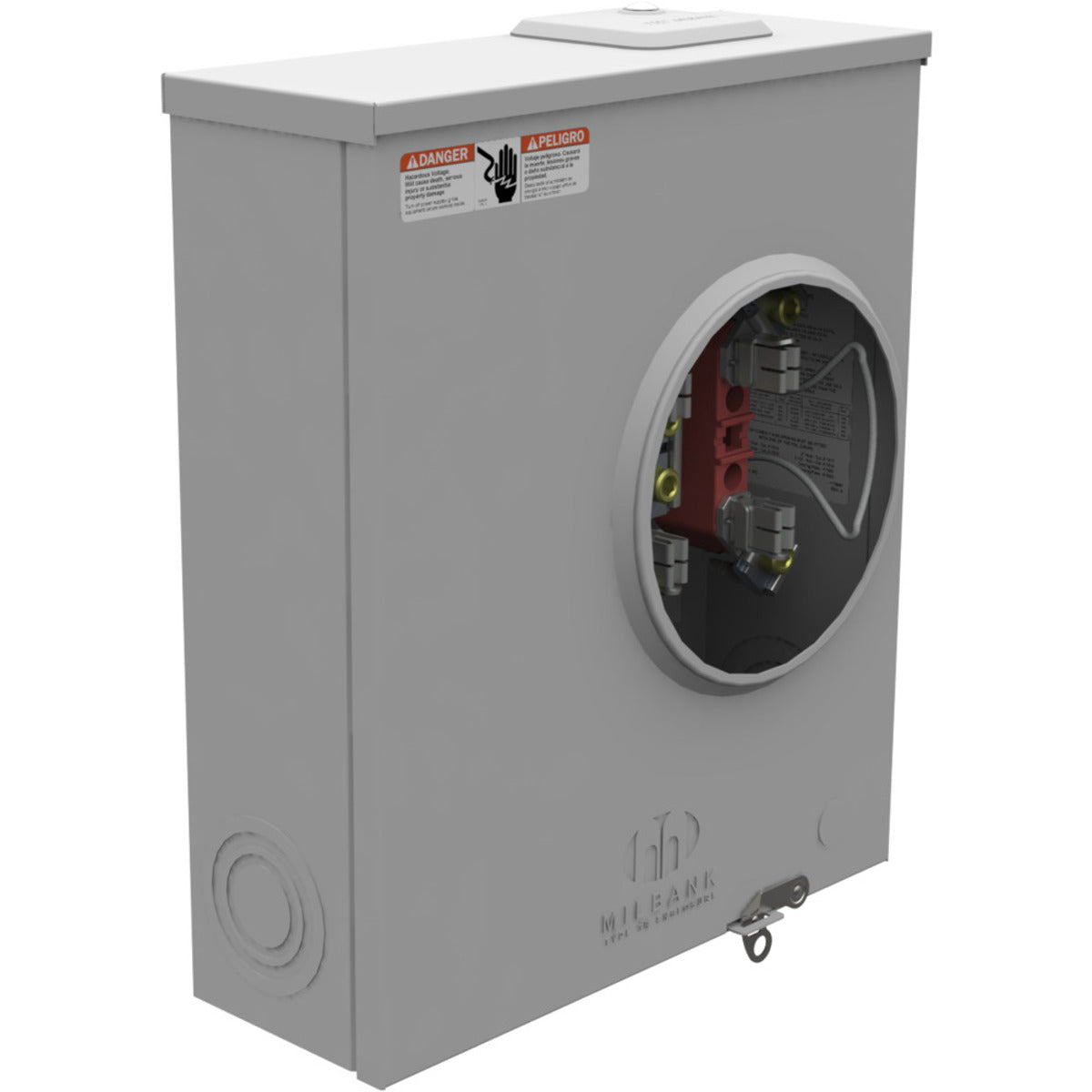

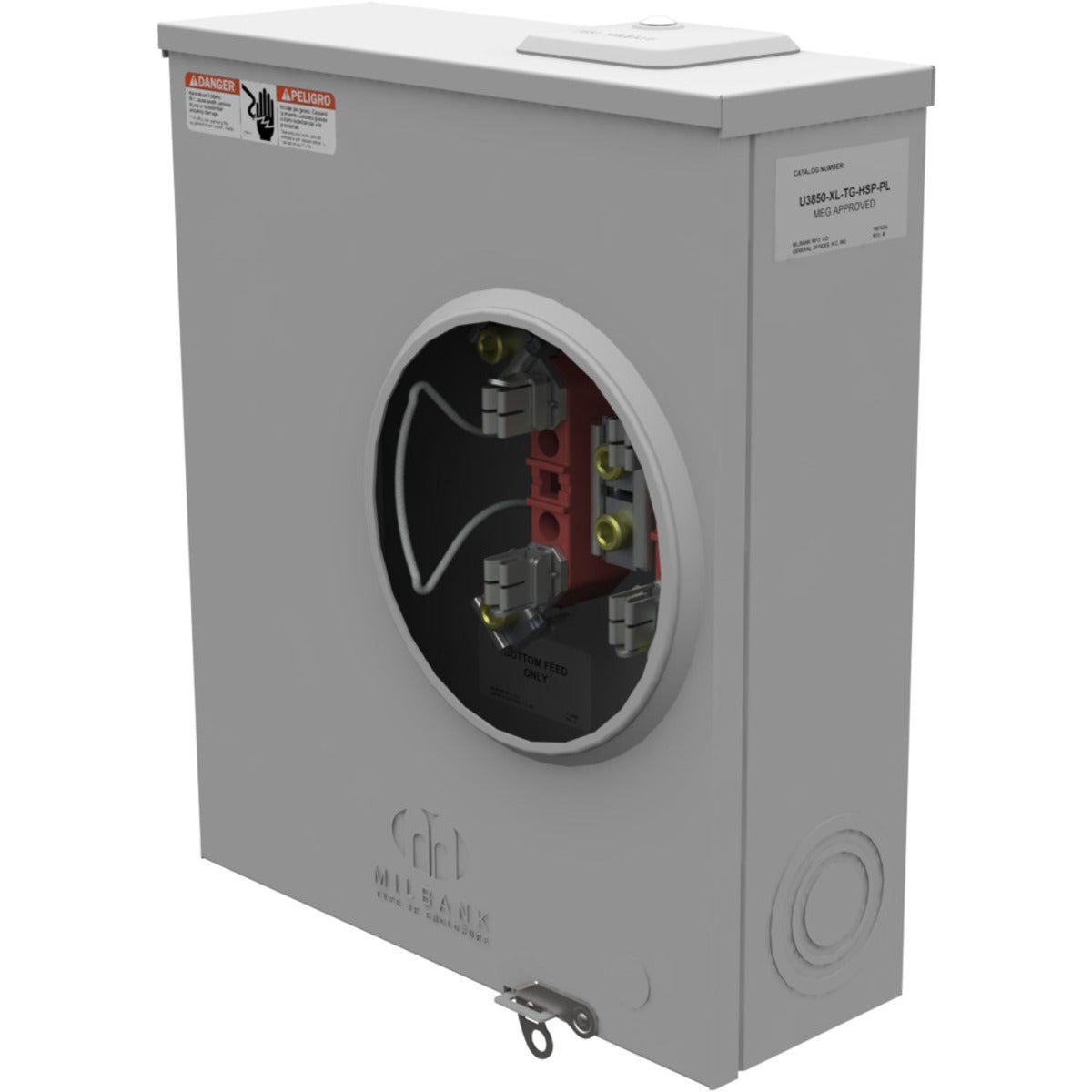

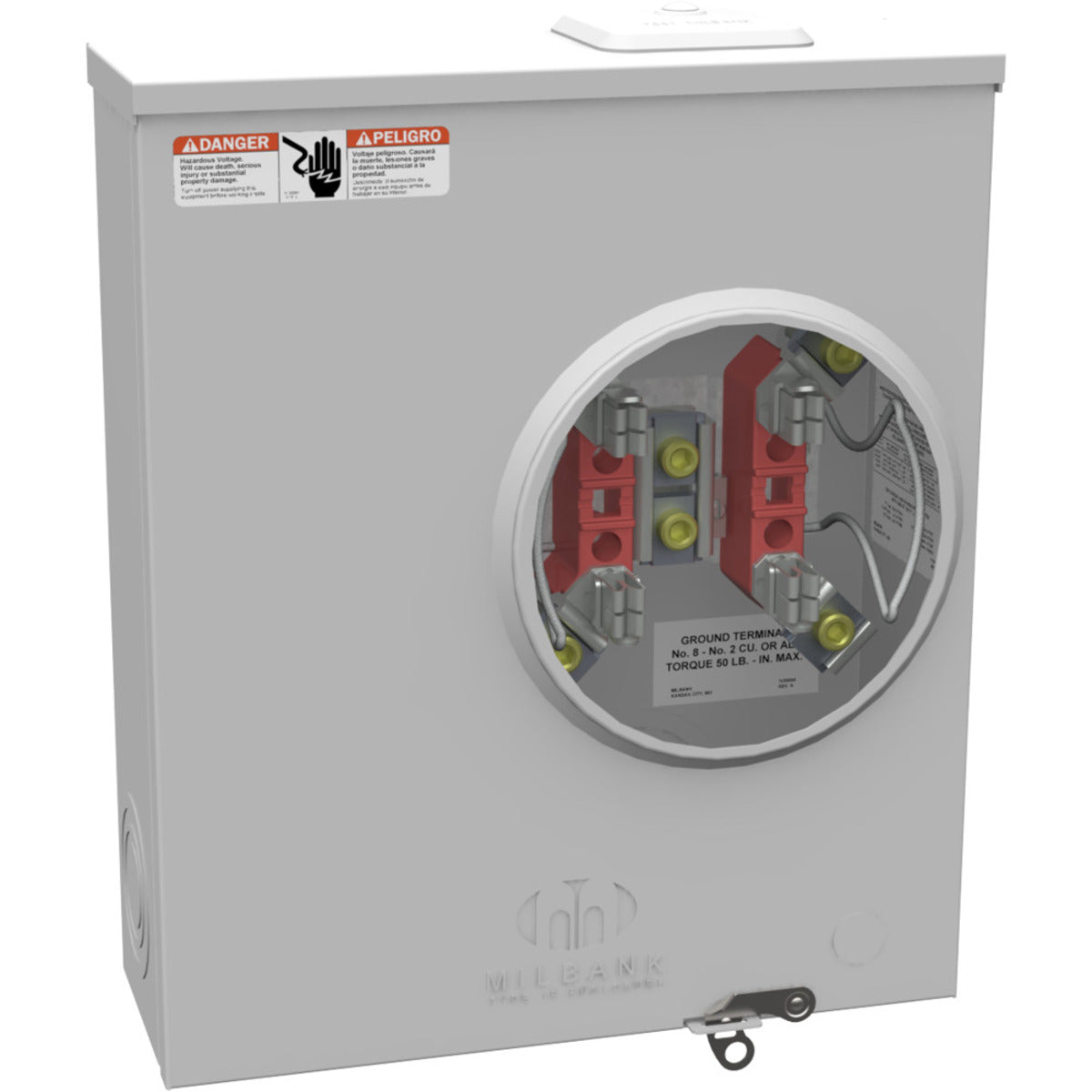

Milbank U3850-XL-TG-HSP-PL 4 Term, Ringless, Small Closing Plate, Triplex Ground, Stainless Steel, Hasp, 7-8 inch Knockout Lock Provision 200A

Product Description

The MILBANK U3850-XL-TG-HSP-PL is a 200 Ampere, 4-terminal ringless meter socket designed for surface mounting. It features a G90 galvanized steel enclosure with a powder coat finish, providing Type 3R protection. This unit supports 600 Volts Alternating Current and is suitable for both overhead and underground cable entry. Key features include a small closing plate, triplex ground, stainless steel hasp, and a 7-8 inch knockout for lock provision.

• 4 Terminal, Ringless design with a Small Closing Plate.
• G90 Galvanized Steel enclosure with Powder Coat Finish and Type 3R rating.
• Features Triplex Ground, Stainless Steel Hasp, and 7-8 inch Knockout Lock Provision.

Product Highlights

Durable 200A meter socket with Type 3R enclosure and versatile cable entry options.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U3850-XL-TG-HSP-PL
• Country of Origin: United States

Technical Specifications

• Country of Origin: US
• Amperage Rating: 200
• Application: Meter Socket
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed;Type 3R
• Product Type: Ringless Meter Socket
• Terminal Type: Lay In
• Voltage Rating: 600 Volts Alternating Current
• ECCN: EAR99
• UNSPSC: 39121102
• Barrel Lock Provision: 7/8 Inch Knockout for Barrel Lock Provision
• Bypass Provision: No Bypass
• Main Breaker Size: No Main Breaker
• Equipment Ground: Triplex Ground
• Hub/Closing Plate: Small Closing Plate
• Knockouts: True
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Meter Positions: 1 Position
• Number Of Receptacles: 0
