Milbank U3850-O-TG-KK 4 Terminal Ringless Plain Top Triplex Ground Horn Bypass Side Wireway 600 VAC 200 Amp 4.5L x 13W x 15.25H

Product Description

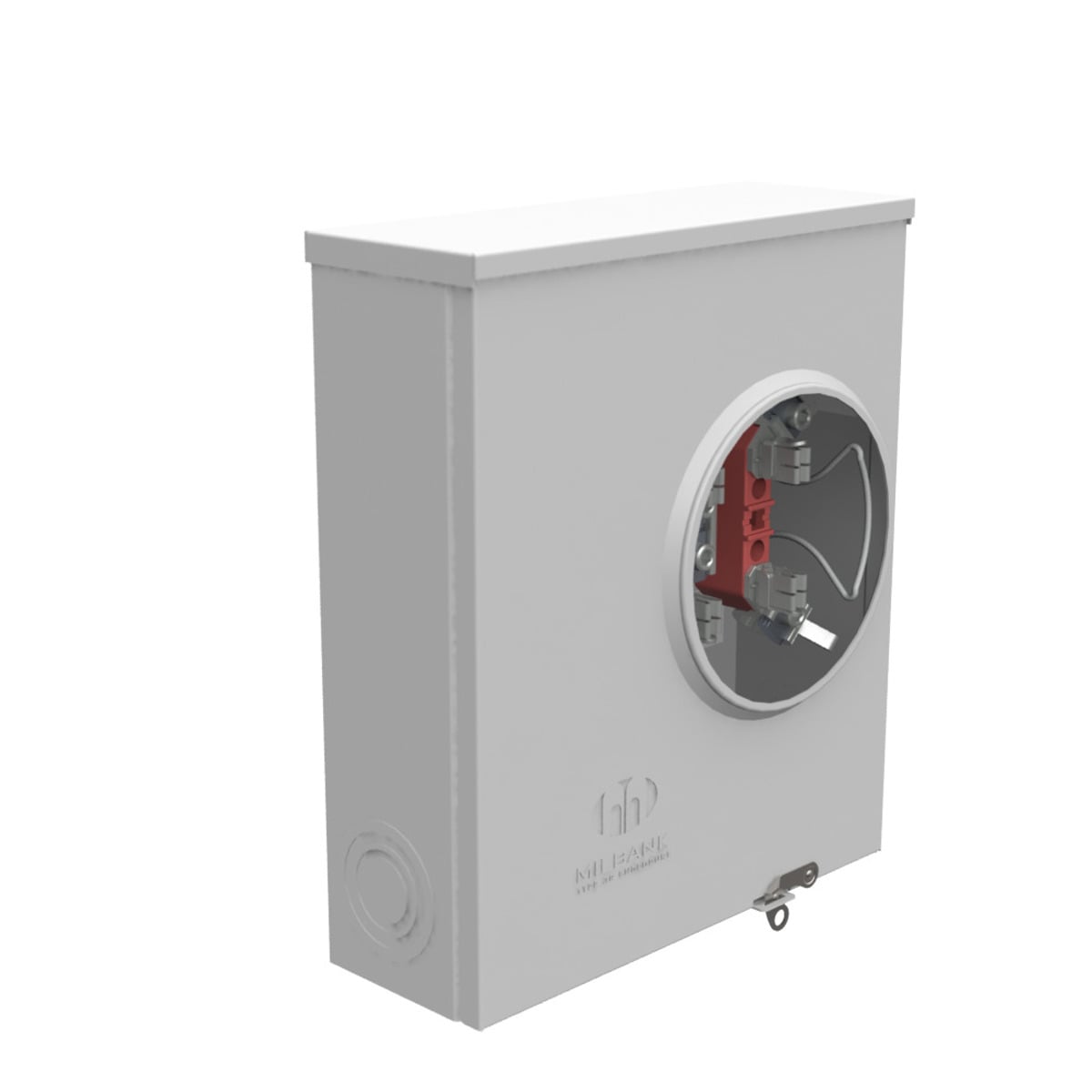

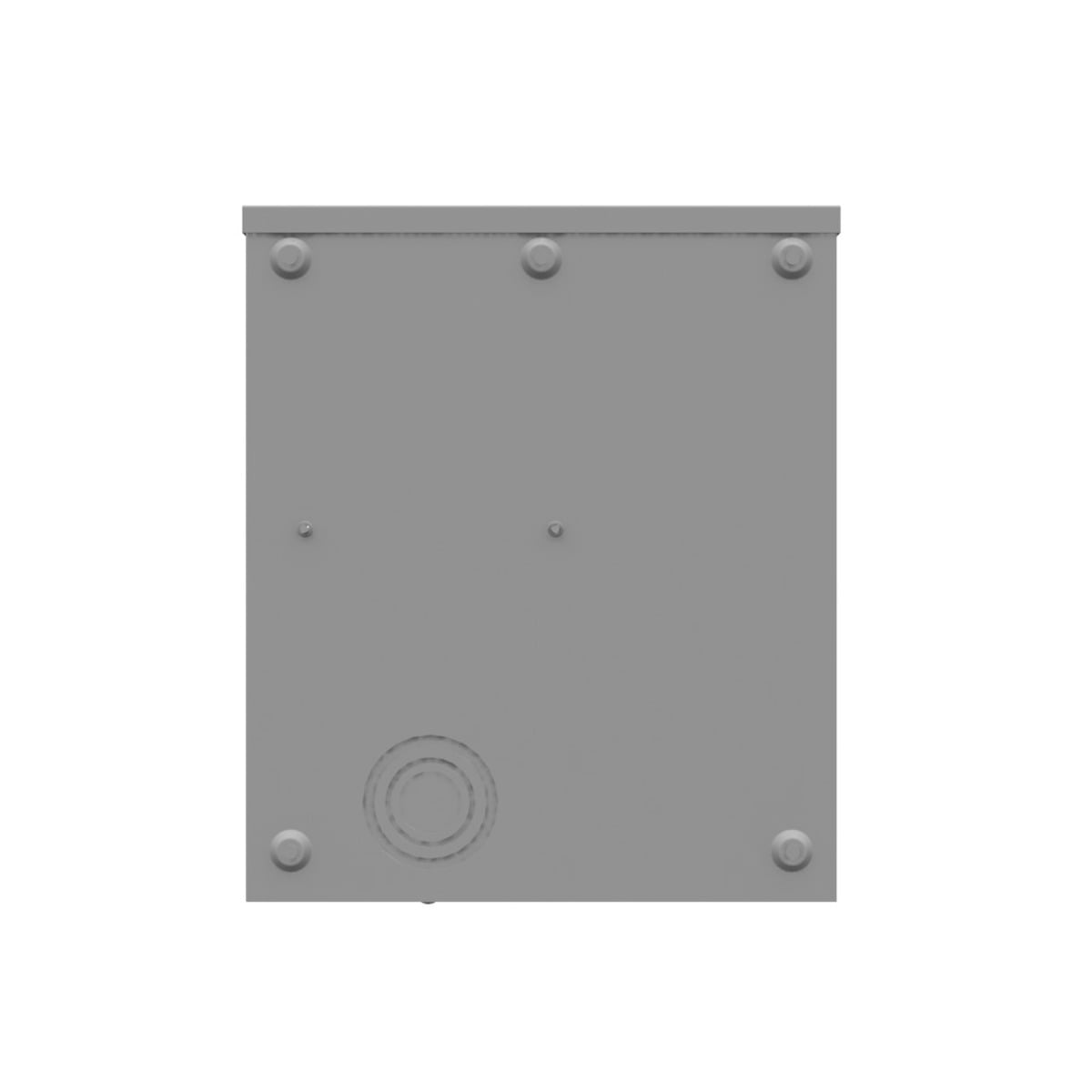

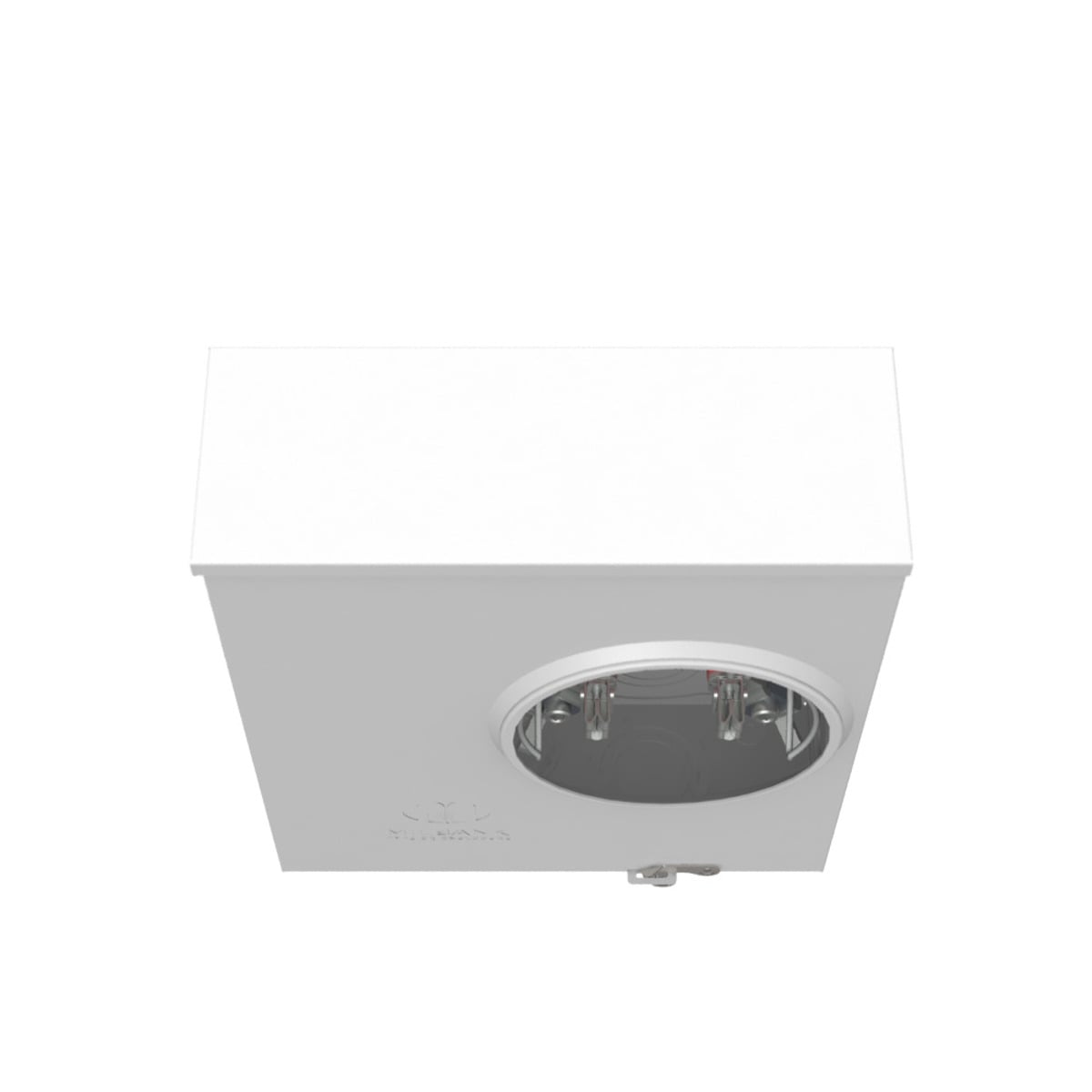

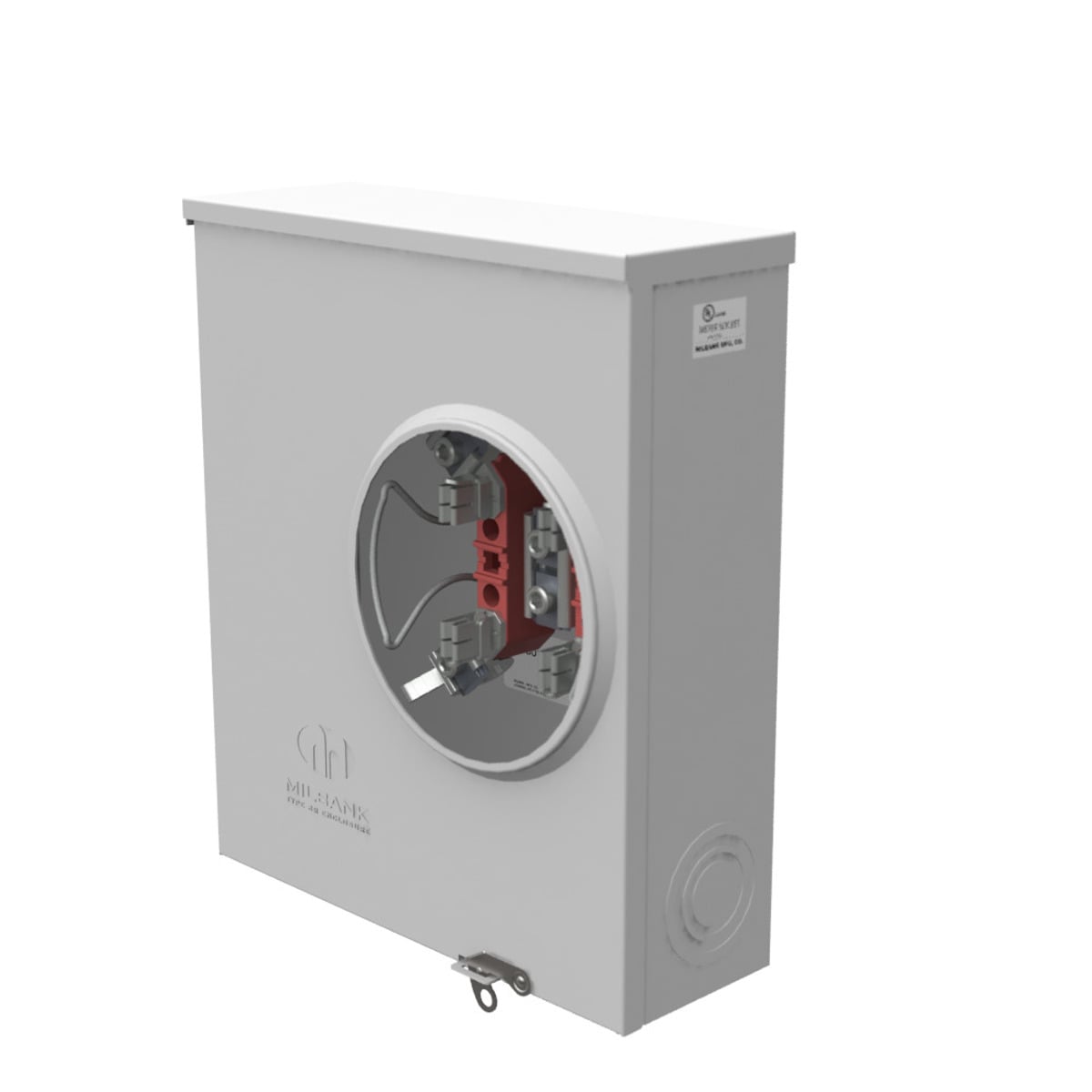

The MILBANK U3850-O-TG-KK is a 4-terminal, ringless meter socket designed for surface mounting. This unit features a plain top, triplex ground, horn bypass, and side wireway for underground cable entry. Constructed from G90 galvanized steel with a powder coat finish, it offers a 200 Continuous Ampere rating and operates at 600 Volts AC, 60 Hertz. It is UL Listed and NEMA 3R rated, ensuring durability and compliance for electrical installations.

• 4 Terminal, Ringless, Plain Top design with Triplex Ground and Horn Bypass.
• G90 Galvanized Steel enclosure with Powder Coat Finish provides NEMA 3R protection.
• Rated for 200 Continuous Amperes and 600 Volts AC, suitable for meter socket applications.

Product Highlights

Durable, UL Listed, NEMA 3R meter socket with horn bypass and underground side wireway.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U3850-O-TG-KK
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Bypass Type: Horn Bypass
• Cable Entry: Underground with Side Wireway
• Category: Commercial Single Meter Sockets
• Circuit Configuration: 1-Phase 3-Wire
• Country of Origin: United States
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Enclosure Rating: NEMA 3R
• Frequency Rating: 60 Hertz
• Hub Style: Plain Top
• Insulation Type: Glass Polyester

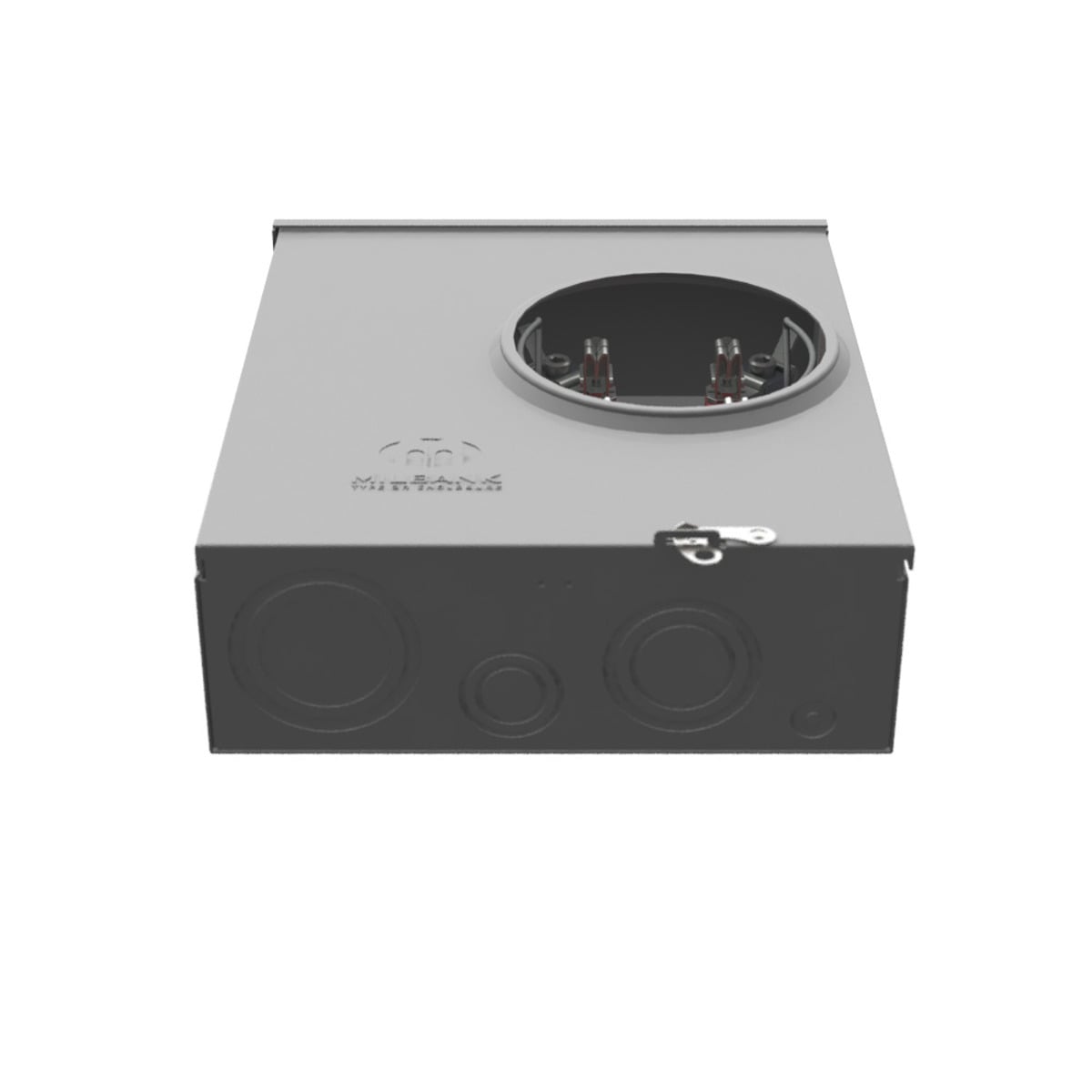

• Knockouts: (1) 3 Inch, (2) 2-1/2 Inch, (1) 1-1/2 Inch, (1) (1/4 Inch - 1/2 Inch) Concentric Knockout
• Main Breaker Size: No Main Breaker
• Model: U3850
• Mounting Type: Surface Mount
• Neutral Type: Triplex Ground
• Number of Jaws: 4
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number of Receptacles: 0
• Phase: 1 Phase
• Service Type: Underground
• Standard: UL Listed
• Sub-Category: Single Position Meter Socket
• Terminal Type: Lay In
• Type: Ringless Meter Socket
• Voltage Rating: 600 Volts AC
• Wire Size: 6 AWG to 350 KCMIL (Line/Load)
