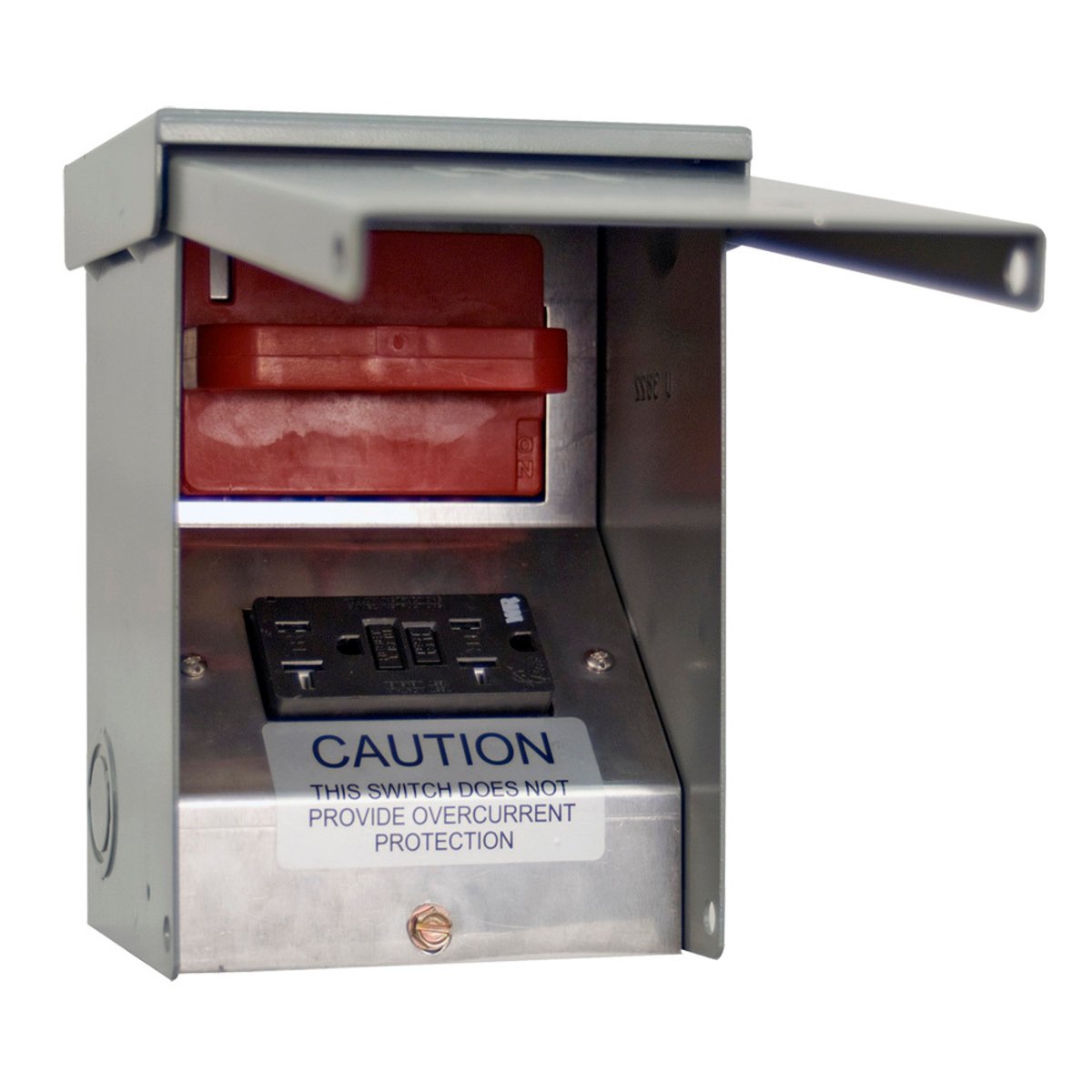

Milbank U3822-20GWR AC Disconnect with 20 AMP GFCI Receptacle Non-Fusible 240 VAC 60 Amps 1-Phase

Product Description

The Milbank AC Disconnect model U3822-20GWR is a non-fusible disconnect used for air conditioning units. This product supports a voltage rating of two hundred forty volts alternating current and a sixty ampere rating. It is designed for one-phase systems with a horsepower capability of up to ten HP.

• Non-fusible design for enhanced safety
• Weather-resistant NEMA 3R enclosure
• Removable hinged cover for easy wiring

Product Highlights

This disconnect provides reliable performance in various environments and includes features for safety and efficiency.

Product Information

Standard Information

• Manufacturer: Milbank
• Country of Origin: United States

Technical Specifications

• Type: Non-Fusible
• Phase: 1
• Voltage Rating: 240 VAC
• Amperage Rating: 60 A
• Horsepower: 10 HP
• Dimensions: 7.4 in H x 5.25 in W x 4.8 in D
• Material: Painted Steel
• Interrupt Rating: 10 kA
• Enclosure Type: NEMA 3R
• Special Features: 20 Amp GFCI Receptacle, Padlock provision
