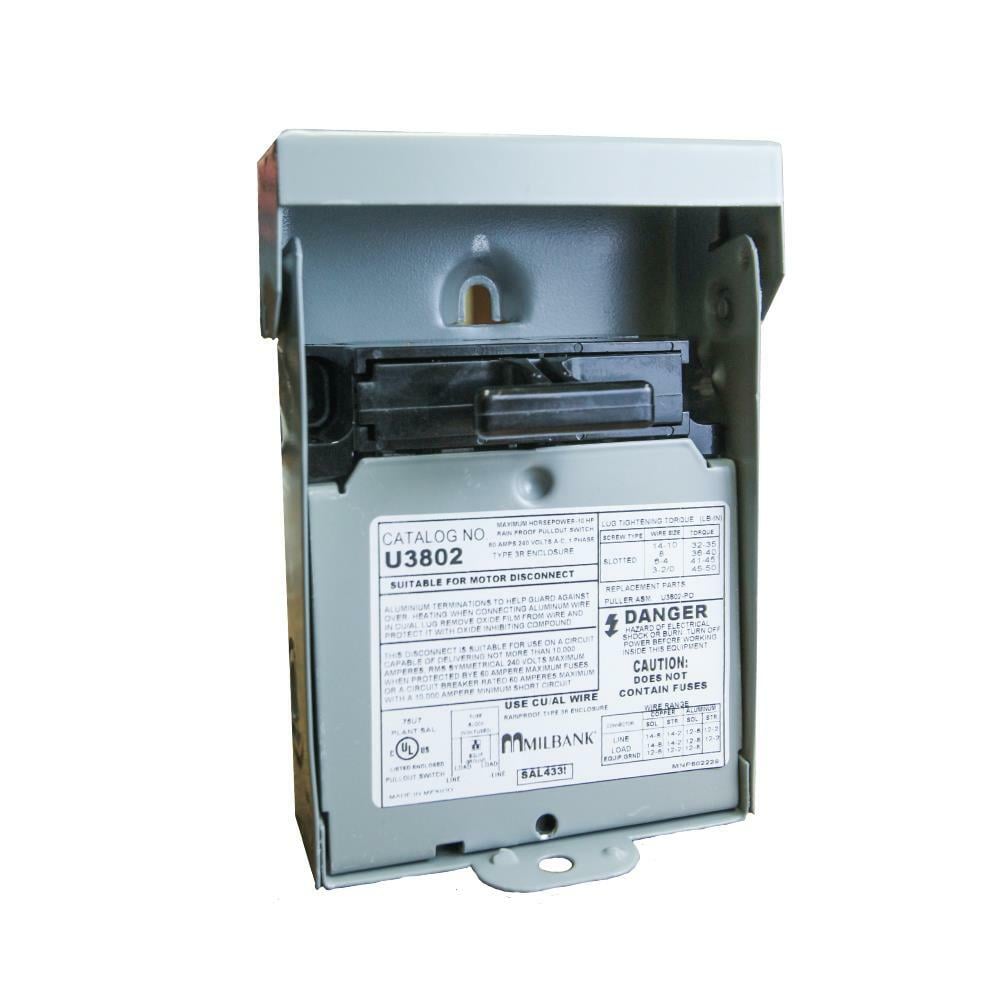

Milbank U3802 AC Disconnect, Non-Fusible, 240 VAC, 60 Amp, 1-Phase, 10 hp

Product Description

The Milbank U3802 AC Disconnect is a non-fusible switch designed for air conditioning applications. It operates at two hundred forty volts AC and supports a maximum of sixty amps. The product is suitable for single-phase systems with a capacity for ten horsepower. This disconnect switch ensures safety and compliance with electrical codes.

• Non-fusible design for safe operation.
• Rated for 240 VAC and 60 Amp.
• Meets NEC standards for safe electrical installations.

Product Highlights

This AC disconnect features a removable hinged cover for easy wiring access and a padlockable front cover for enhanced safety.

Product Information

Standard Information

• Manufacturer: Milbank Manufacturing
• UPC: 784572586918

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 60 A
• Horsepower: 10 hp
• Number of Poles: 2
• Short Circuit Rating: 10 kA
• Enclosure Type: NEMA 3R
• Dimensions: 7.5 inches H x 5 inches W x 2.5 inches D
• Material: Steel
