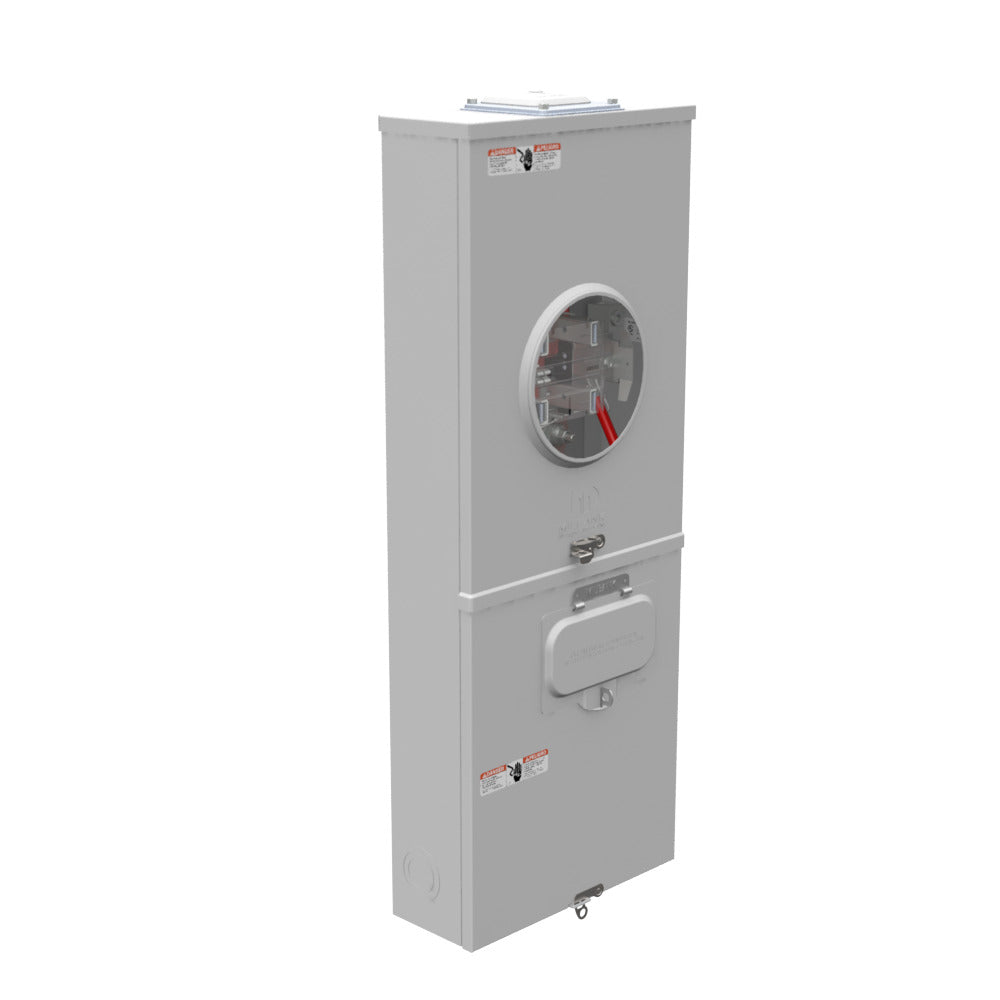

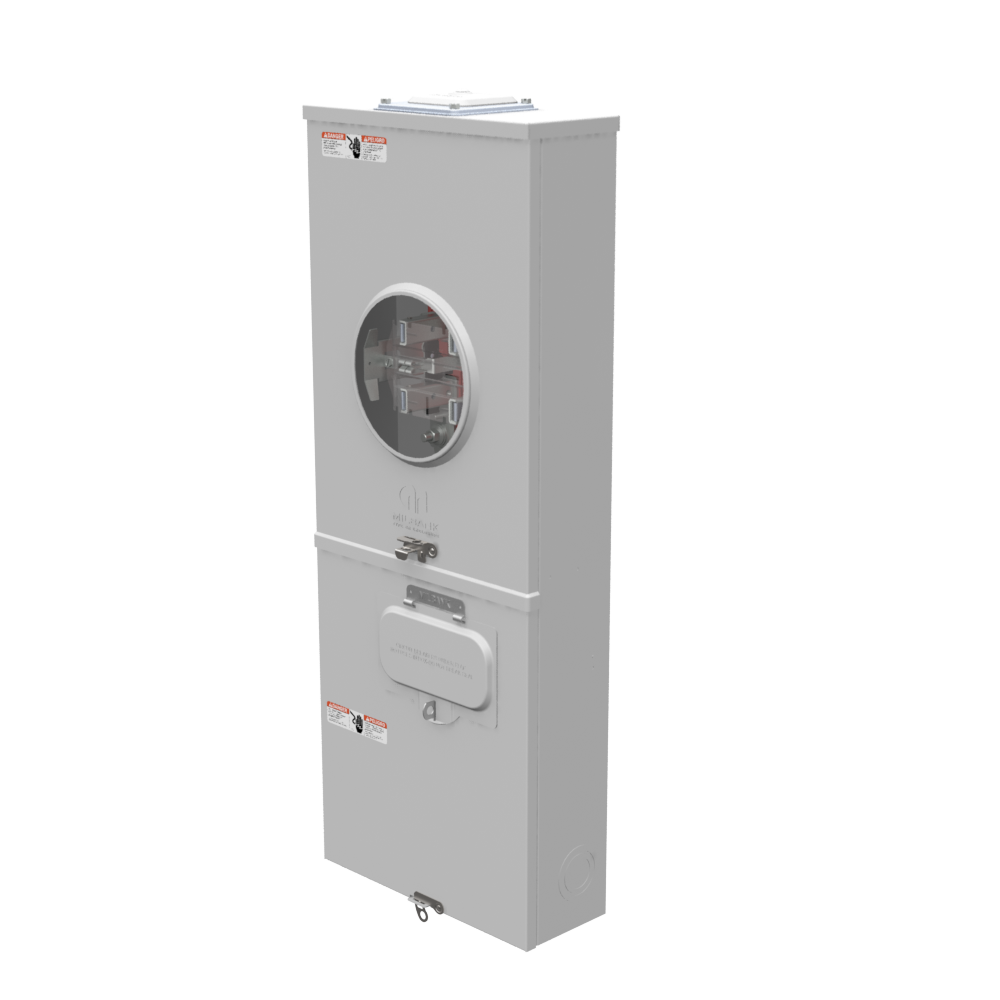

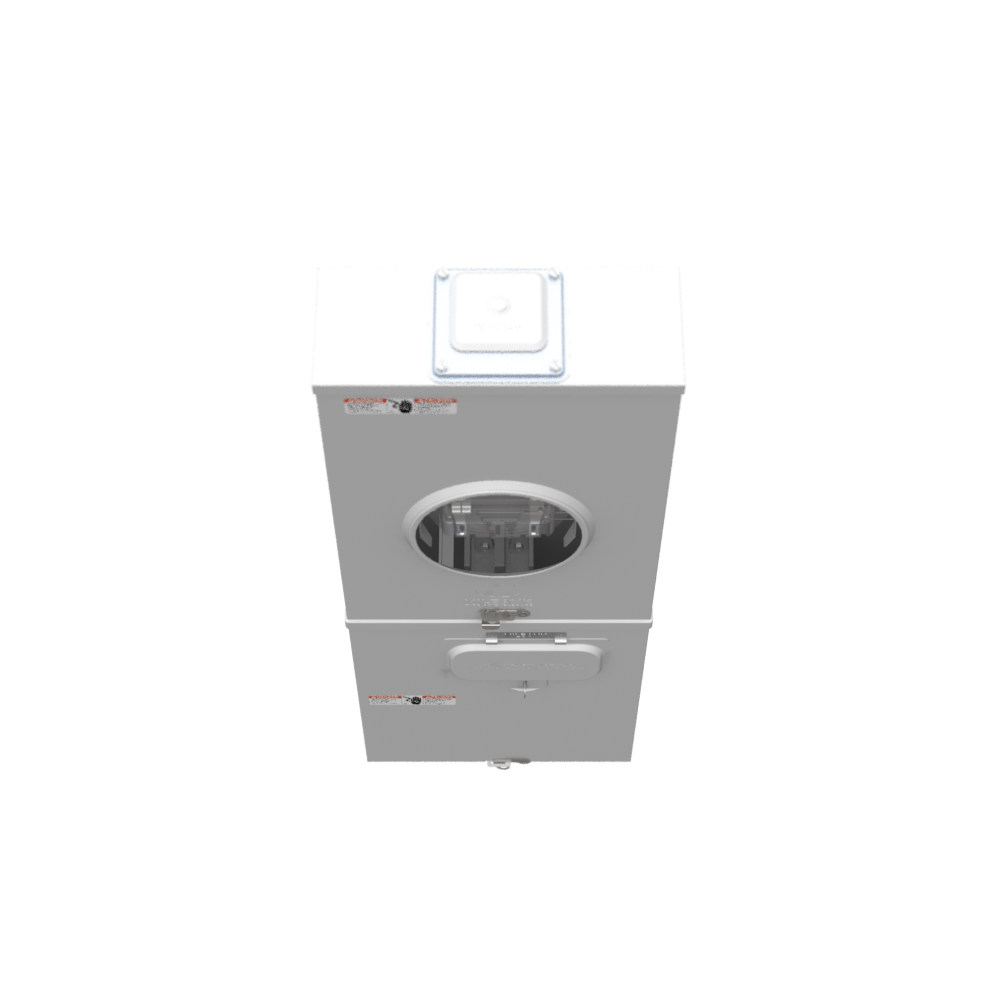

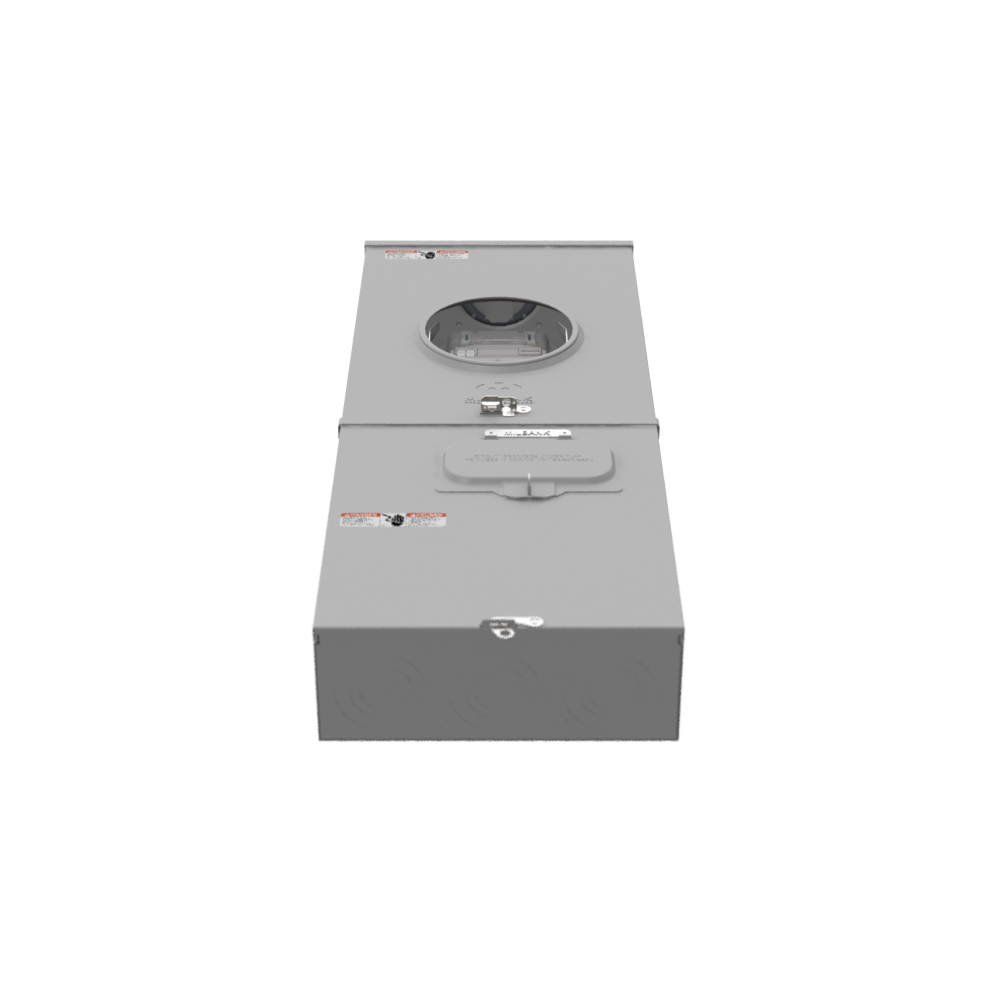

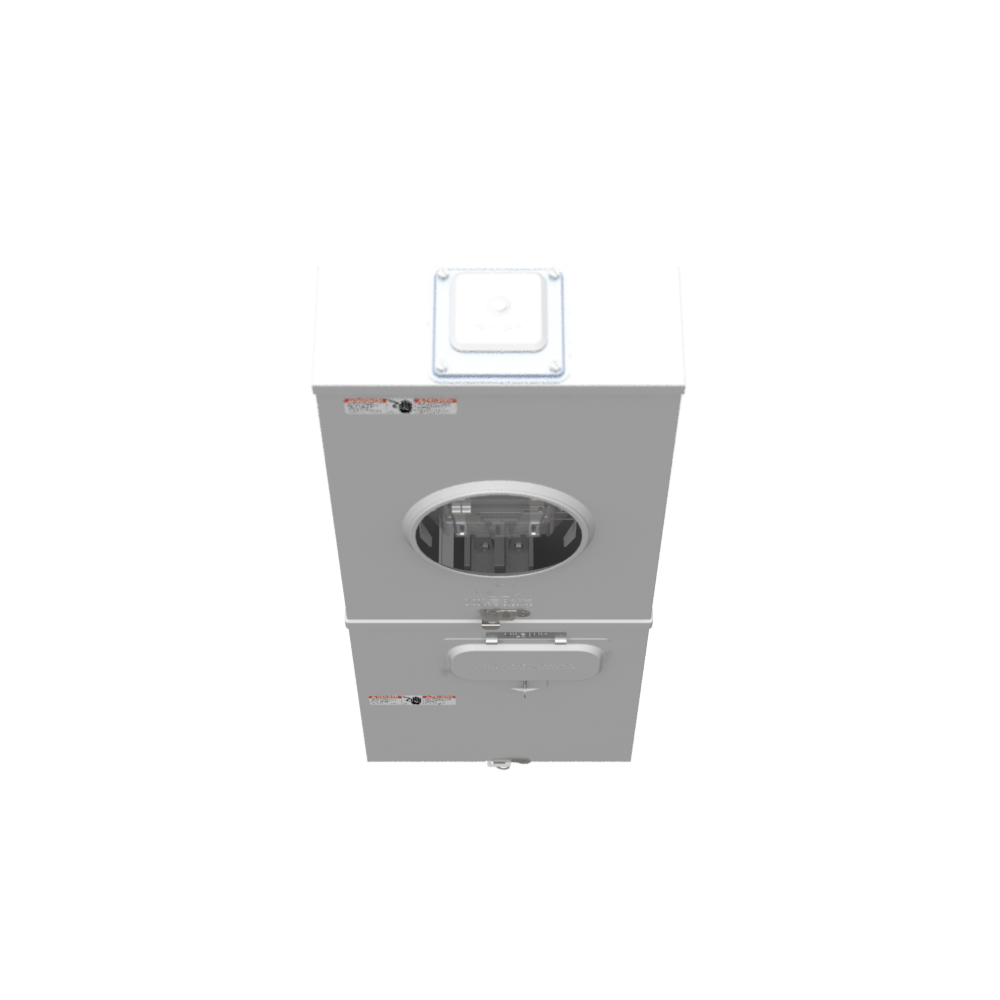

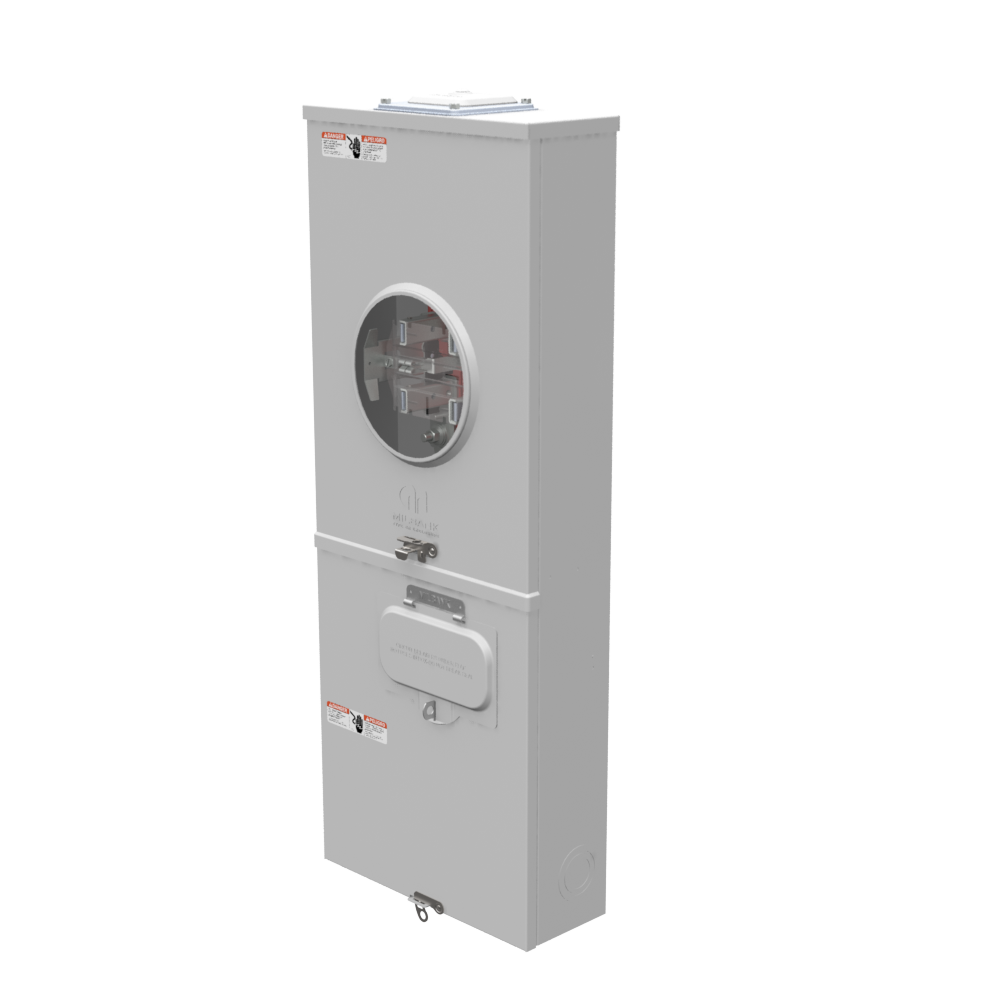

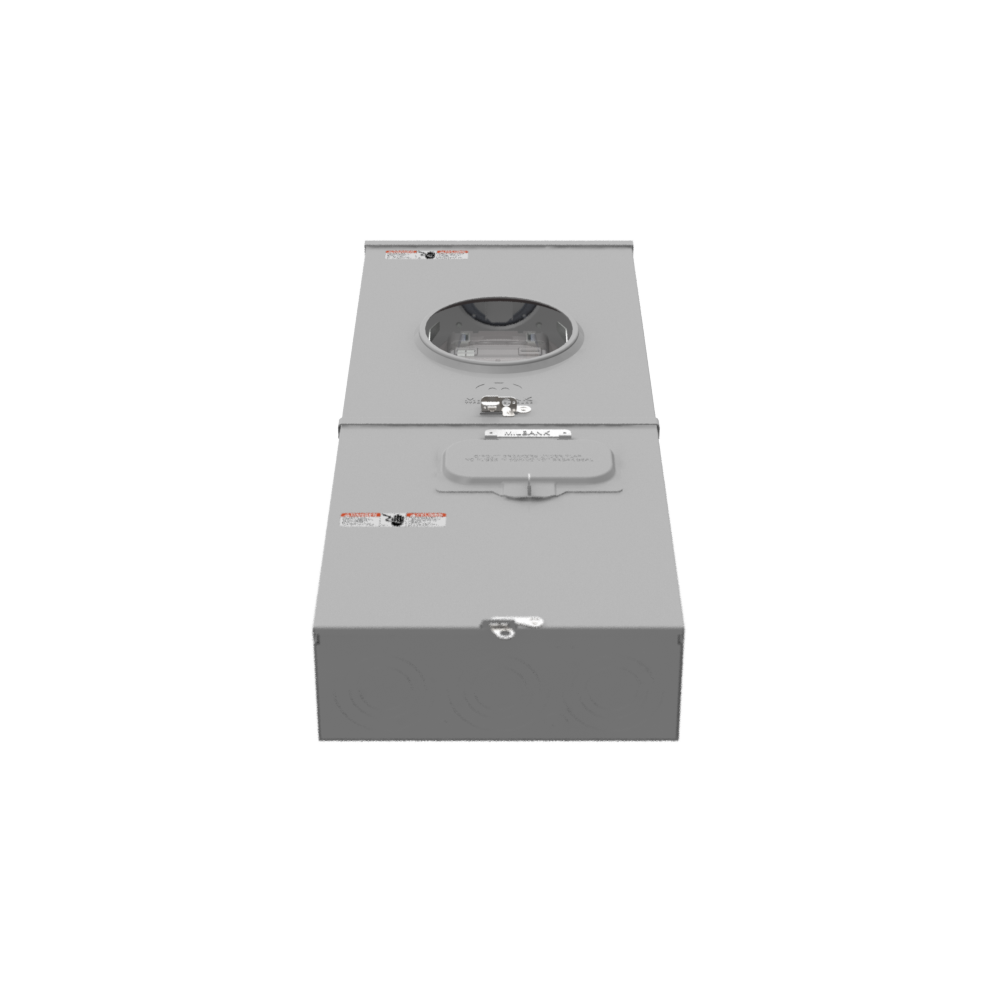

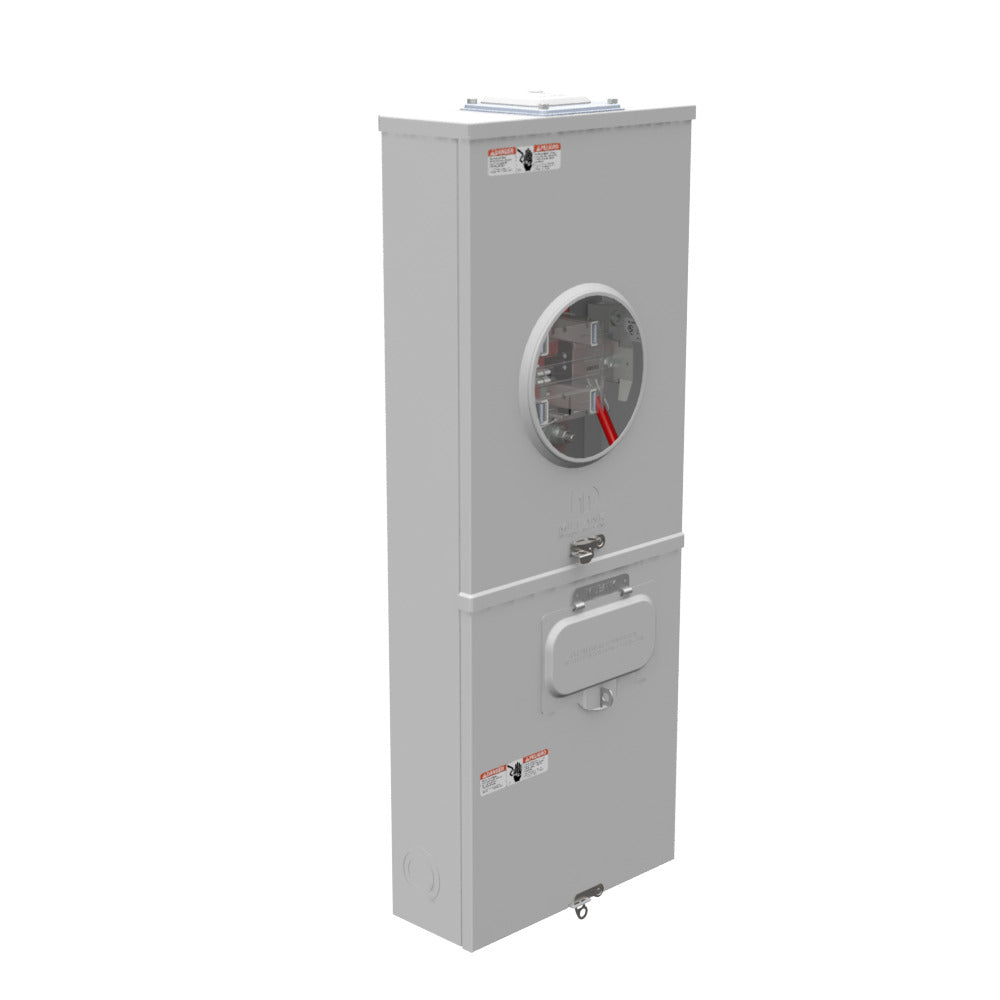

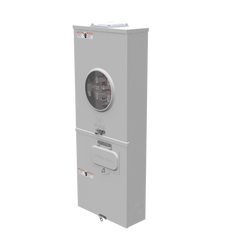

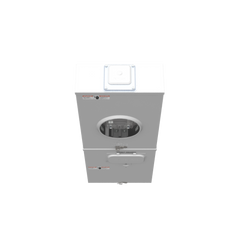

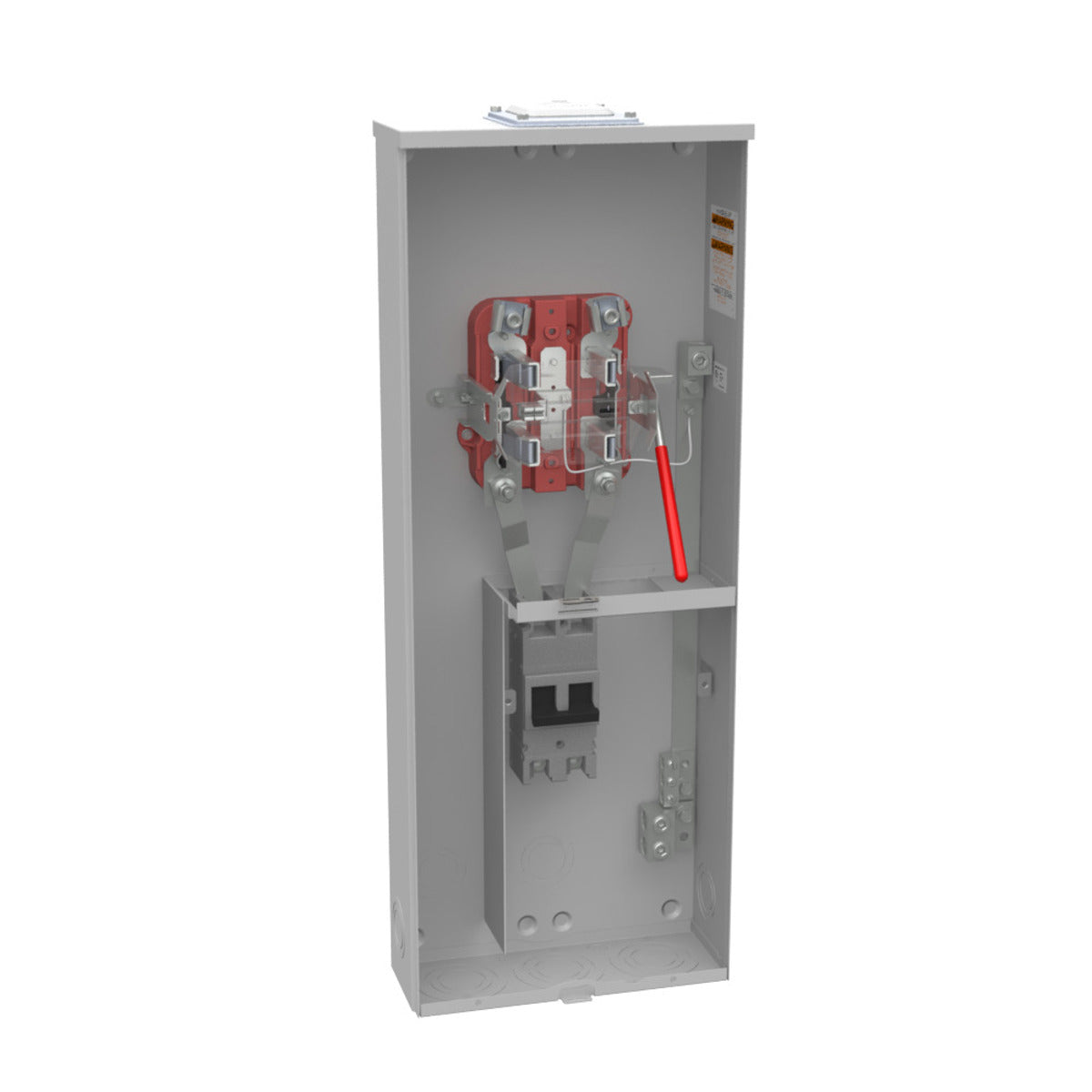

Milbank U3791N-RXL-100-5T9 5 Term Ringless Large Hub Opening Adapt To Small Closing Plate Lever Bypass 1-100 Amp Main Breaker 5th Term 9 O'clock Position

Product Description

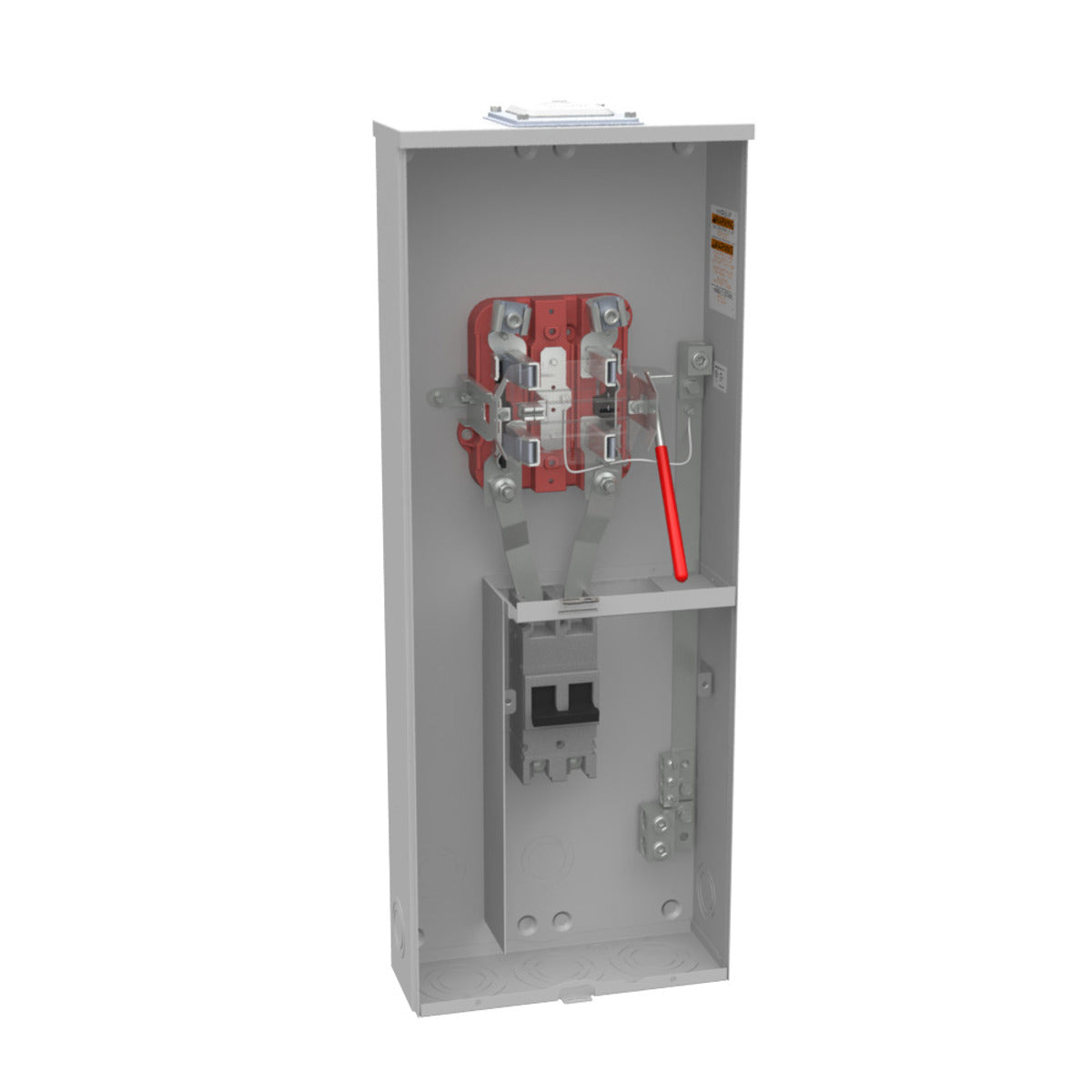

The MILBANK U3791N-RXL-100-5T9 is a 5-terminal ringless meter socket designed for electrical service applications. This unit features a large hub opening that adapts to a small closing plate, a lever bypass mechanism, and an integrated 1-100 Amp main breaker. It is equipped with a 5th terminal positioned at 9 o'clock, suitable for overhead or underground cable entry. This surface-mount meter socket is UL Listed and Type 3R rated.

• 5 Terminal Ringless Design with Large Hub Opening adapted to Small Closing Plate.
• Features a Lever Bypass Provision and an integrated 1-100 Ampere Main Breaker.
• Constructed from G90 Galvanized Steel with Powder Coat Finish, UL Listed, and Type 3R Standard.

Product Highlights

MILBANK U3791N-RXL-100-5T9 is a 5-terminal ringless meter socket with a 1-100 Amp main breaker, lever bypass, and 5th terminal at 9 o'clock, suitable for surface mount electrical service.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U3791N-RXL-100-5T9
• Country of Origin: United States

Technical Specifications

• MPN: U3791N-RXL-100-5T9
• Made in USA: Yes
• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket With Main
• Bypass Type: Lever Bypass
• Cable Entry: Overhead or Underground
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Number of Terminals: 5
• Phase: 1 Phase
• Standard: UL Listed;Type 3R
• Meter Socket Type: Ringless Meter Socket
• Terminal Type: Lay In
• Voltage Rating: Up to 240 Volts Alternating Current
• Main Breaker Size: One 100 Ampere Main Breaker
• Breaker Type: Main Breaker
• 5th Terminal Position: 9 O'clock Position
• Hub/Closing Plate: Large Hub Opening Adapted to Small Closing Plate
• Equipment Ground: 3 Barrel Ground Lug
• Knockouts: True
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 1 - 3 AWG
• Number of Main Breakers: 1
• Number of Meter Positions: 1 Position
• Number of Receptacles: 0
