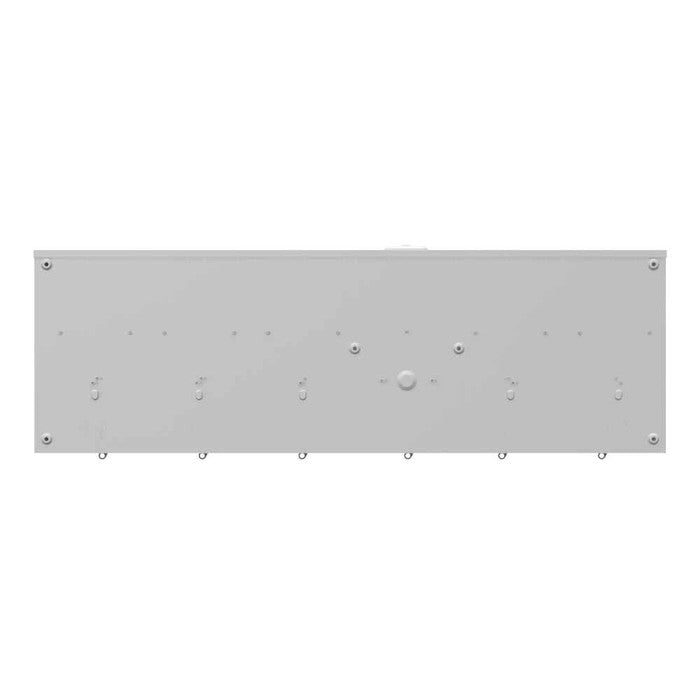

Milbank U3765-XL 4-Terminal Ring-Type Meter Socket 125A (4.5 IN x 49.813 IN x 16 IN) Replacement MPN

Product Description

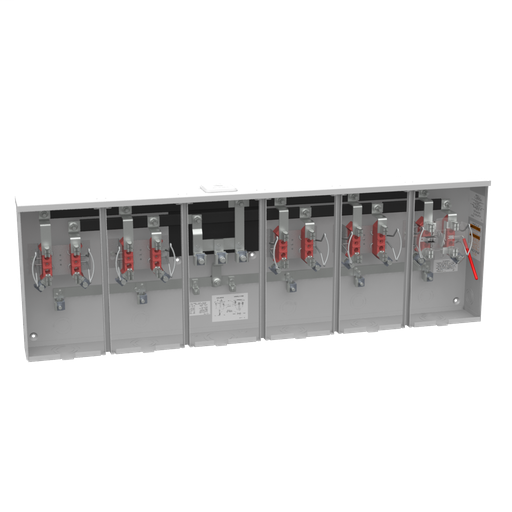

The Milbank U3765-XL is a reliable ringless meter socket, suitable for residential meter module applications. This unit supports a maximum load of one hundred twenty-five amperes and is rated for three hundred volts alternating current at sixty hertz. The design includes a lever bypass and provides five meter positions with four terminals, allowing flexible connectivity.

• Supports overhead or underground cable entry.
• Constructed from G90 galvanized steel with a protective powder coat.
• UL Listed for safety and reliability.

Product Highlights

This meter socket features a Type 3R enclosure for added environmental protection, making it suitable for various installations.

Product Information

Standard Information

• Brand: Milbank
• Type: Ringless Meter Socket

Technical Specifications

• Amperage: 125 amperes
• Voltage: 300 volts AC
• Frequency: 60 hertz
• Enclosure Rating: Type 3R
• Weight: Not specified
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: Bypass 6 AWG - 350 kcmil, Non-bypass 6 - 2/0 AWG
• Dimensions: 4.5 inches long x 49.813 inches wide x 16 inches high
• UPC: 784572138919
• Product Family Code: G125
