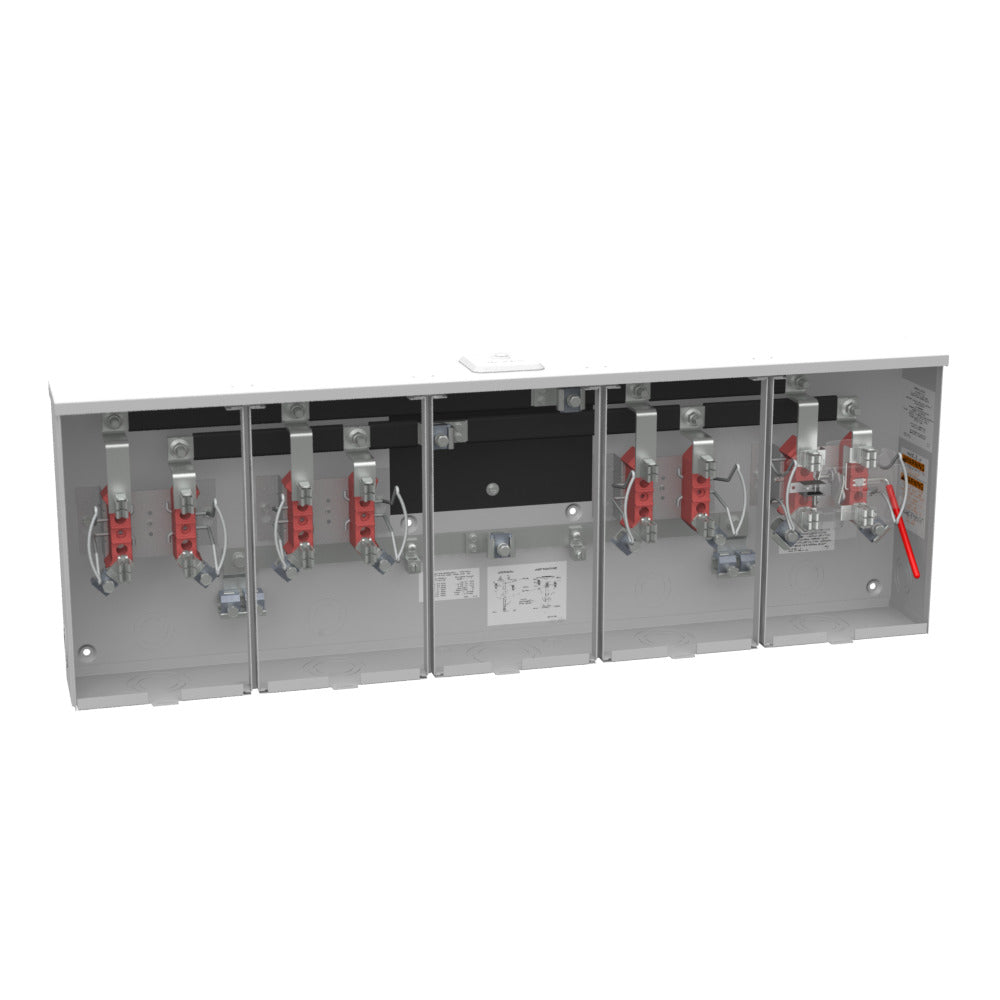

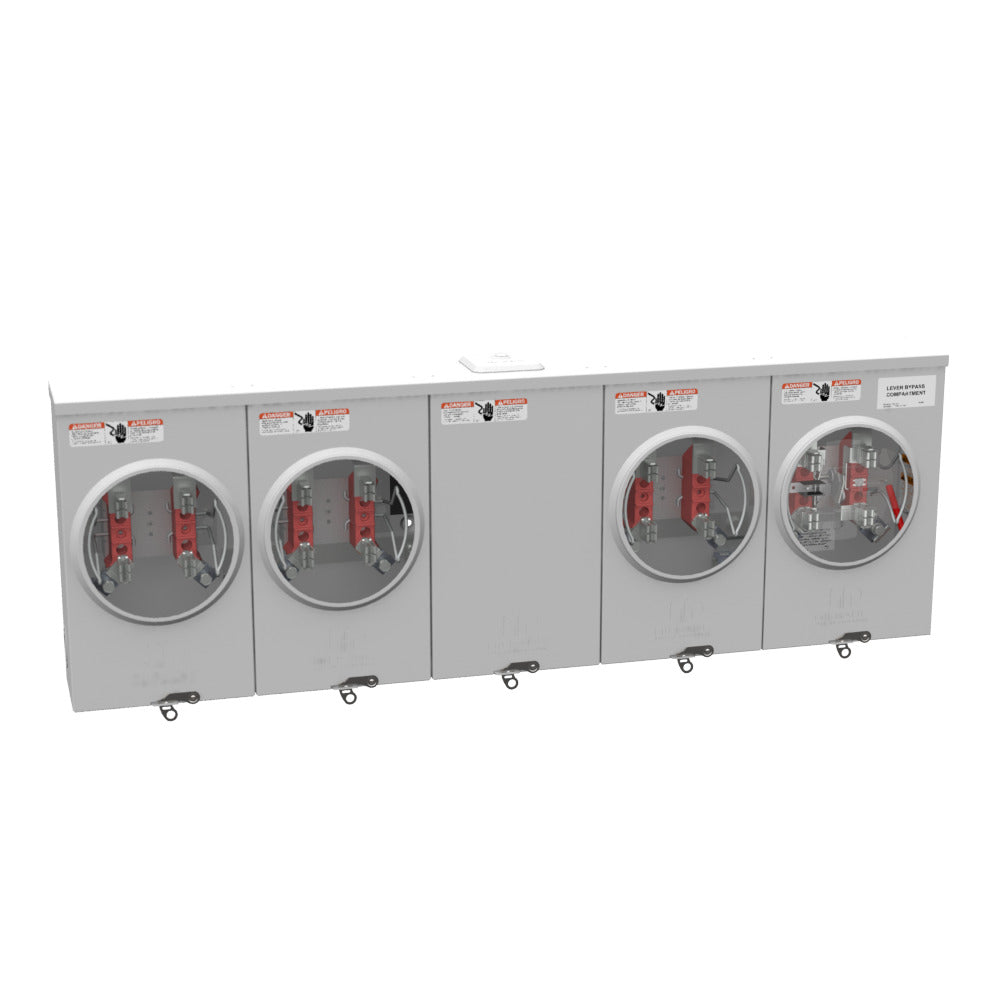

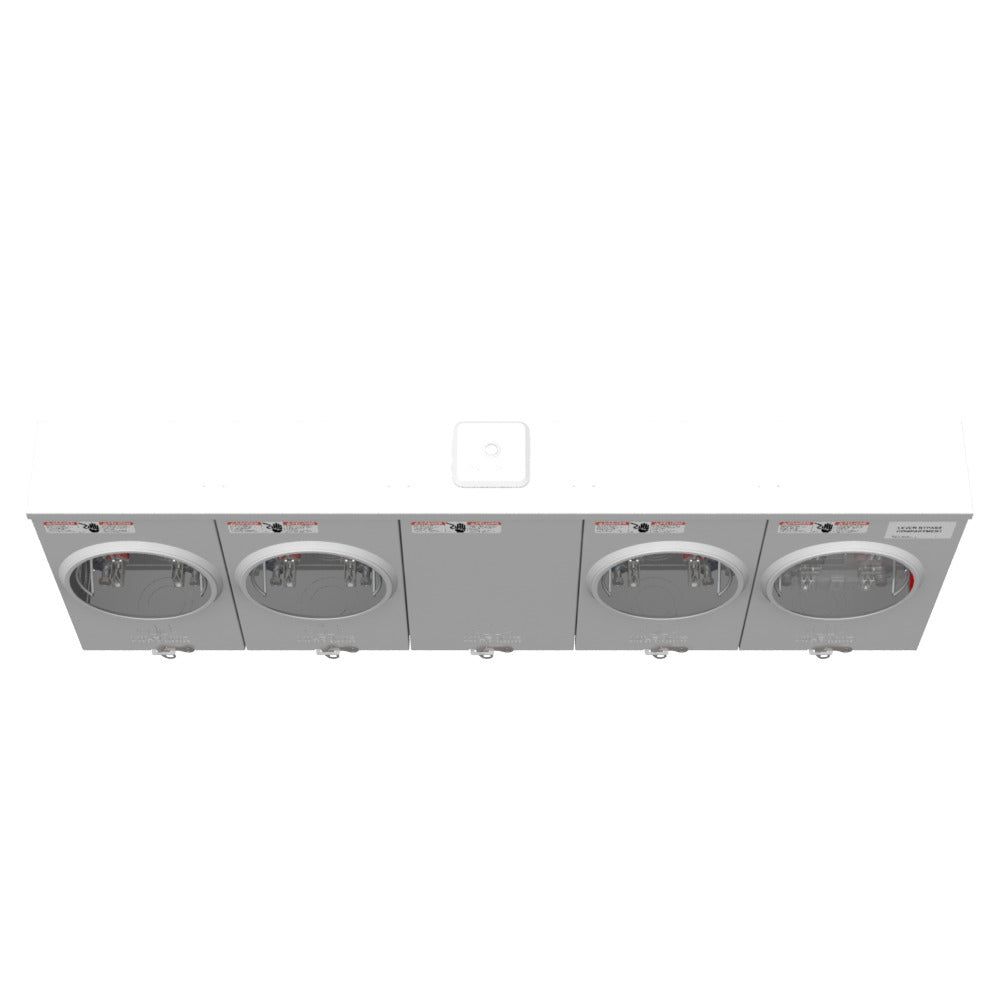

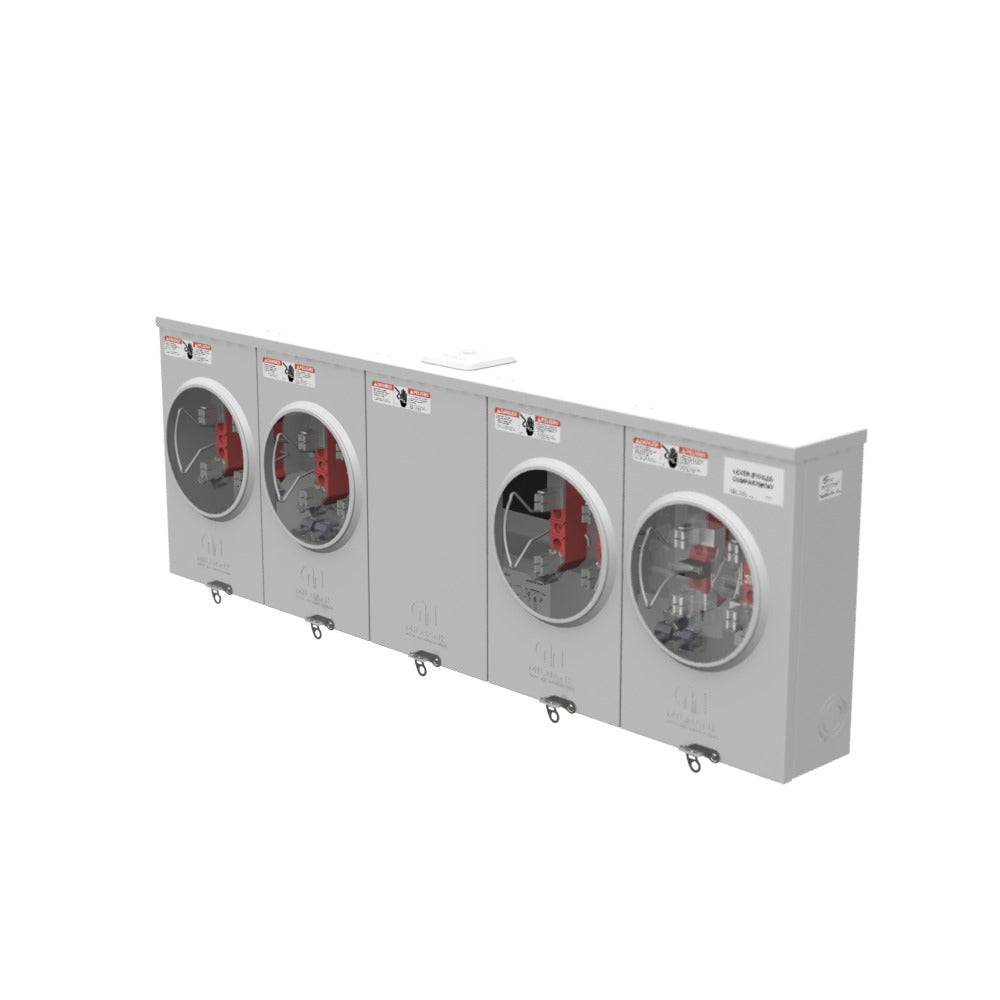

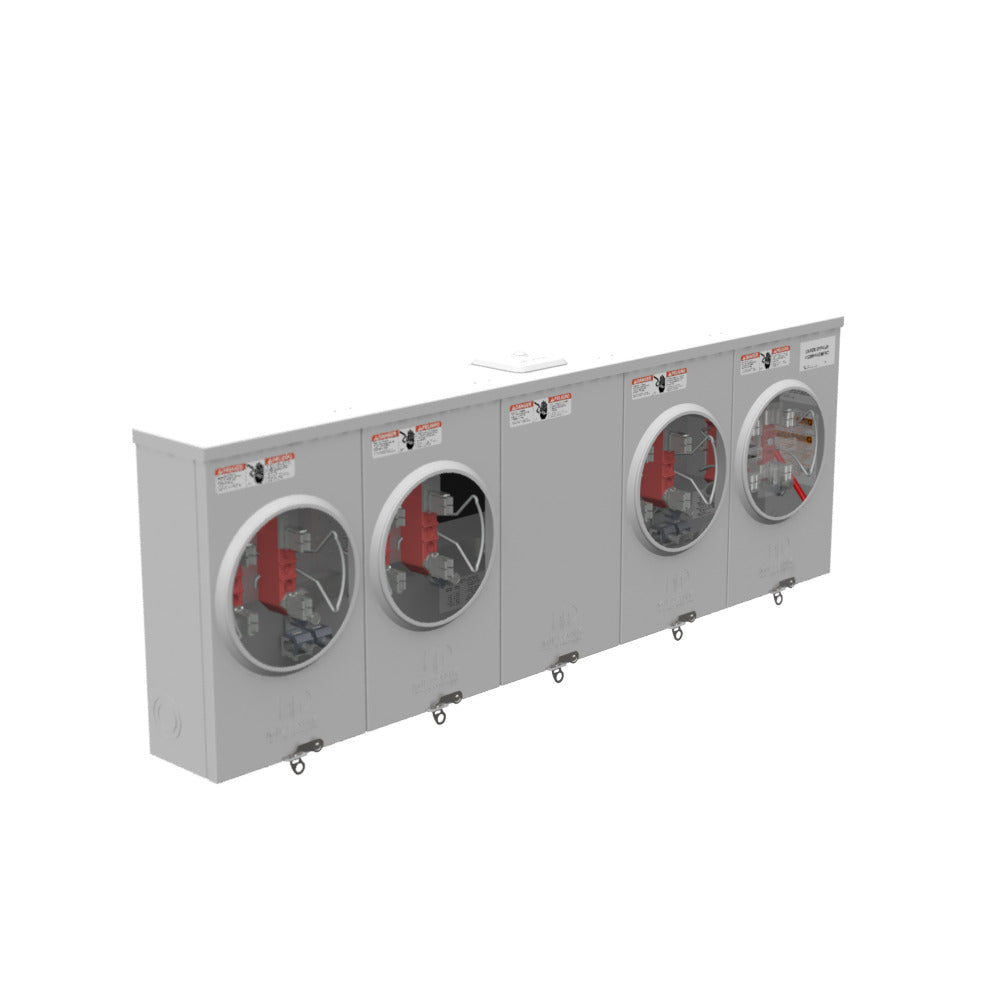

Milbank U3764-XL 4 Term Ringless Small Closing Plate Lever Bypass 4 Position

Product Description

The Milbank U3764-XL is a ringless meter socket designed for efficient power distribution with a lever bypass feature. It supports overhead and underground service. This unit is made to withstand harsh environments with its durable construction.

• Suitable for 125 Amp amperage rating
• UL Listed and meets NEMA Type 3R standards
• Compatible with various wire sizes from six to 350 KCMIL

Product Highlights

The Milbank U3764-XL meter socket accommodates four terminals for versatility. The lever bypass enhances user experience when accessing the meter. The powder-coated finish provides corrosion resistance.

Product Information

Standard Information

• Manufacturer: Milbank
• Catalog Number: U3764-XL

Technical Specifications

• Amperage Rating: 125
• Voltage Rating: 300 Volts AC
• Phase: 1
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel with Powder Coat Finish
• Enclosure: NEMA 3R
• Size: 4.5L x 41.625W x 14H
• Country of Origin: United States
• Insulation: Glass Polyester
