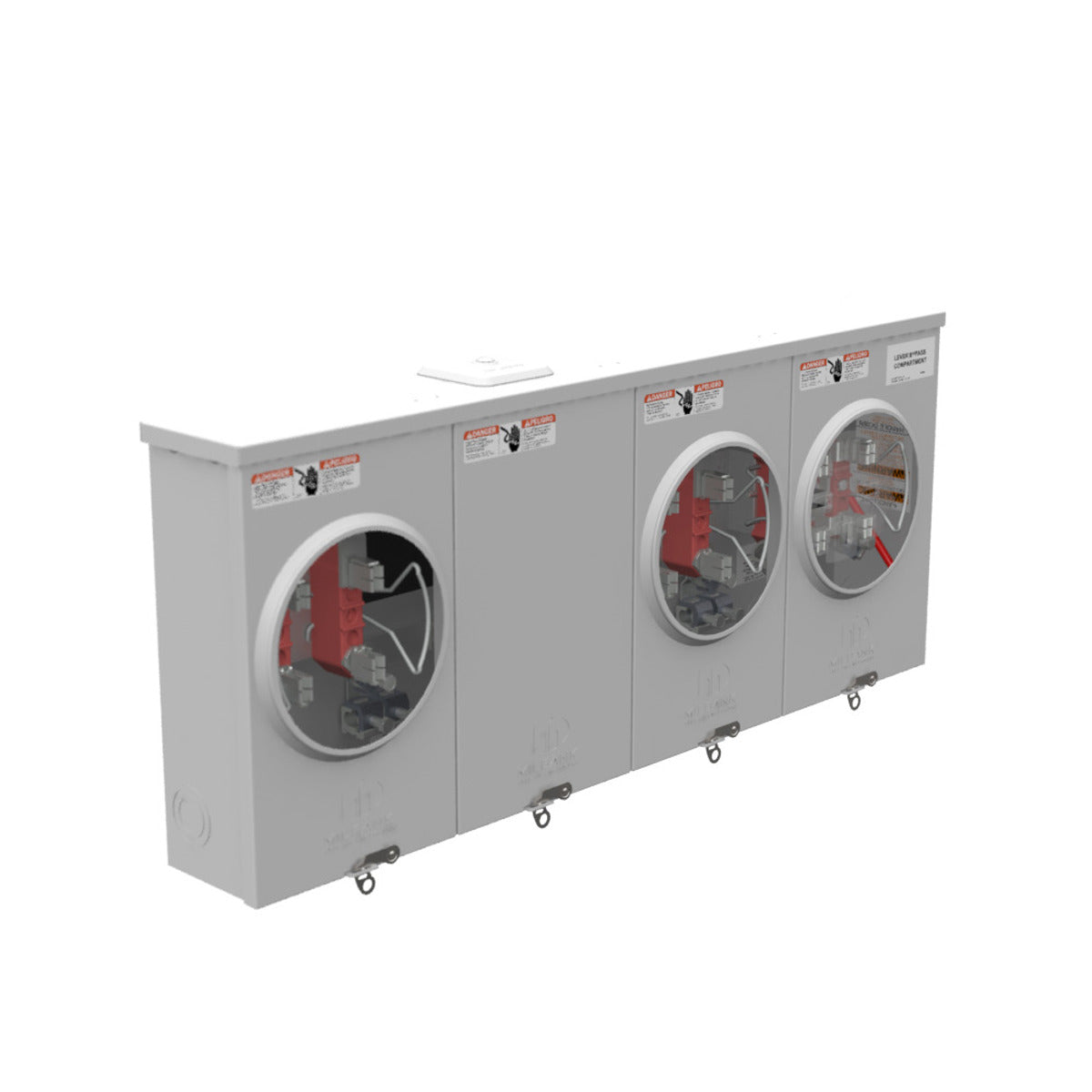

Milbank U3763-XL 4 Term, Ringless, Small Closing Plate, Lever Bypass, 3 Position

Product Description

The Milbank U3763-XL is a reliable 4-terminal ringless meter socket designed for overhead and underground applications. This model includes a lever bypass feature and meets NEMA type 3R standards. It is built for durability with G90 galvanized steel and a powder-coated finish. This meter socket supports a current rating of 125 Amps and a voltage rating of 300 Volts AC, making it suitable for various electrical installations.

• 4-terminal design for effective meter socket operation.
• Lever bypass for easy access and maintenance.
• Constructed from G90 galvanized steel for corrosion resistance.

Product Highlights

The U3763-XL provides safe and efficient power distribution, essential for residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Milbank
• Phase: 1

Technical Specifications

• Amperage Rating: 125 Amps
• Voltage Rating: 300 Volts AC
• Dimensions: 4.5 inches length x 33.188 inches width x 14 inches height
• Cable Entry: Overhead or underground
• Material: G90 galvanized steel with powder coat finish
• Enclosure Type: NEMA 3R
• Insulation: Glass polyester
• Standard Compliance: UL Listed
