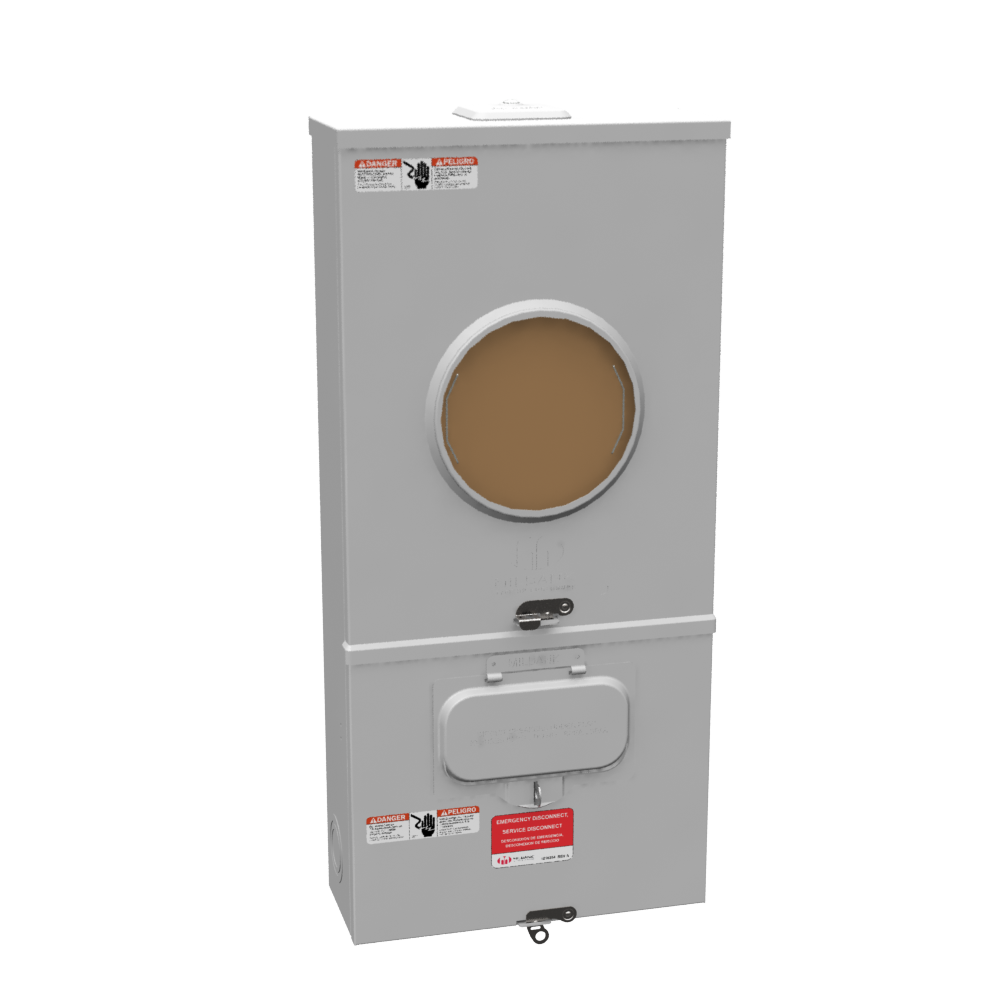

Milbank U3741-XL-100-BL 4 Term Ringless Small Closing Plate 1-100 Amp Main Breaker

Product Description

The Milbank U3741-XL-100-BL is a four-terminal ringless small closing plate designed for a main breaker rated at up to one hundred amps. This meter socket is suitable for both overhead and underground service. It features a barrel lock with bracket provision, making it reliable and secure for any installation.

• Rated for up to one hundred amps.
• Compatible with overhead or underground cable entry.
• Constructed from durable G90 galvanized steel with a powder coat finish.

Product Highlights

This item is designed for surface mounting and meets NEMA 3R standards, offering protection in various outdoor environments.

Product Information

Standard Information

• Catalog Number: U3741-XL-100-BL
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 100 Amps
• Voltage Rating: Up to 240 Volts AC
• Size: 4.844L x 13W x 28H inches
• Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Made in USA: Yes
• Number of Jaws: 4 Terminal
• Phase: 1
