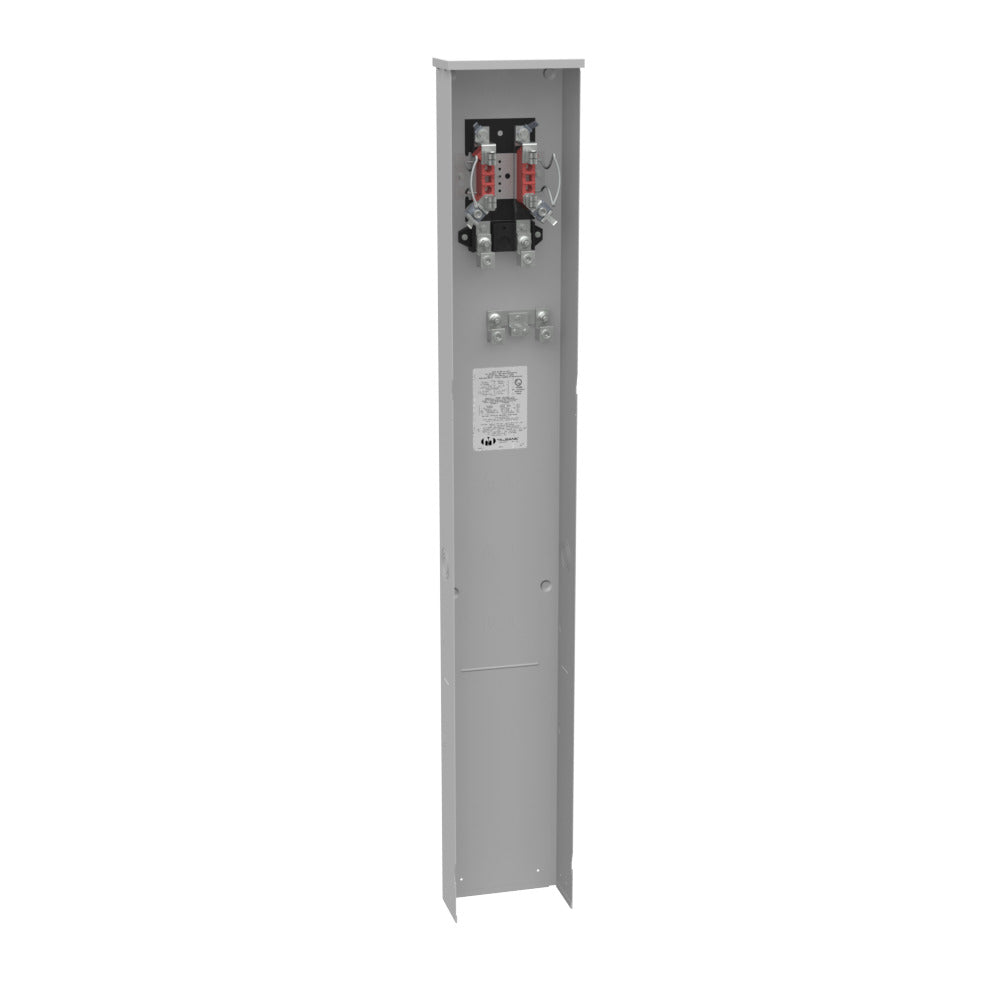

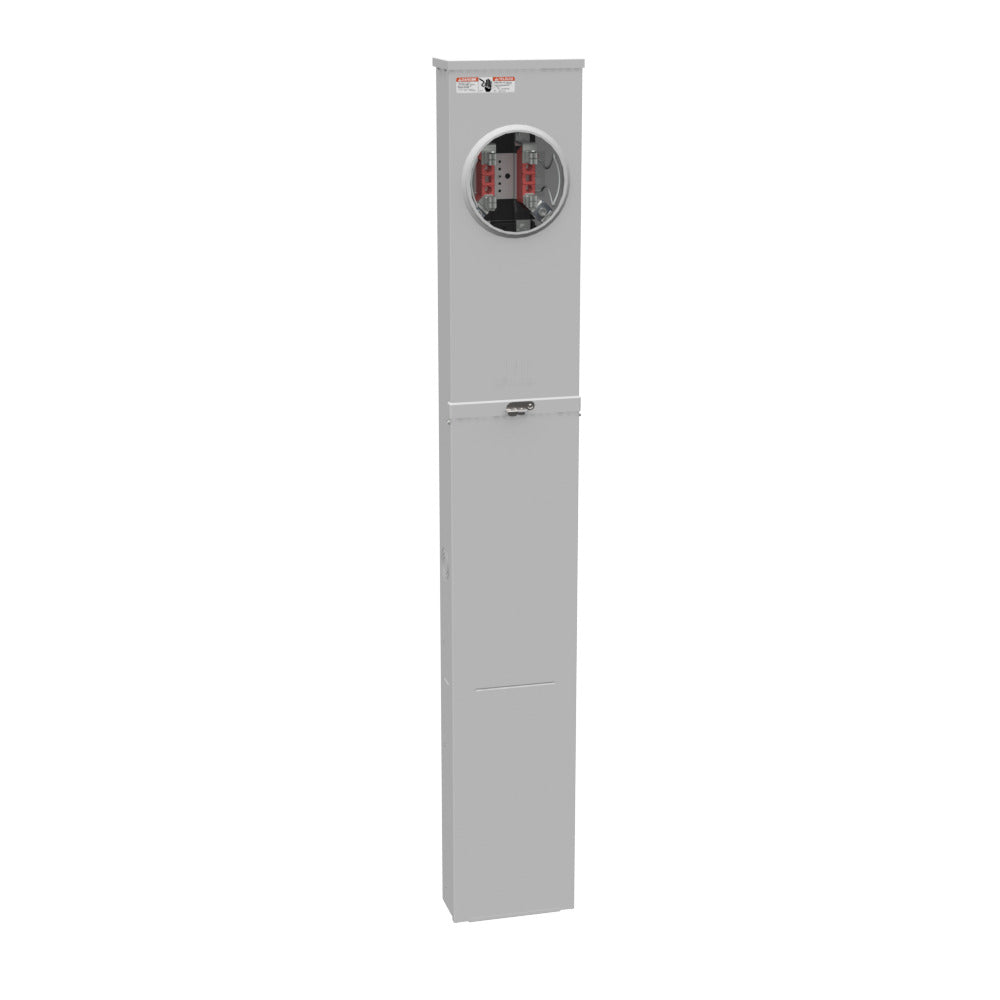

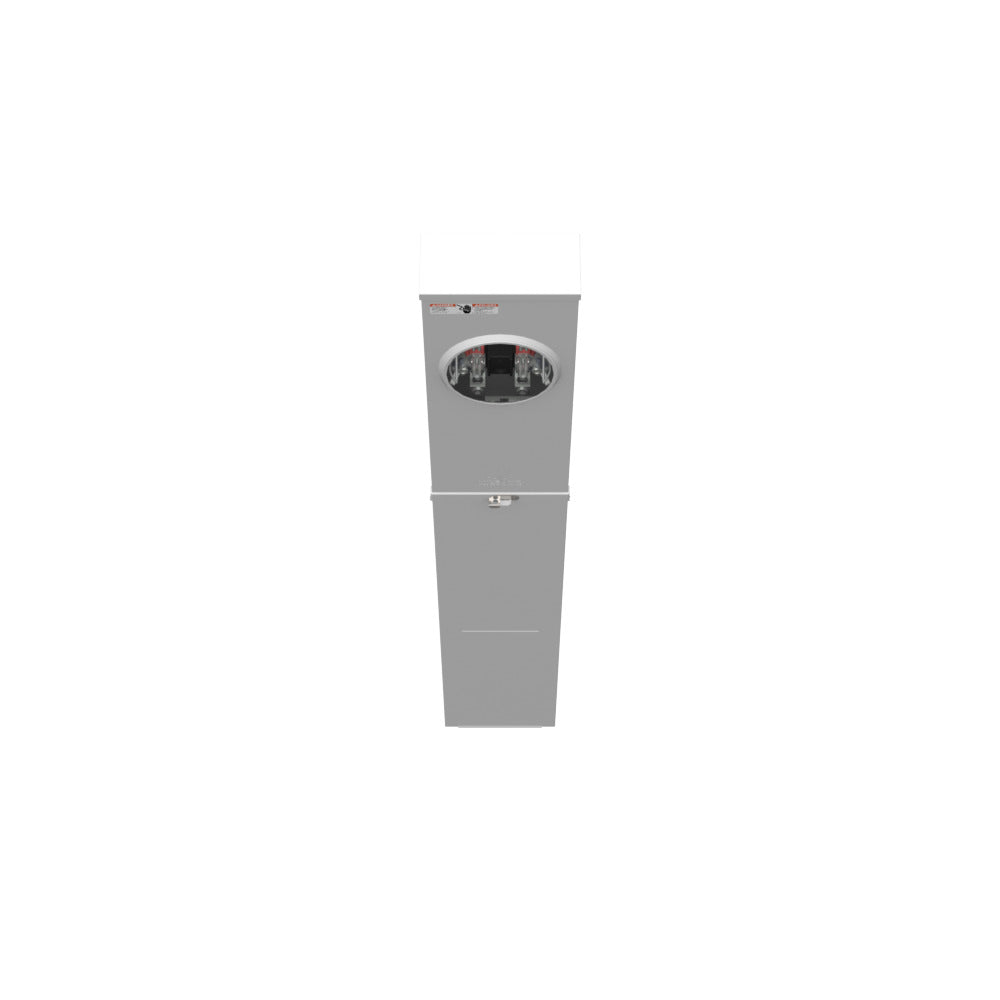

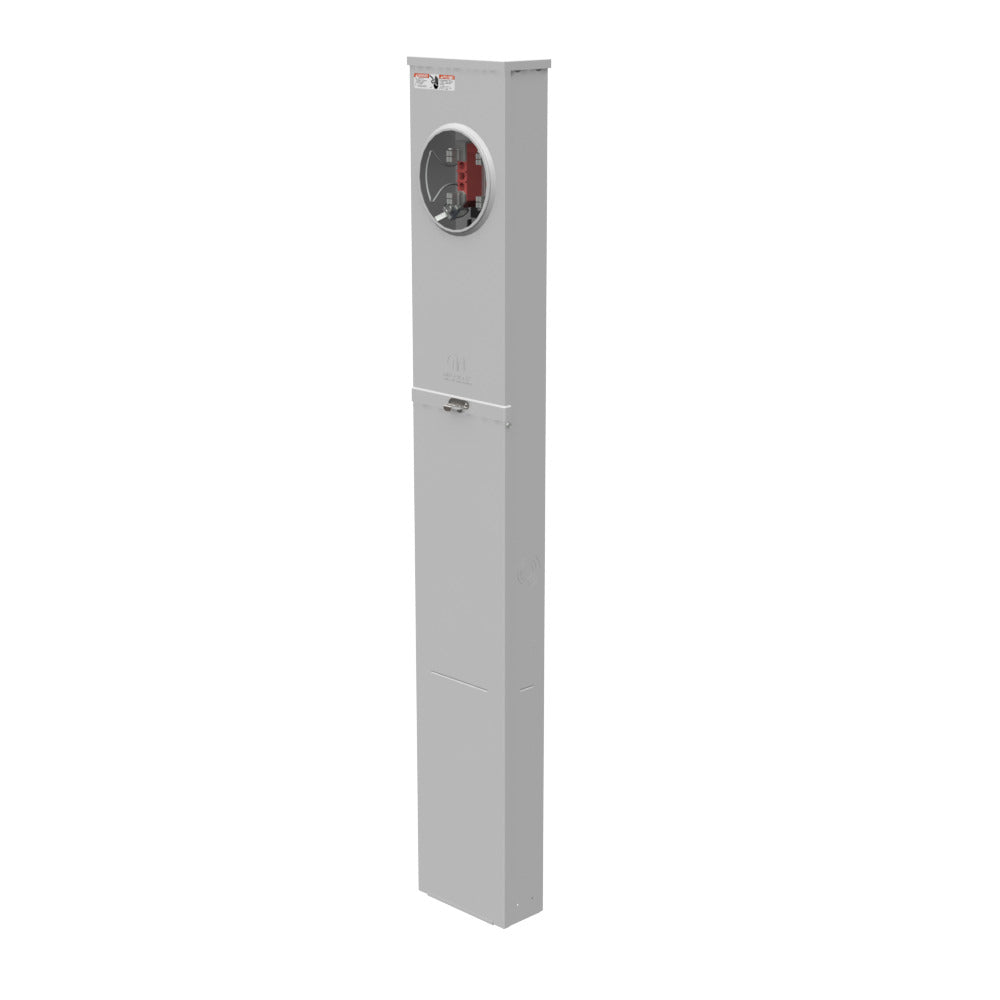

Milbank U3358-O-KK Single Position Meter Socket 200 Amp 1 Phase Ringless Horn 4 Term UG 600V

Product Description

Milbank U3358-O-KK is a single position meter socket designed for 200 amps and 1 phase. It features a ringless design with a horn bypass and is suitable for direct burial applications. This socket is built to accommodate underground cable entries, providing reliable service in various settings.

• 200 amp rating for robust power handling.
• Built from G90 galvanized steel with a powder coat finish.
• UL Listed, ensuring it meets safety standards.

Product Highlights

This meter socket is ideal for residential and commercial applications, ensuring durability and performance with its sturdy enclosure and design.

Product Information

Standard Information

• Brand: Milbank
• MPN: U3358-O-KK

Technical Specifications

• Amperage Rating: 200
• Application: Meter Socket
• Bypass Type: Horn
• Cable Entry: Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Pedestal
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Voltage Rating: Up to 600 Volts Alternating Current
• Country of Origin: United States
• Size: 4.125L x 9W x 62H
