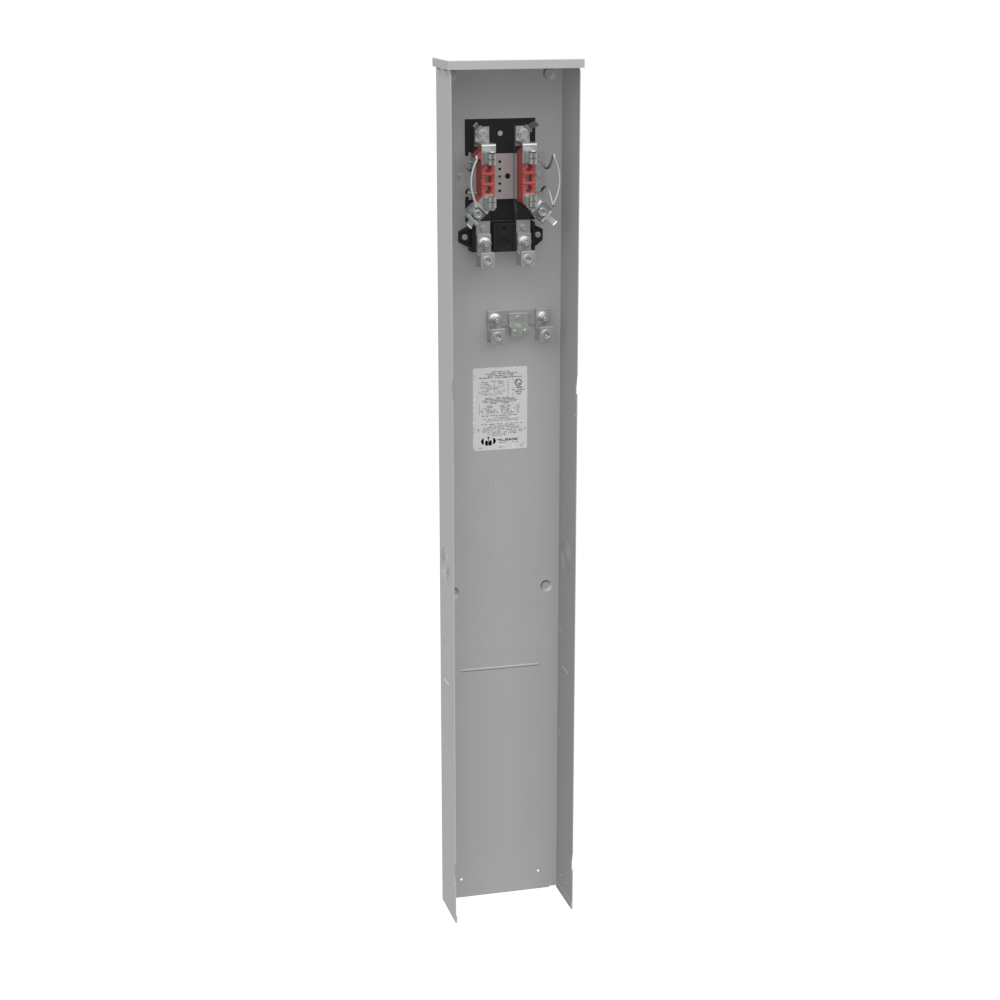

Milbank U3358-O-KK-ALT Single Position Meter Socket 200 Amp 1 Phase Ringless Horn 4 Term UG 240V Single Pedestal Direct Bury

Product Description

The Milbank U3358-O-KK-ALT is a single position meter socket designed for use in residential and commercial applications. This unit has a maximum amperage rating of two hundred, accommodating various electrical needs. The socket is built for one phase and operates effectively at up to two hundred forty volts AC. The ringless design offers ease of use and maintenance, while the horn bypass ensures reliable performance.

• Suitable for underground cable entry
• Constructed from G90 galvanized steel
• UL listed and compliant with Type 3R standards

Product Highlights

The meter socket is ideal for installation in areas requiring direct burial and is perfect for Alliant Energy's service requirements.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank

Technical Specifications

• Catalog Number: U3358-O-KK-ALT
• Amperage Rating: 200
• Application: Meter Socket
• Bypass Type: Horn
• Cable Entry: Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Pedestal
• Phase: 1
• Standard: UL Listed; Type 3R
• Voltage Rating: Up to 240 Volts Alternating Current
• Height: 62 inches
• Width: 9 inches
• Length: 4.125 inches
• Terminals: Single Mechanical
• Special Features: Alliant Energy
