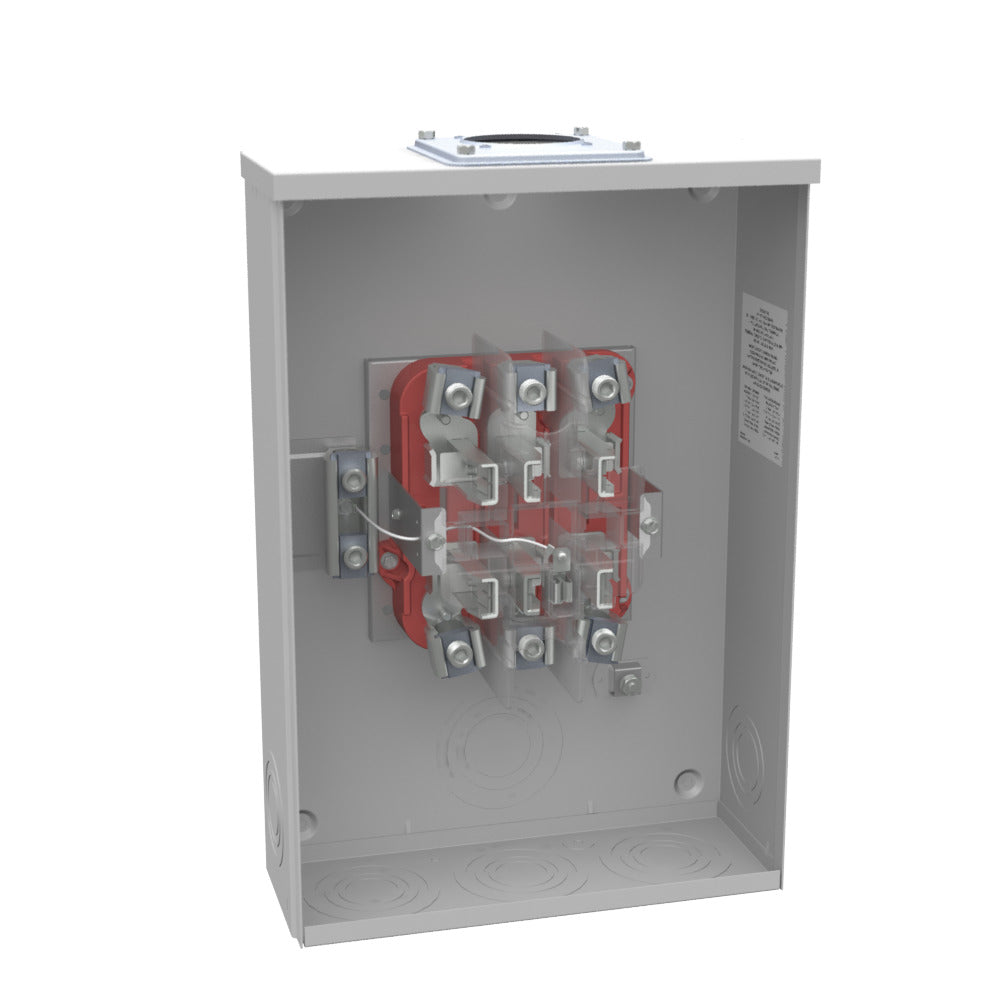

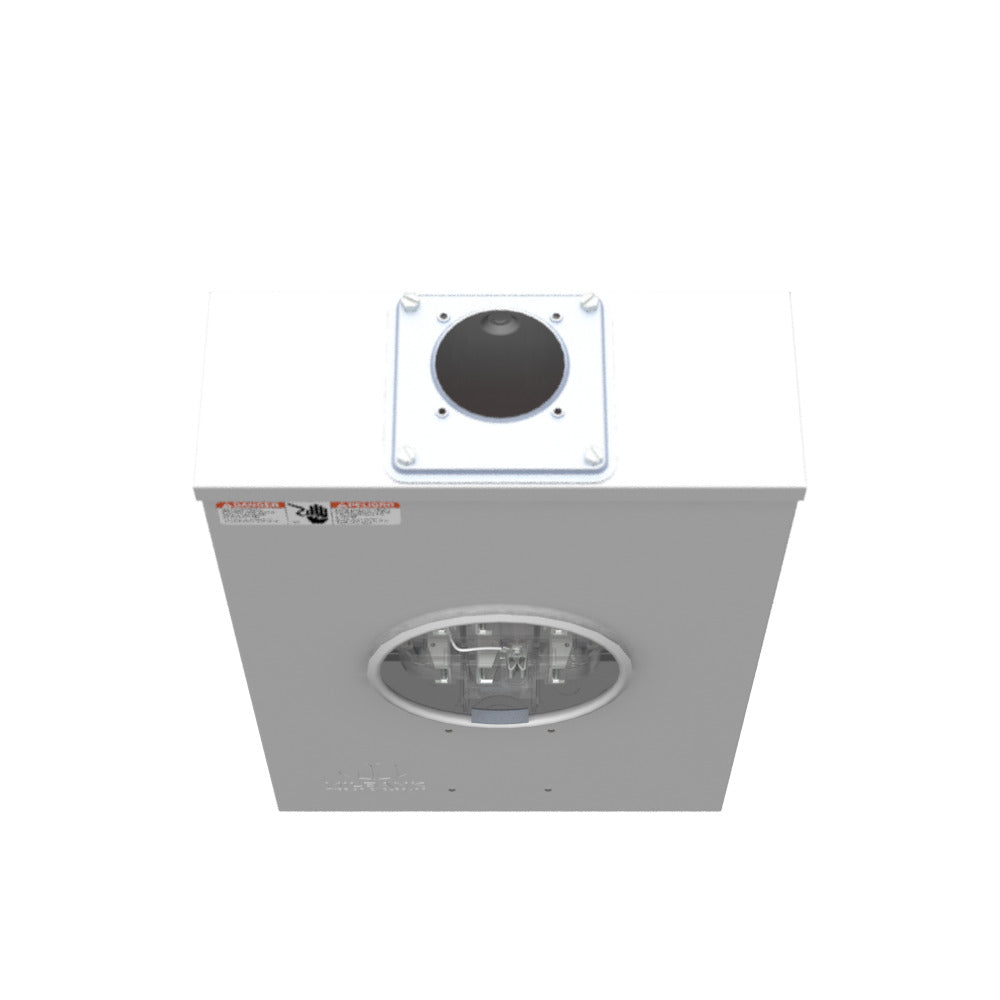

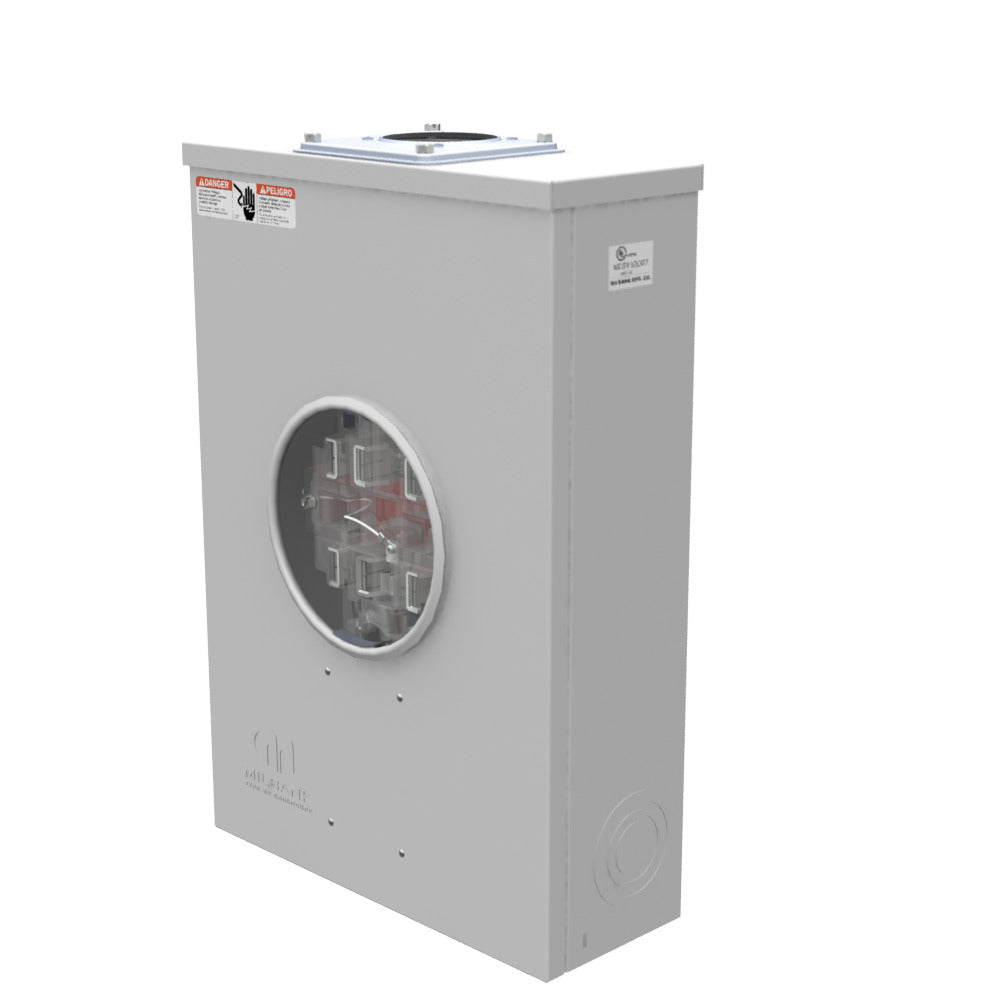

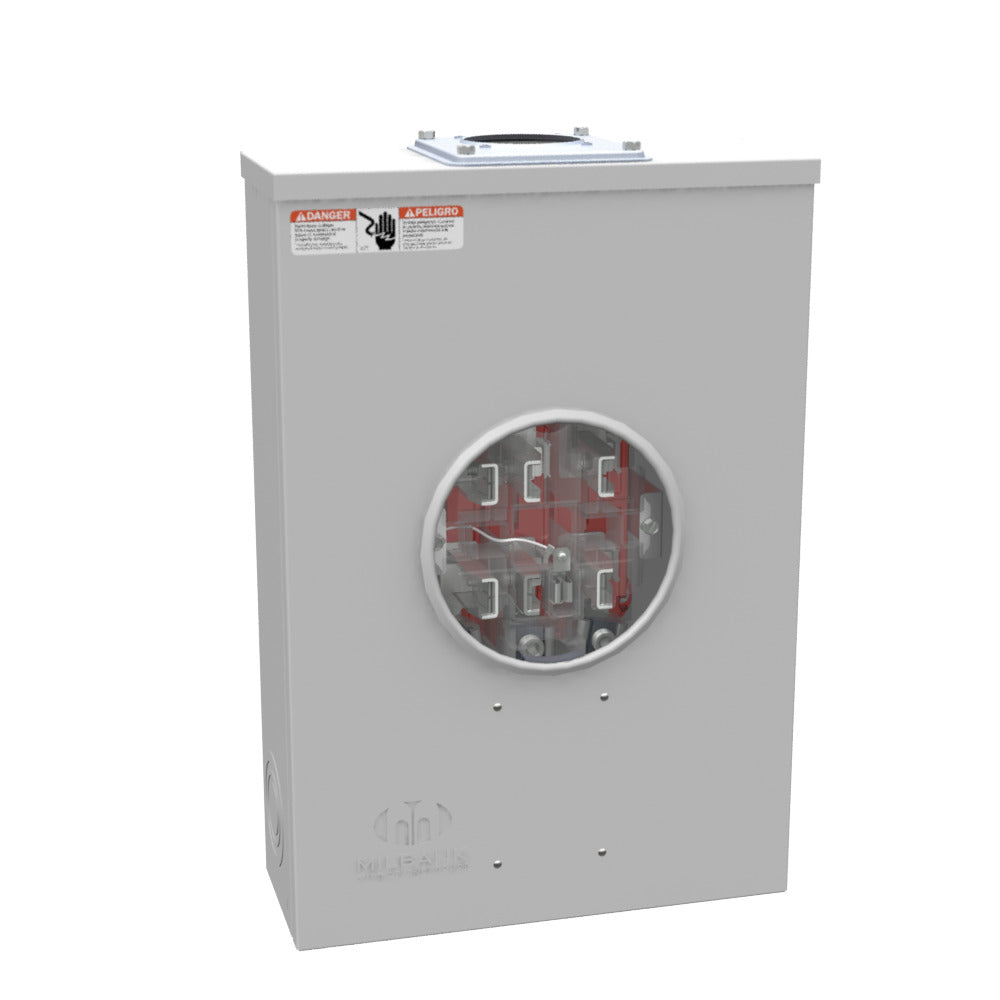

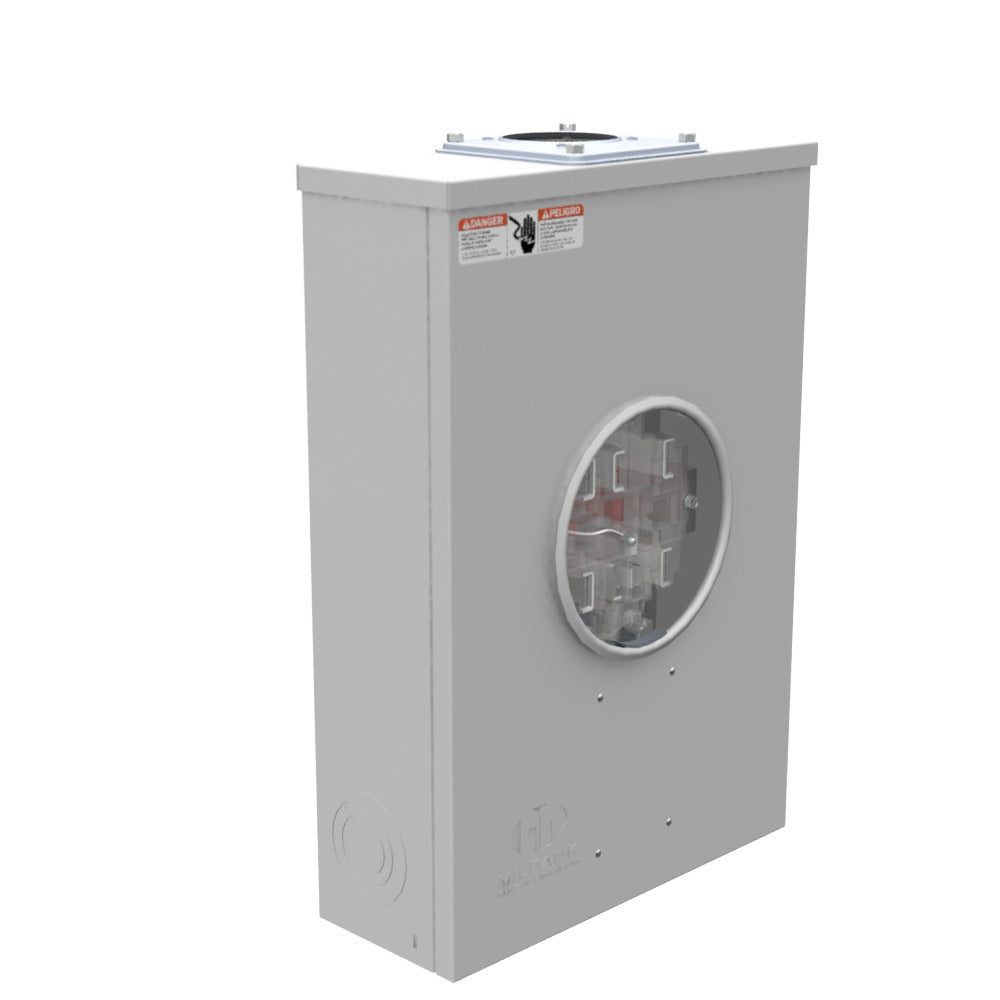

Milbank U3328-RXL Single Position Meter Socket 200 Amp 3 Phase No Bypass 7 Term OH UG 600V

Product Description

The Milbank U3328-RXL is a single position meter socket rated for two hundred amps and designed for three-phase applications. It features a ringed design with seven terminals and is suitable for both overhead and underground cable entry. This product does not have a bypass, ensuring reliable performance in power distribution scenarios.

• Rated for 200 amps and 600 volts
• UL Listed and suitable for Type 3R installations
• Constructed from G90 galvanized steel for durability

Product Highlights

The U3328-RXL meter socket is useful in various electrical distribution applications, providing a secure connection for power metering.

Product Information

Standard Information

• Catalog Number: U3328-RXL
• Brand: Milbank

Technical Specifications

• Country of Origin: United States
• Material: G90 Galvanized Steel with Powder Coat Finish
• Amperage Rating: 200
• Voltage Rating: 600 Volts Alternating Current
• Phase: 3
• Number of Jaws: 7 Terminal
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Bypass Type: No Bypass
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Application: Meter Socket
• Cable Entry: Overhead or Underground
• Standard: UL Listed; Type 3R
• Size: 4.844L x 13W x 19H inches
