MILBANK U3126-O-KK-BLG RELAYS & SWITCHES
MILBANK Milbank U3126-O-KK-BLG 4 Term, Ringless, Plain Top, Horn Bypass, 7-8 inch Barrel Lock Ground with Bracket Provision
MILBANK Milbank U3126-O-KK-BLG 4 Term, Ringless, Plain Top, Horn Bypass, 7-8 inch Barrel Lock Ground with Bracket Provision
MILBANK U3126-O-KK-BLG RELAYS & SWITCHES
MILBANK Milbank U3126-O-KK-BLG 4 Term, Ringless, Plain Top, Horn Bypass, 7-8 inch Barrel Lock Ground with Bracket Provision
MILBANK Milbank U3126-O-KK-BLG 4 Term, Ringless, Plain Top, Horn Bypass, 7-8 inch Barrel Lock Ground with Bracket Provision

Milbank U3126-O-KK-BLG 4 Term, Ringless, Plain Top, Horn Bypass, 7-8 inch Barrel Lock Ground with Bracket Provision

Brand: MILBANK
SKU: U3126-O-KK-BLG
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

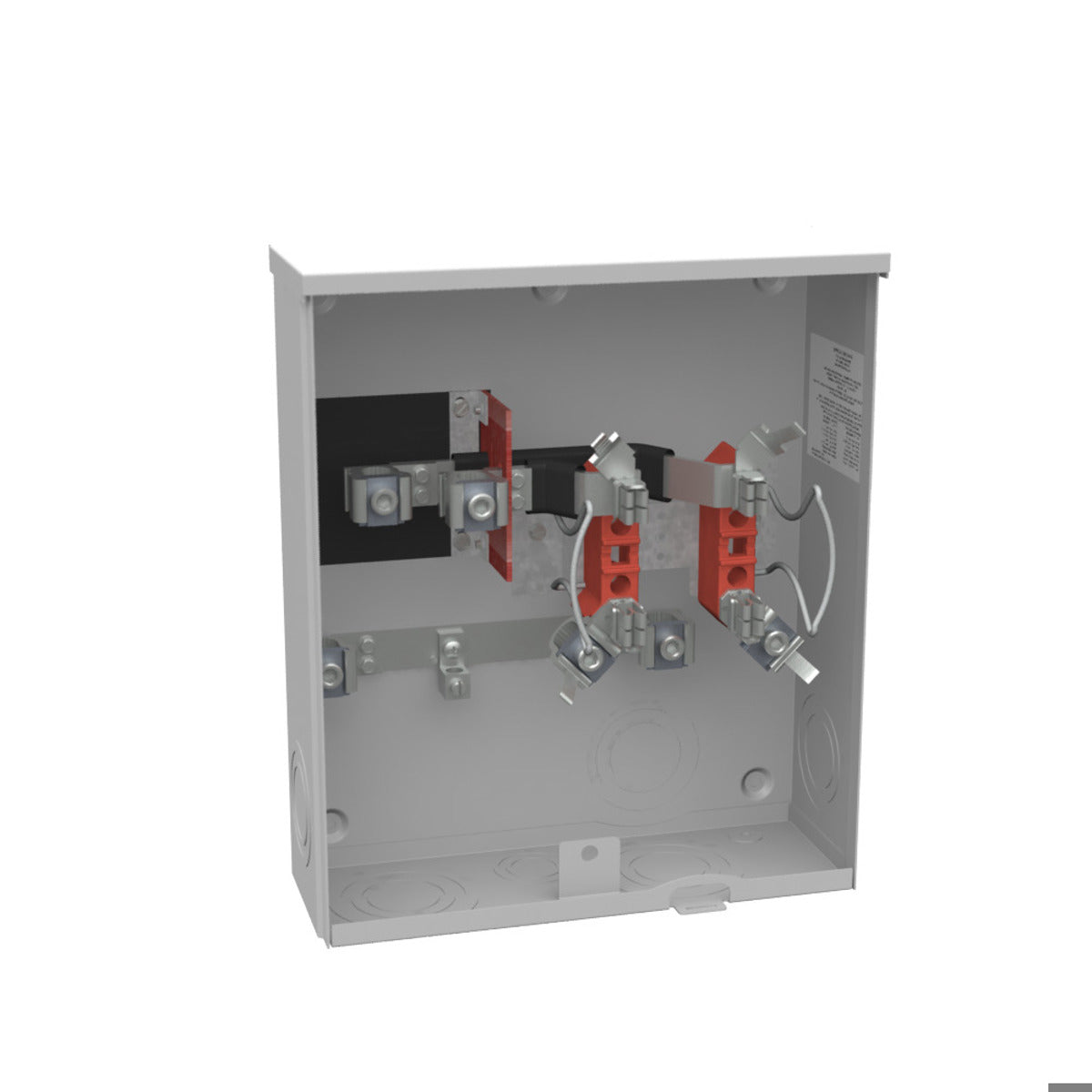

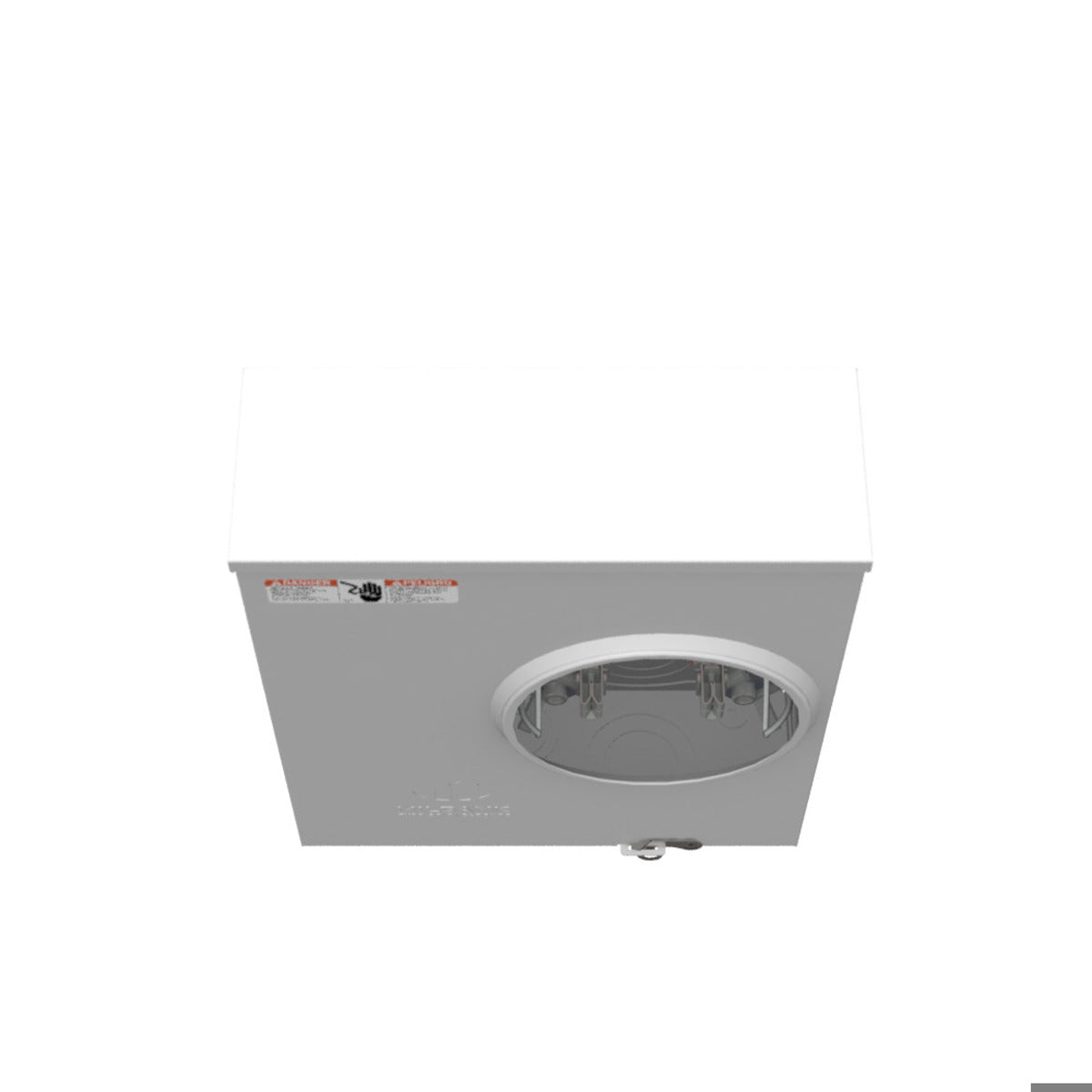

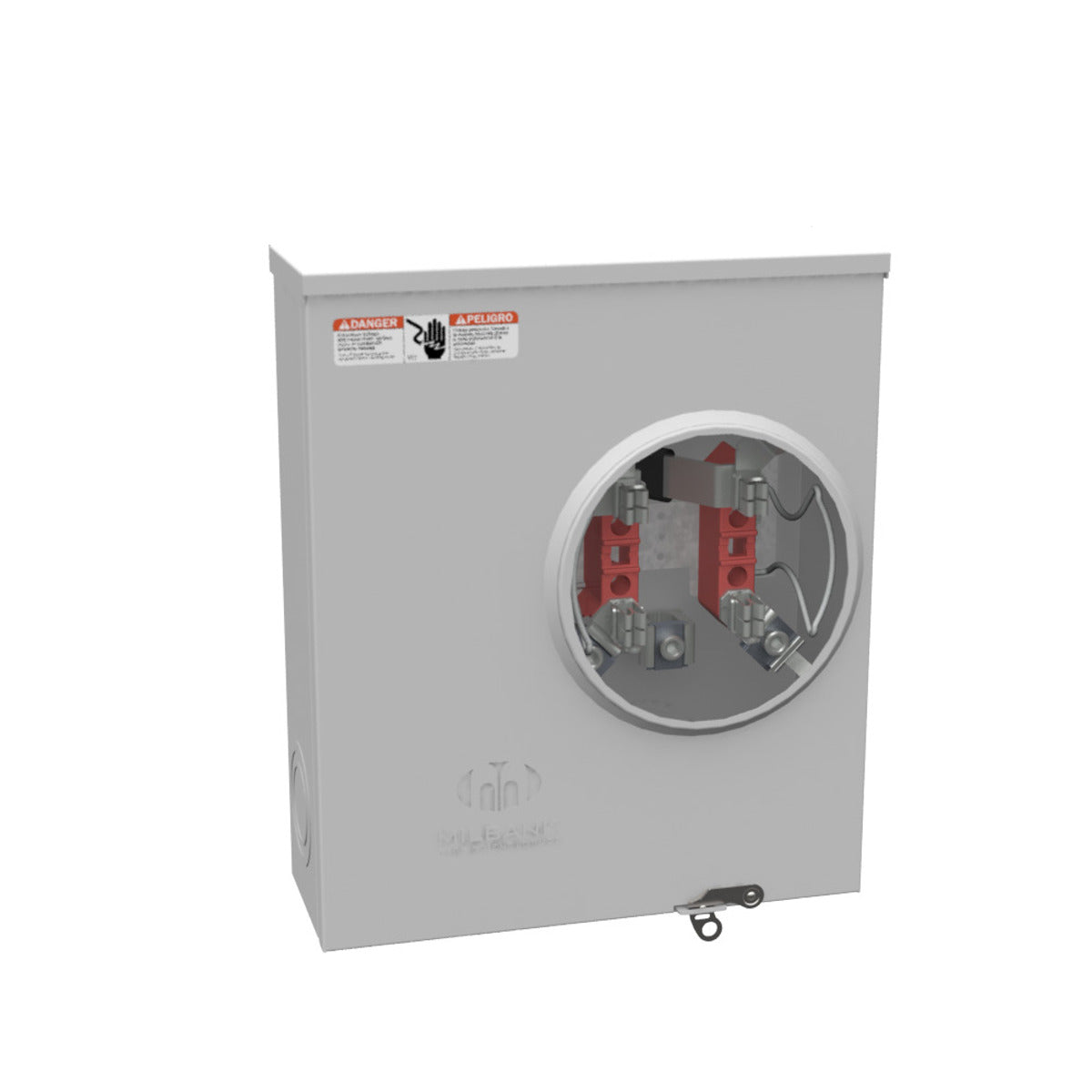

The Milbank U3126-O-KK-BLG is a ringless meter socket designed for high-performance applications. This unit supports four terminals and features a horn bypass with a seven-eighths inch barrel lock. The product is suitable for surface mounting and is ideal for utility installations.

  • 200 Amperage Rating for reliable operation
  • Constructed from G90 galvanized steel with powder coat finish
  • Designed for underground cable entry with side wireway

Product Highlights

This Milbank meter socket is UL listed and is appropriate for various metering applications.

Product Information

Standard Information

  • Brand: Milbank
  • Country of Origin: United States
Technical Specifications
Catalog Number
U3126-O-KK-BLG
Amperage Rating
200
Voltage Rating
600 Volts Alternating Current
Bypass Type
Horn
Application
Meter Socket
Insulation
Glass Polyester
Frequency Rating
60 Hertz
Material
G90 Galvanized Steel with Powder Coat Finish
Mounting
Surface Mount
Height
15.25 inches
Width
13 inches
Length
4.5 inches
Item Type
Ringless Meter Socket
Size
4.5L x 13W x 15.25H inches
Number of Jaws
4 Terminal
Phase
1
Standard
UL Listed; Type 3R
UPC
784572241749
GTIN
00784572241749
