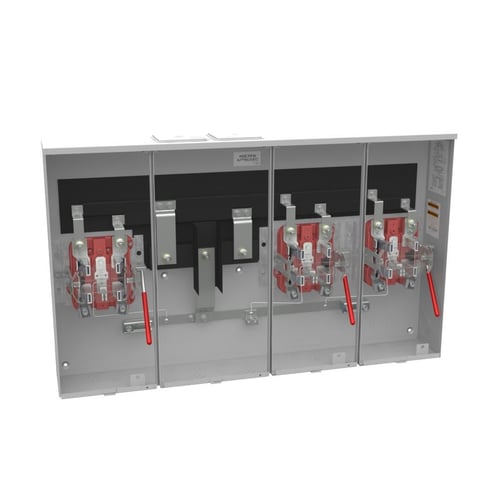

Milbank U2873-XT-QG-AMS Ringless Meter Socket 200 Ampere (3 Meter Positions)

Product Description

The Milbank U2873-XT-QG-AMS ringless meter socket is rated for 300 VAC and 200 continuous Ampere. This meter socket is designed for 1 phase, 60 Hz systems and features no main breaker. It supports overhead or underground feed types with a center wireway cable entry and includes a 3/8 inch stud terminal and glass polyester insulation. The NEMA 3R enclosure is made of G90 galvanized steel with a powder coat finish.

• Ringless Meter Socket with Lever Bypass
• 3 Meter Positions
• Overhead or Underground with Center Wireway Cable Entry

Product Highlights

Ringless meter socket with lever bypass, 5 terminal jaws, and a NEMA 3R enclosure. UL Listed and Ameren Approved.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U2873-XT-QG-5T9-AMS
• Country of Origin: USA

Technical Specifications

• Manufacturer: Milbank Manufacturing
• Amperage Rating: 200 A
• Voltage Rating: 300 VAC
• Enclosure Type: NEMA 3R
• Frequency Rating: 60 Hz
• Feed Type: Overhead, Underground, with Center Wireway
• Number of Jaws: 5
• Wire Size: 2 AWG to 350 kcmil Load Side Wire Range
• Hub Type: Twin Large Closing Plates
• Hub Size: Large
• Terminal Type: Stud Line Side and Lay in Load Side
• Insulation: Glass Polyester
• Mounting Type: Surface
• Application: Meter Socket
• Country of Origin: USA
• Enclosure: Type 3R, G90 Galvanized Steel with Powder Coat Finish
• Phase: 1
• Special Features: 3 position Lever bypass
• Standard: UL Listed
• Sub_Brand: Milbank
• Type: Ringless Meter Socket
