Milbank U2872-XT-5T9 5 term ringless 2 large closing plates lever bypass 2 position 5th term 9 o'clock position 200a 300vac

Product Description

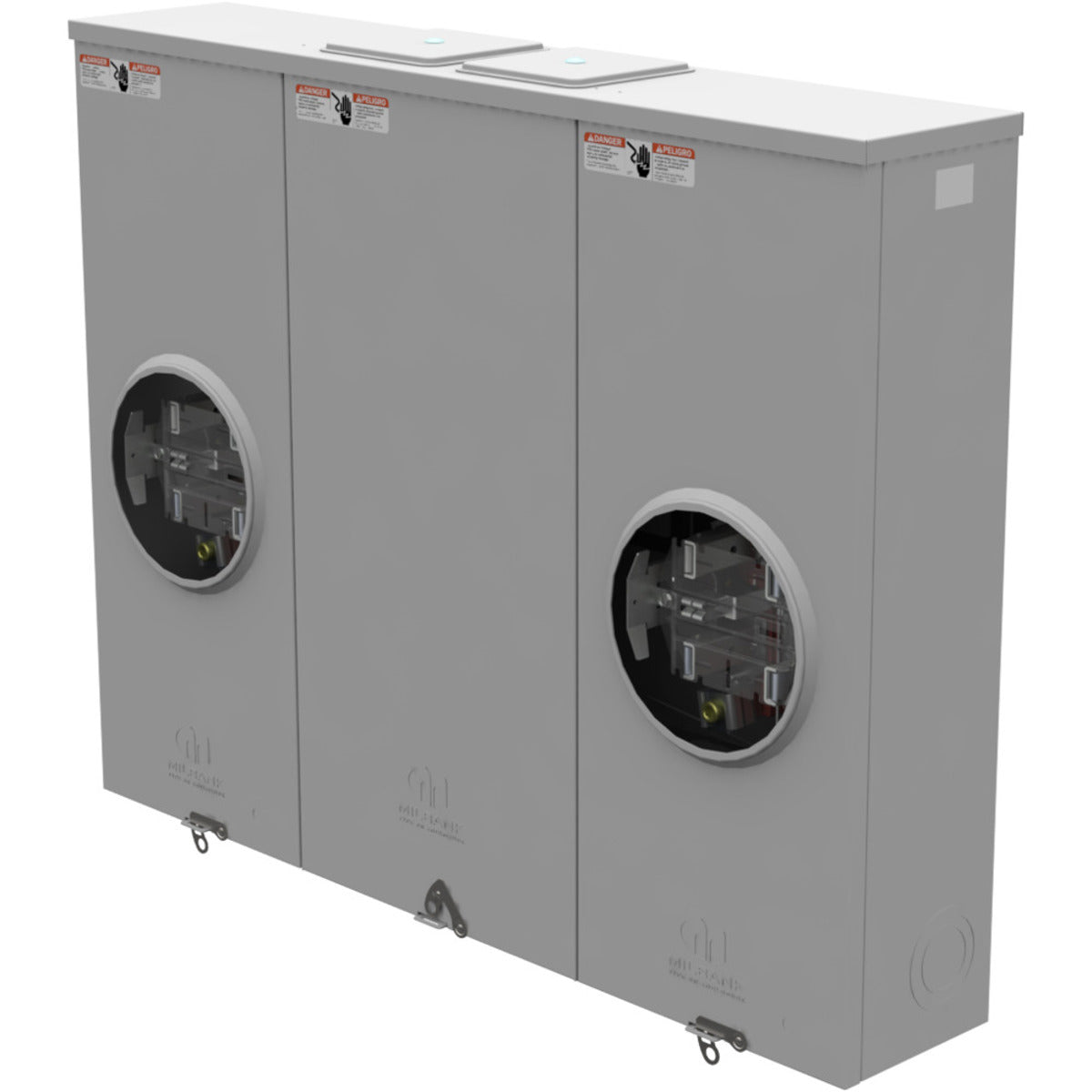

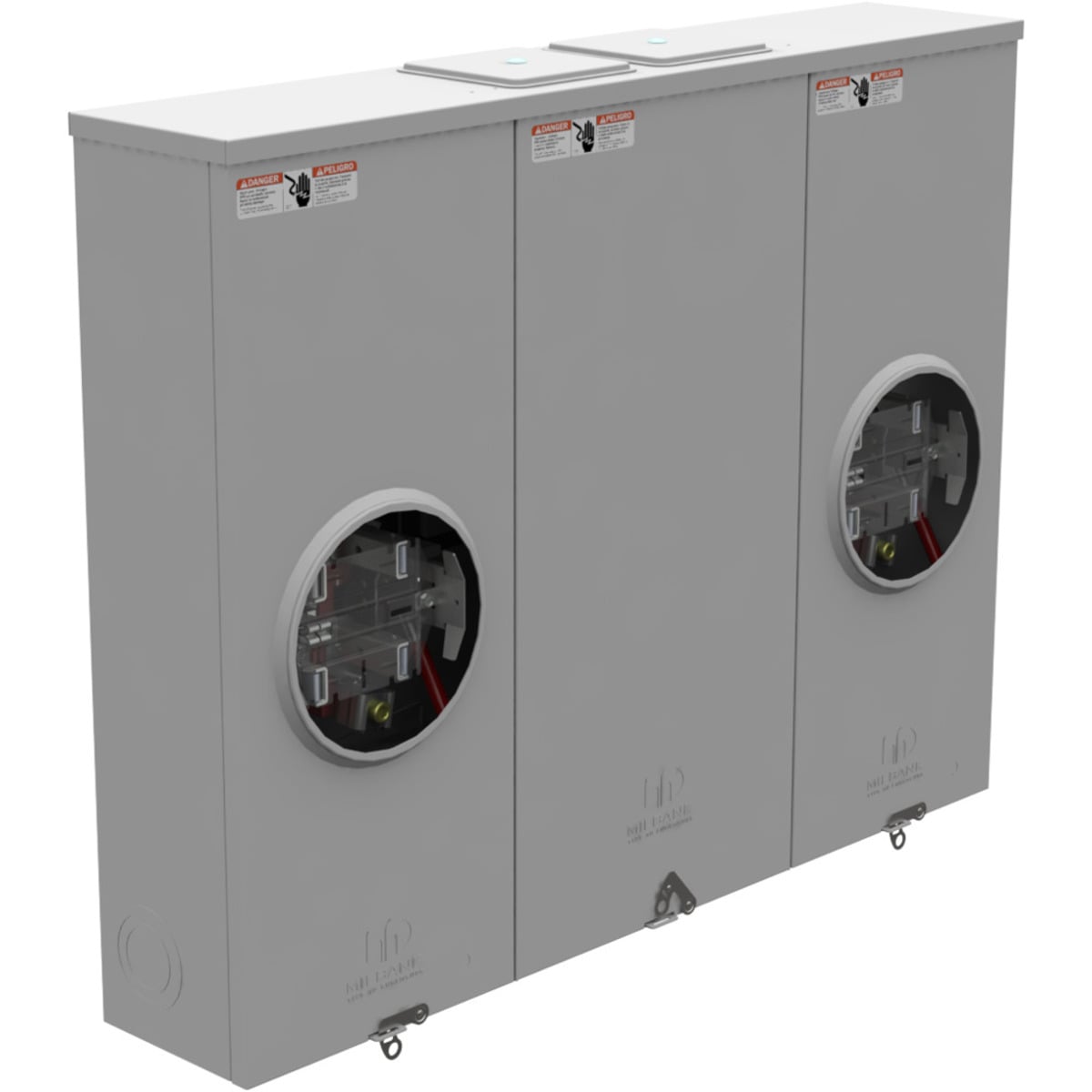

The Milbank U2872-XT-5T9 is a 200 Amp, 300 VAC ringless meter socket designed for overhead or underground service with a center wireway. This surface-mount unit features 5 terminals, including a 5th terminal at the 9 o'clock position, and a lever bypass for safe operation. Constructed from G90 galvanized steel with a powder coat finish, it ensures durability and is UL Listed, meeting Type 3R standards for outdoor use. It is suitable for single-phase electrical installations.

• 5 Terminal, Ringless design with 2 large closing plates and lever bypass.
• 200 Amp, 300 Volts AC rating for 1-phase electrical systems.
• UL Listed, Type 3R standard, G90 galvanized steel with powder coat finish for surface mounting.

Product Highlights

Durable 200A 300VAC ringless meter socket with lever bypass, 5 terminals, and Type 3R enclosure for surface mount applications.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U2872-XT-5T9
• Country of Origin: United States

Technical Specifications

• Amperage: 200 A
• Application: Meter Socket
• Bypass Type: Lever
• Cable Entry: Overhead or Underground with Center Wireway
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency: 60 Hz
• Insulation Material: Glass Polyester
• Mounting Type: Surface Mount
• Number of Jaws: 5
• Phase: 1 Phase
• Standard: UL Listed, Type 3R
• Product Type: Ringless Meter Socket
• Terminal Type: 3/8 Inch Stud
• Voltage: 300 VAC
• Main Breaker Size: No Main Breaker
• Ground Type: Ground Lug
• Closing Plate Type: Twin Large Closing Plates
• Knockouts: True
• Load Side Wire Range: 2 AWG - 350 kcmil
• Number of Main Breakers: 0
• Number of Meter Positions: 2
• Number of Receptacles: 0
• Service Type: OH/UG with Center Wireway
• Includes: 5th Terminal 9 Oclock Position
• Enclosure Type: NEMA 3R
