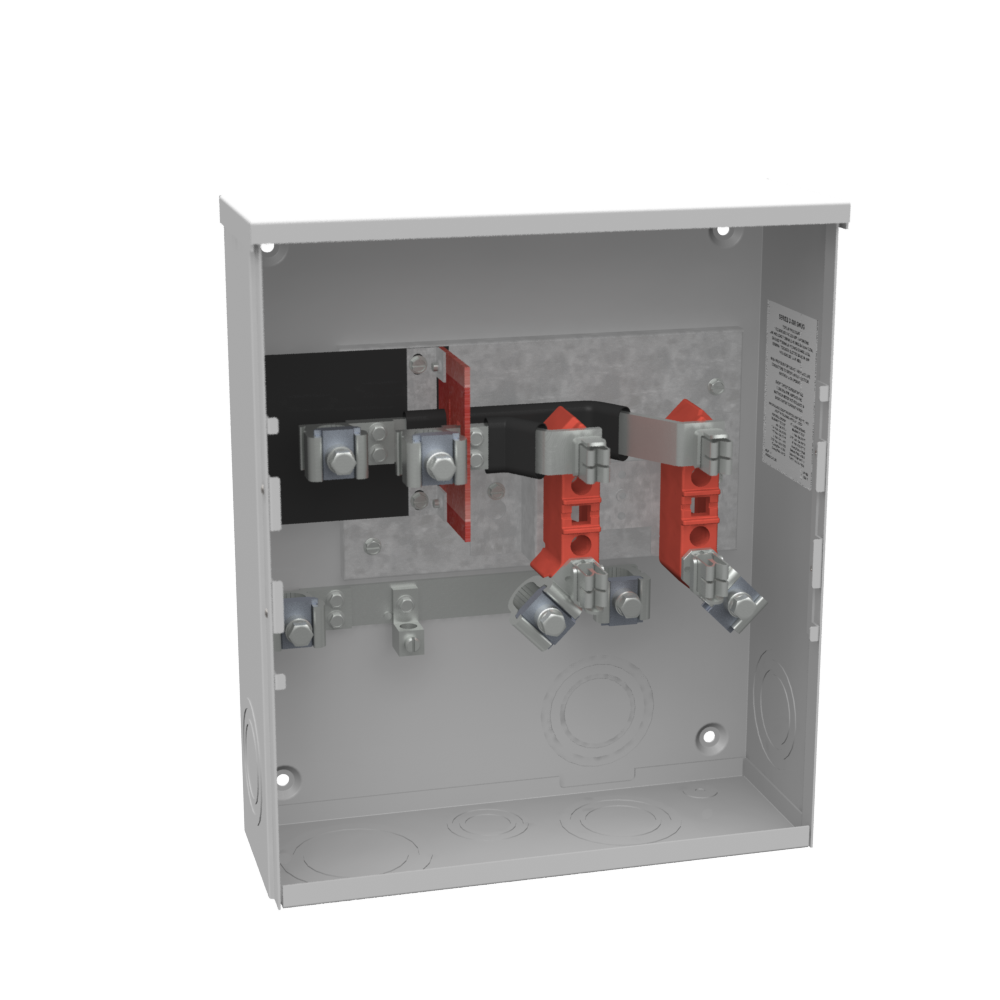

Milbank U2671-O Single Position Meter Socket 200 Amp 1 Phase Ringless No Bypass 4 Term UG with Side Wireway

Product Description

The Milbank U2671-O is a single position meter socket designed for outdoor use. This product supports a current rating of two hundred amps and operates on a one-phase system. It features a ringless design and comes without a bypass. The socket includes four terminal connections and has a side wireway for easy installation.

• 200 amp capacity
• Ringless design without bypass
• Side wireway for straightforward cable entry

Product Highlights

This meter socket is built with safety and ease of use in mind, accommodating up to 600 volts. It is suitable for various outdoor electrical applications and is UL Listed.

Product Information

Standard Information

• Brand: Milbank
• Catalog Number: U2671-O

Technical Specifications

• Amperage Rating: 200
• Voltage Rating: 600 Volts Alternating Current
• Application: Meter Socket
• Bypass Type: No Bypass
• Cable Entry: Underground with Side Wireway
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel
• Origin: United States
• Phase: 1
• Number of Jaws: 4 Terminal
• Size: 4.5L x 13W x 15.25H inches
