Milbank U2594-X-K7 7 Term, Ringless, Large Closing Plate, Lever Bypass, Single Connector, 4-600 kcmil

Product Description

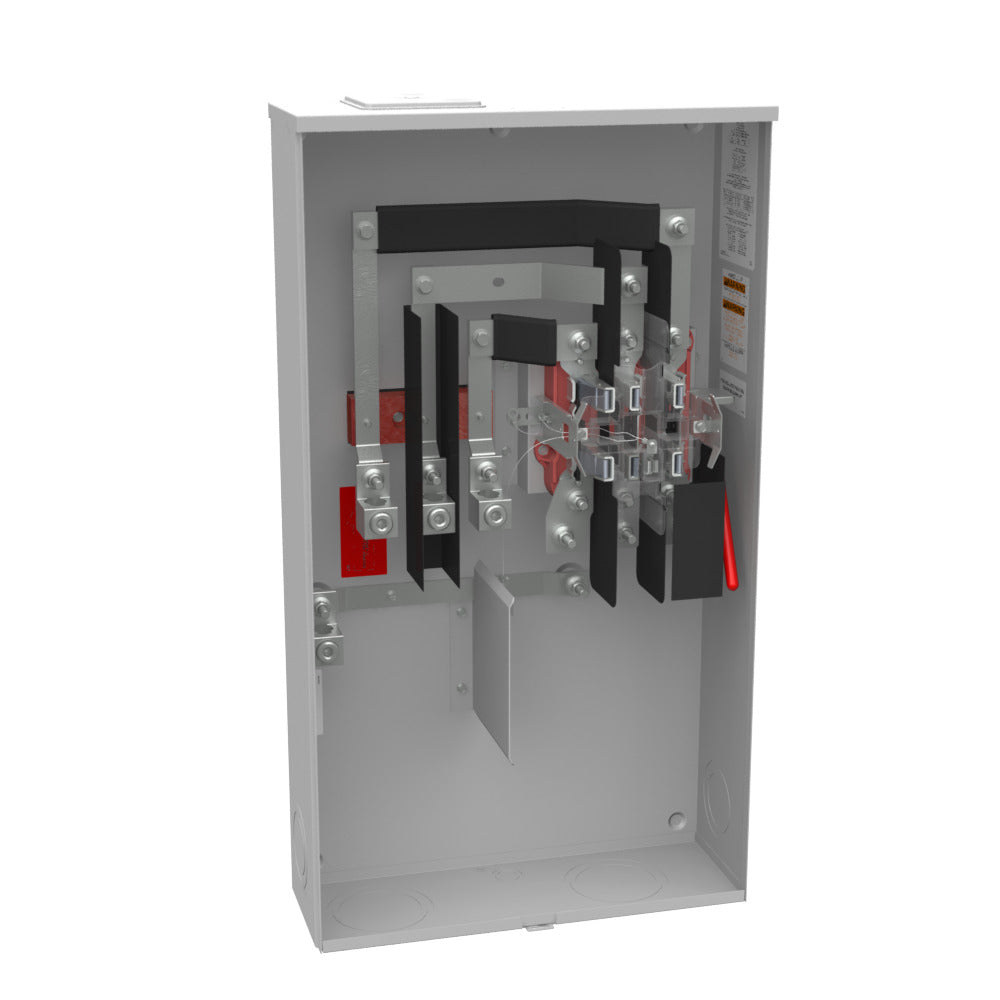

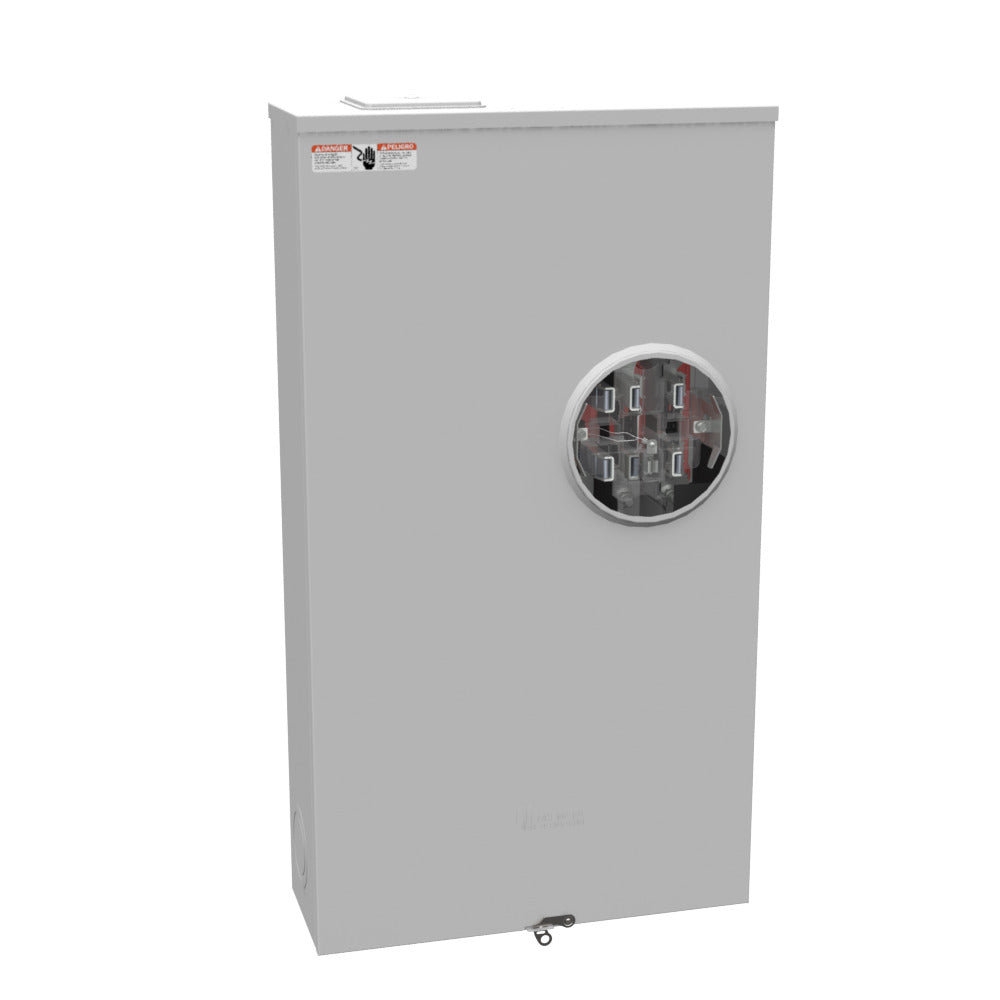

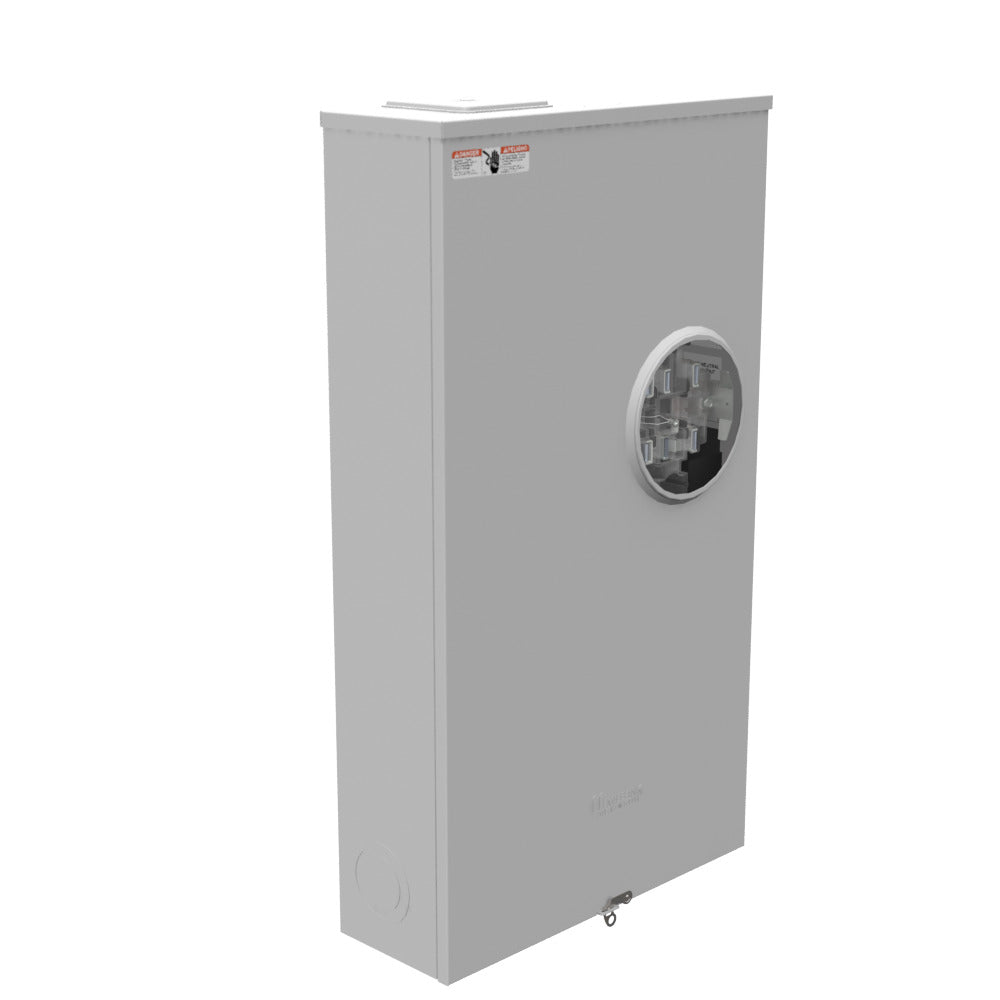

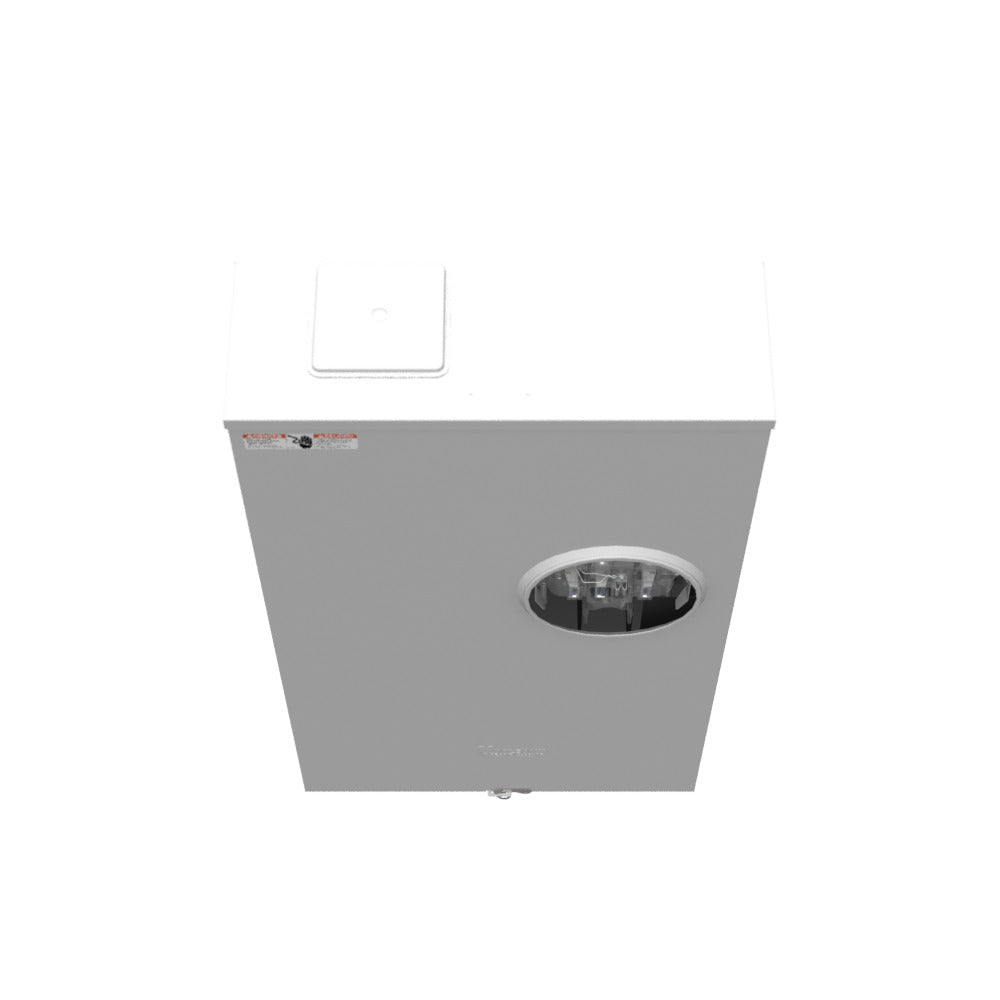

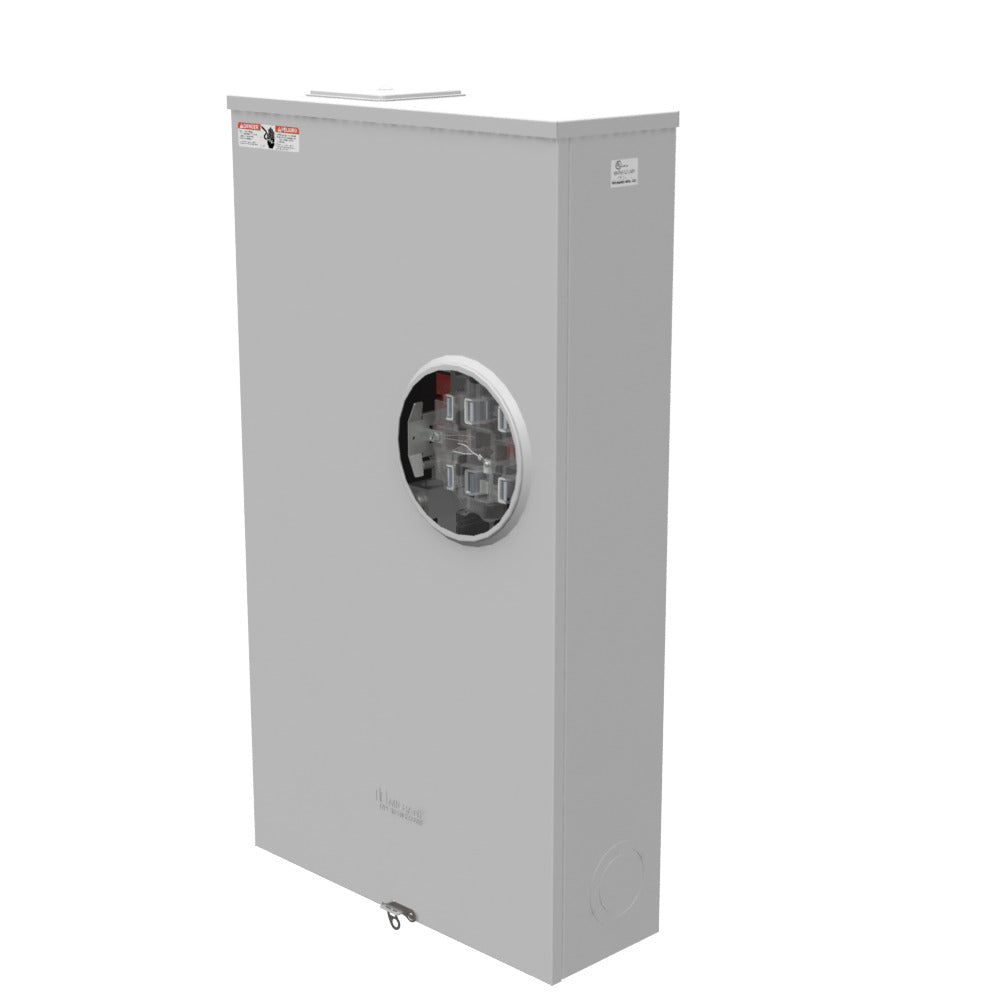

The Milbank U2594-X-K7 is a ringless meter socket designed for efficient power distribution. This model features a lever bypass and accommodates cables ranging from four to six hundred kcmil. It is built from G90 galvanized steel with a powder coat finish providing durability for outdoor installations.

• Rated for 320 amperage
• Suitable for three-phase applications
• UL listed and Ideal for overhead and underground cable entries

Product Highlights

The U2594-X-K7 is ideal for utility and commercial applications requiring reliable power supply management.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank

Technical Specifications

• Catalog Number: U2594-X-K7
• Country of Origin: United States
• Bypass Type: Lever
• Cable Entry: Overhead and Underground and Side Wireway
• Mounting: Surface Mount
• Item Type: Ringless Meter Socket
• Amperage Rating: 320
• Voltage Rating: 600 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Enclosure Material: G90 Galvanized Steel
• Insulation: Glass Polyester
• Dimensions: 6.5 inches Length x 19 inches Width x 34.125 inches Height
• Number of Jaws: 7 Terminal
• Standard: UL Listed; Type 3R
