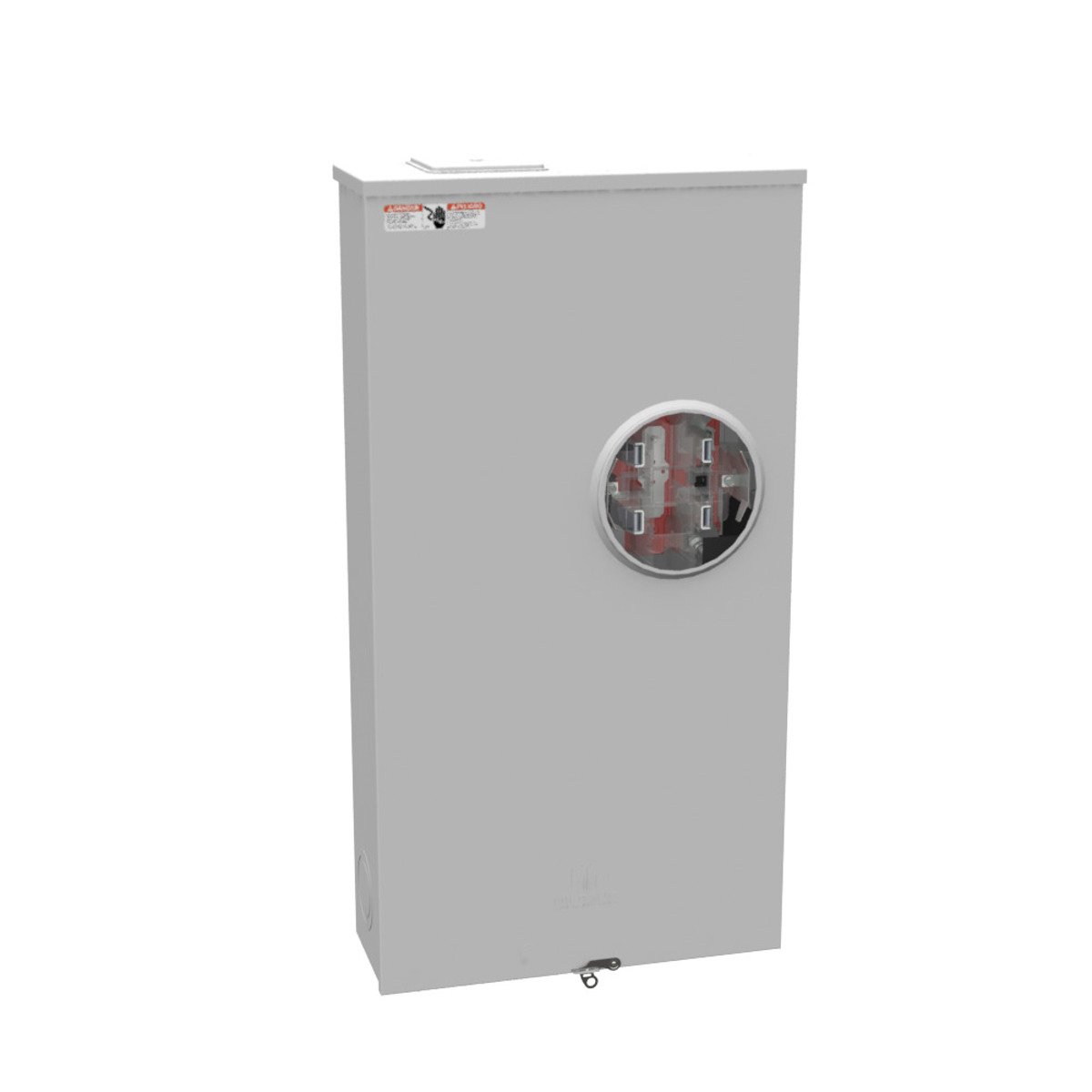

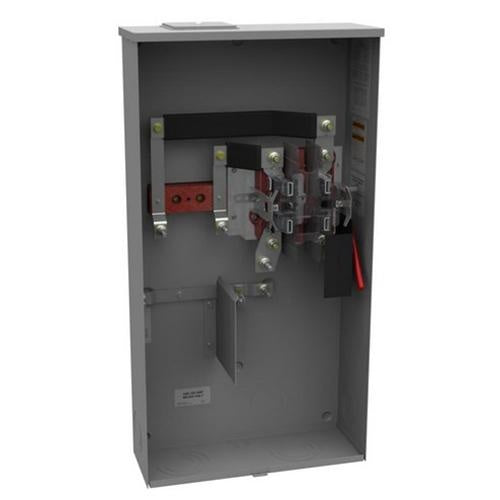

Milbank U2448-X-RGE 4 TERM RNGLS LRG CLS PLT LVR BYPS ROCHESTER GAS AND ELECTRIC

Product Description

The Milbank U2448-X-RGE is a reliable ringless meter socket designed for both overhead and underground service. This model features a robust construction with a G90 galvanized steel enclosure that offers enhanced durability and protection. The socket accommodates a maximum current rating of three hundred twenty amps and operates at six hundred volts. The dimensions are seventeen and three-fourths inches in length, six and one-half inches in width, and thirty-four and one-eighth inches in height.

• Rated for three hundred twenty amps
• Constructed from G90 galvanized steel for strength
• NEMA type 3R rated enclosure

Product Highlights

The unit supports four terminal connections and is UL listed for safety. It is suitable for residential and commercial applications requiring a robust power distribution solution.

Product Information

Standard Information

• Manufacturer: Milbank
• MPN: U2448-X-RGE

Technical Specifications

• Amperage Rating: 320 Amp
• Voltage Rating: 600 Volt AC
• Frequency Rating: 60 Hz
• Mounting: Surface
• Number of Jaws: 4
• Material: G90 Galvanized Steel
• Enclosure: NEMA 3R
• Dimensions: 17-3/4 x 6-1/2 x 34-1/8 inches
