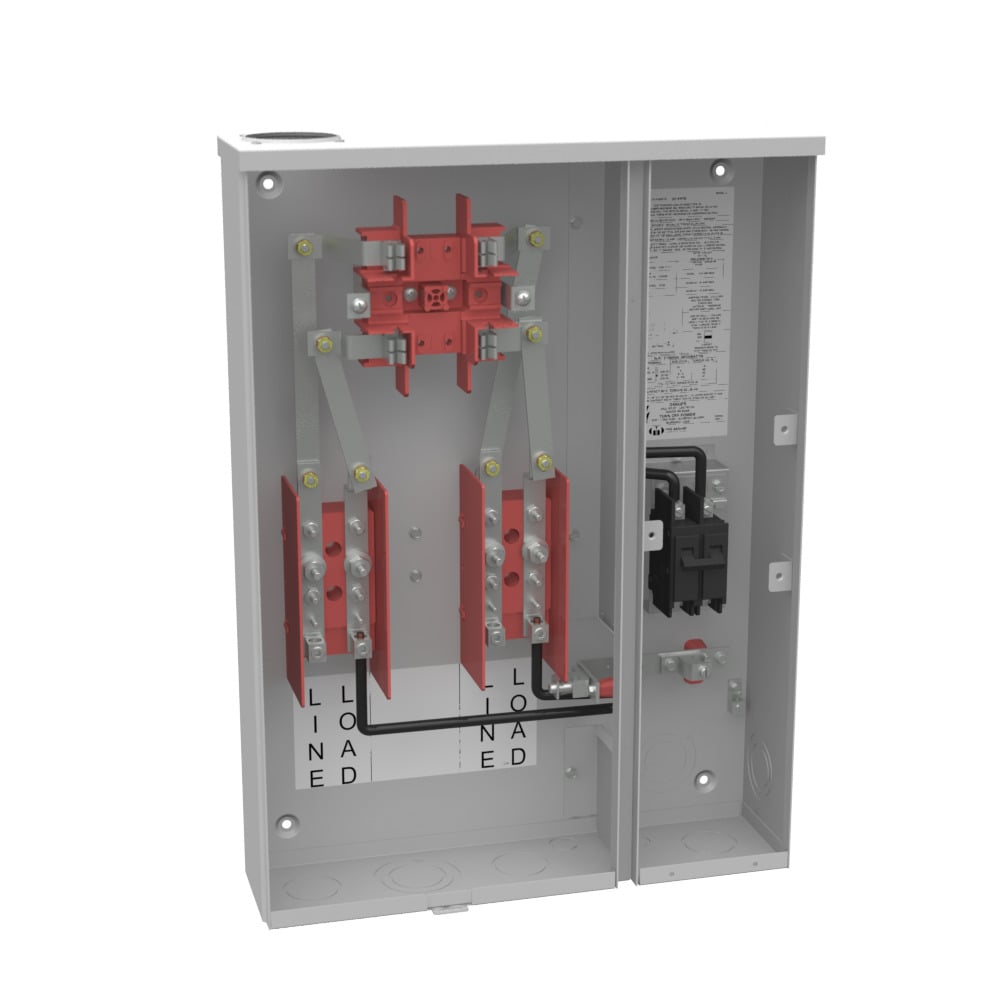

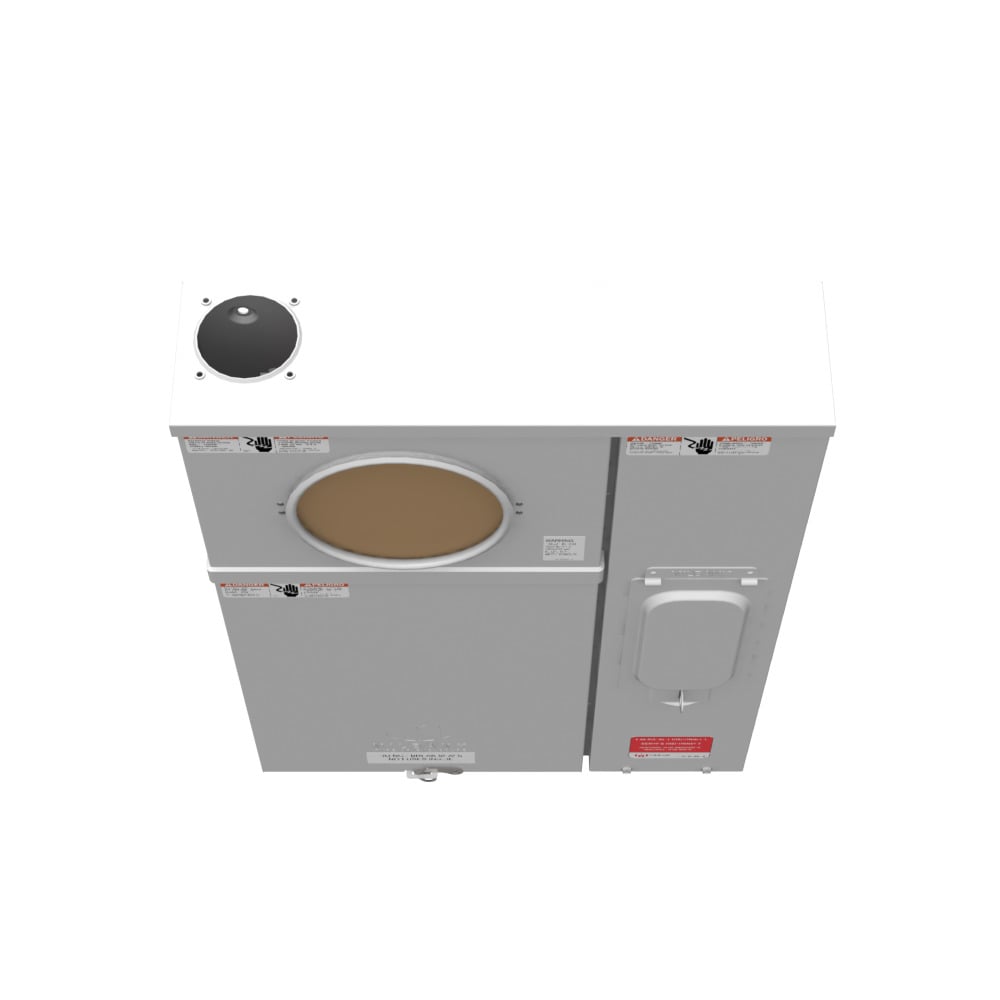

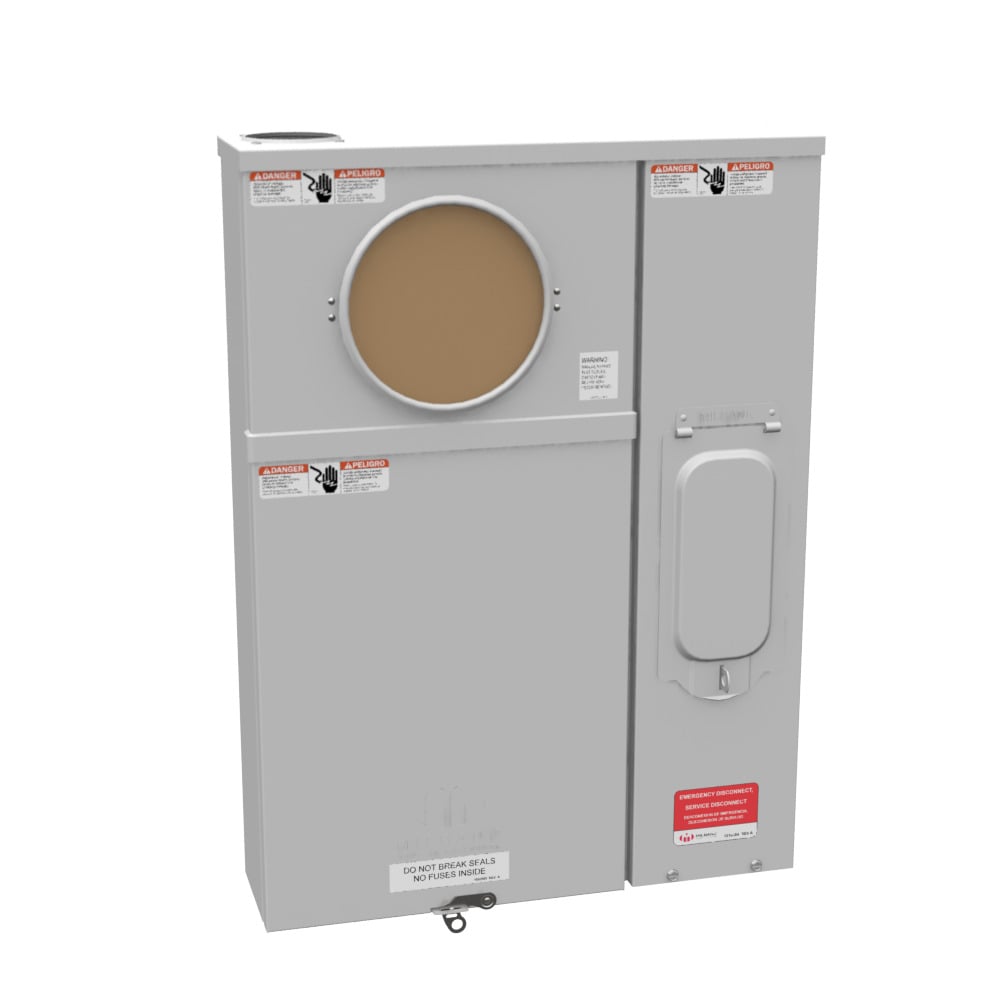

Milbank U214MTB Single Position Meter Socket with Main Breaker, 100 Amp, 1 Phase, Ringed, Link, 4 Term, OH, UG, 240V

Product Description

The Milbank U214MTB is a single position meter socket designed for use with a main breaker. This meter socket supports a 100 Amp rating and can handle 240 volts with a single phase. It has a ringed and link type bypass feature and allows for both overhead and underground cable entry.

• Flexible installation with overhead or underground entry options
• Constructed from G90 galvanized steel with a powder coat finish
• UL Listed standard for safety compliance

Product Highlights

This product is suitable for utility applications and provides reliable performance with a bypass feature for service continuity.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U214MTB
• Amperage Rating: 100
• Voltage Rating: Up to 240 Volts Alternating Current
• Phase: 1
• Number of Jaws: 4 Terminal
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Fiberglass with Resin
• Size: 4.567L x 18.125W x 24.75H
