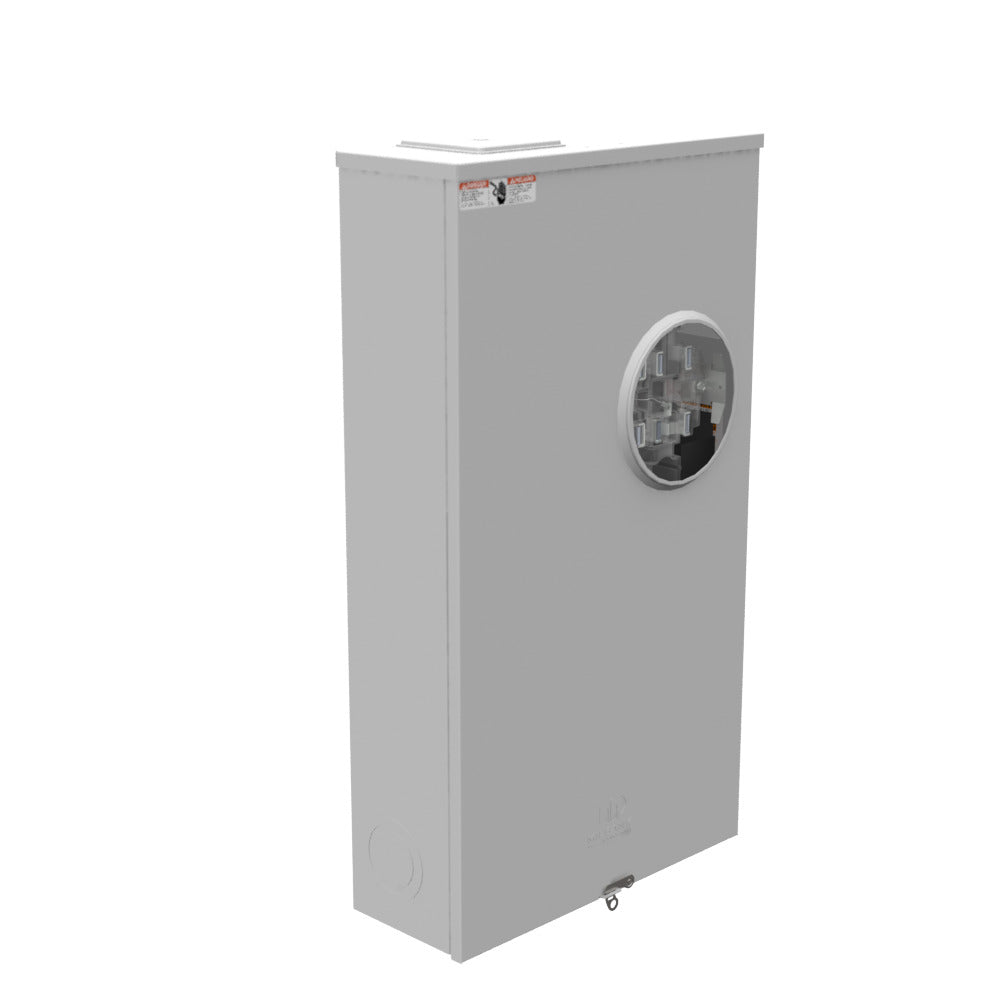

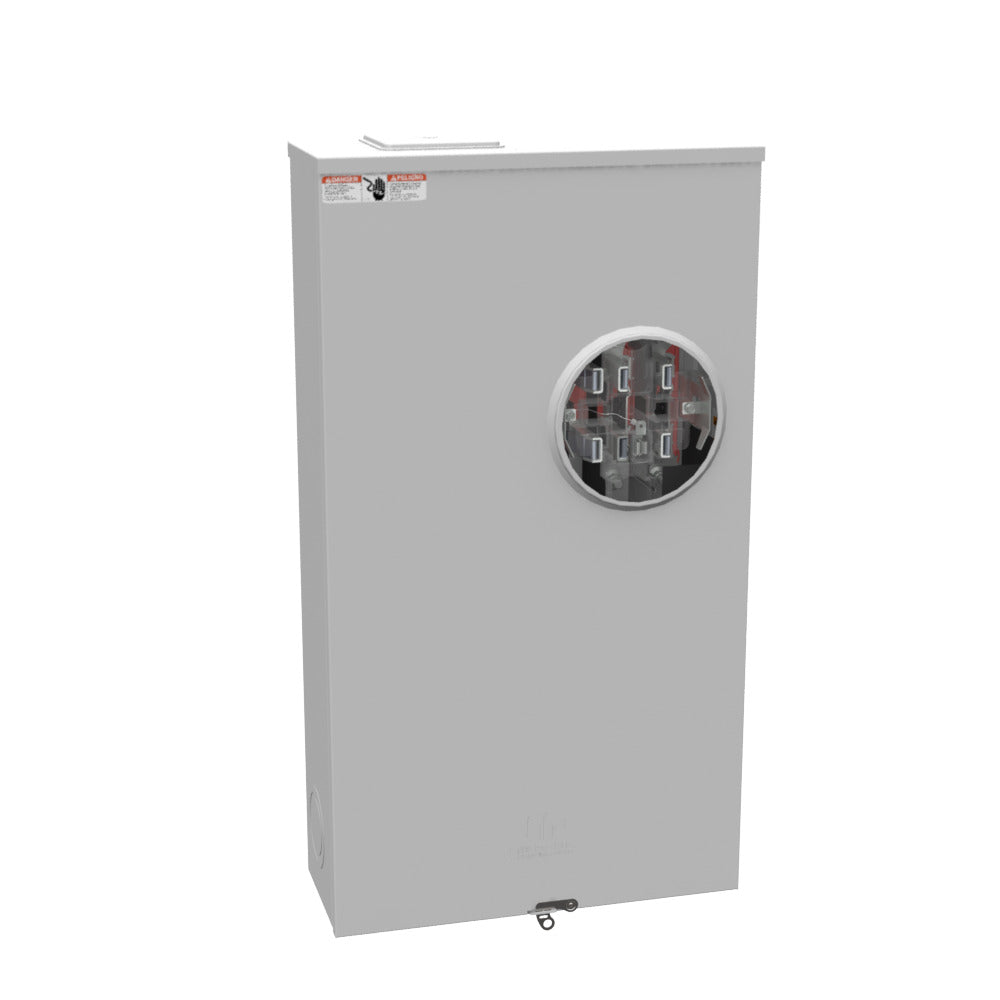

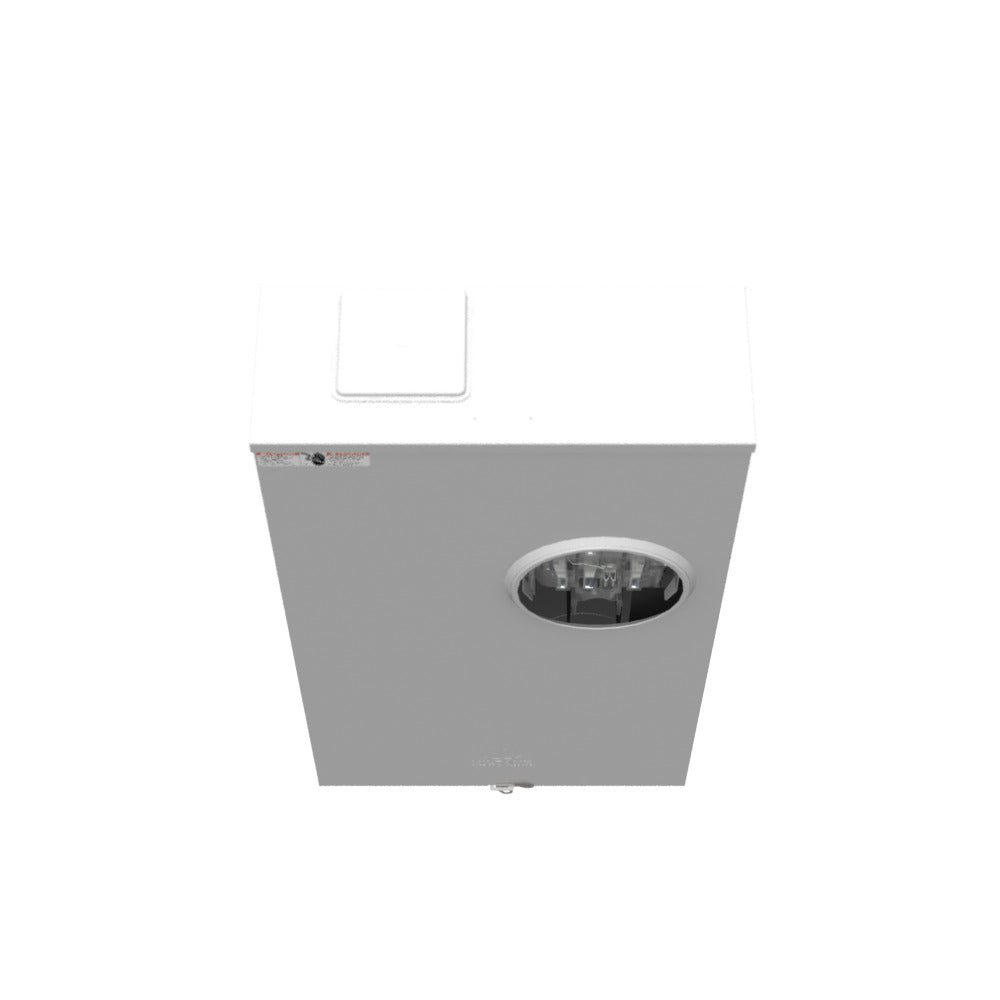

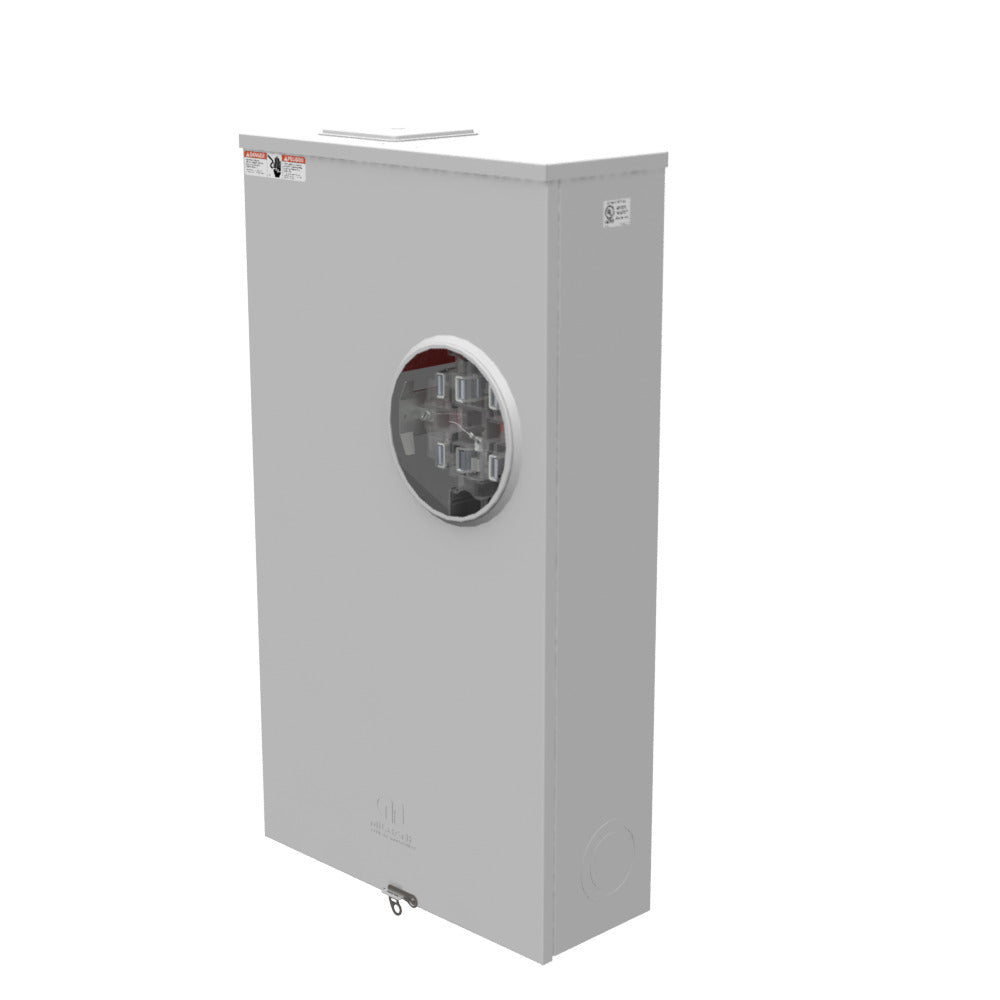

Milbank U2120-X Single Position Meter Socket 320 Amp 3 Phase Ringless Lever 7 Term

Product Description

The Milbank U2120-X Single Position Meter Socket is designed for utility metering applications. This product supports a maximum amperage of three hundred twenty amps and is suitable for three-phase service. It features a ringless design that enhances weather resistance and durability.

• Amperage Rating: 320 Amps
• Application: Meter Socket
• Voltage Rating: 600 Volts AC

Product Highlights

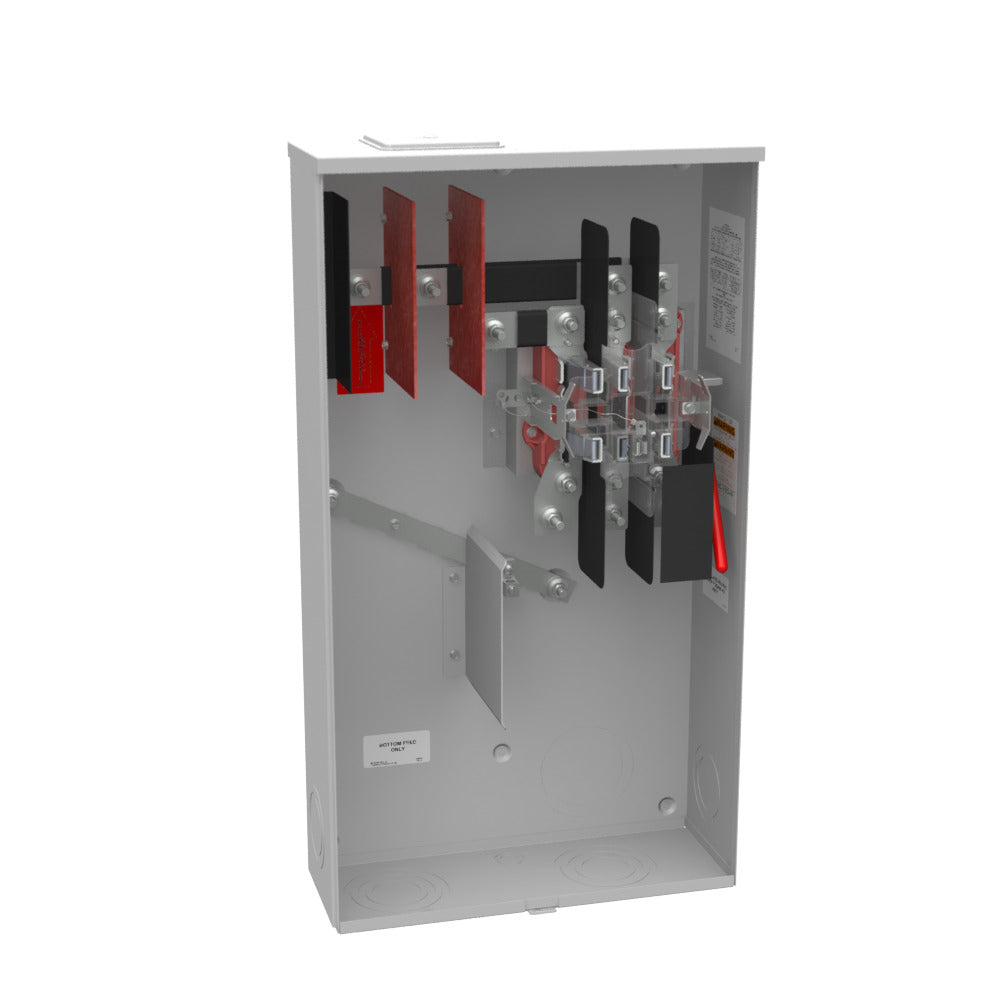

This meter socket includes a lever bypass feature for easy isolation and maintenance. Its design allows for both overhead and underground cable entry, making it versatile for various installations.

Product Information

Standard Information

• Catalog Number: U2120-X
• Manufacturer: Milbank

Technical Specifications

• Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Phase: 3
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Bypass Type: Lever
• Number of Jaws: 7 Terminal
• Dimensions: 6.5 inches Length x 17.75 inches Width x 31.75 inches Height
