Product Description

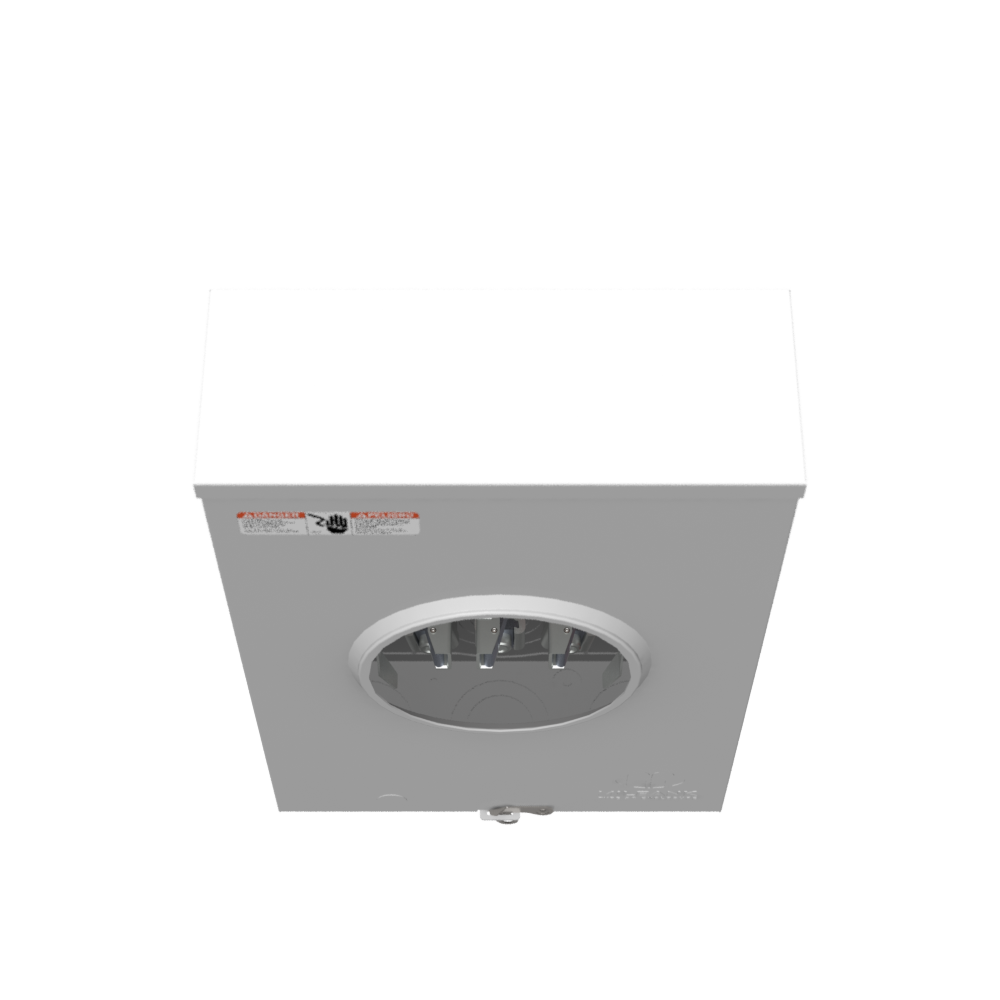

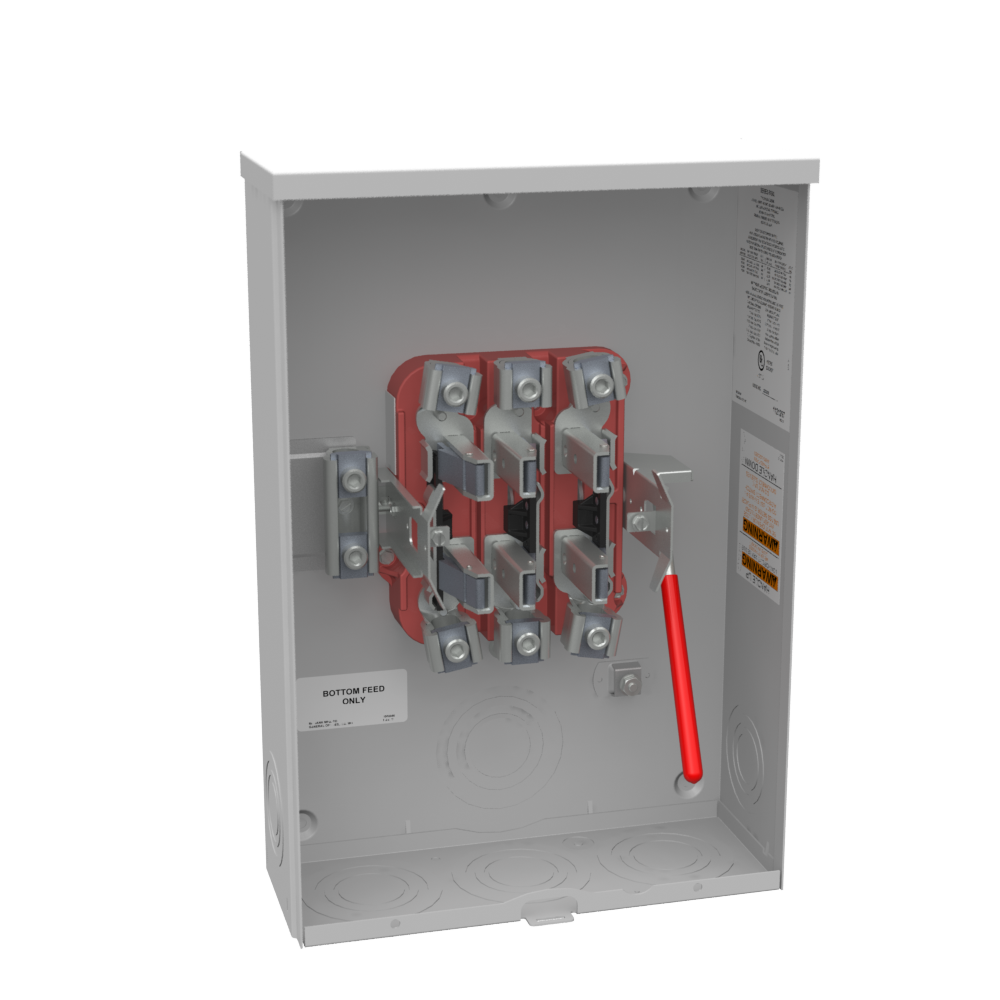

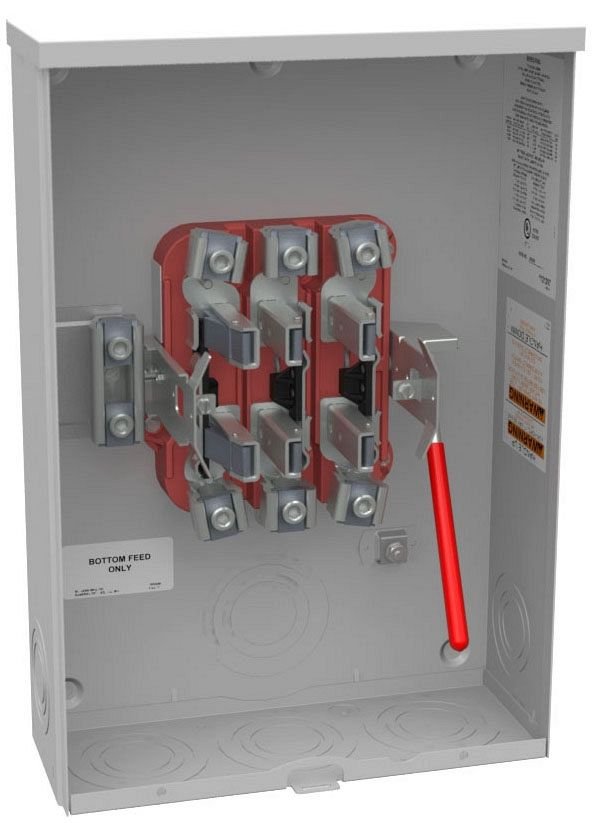

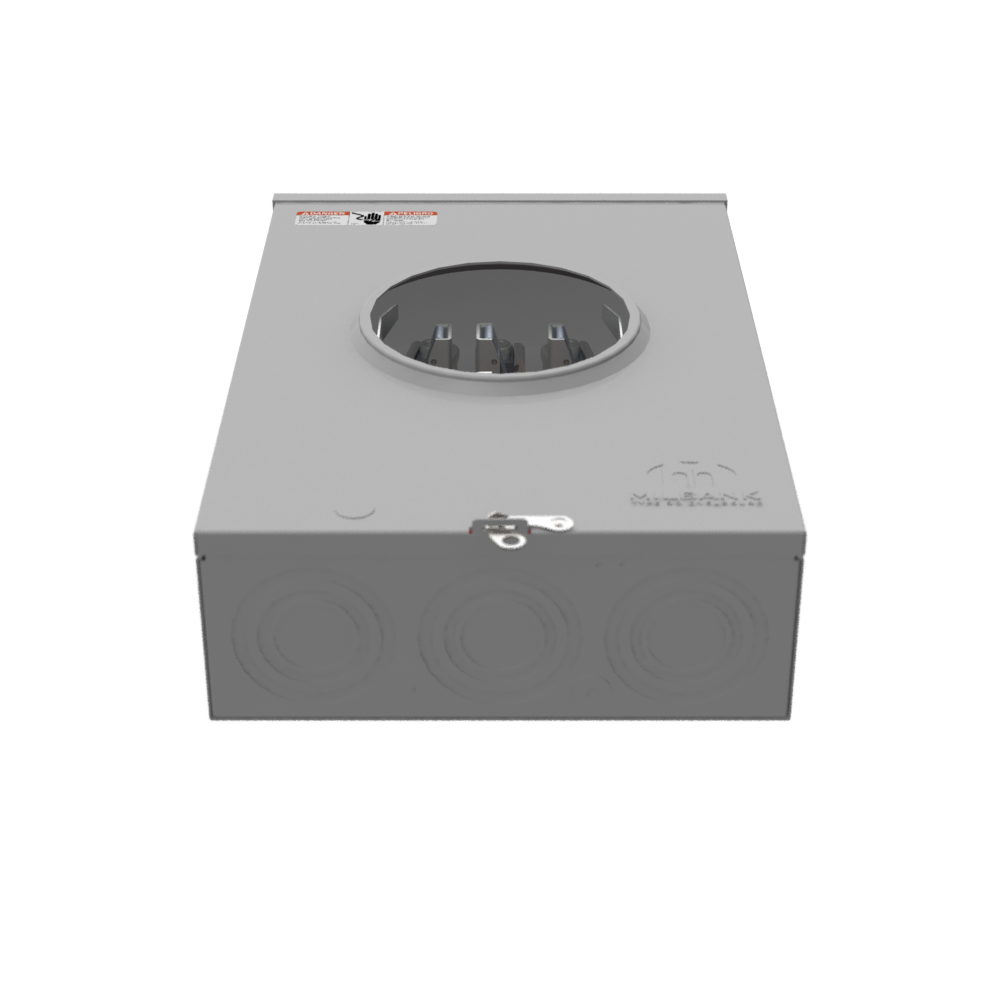

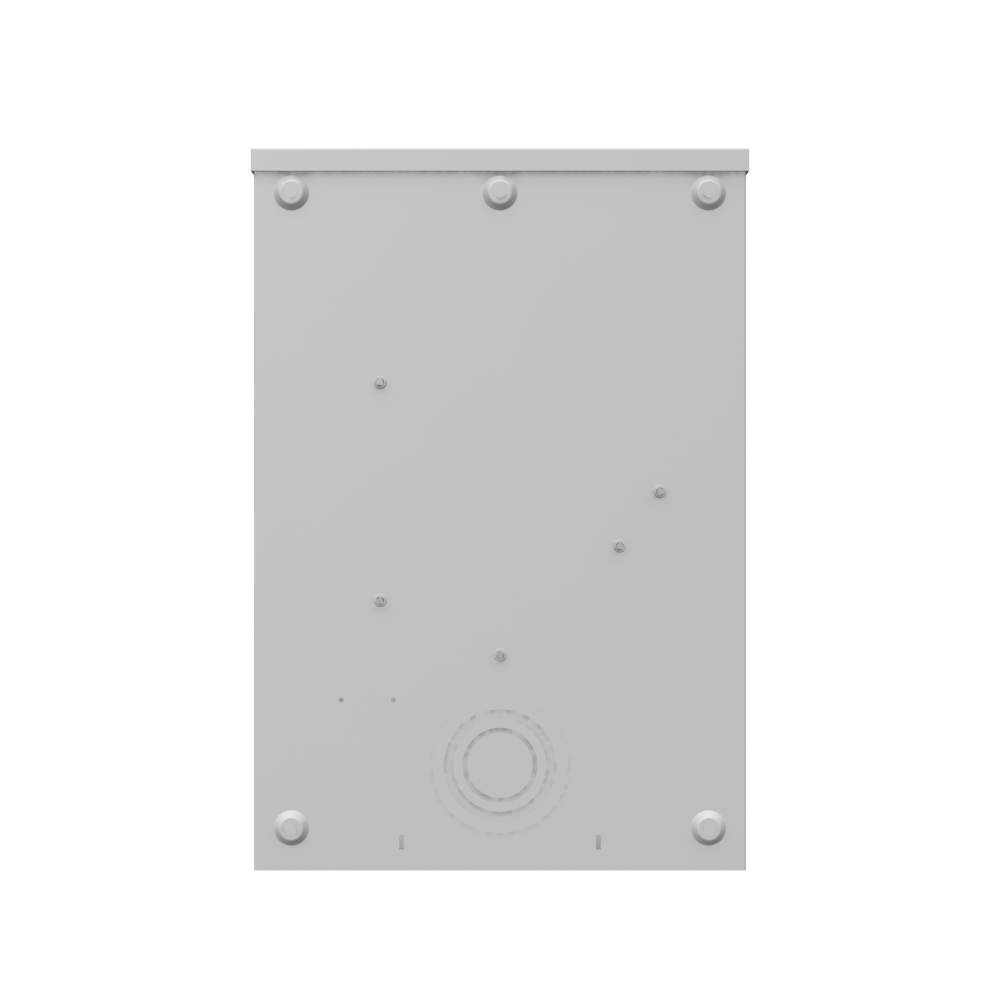

The MILBANK U2046-O is a meter socket designed for various applications. This ringless meter socket features a plain top and lever bypass. Constructed from G90 galvanized steel with a powder coat finish, it ensures durability and resistance to environmental factors. It supports both overhead and underground cable entries.
- Rated for 200 continuous Ampere
- Features a lever bypass provision
- Constructed with G90 galvanized steel with powder coat finish
Product Highlights
The MILBANK U2046-O meter socket is suitable for 3-phase systems, supporting 600V AC and 200A. It is UL Listed and Type 3R rated.
Product Information
Standard Information
-
Brand: MILBANK
-
Manufacturer Part Number: U2046-O
-
Country of Origin: United States
Technical Specifications
-
Amperage Rating: 200 Continuous Ampere
-
Application: Meter Socket
-
Brand Name: Milbank
-
Bypass Provision: Lever Bypass
-
Cable Entry: Overhead or Underground
-
Main Breaker Size: No Main Breaker
-
Material: G90 Galvanized Steel with Powder Coat Finish
-
Equipment Ground: Grounding Stud
-
Frequency Rating: 60 Hertz
-
Hub/Closing Plate: Plain Top
-
Insulation: Glass Polyester
-
Number of Jaws: 7 Terminal
-
Line Side Wire Range: 6 AWG - 350 kcmil
-
Load Side Wire Range: 6 AWG - 350 kcmil
-
Mounting: Surface Mount
-
Number of Main Breakers: 0
-
Number of Meter Positions: 1 Position
-
Number Of Receptacles: 0
-
Phase: 3 Phase
-
Standard: UL Listed;Type 3R
-
Terminal: Lay in
-
Type: Ringless Meter Socket
-
Voltage Rating: 600 Volts Alternating Current
-
Mounting Style: Surface
-
Maximum Amperage: 200 A
-
Color: Gray
-
Number of Phases: 3
-
MPN: U2046-O
-
Voltage: 600 V
-
Model: Milbank U2046-O
-
Box Shape: Rectangular
-
Country of Origin: United States
-
Number of Terminations: 7
-
Terminal Type: Lay In
-
Brand: Milbank Manufacturing
-
Hub Style: Plain Top
