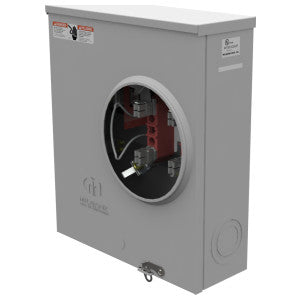

Milbank U1980-O-KK-BL 4 Terminal Ringless Plain Top Horn Bypass 9-16 In Barrel Lock With Bracket Provision

Product Description

The Milbank U1980-O-KK-BL is a four terminal ringless meter socket designed for efficient electrical distribution. This meter socket supports a 200 Amp current rating and operates at a voltage of 600 Volts AC, making it ideal for various power distribution needs.

• Features a side wireway design for underground service.
• Constructed from G90 galvanized steel for durability.
• Includes barrel lock provision with a plain top for added convenience.

Product Highlights

This meter socket includes a NEMA type 3R enclosure which ensures protection against various environmental factors. It has dimensions of thirteen inches long, four and a half inches wide, and fifteen and a quarter inches high, fitting neatly in standard installation spaces.

Product Information

Standard Information

• Brand: Milbank
• Part Number: U1980-O-KK-BL

Technical Specifications

• Current Rating: 200 Amps
• Voltage Rating: 600 Volts AC
• Number of Jaws: 4
• Enclosure Type: NEMA 3R
• Wire Entry: Underground, Side Wireway
• Dimensions: 13 Inches Length x 4-1/2 Inches Width x 15-1/4 Inches Height
• Conductor Size: 6 AWG-350 KCMIL
• Manufactured In: United States
