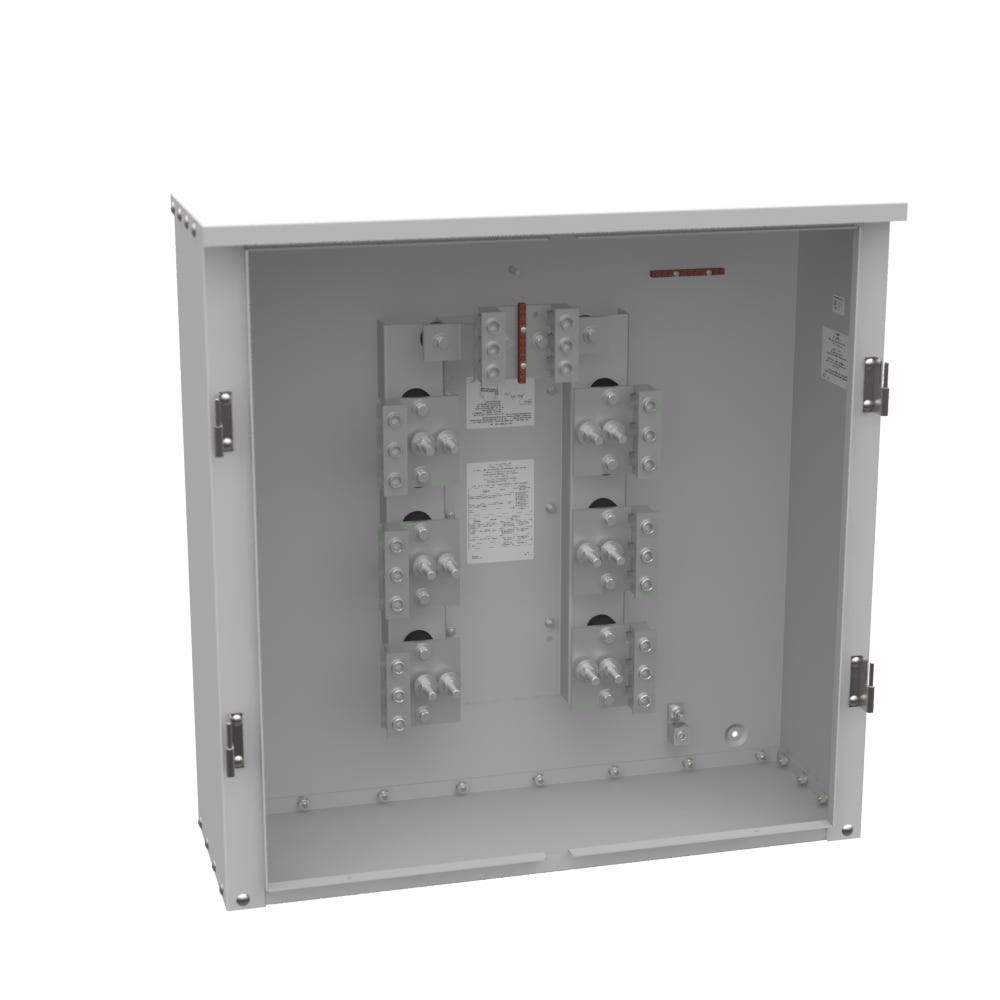

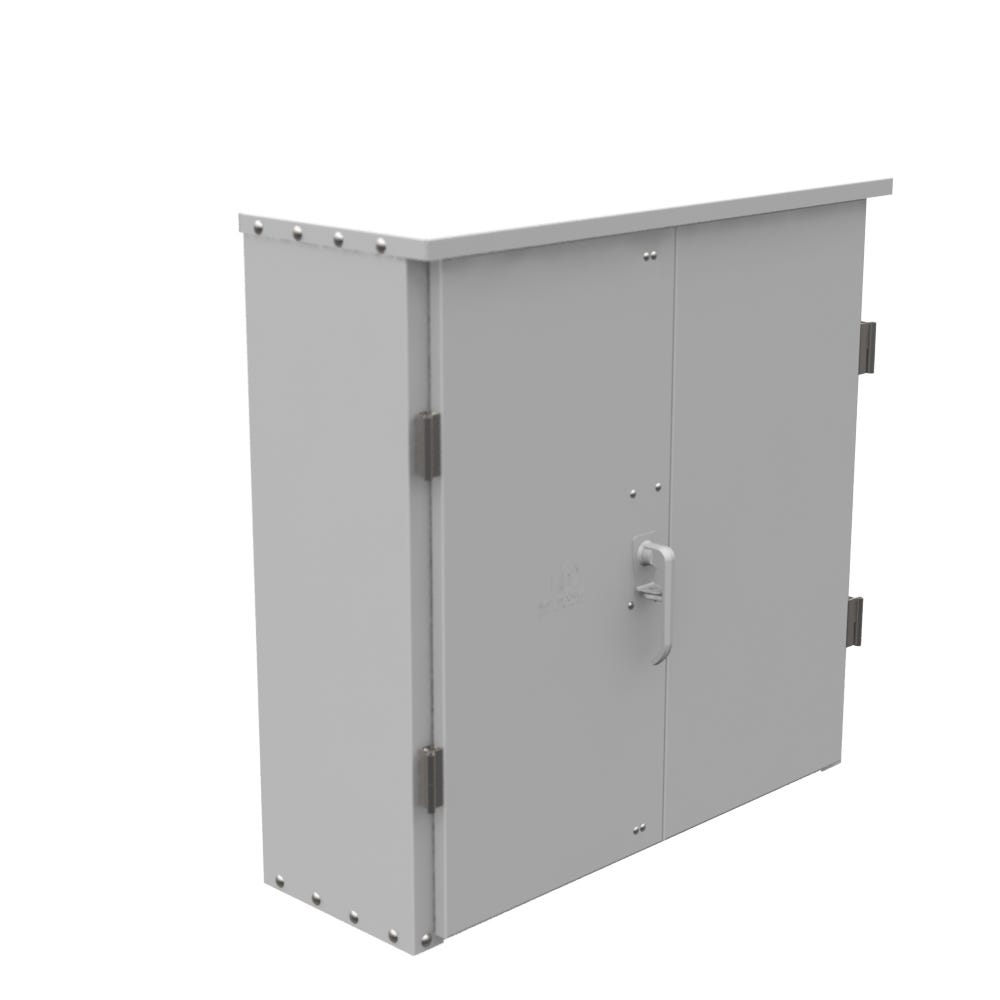

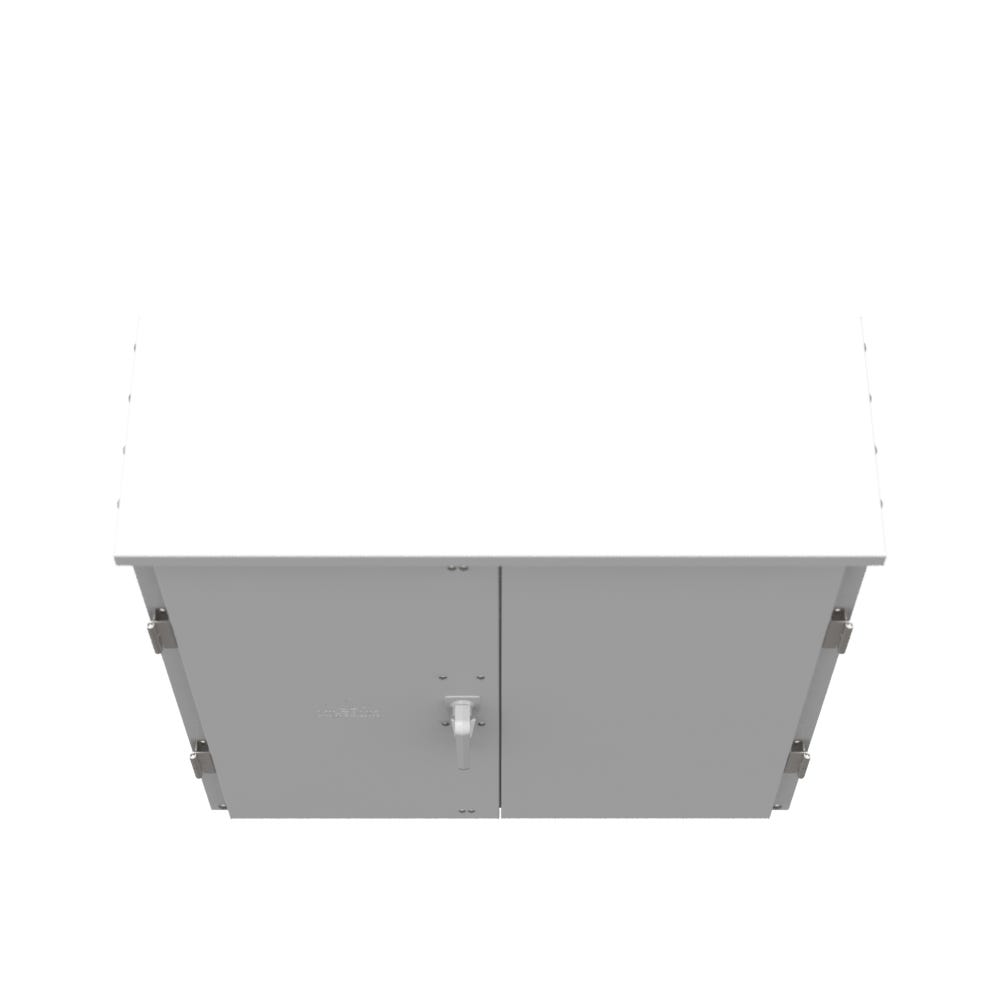

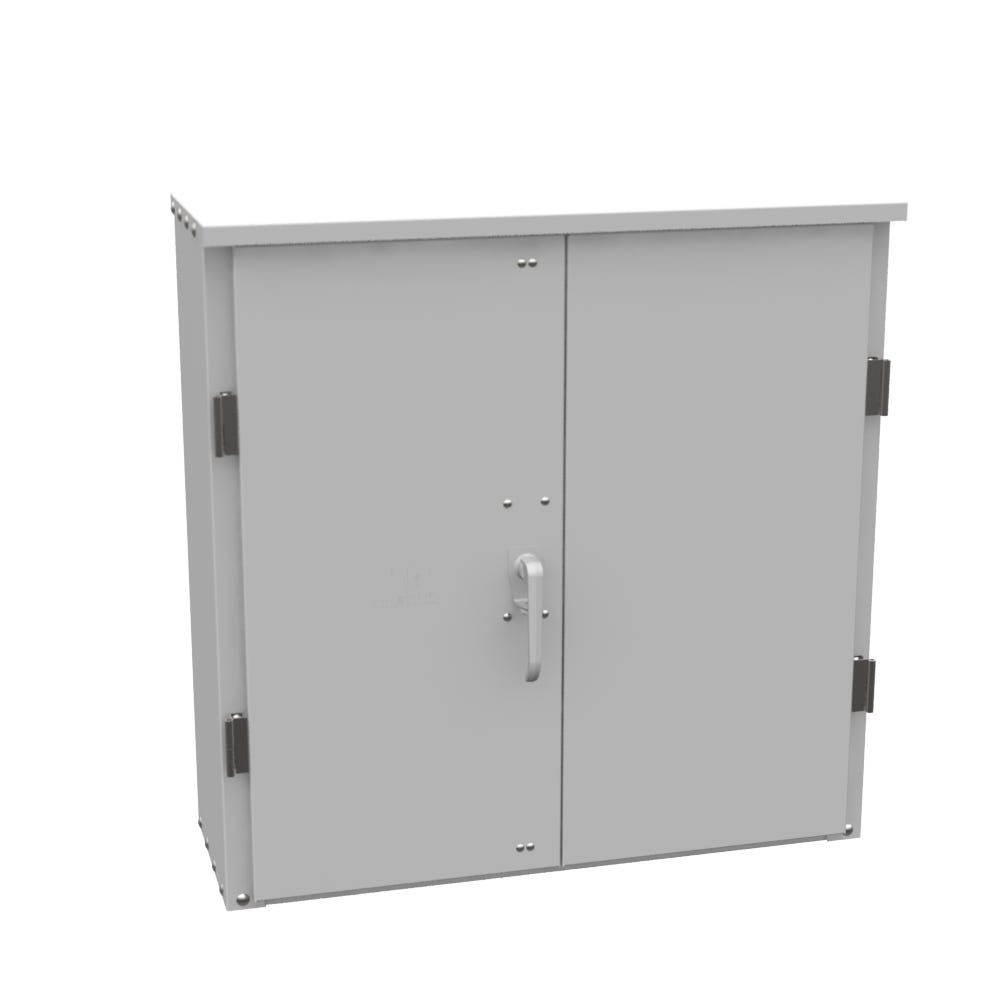

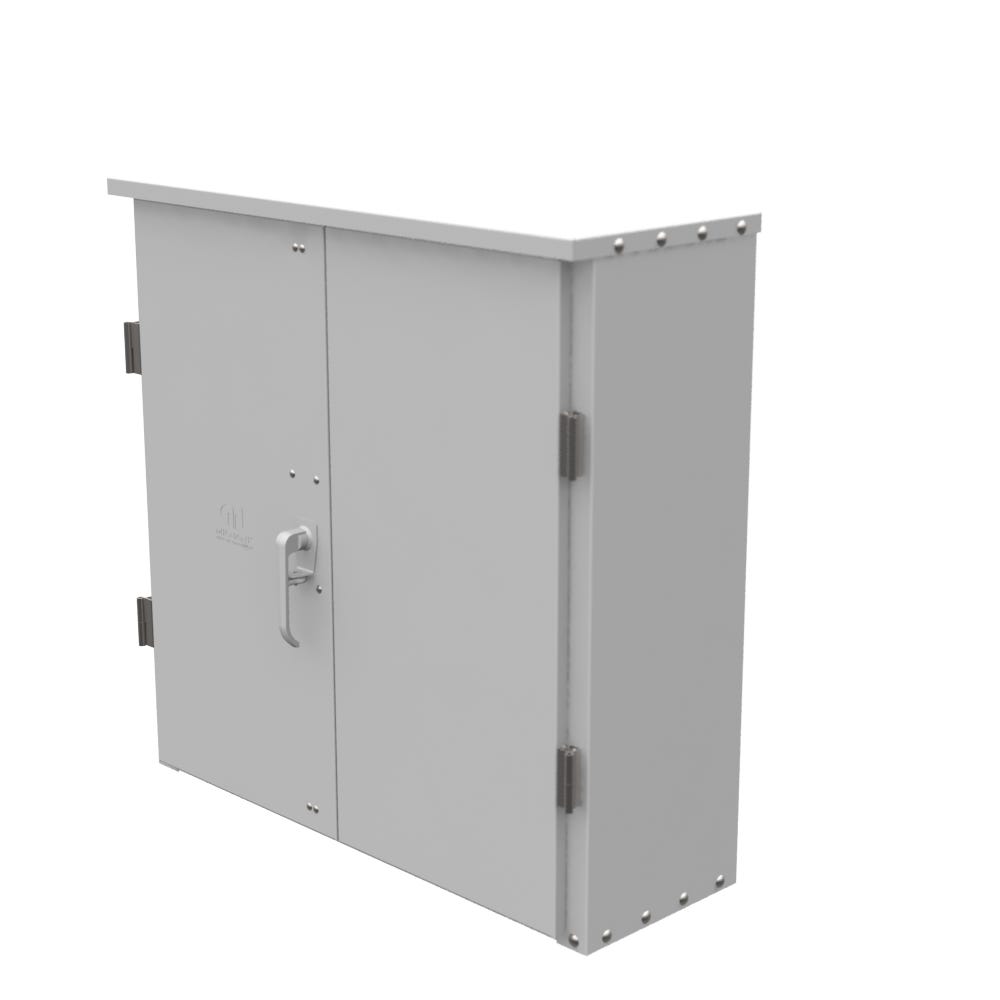

Milbank U1855-O-NE Current Transformer Enclosure 400-800 Amp

Product Description

The MILBANK U1855-O-NE is a current transformer enclosure designed for 400-800 Amp applications. It features a NEMA 3R rating and a double door with a hinged cover. Constructed from G90 galvanized steel with a powder coat finish, this enclosure is suitable for wall mounting. It includes a current transformer mounting rack installed with lugs.

• Features a lift off hinge cover
• Designed for Northeast Utilities
• Includes single mechanical line side and single mechanical load side

Product Highlights

NEMA 3R rated enclosure with double door and hinged cover. Ideal for current transformer applications requiring robust protection.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U1855-O-NE

Technical Specifications

• Type: Hinge Cover
• Special Features: Lift Off Hinge Cover; Northeast Utilities; Single Mechanical Line Side and Single Mechanical Load Side
• Application: Current Transformer Enclosure
• Standard: UL Listed
• Material: G90 Galvanized Steel with Powder Coat Finish
• Cable Entry: No Knockouts
• Mounting: Wall Mount
• NEMA Rating: Type 3R
• Door or Cover: Double Door
• Back Panel: Ground Stud
• Mounting Rack: Current Transformer Mounting Rack Installed with Lugs - 3 per Landing
• Depth: 12 IN
• Height: 36 IN
• Length: 12 IN
• Width: 36 IN
• UNSPSC Number: 39121319
• Product Family Code: CTEN
• Amps Range: 400 - 800
• Standards: California Proposition 65
