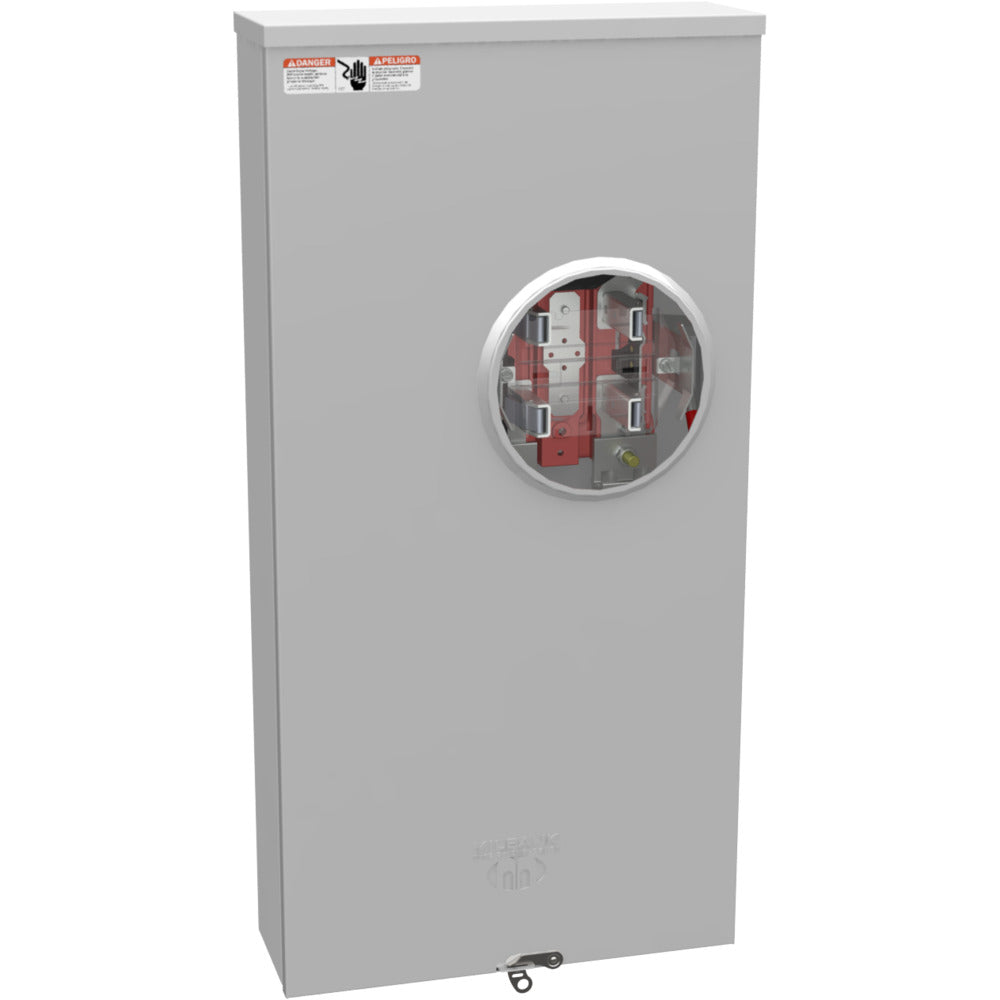

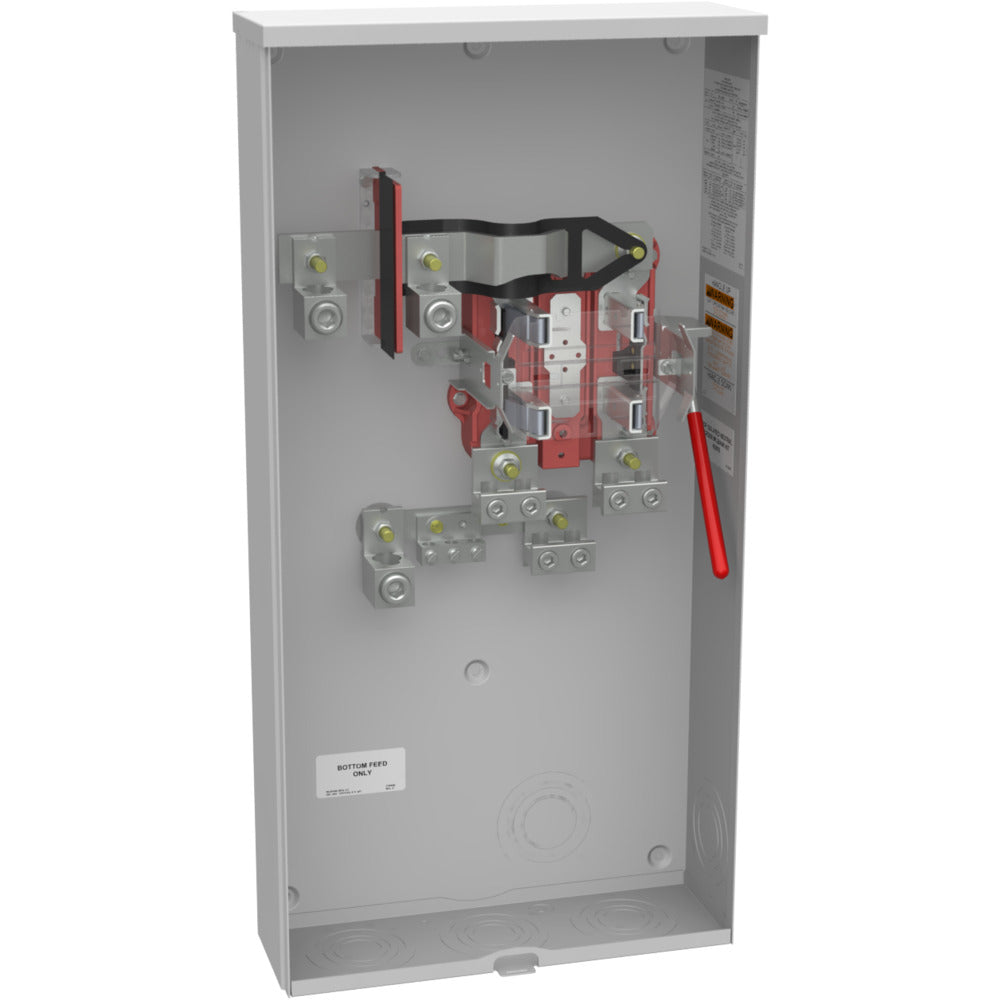

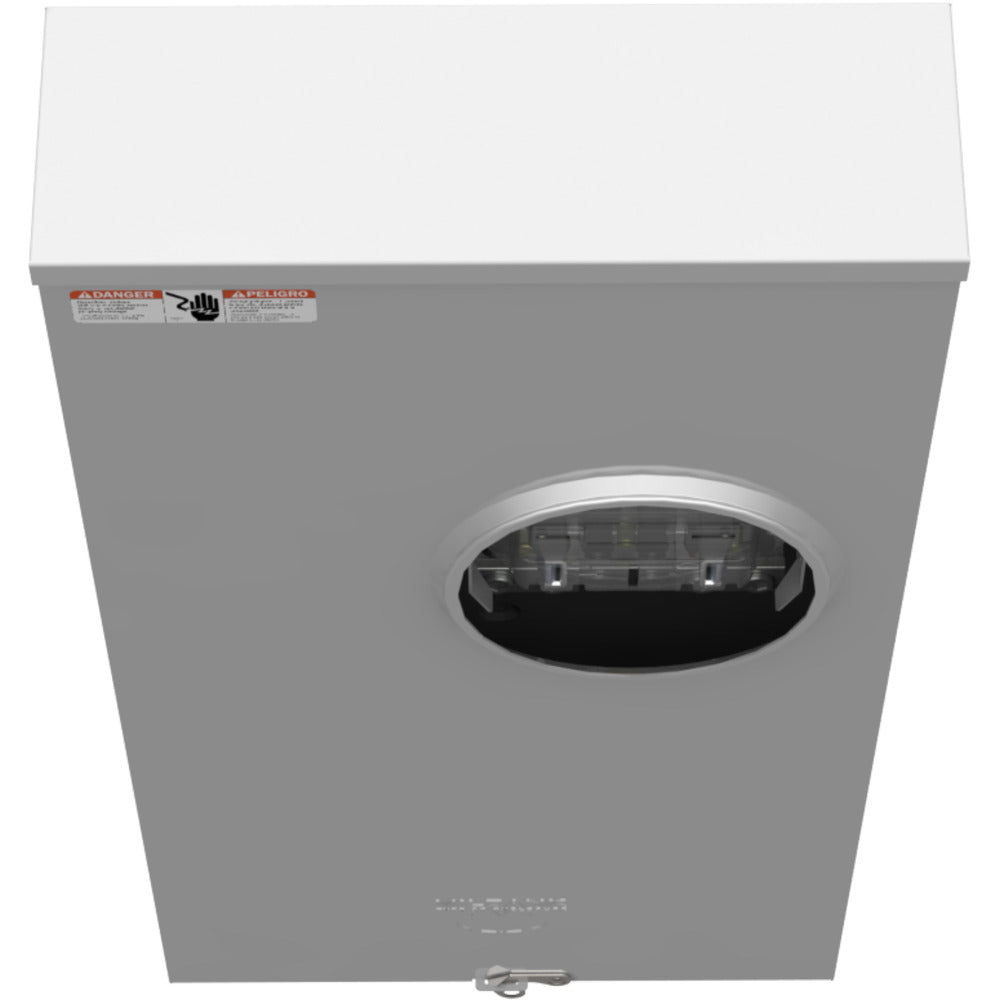

Milbank U1797-O-K3L-K2L Single Position Meter Socket 320 Amp 1 Phase Ringless Lever 4 Term UG 600V

Product Description

The Milbank U1797-O-K3L-K2L is a single position meter socket. This product supports a 320 Amp capacity, 1 Phase connection, and features a ringless design with a lever bypass. It is built for underground cable entry and comes with four terminals for secure connections.

• Voltage rating: 600 Volts Alternating Current
• UL Listed; Type 3R standard for outdoor use
• Made in the USA with G90 galvanized steel enclosure

Product Highlights

The U1797-O-K3L-K2L is suitable for residential and commercial applications requiring reliable power distribution.

Product Information

Standard Information

• Brand: Milbank
• Catalog Number: U1797-O-K3L-K2L

Technical Specifications

• Amperage Rating: 320 A
• Number of Jaws: 4 Terminal
• Frequency Rating: 60 Hz
• Height: 30 inches
• Width: 15 inches
• Length: 4.844 inches
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Cable Entry: Underground
• Bypass Type: Lever
