Milbank U1748-O-5T9-WI 5 terminal ringless plain top lever bypass Wisconsin area 320 amp 600 volt

Product Description

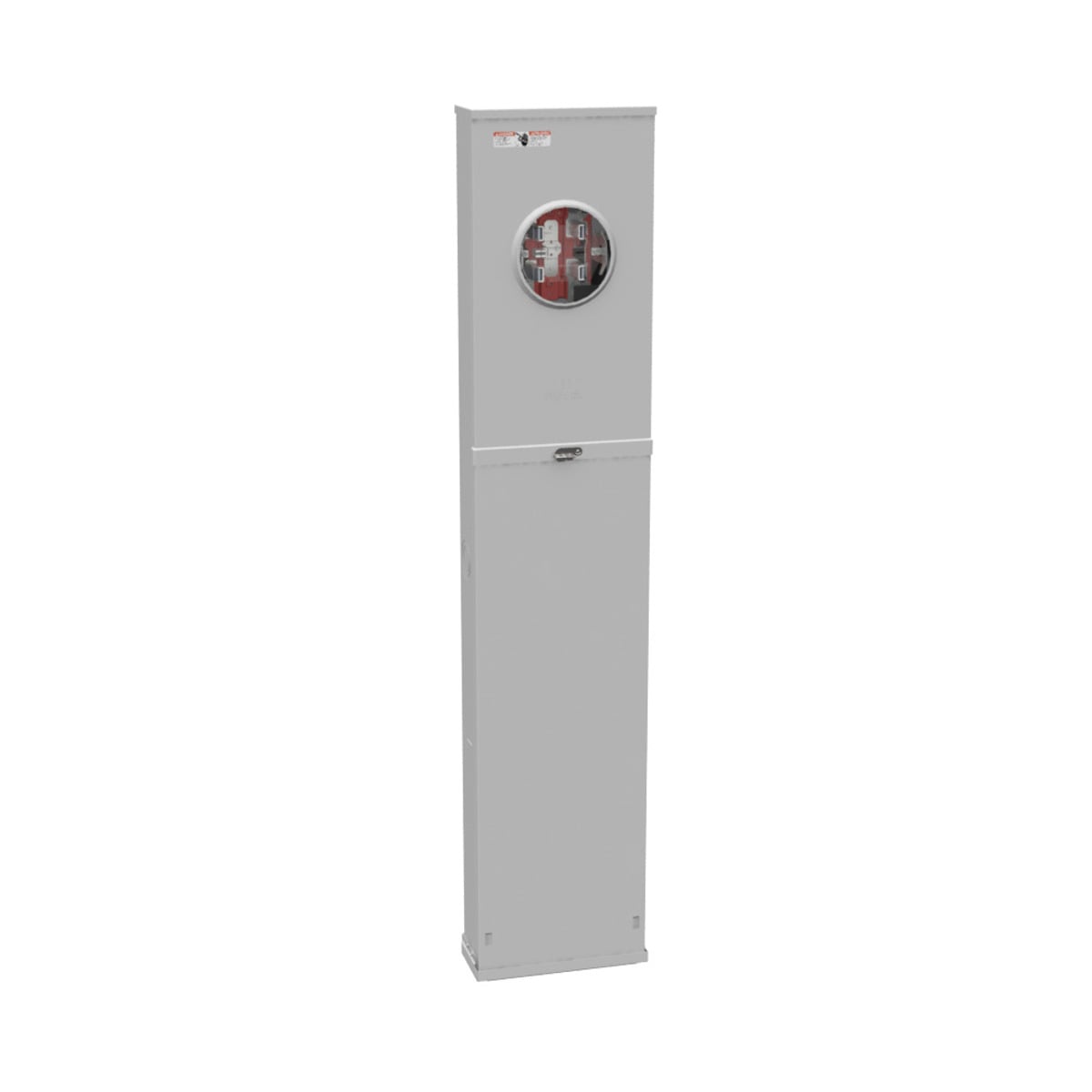

The Milbank U1748-O-5T9-WI is a 5 terminal ringless meter socket designed for the Wisconsin Area. This pedestal-mounted unit features a plain top and lever bypass, suitable for underground cable entry. Constructed from G90 galvanized steel with a powder coat finish, it offers a 320 continuous ampere rating and 600 volts alternating current operation at 60 Hertz. It is UL Listed and meets Type 3R standards, ensuring durability for electrical installations.

• 5 terminal ringless meter socket with plain top and lever bypass.
• Pedestal mounting and underground cable entry for versatile installation.
• Constructed from G90 galvanized steel with powder coat finish, UL Listed, and Type 3R standard.

Product Highlights

Durable 320A/600V ringless meter socket for Wisconsin, featuring lever bypass and Type 3R enclosure.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U1748-O-5T9-WI
• Country of Origin: United States

Technical Specifications

• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Cable Entry: Underground
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency: 60 Hertz
• Insulation Type: Glass Polyester
• Mounting Type: Pedestal
• Number of Jaws: 5
• Phase: 1 Phase
• Special Features: Wisconsin Area
• Standards: UL Listed, Alliant Approved, RoHS Compliant
• Type: Ringless Meter Socket
• Terminal Type: 3/8 Inch Stud
• Voltage Rating: 600 Volts Alternating Current
• Bypass Provision: Lever Bypass
• Main Breaker Size: No Main Breaker
• Equipment Ground: 4 Barrel Ground Lug
• Hub Style: Plain Top
• Knockouts: True
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Enclosure Rating: NEMA 3R
• Wire Size: 6 AWG to 350 kcmil
• Category: Meter Pedestals
