Milbank U1254-R-KK-EX-RGE 4 Terminal Ringless Large Hub Open Horn Bypass 4 Position Overhead Extension Assembly Rochester Gas And Electric

Product Description

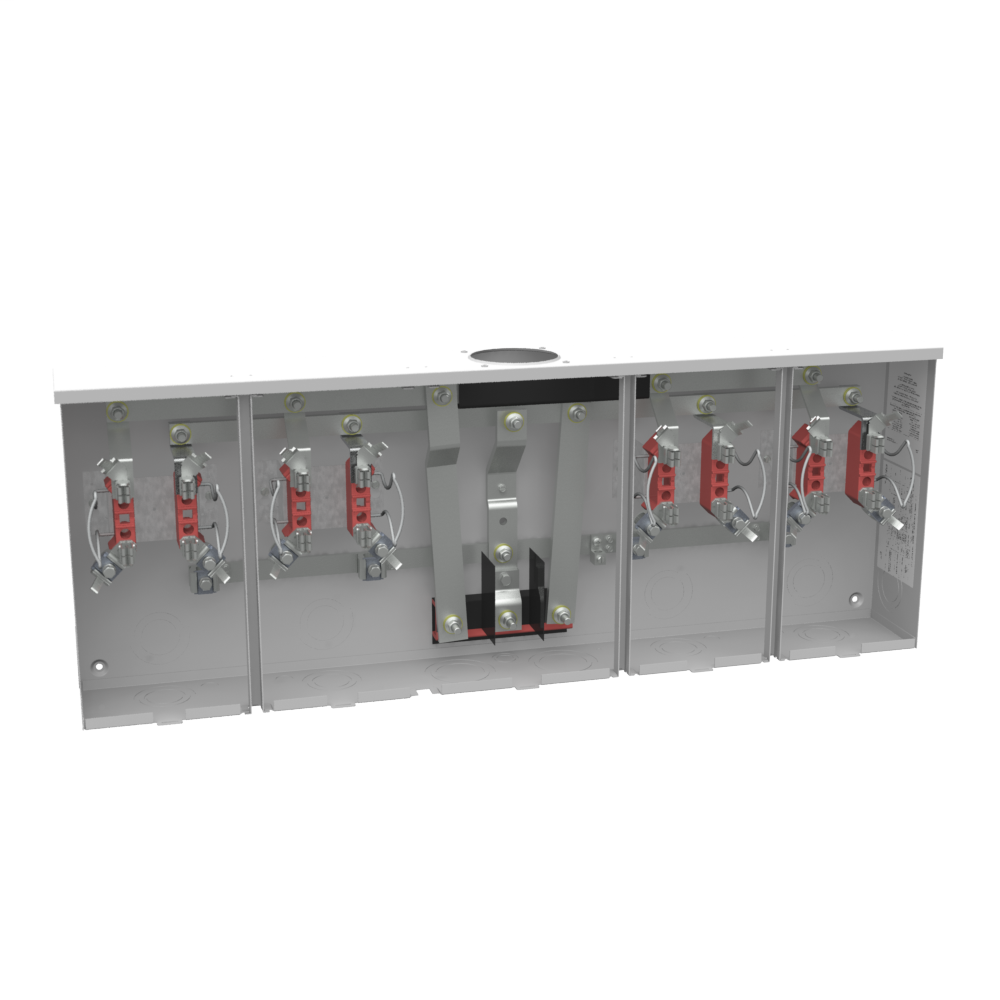

The Milbank U1254-R-KK-EX-RGE is a 4 terminal ringless meter socket with a large hub opening and horn bypass. Designed for overhead or underground cable entry with a center wireway. Constructed from G90 galvanized steel with a powder coat finish, this Type 3R enclosure ensures durability and weather resistance. It supports 300V and 200A, suitable for residential and commercial systems.

• Features accessible mounting points and clear labeling for easy installation.
• Deters unauthorized access and enhances safety with tamper-resistant enclosures.
• Suitable for both indoor and outdoor installations.

Product Highlights

The Milbank U1254-R-KK-EX-RGE meter socket provides a secure connection for power consumption measurement with robust construction and easy installation.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U1254-R-KK-EX-RGE
• Country of Origin: United States

Technical Specifications

• Amperage: 200 Amp
• Applications: Meter Socket
• Cable Entry: Overhead Or Underground With Center Wireway
• Enclosure: G90 Galvanized Steel With Powder Coat Finish,Type 3R
• Frequency: 60 Hz
• Material: Steel
• Mounting Type: Surface Mount
• Number of Phases: 1 Phase
• Number of Terminations: 4
• Standard: Type 3R,UL Listed
• Terminal Type: 3/8 Inch Stud
• Type: Ringless Meter Socket
• Voltage: 300 Volt
• Brand: Milbank Manufacturing
• Hub Style: Large Hub Opening
• Height: 16 Inch
• Length: 5.125 Inch
• Width: 42.688 in
• Mounting Style: Surface
• Current Rating: 200 A
• MPN: U1254-R-KK-EX-RGE
• Current Type: AC
• Model: Milbank U1254-R-KK-EX-RGE
• Country of Origin: United States
• Voltage Rating: 300 Volts Alternating Current
• Amperage Rating: 200 Continuous Ampere
• Bypass Provision: Horn Bypass
• Number of Meter Positions: 4 Positions
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Number of Jaws: 4 Terminal
• Knockouts: True
• Number of Main Breakers: 0
• Number Of Receptacles: 0
