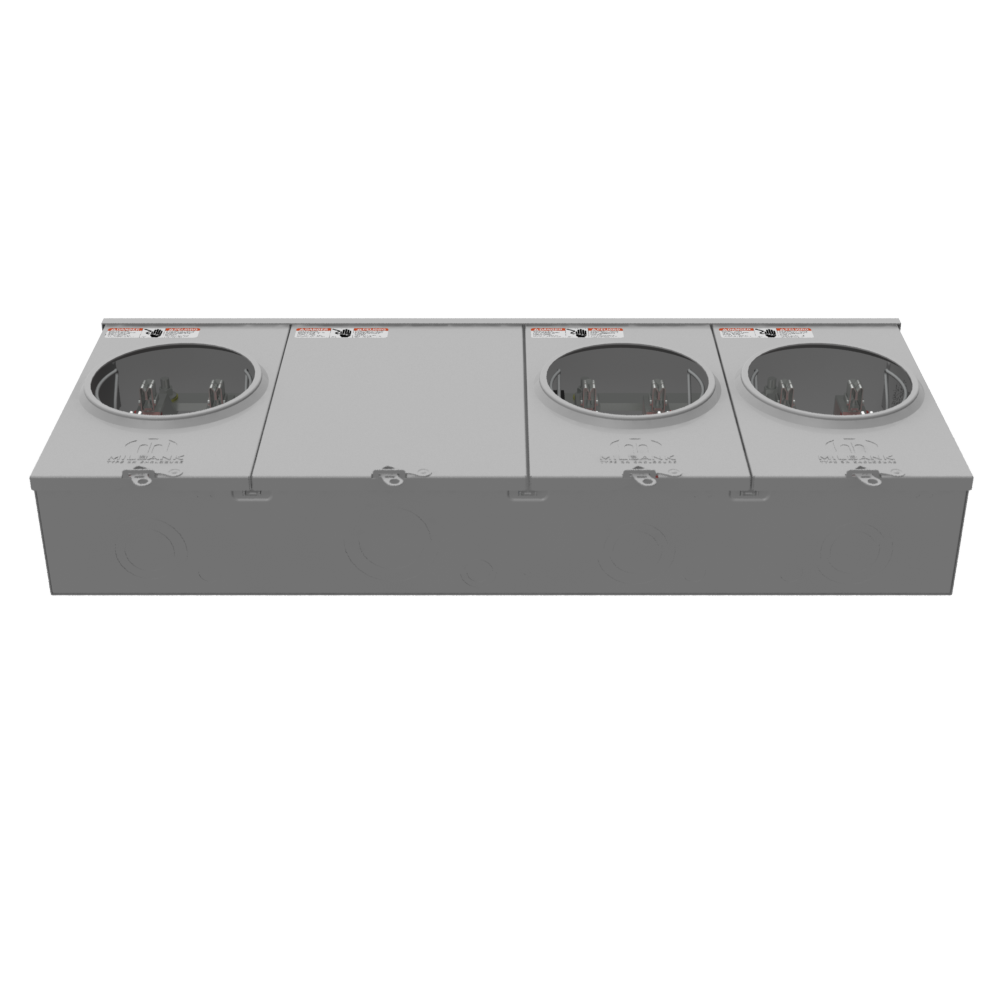

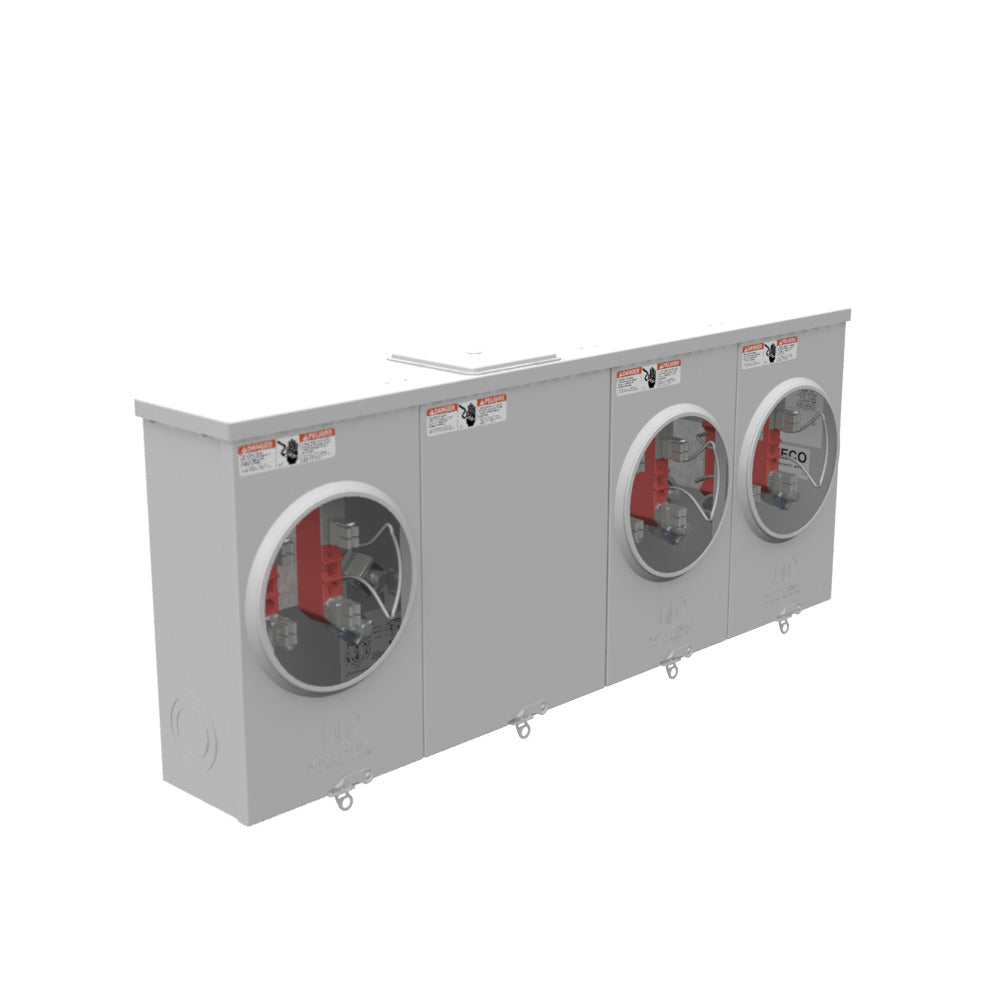

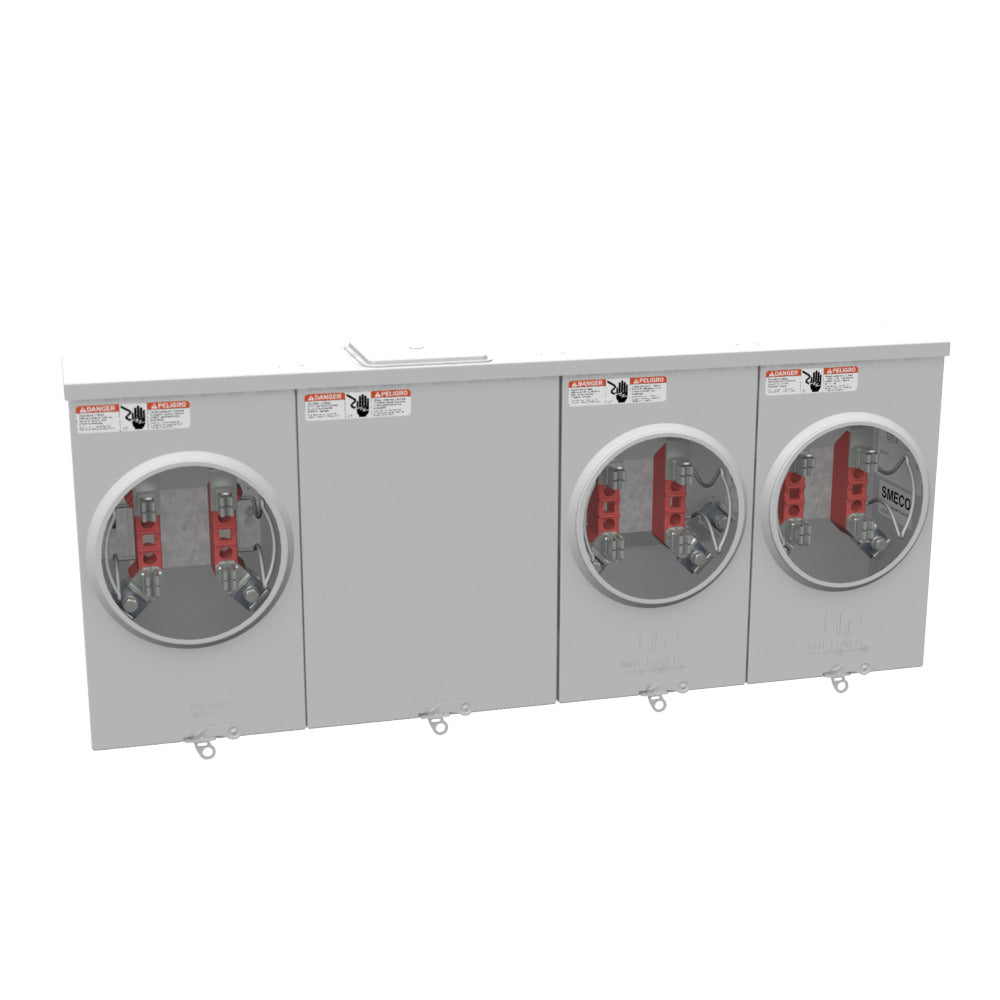

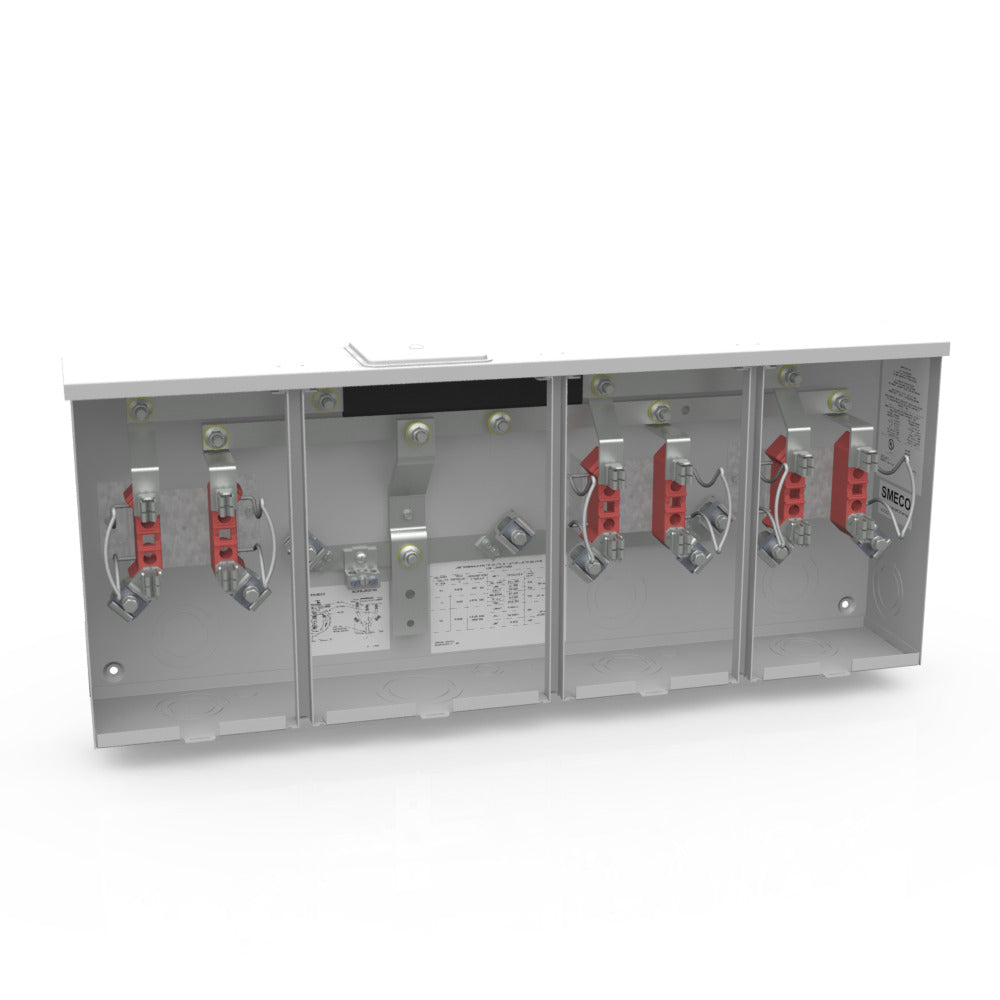

Milbank U1253-X 4 term, ringless, large closing plate, 3 position 200a 300v 5.125l x 34.5w x 14h

Product Description

The Milbank U1253-X is a 4-terminal ringless meter socket designed for single-phase electrical systems. This surface-mount unit features a large closing plate and is constructed from G90 galvanized steel with a powder coat finish, ensuring durability. It supports 200 Amperes at 300 Volts AC and operates at 60 Hertz. The meter socket is UL Listed and rated Type 3R for outdoor use, accommodating both overhead and underground cable entry.

• Features a 4-terminal configuration with 3/8 inch stud terminals for secure connections.
• Constructed from G90 galvanized steel with a powder coat finish for robust outdoor protection.
• Designed for surface mounting, offering a Type 3R enclosure and UL Listed compliance.

Product Highlights

Ringless meter socket with 4 terminals, 200A 300V, Type 3R, surface mount.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U1253-X
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: U1253-X
• Brand: Milbank
• UPC: 784572133471
• GTIN: 00784572133471
• Phase: 1
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting Type: Surface Mount
• Standard: UL Listed; Type 3R
• Product Type: Ringless Meter Socket
• Terminal Type: 3/8 Inch Stud
• Insulation Material: Glass Polyester
• Application: Meter Socket
• Bypass Type: No Bypass
• Cable Entry: Overhead or Underground with Center Wireway
• Number of Terminals: 4
• Voltage Rating: 300V AC
• Amperage Rating: 200A
• Frequency Rating: 60 Hz
• Main Breaker: No Main Breaker
• Equipment Ground: Ground Lug
• Hub/Closing Plate: Large Closing Plate
• Knockouts: Yes
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Main Breakers: 0
• Number of Meter Positions: 3
• Number of Receptacles: 0
