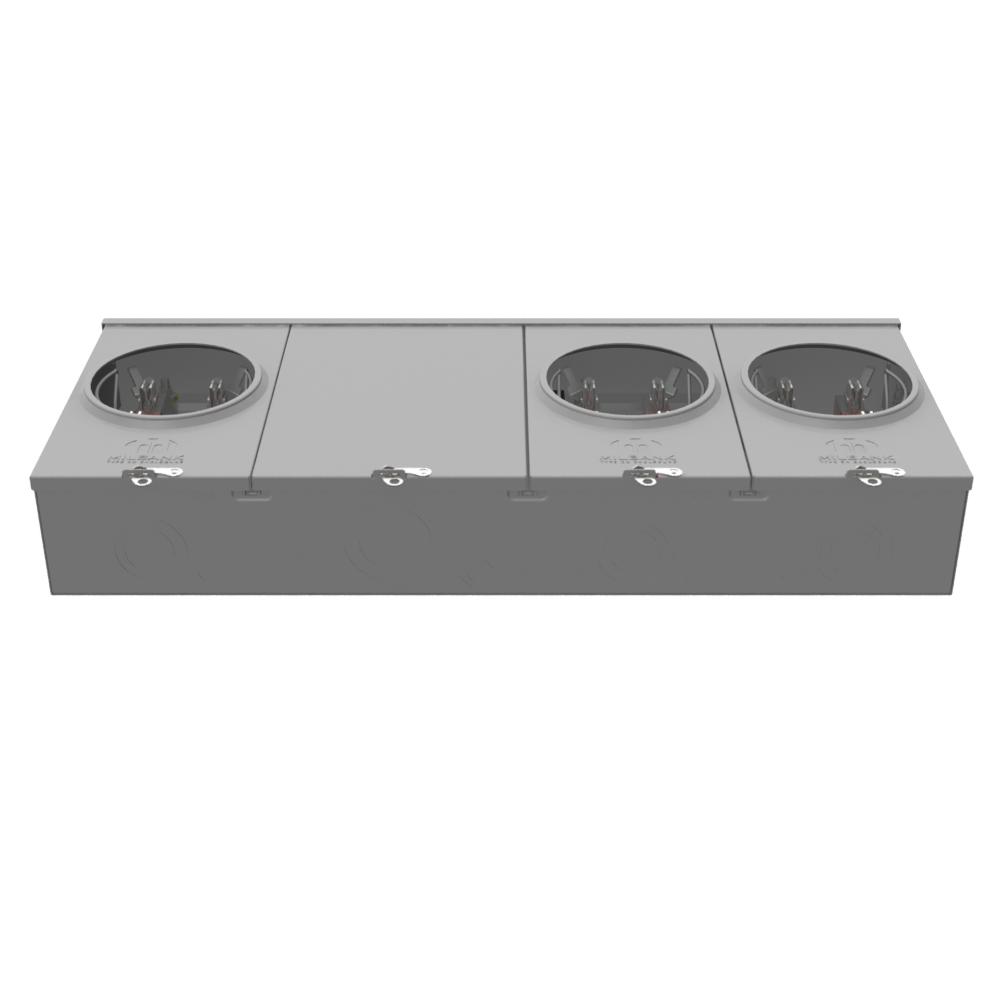

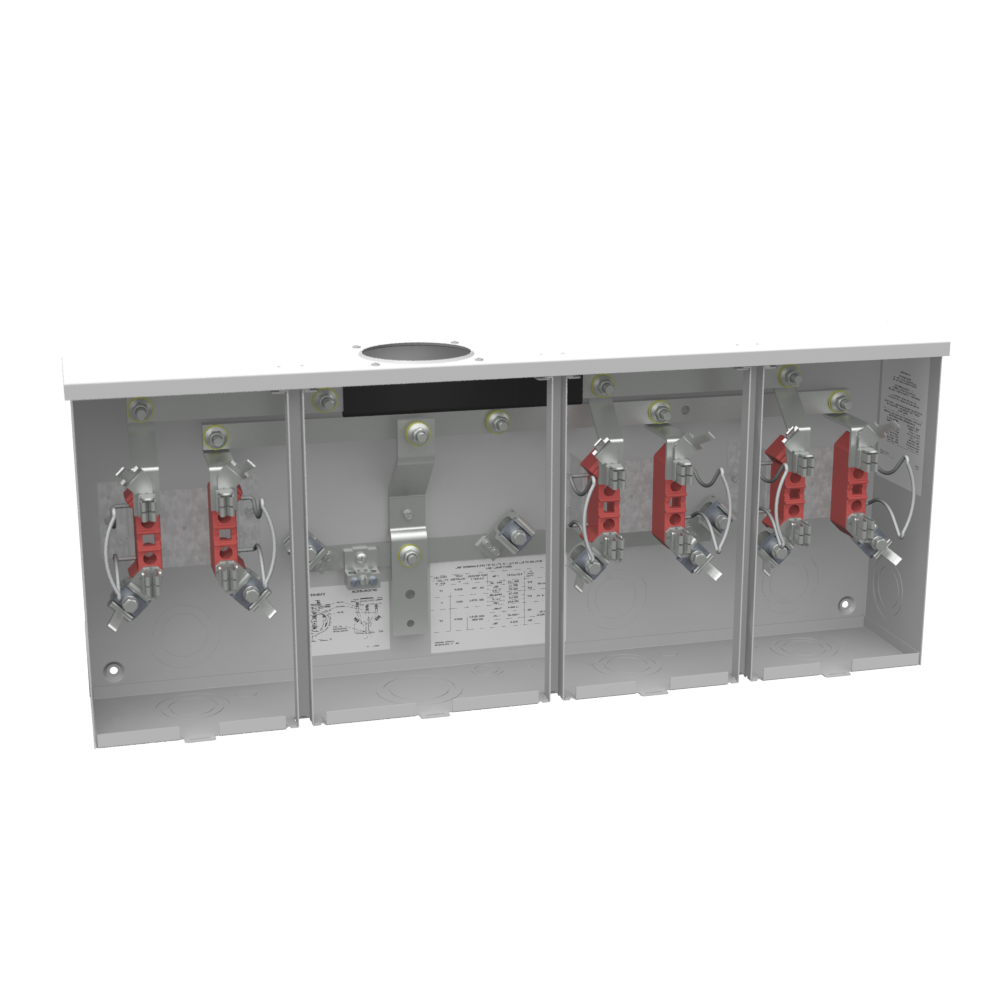

Milbank U1253-R-KK-RGE meter socket 200 amp 3 position

Product Description

The Milbank U1253-R-KK-RGE is a meter socket with a horn bypass, designed for Rochester Gas and Electric applications. Rated for 200 continuous amps and 300VAC, this ringless meter socket features a large hub opening and a 4-terminal configuration. It is constructed from G90 galvanized steel with a powder coat finish.

• Rated for 200 continuous amperage
• Features a horn bypass provision
• Constructed from G90 galvanized steel with powder coat finish

Product Highlights

Durable ringless meter socket with 4 terminals, ideal for overhead or underground cable entry.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U1253-R-KK-RGE
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Horn Bypass
• Cable Entry: Overhead or Underground with Center Wireway
• Main Breaker Size: No Main Breaker
• Material: G90 Galvanized Steel with Powder Coat Finish
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub/Closing Plate: Large Hub Opening
• Insulation: Glass Polyester
• Number of Jaws: 4 Terminal
• Knockouts: True
• Load Side Wire Range: 6 AWG - 350 kcmil
• Mounting: Surface Mount
• Number of Main Breakers: 0
• Number of Meter Positions: 3 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Standard: UL Listed;Type 3R
• Terminal: 3/8 Inch Stud
• Type: Ringless Meter Socket
• Voltage Rating: 300 Volts Alternating Current
• Mounting Style: Surface
• Current Rating: 200 A
• MPN: U1253-R-KK-RGE
• Current Type: AC
• Voltage: 300 V
• Model: Milbank U1253-R-KK-RGE
• Country of Origin: United States
• Amps: 200
• Applications: Meter Socket
• Enclosure: G90 Galvanized Steel With Powder Coat Finish,Type 3R
• Frequency: 60 Hz
• Insulation Type: Glass Polyester
• Number of Phases: 1 Phase
• Number of Terminations: 4
• Terminal Type: 3/8 Inch Stud
• Brand: Milbank Manufacturing
• Hub Style: Large Hub Opening
• Product UPC: 78457222786
