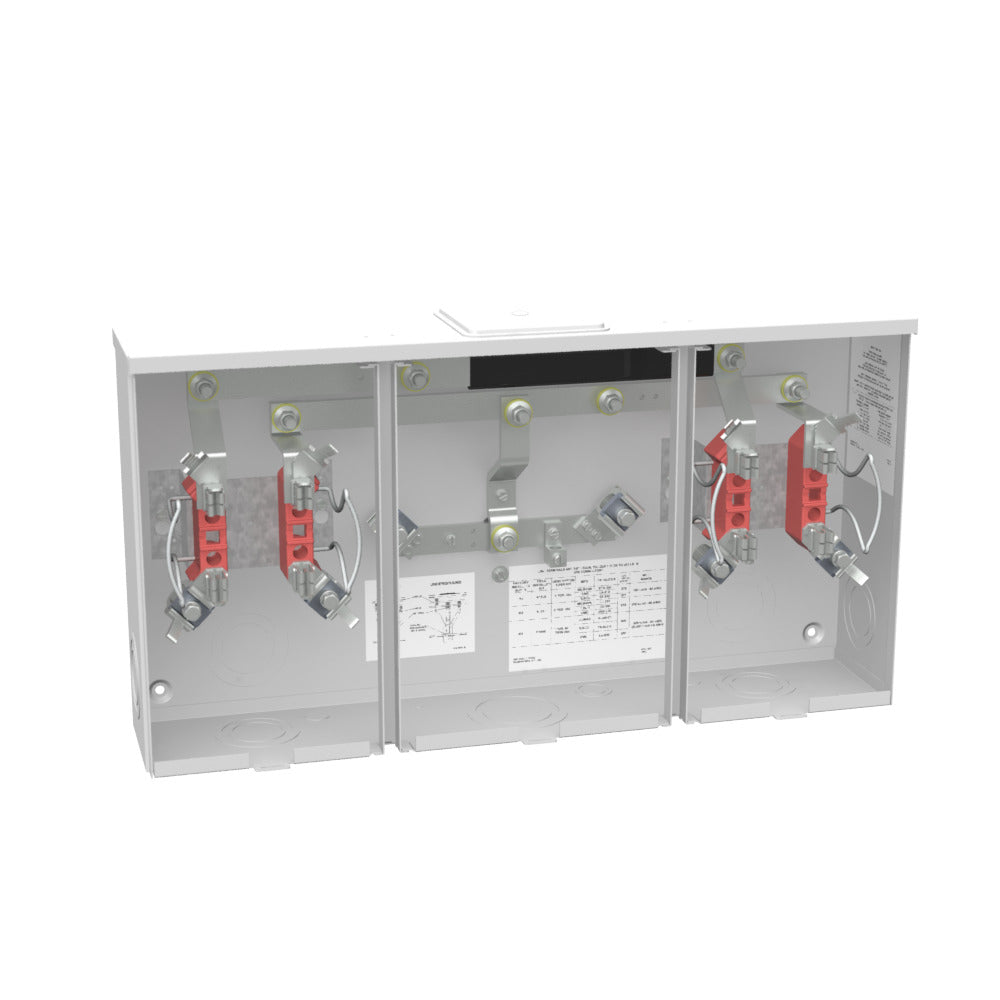

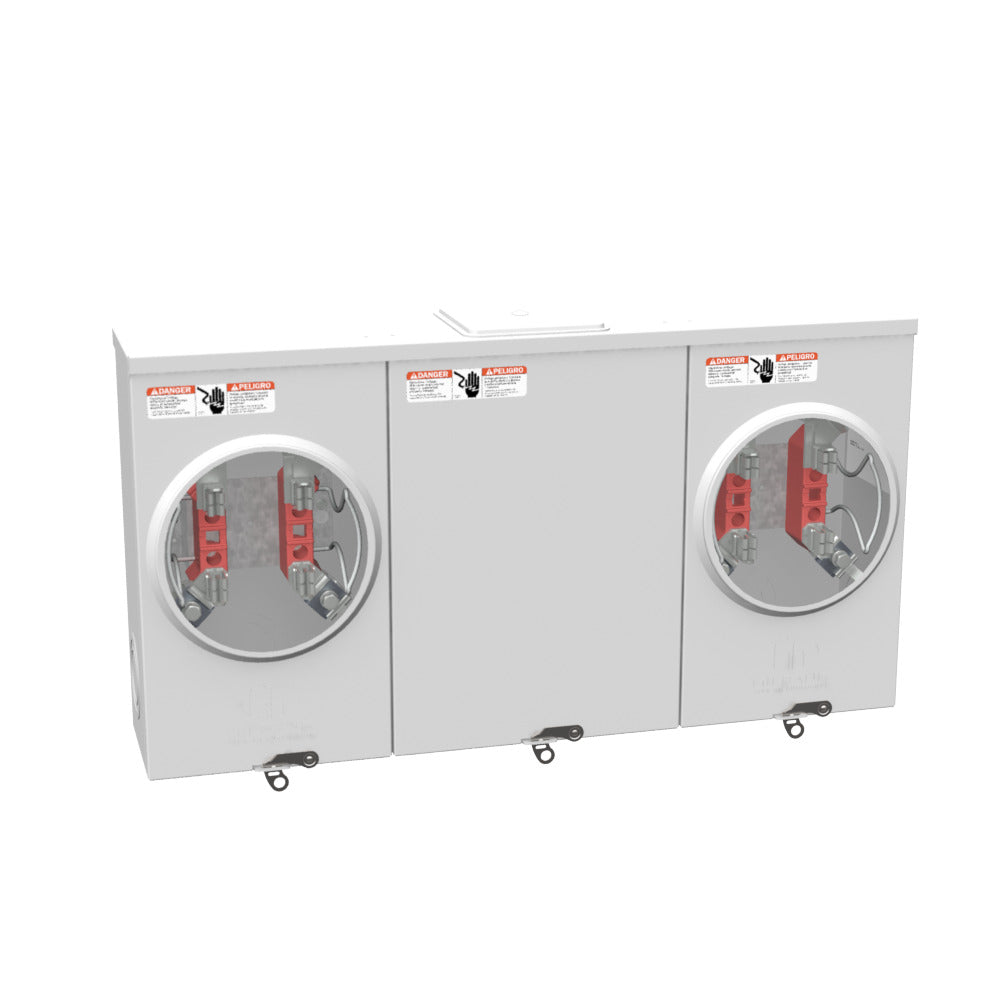

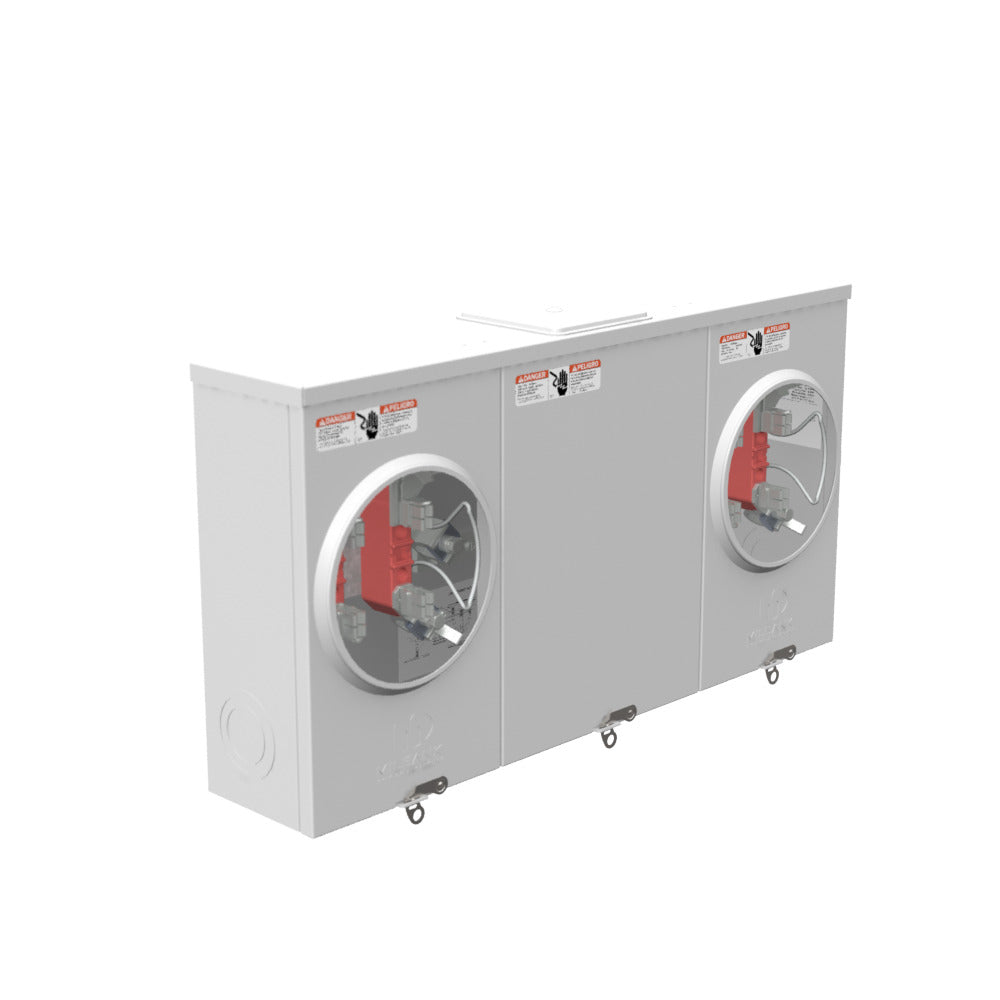

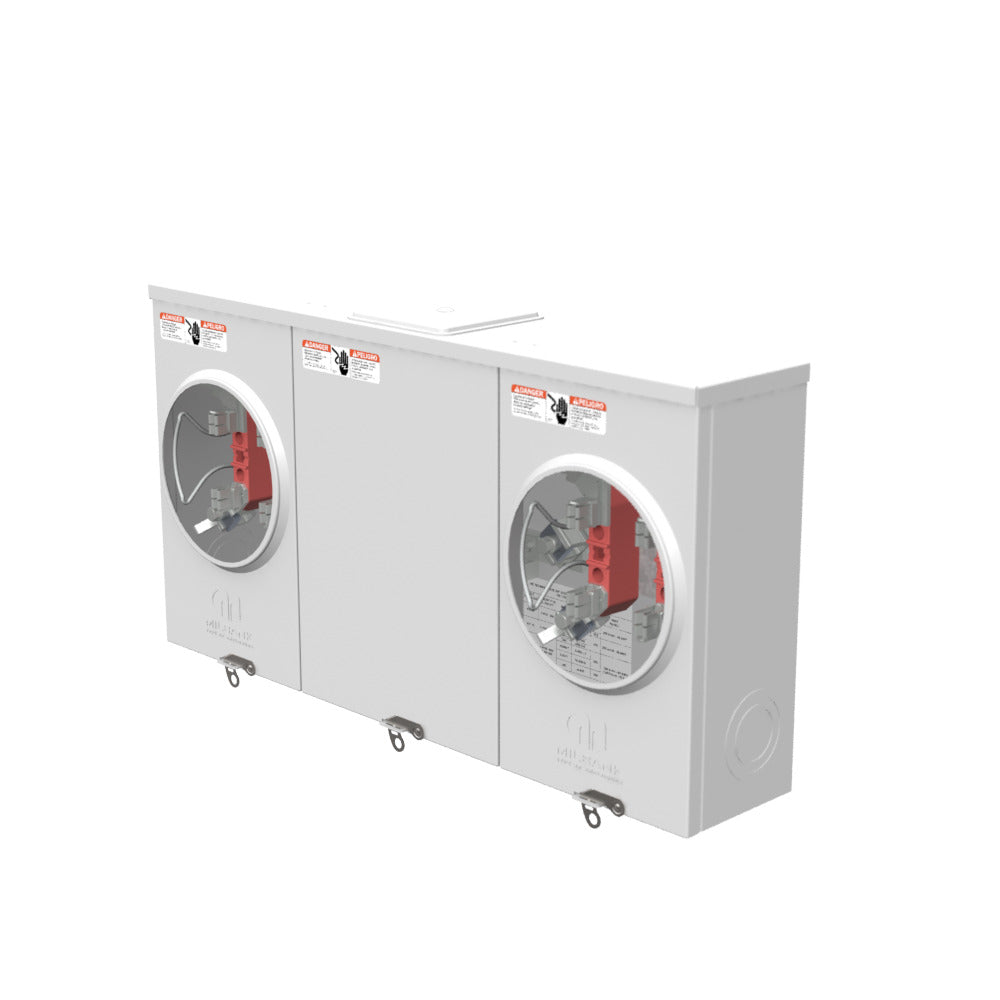

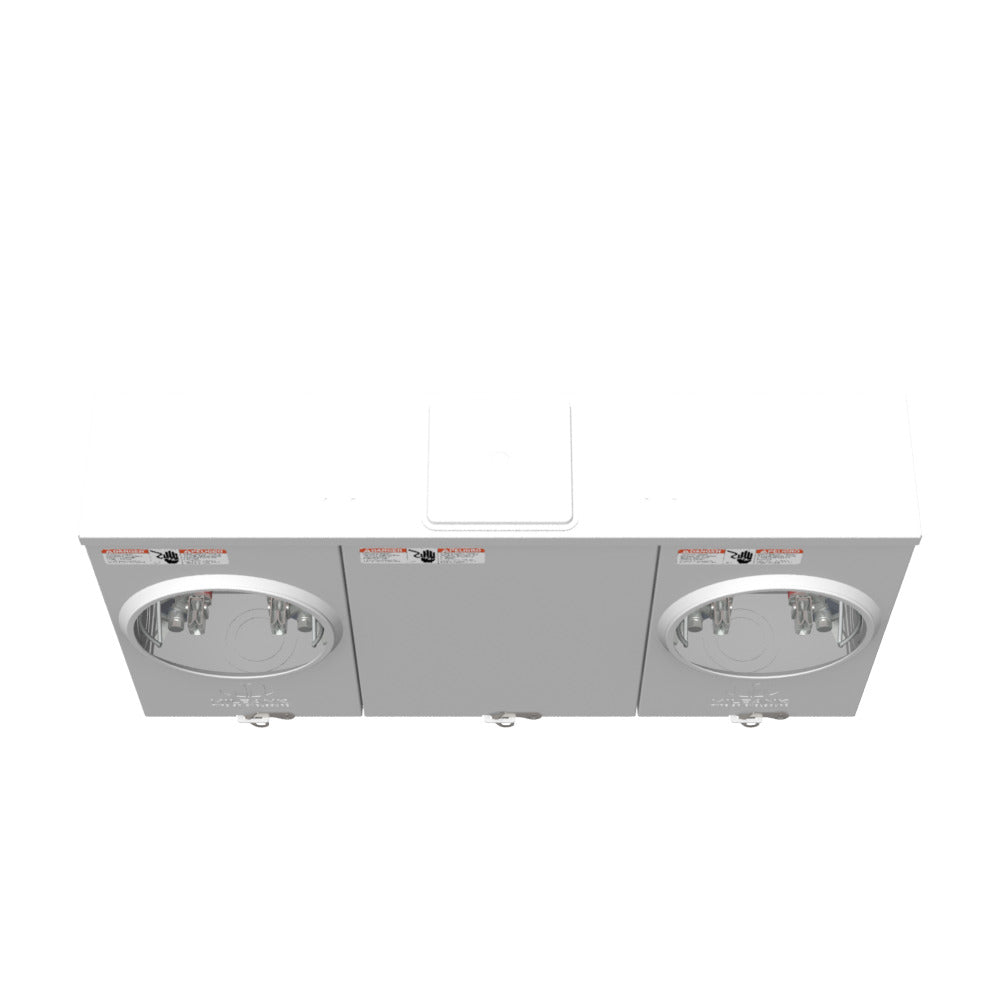

Milbank U1252-X-KK Meter Socket 200 Amp 1 Phase Ringless Horn 4 Term 2 Position OH or UG with Center Wireway 300V

Product Description

The Milbank U1252-X-KK is a meter socket rated for two hundred amps and designed for one-phase use. This meter socket is ringless with a horn bypass feature, making it suitable for overhead or underground applications. It includes four terminals and is ideal for use in residential and commercial settings.

• Rated for 200 amps.
• Meets UL and Type 3R standards.
• Constructed from G90 galvanized steel.

Product Highlights

This product is engineered for strong performance in various electrical applications, ensuring safe and reliable electrical distribution.

Product Information

Standard Information

• Catalog Number: U1252-X-KK
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 200
• Application: Meter Socket
• Bypass Type: Horn
• Cable Entry: Overhead or Underground with Center Wireway
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Voltage Rating: 300 Volts Alternating Current
• Size: 5.125L x 26.5W x 14H
