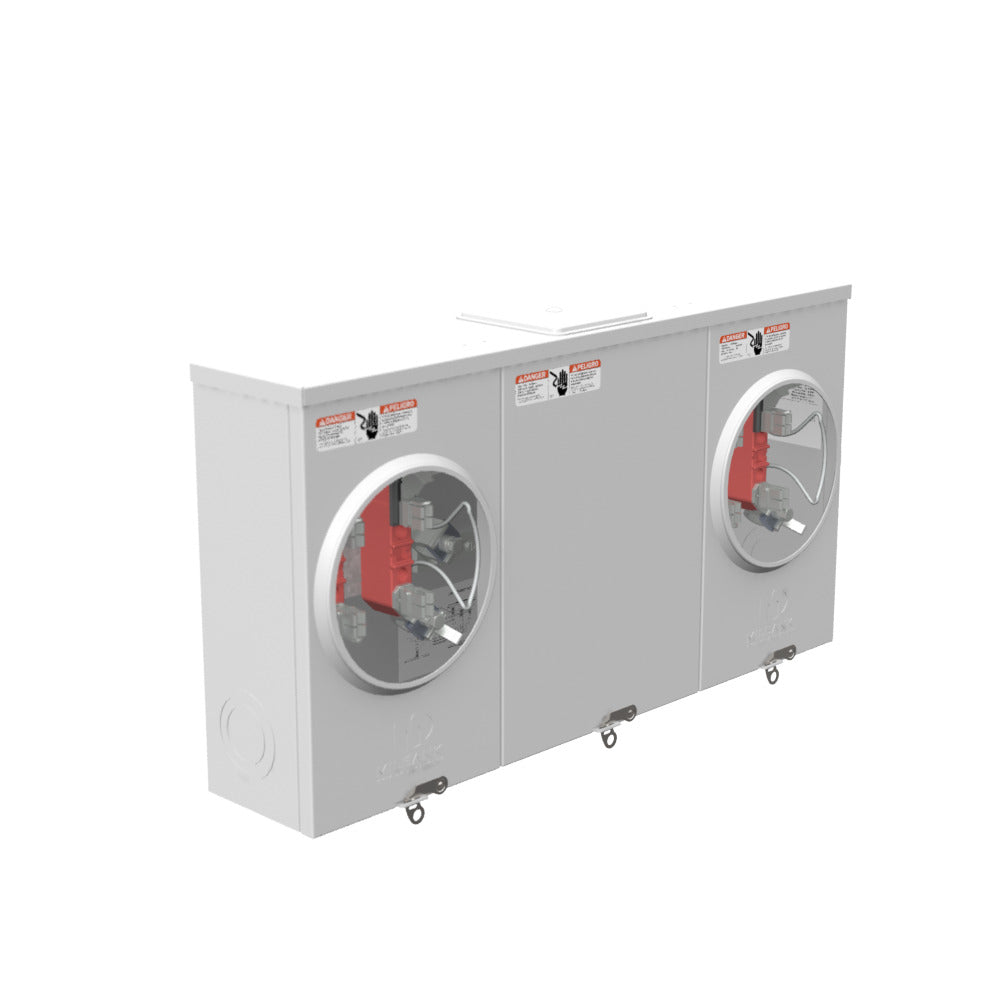

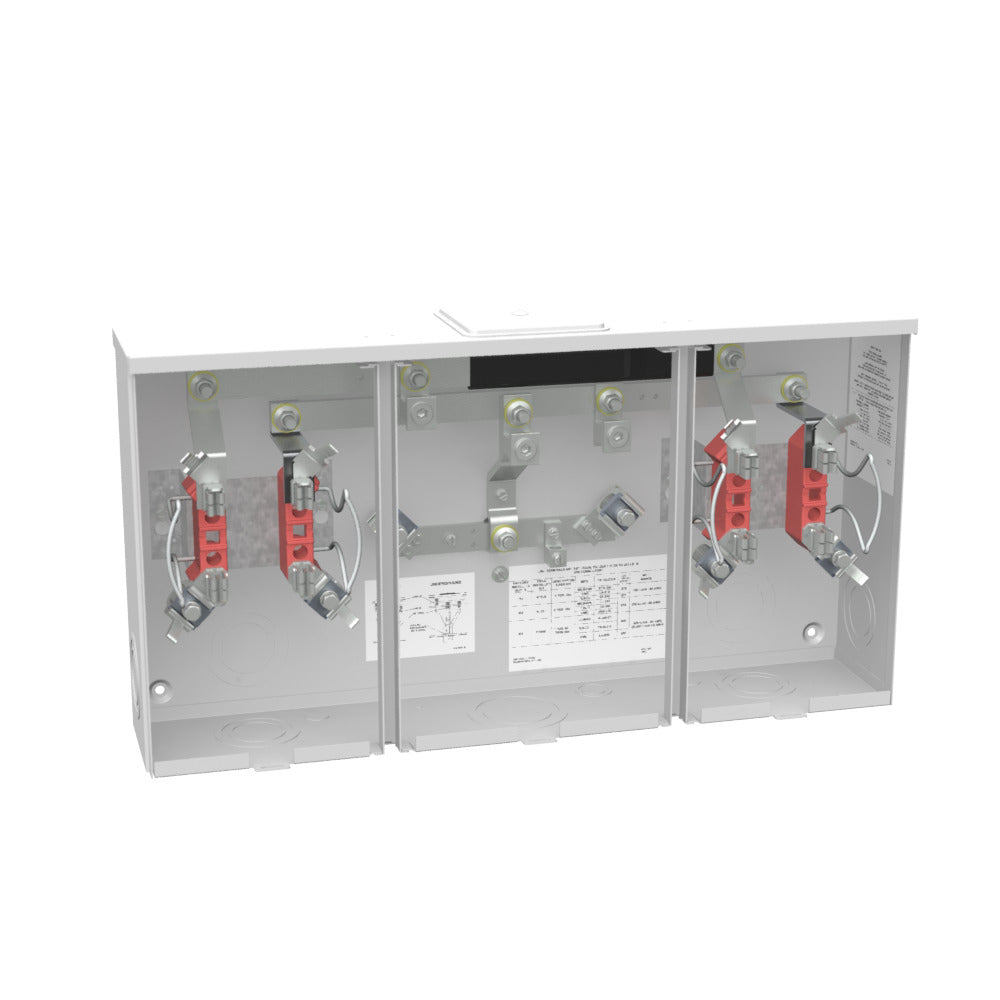

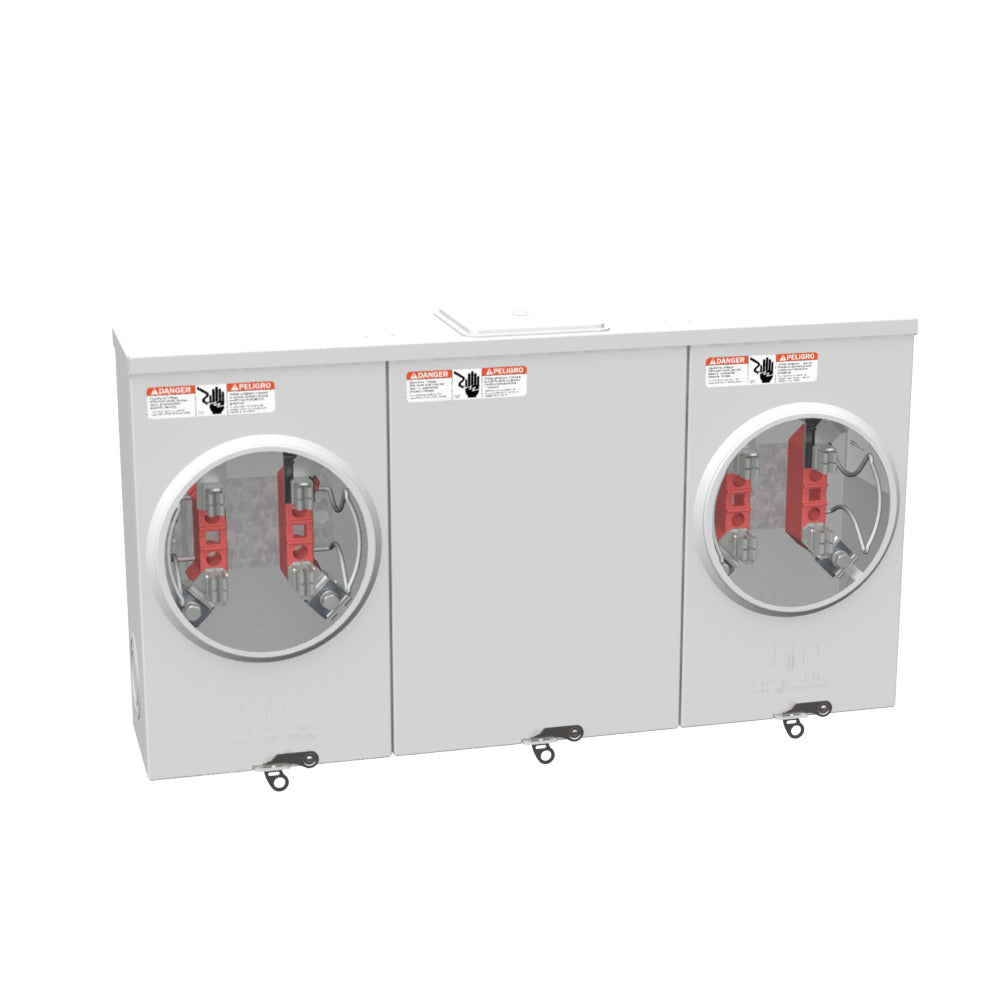

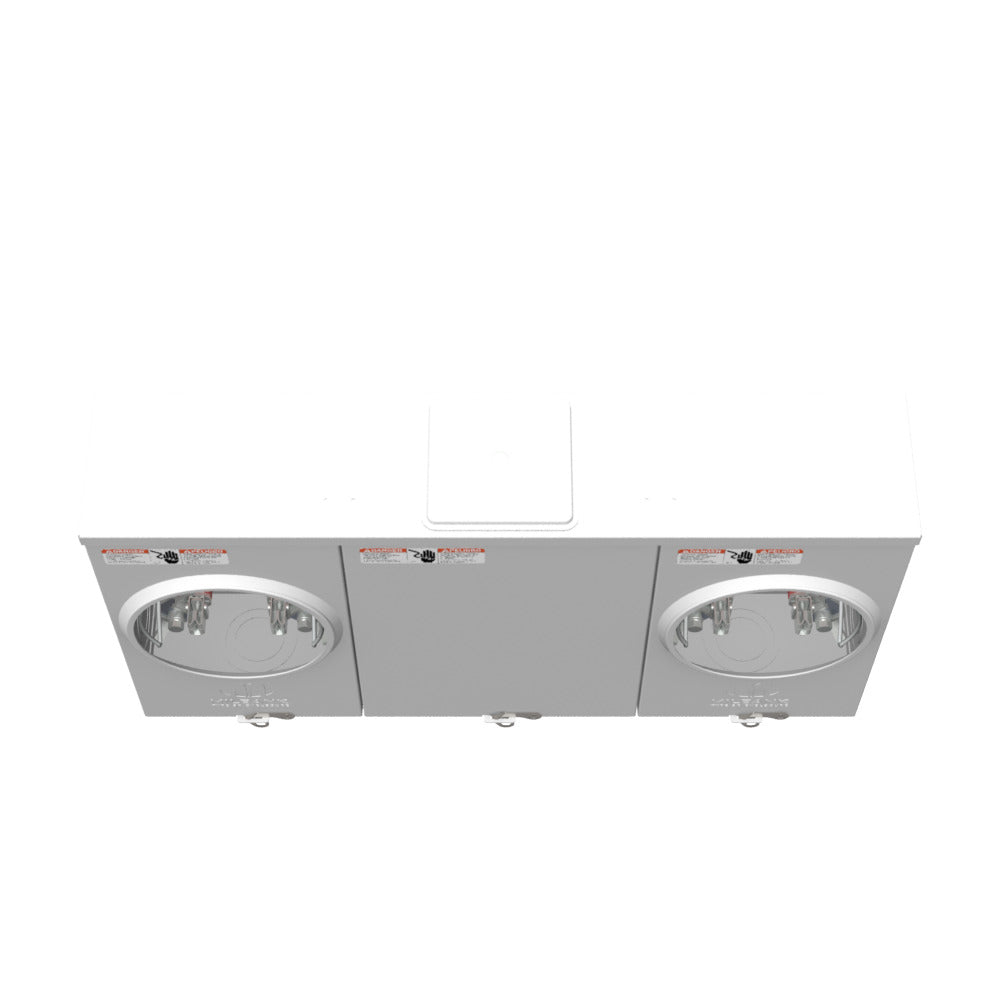

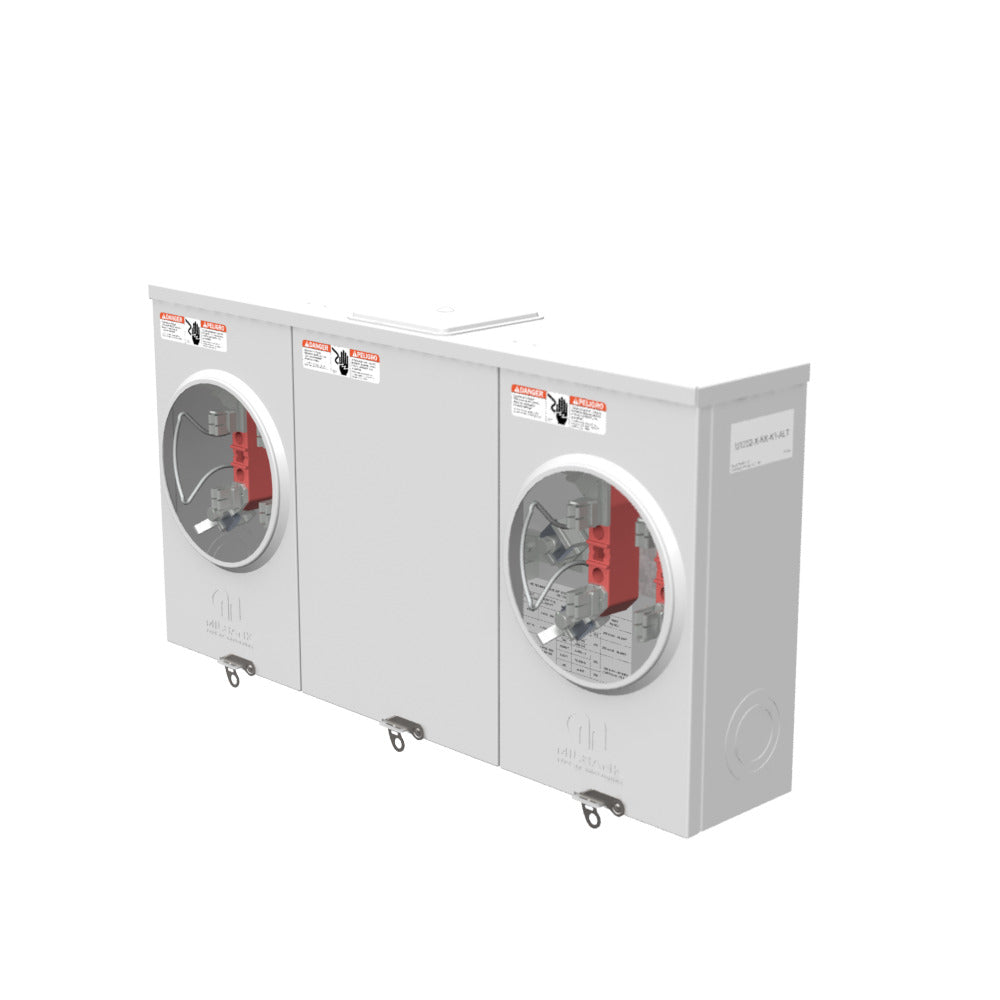

Milbank U1252-X-KK-K1-ALT Meter Socket 200 Amp 1 Phase Ringless Horn 4 Term 2 Position OH or UG with Center Wireway

Product Description

The Milbank U1252-X-KK-K1-ALT is designed for power distribution and protection. This meter socket offers a capacity of two hundred amps and supports one phase. It is suitable for overhead or underground installation and features a ringless design.

• Rated for up to 300 volts AC.
• Constructed from G90 galvanized steel with a powder coat finish.
• Includes four terminals and allows for center wireway entry.

Product Highlights

This meter socket is compatible with Alliant Energy and is UL listed for safety. It is designed for surface mounting.

Product Information

Standard Information

• Manufacturer: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U1252-X-KK-K1-ALT
• Amperage Rating: 200 Amps
• Phase: 1
• Voltage Rating: 300 Volts AC
• Frequency Rating: 60 Hertz
• Application: Meter Socket
• Bypass Type: Horn
• Mounting: Surface Mount
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Terminals: Single Mechanical
• Size: 5.125L x 26.5W x 14H Inches
