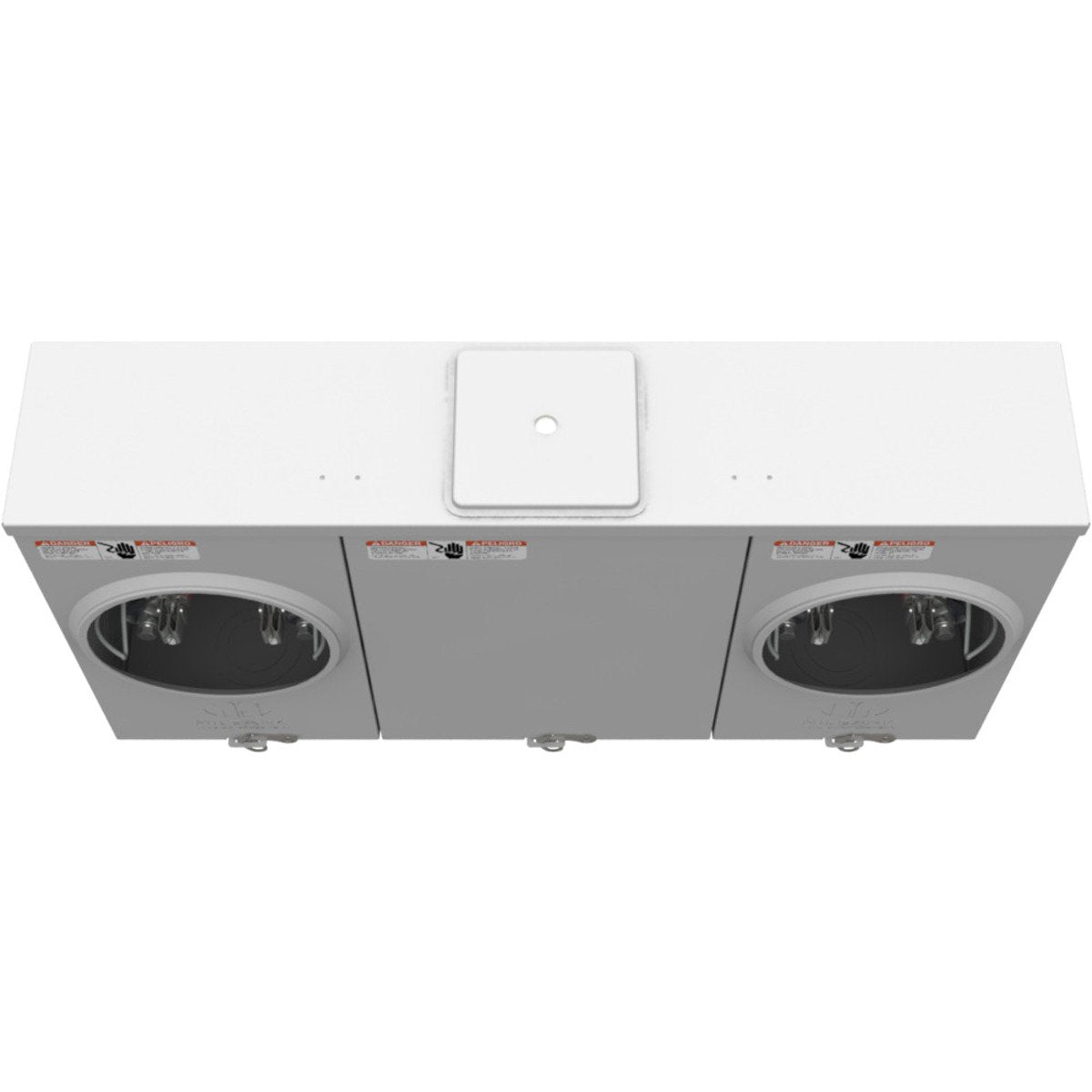

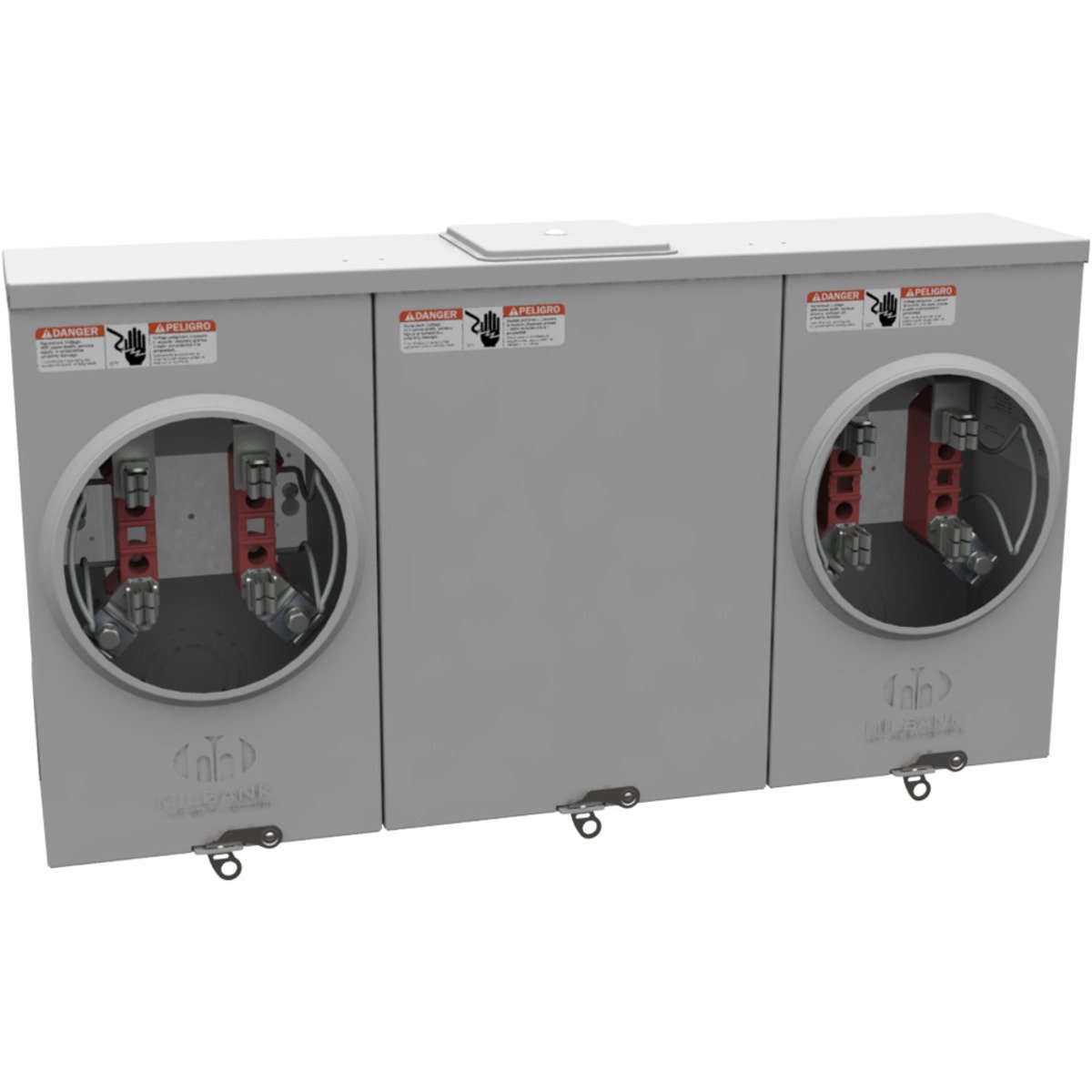

Milbank U1252-X-K1 4 Term, Ringless, Large Closing Plate, 2 Position, Single Connector, 6-350 kcmil, 200 Amp

Product Description

The Milbank U1252-X-K1 is a ringless meter socket designed for use in residential and commercial settings. This product features a capacity of two positions and can accommodate conductors ranging from six to three hundred fifty kcmil. Rated for two hundred amps, it meets the necessary standards for safe electrical distribution.

• Four terminal design for better connectivity
• UL Listed and Type 3R compliant
• Surface mounting option for easy installation

Product Highlights

Engineered for reliability, this meter socket facilitates overhead or underground cable entry.

Product Information

Standard Information

• Brand: Milbank
• MPN: U1252-X-K1

Technical Specifications

• Catalog Number: U1252-X-K1
• Manufacturer: Milbank
• Country of Origin: United States
• Amperage Rating: 200
• Application: Meter Socket
• Bypass Type: No Bypass
• Cable Entry: Overhead or Underground with Center Wireway
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount

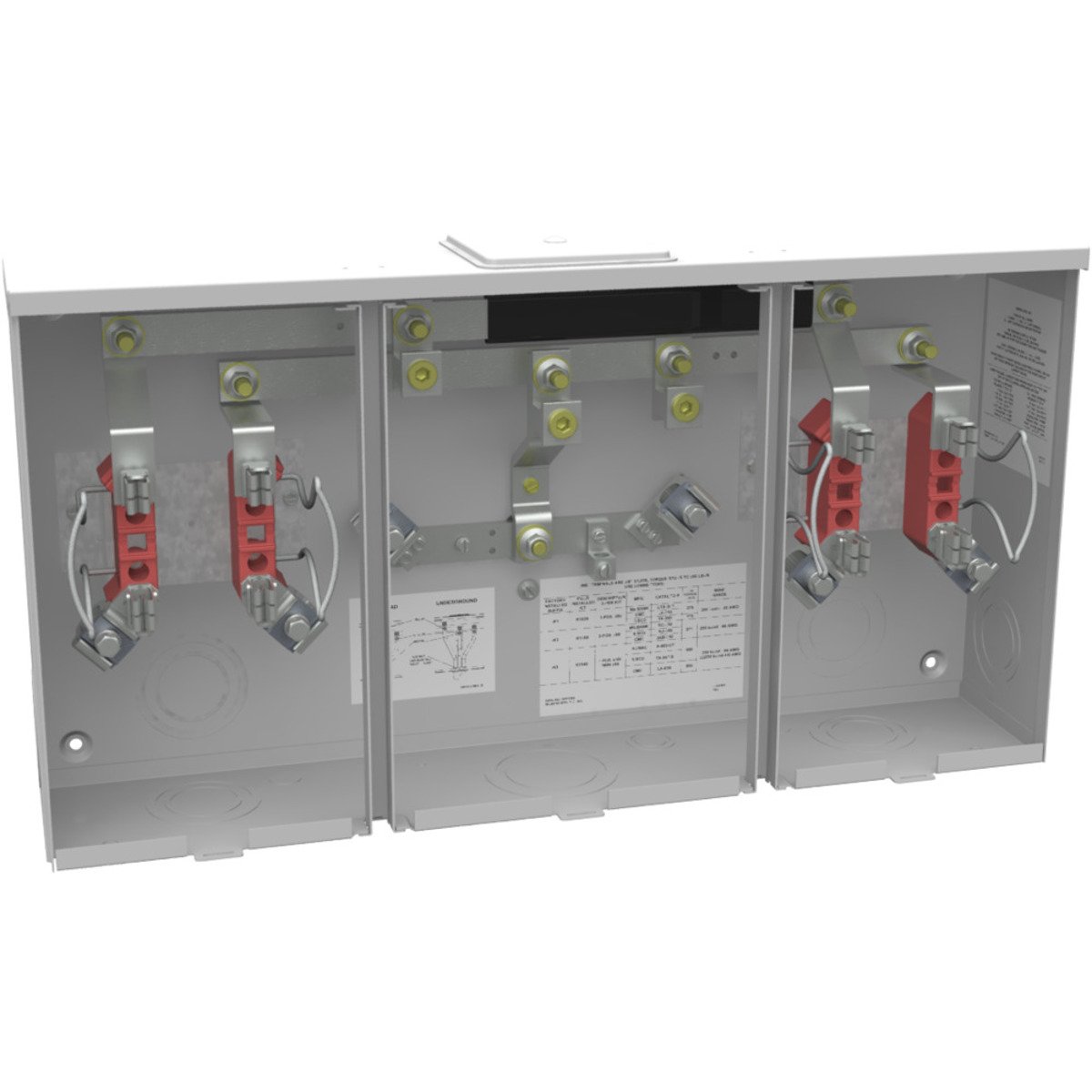

• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• UPC: 784572133327
• Item Type: Ringless Meter Socket
• Size: 5.125L x 26.5W x 14H
• Voltage Rating: 300 Volts Alternating Current
