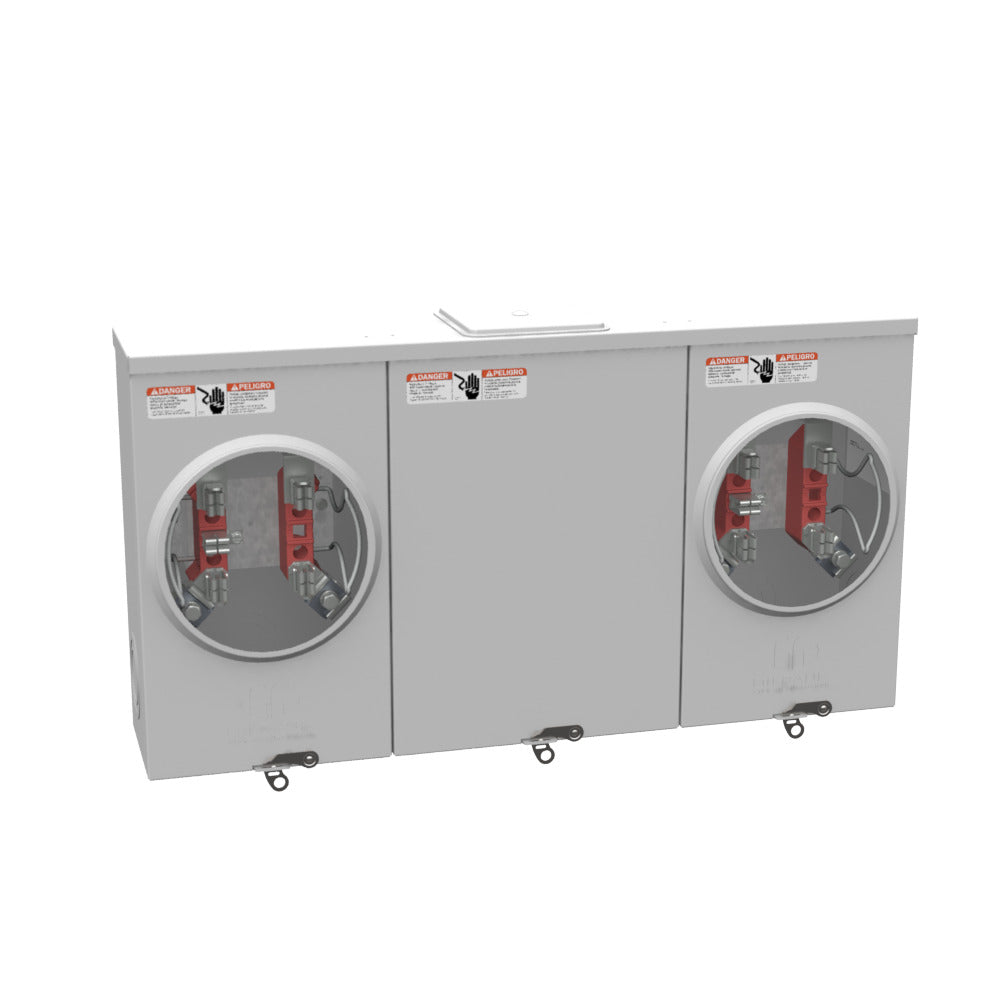

Milbank U1252-X-5T-K1 Ringless Meter Socket, 300 VAC, 200 A, 1 Phase, NEMA 3R

Product Description

Milbank U1252-X-5T-K1 is a ringless meter socket designed for various applications, including overhead and underground installations. This meter socket supports up to two meter positions and has five terminal jaws. It is built to handle a voltage rating of three hundred volts and supports a continuous amperage of two hundred amps. The enclosure is made of G90 galvanized steel with a powder coat finish and meets NEMA three R standards.

• Ringless design with no bypass.
• Suitable for overhead and underground cable entry.

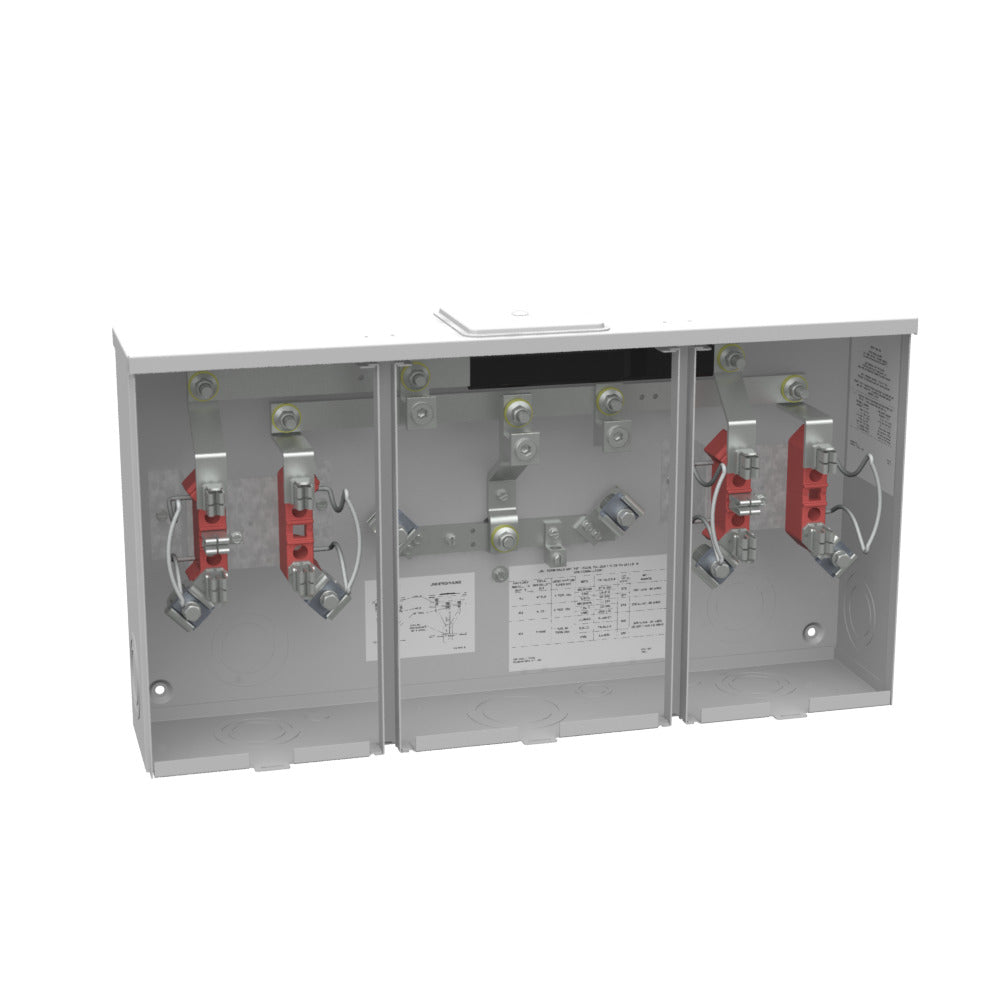

• Five terminal jaws for reliable connectivity.

Product Highlights

This meter socket is made for easy installation and is UL listed for safety standards. It is well-suited for residential and commercial applications requiring robust electrical connections.

Product Information

Standard Information

• Manufacturer: Milbank
• Category: Meter Sockets - Multi Position

Technical Specifications

• Voltage Rating: 300 VAC
• Amperage Rating: 200 A
• Dimensions: 5.125 inches (Length) x 26.5 inches (Width) x 14 inches (Height)
• Number of Jaws: 5
• Bypass Type: No Bypass
• Wire Size Capacity: Line side: 6 AWG - 350 kcmil, Load side: 6 AWG - 350 kcmil
• Insulation: Glass Polyester
• Mounting Type: Surface Mount
