Milbank U1252-RRL-KK-K1-BLG-SLVG MSKT

Product Description

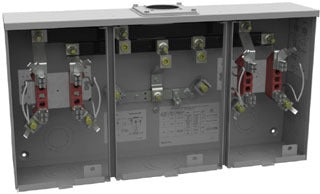

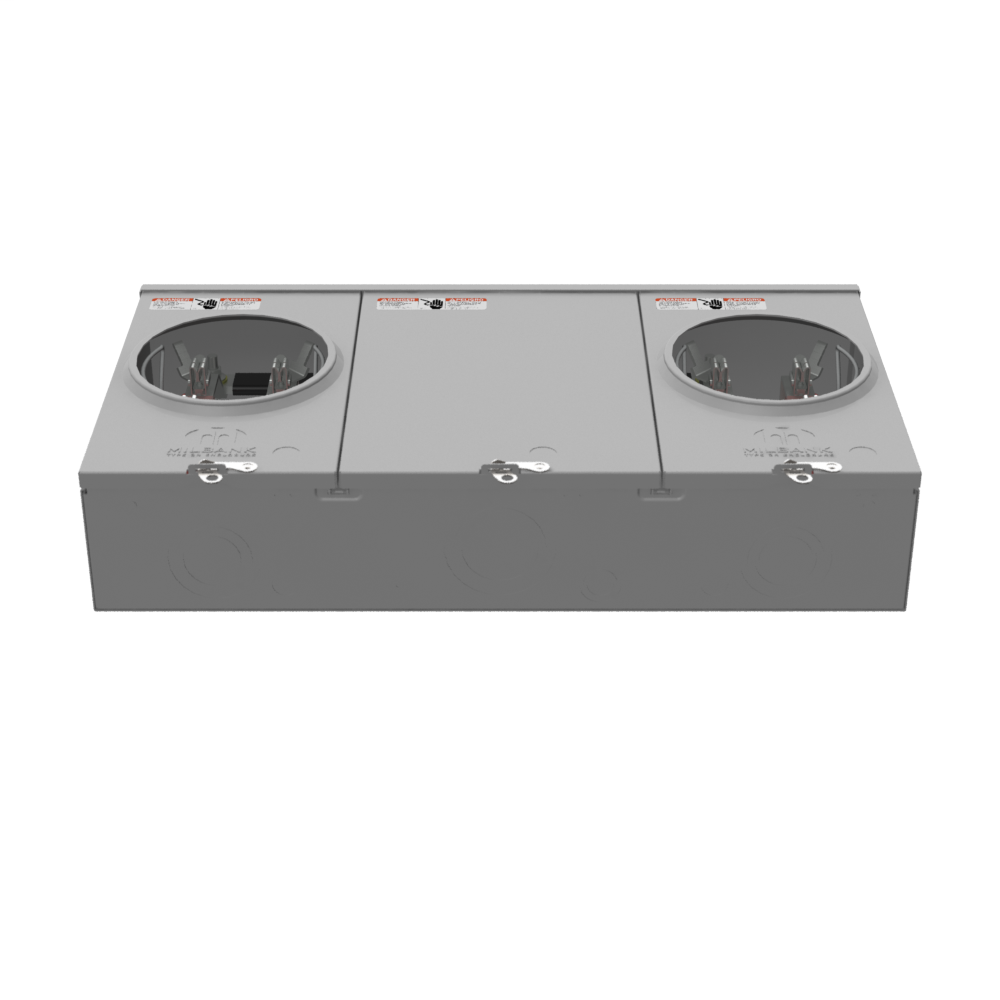

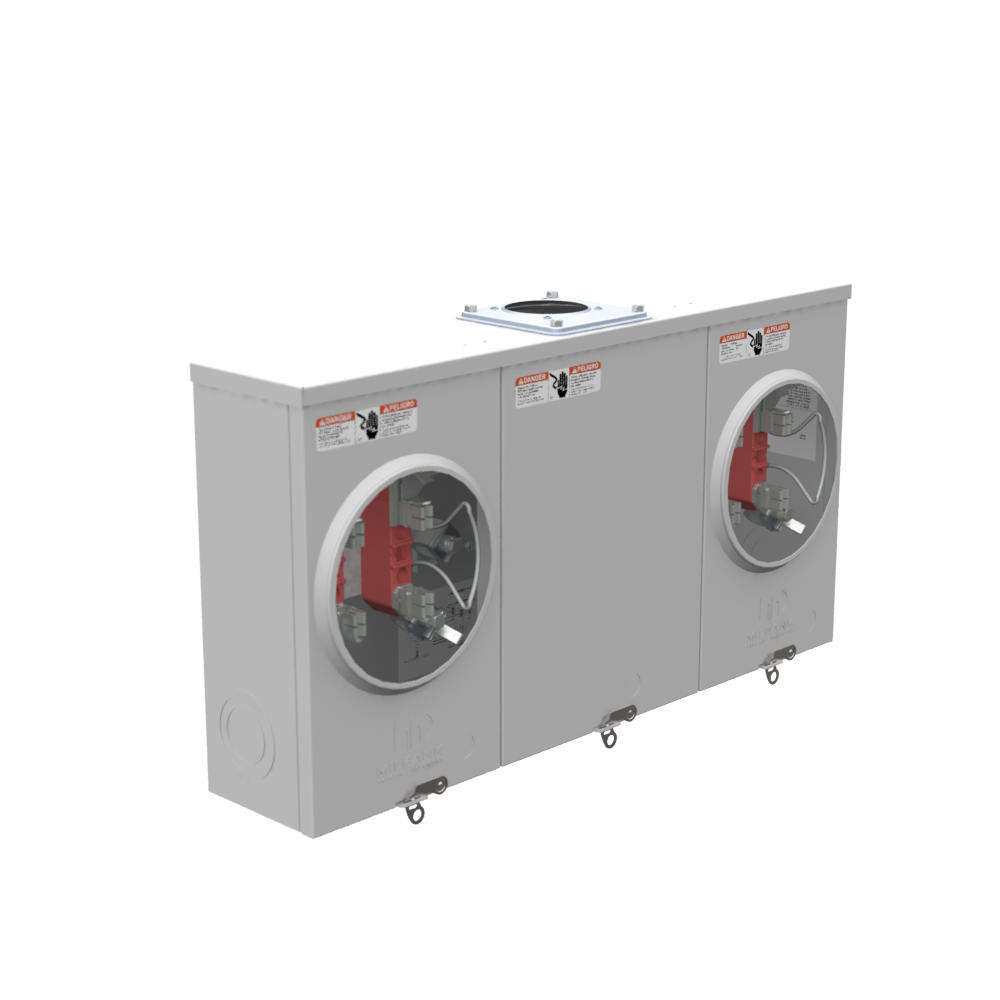

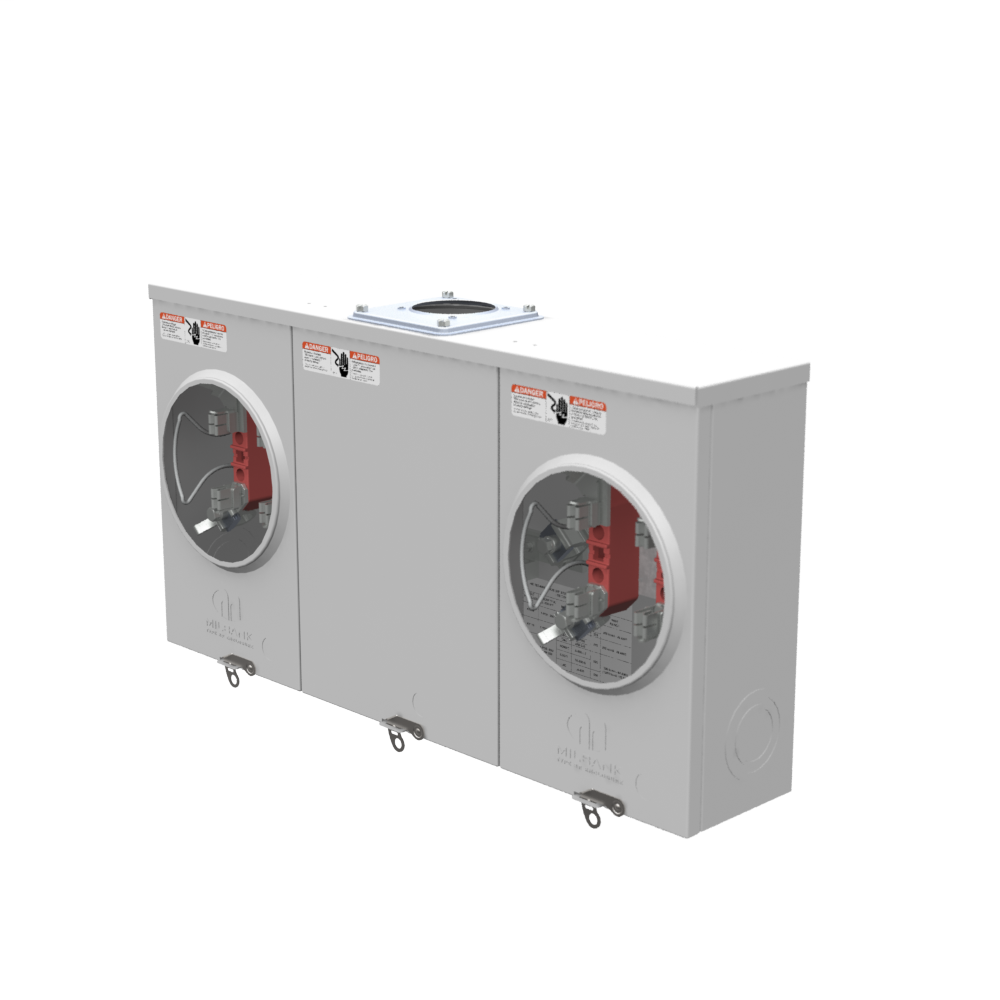

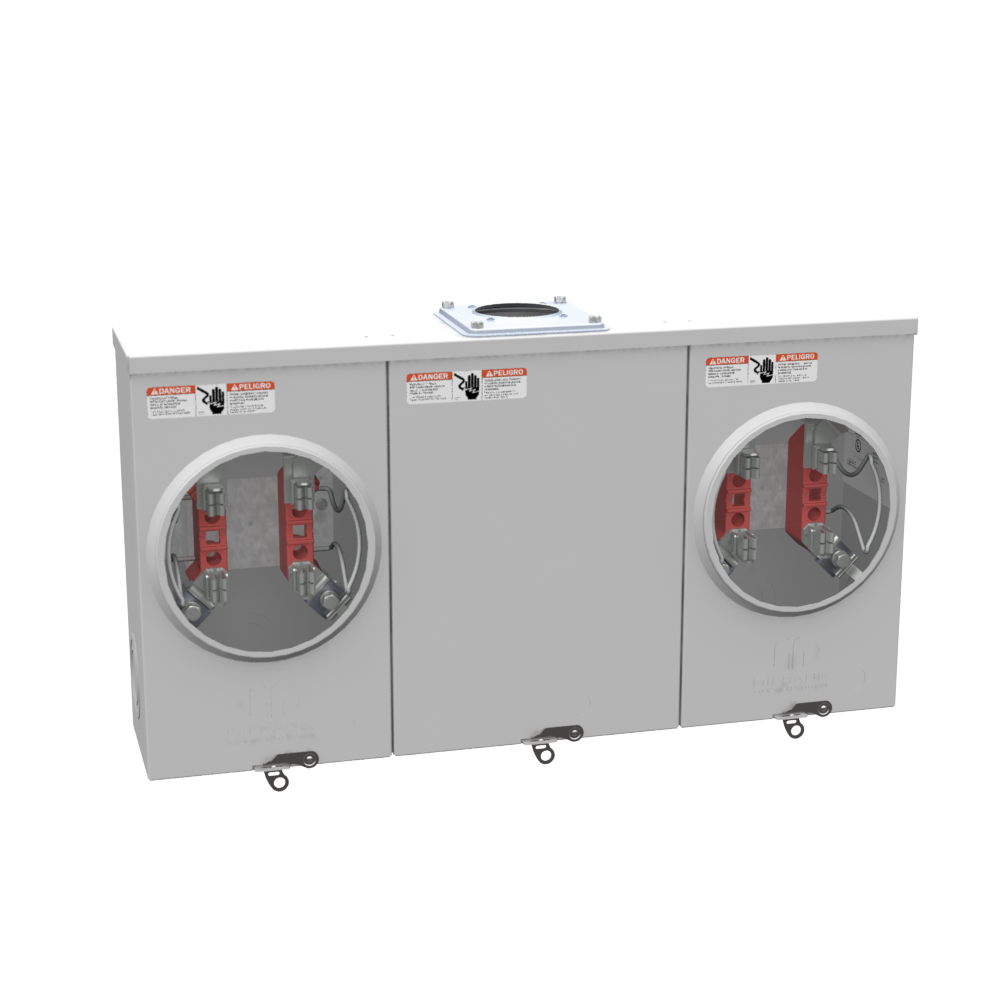

The Milbank U1252-RRL-KK-K1-BLG-SLVG is a multi-position meter socket used in various electrical settings. This product is designed for efficient power management and safe electricity distribution.

• Type: Ringless Meter Socket
• Amperage Rating: 200 Continuous Ampere
• Voltage Rating: 300 Volts Alternating Current

Product Highlights

The product is suitable for overhead or underground cable entry. It features a durable construction with G90 galvanized steel and a powder coat finish for enhanced resistance to corrosion.

Product Information

Standard Information

• Brand: Milbank
• Application: Meter Socket

Technical Specifications

• Phase: 1 Phase
• Frequency Rating: 60 Hertz
• Size: 5.125 inches x 26.5 inches x 14 inches
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Insulation: Glass Polyester
• Number of Jaws: 4 Terminal
• Bypass Provision: Horn Bypass
• Equipment Ground: Ground Lug
• Load Side Wire Range: 6 AWG - 350 kcmil
• Line Side Wire Range: 6 AWG - 350 kcmil
• Hub/Closing Plate: Large Hub Opening Adapted to Small Hub Opening
• Number of Meter Positions: 2 Positions
