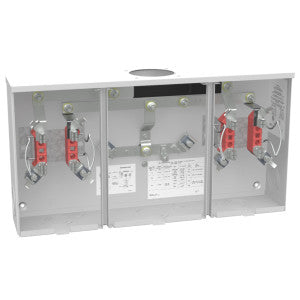

Milbank U1252-R-KK-RGE 4 Terminal Ringless Large Hub Open Horn Bypass 2 Position

Product Description

The Milbank U1252-R-KK-RGE is a 4-terminal ringless meter socket designed for reliable electrical connections. This model features a current rating of 200 Amps and operates at a voltage of 300 Volts AC. The design incorporates a large hub opening for easy installation and accommodates overhead or underground wiring configurations.

• Current rating of 200 Amps
• Surface mountable with a NEMA 3R enclosure
• Dimensions of fourteen inches by twenty-six and one-half inches by five and one-eighth inches

Product Highlights

This meter socket is suitable for both residential and commercial use, meeting the demands of electrical distribution. Its sturdy G90 galvanized steel construction with a powder-coated finish offers durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer Part Number: U1252-R-KK-RGE

Technical Specifications

• Amperage Rating: 200 Amp
• Voltage Rating: 300 Volt AC
• Number of Jaws: 4
• Material: G90 Galvanized Steel
• Dimensions: 26-1/2 Inch Width x 5-1/8 Inch Depth x 14 Inch Height
• Conductor Size: 6 AWG-350 KCMIL Copper/Aluminum Load
• Enclosure: NEMA 3R
• Frequency Rating: 60 Hz
