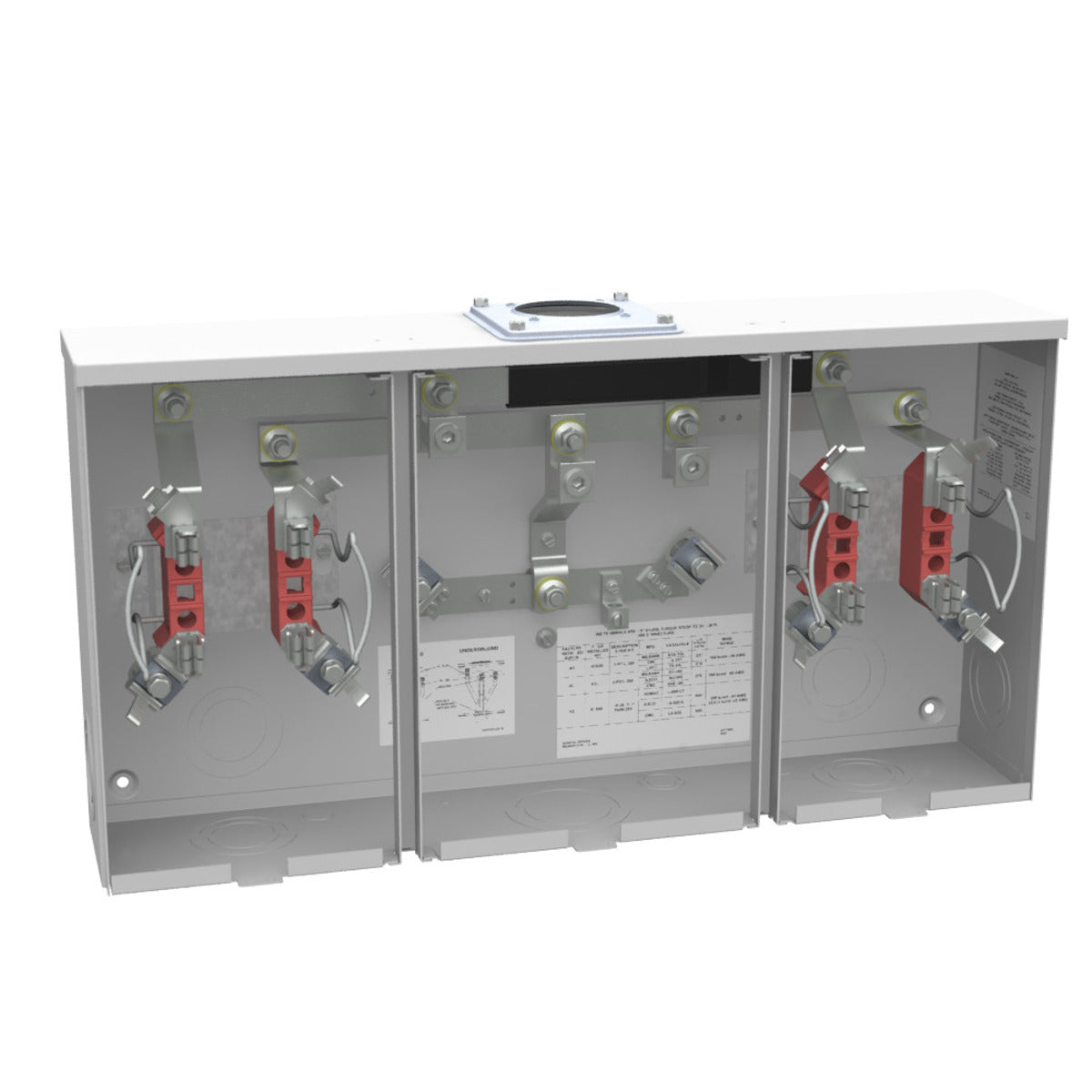

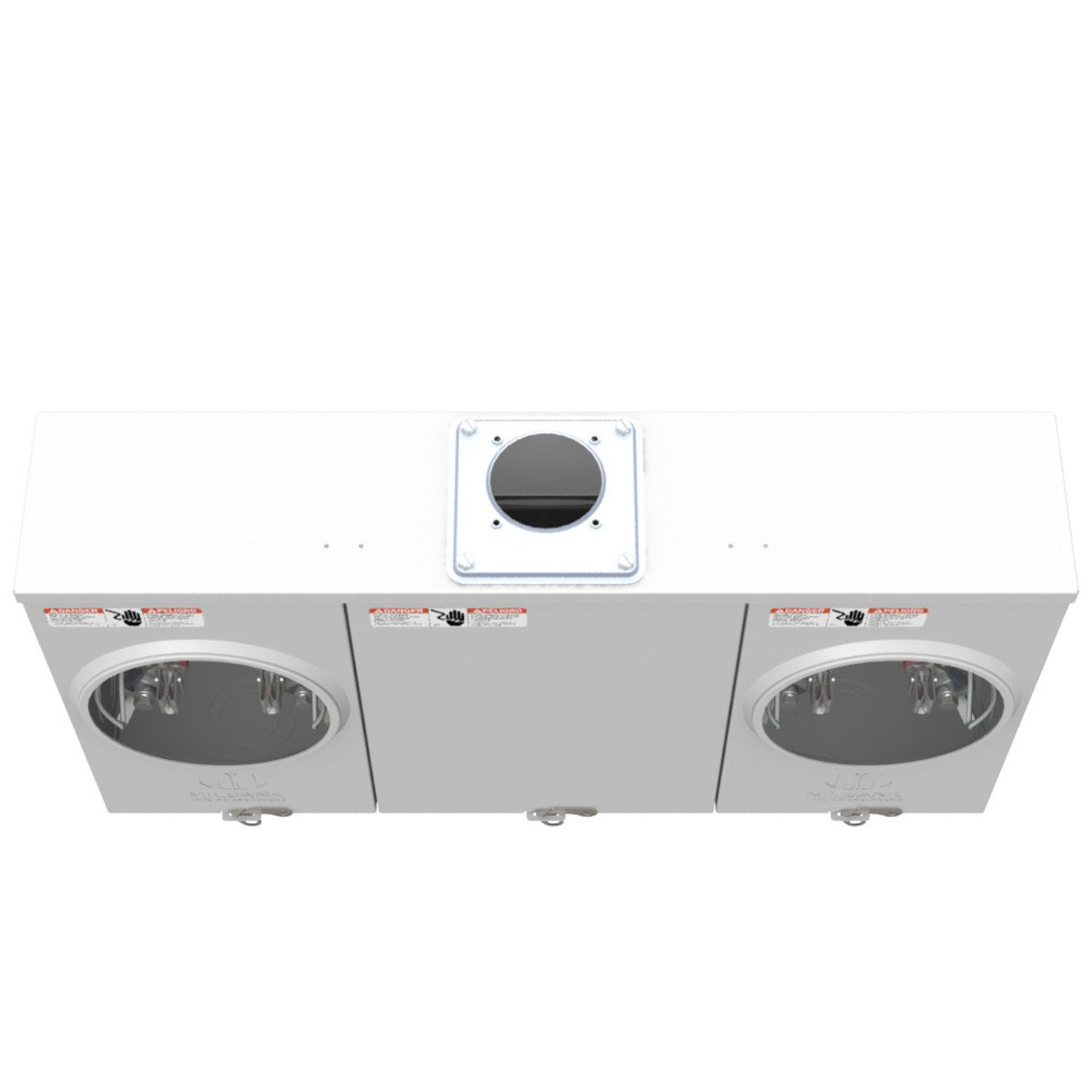

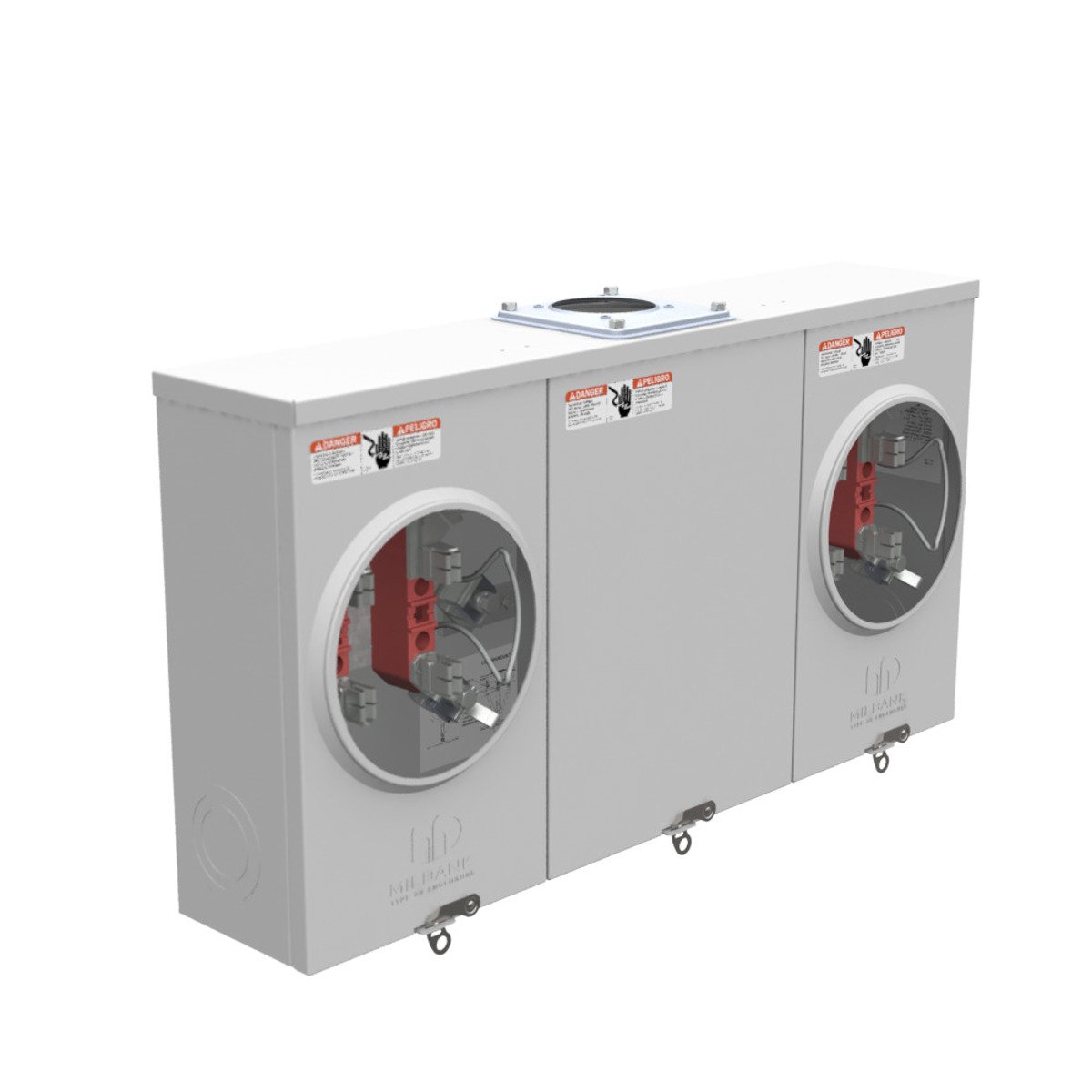

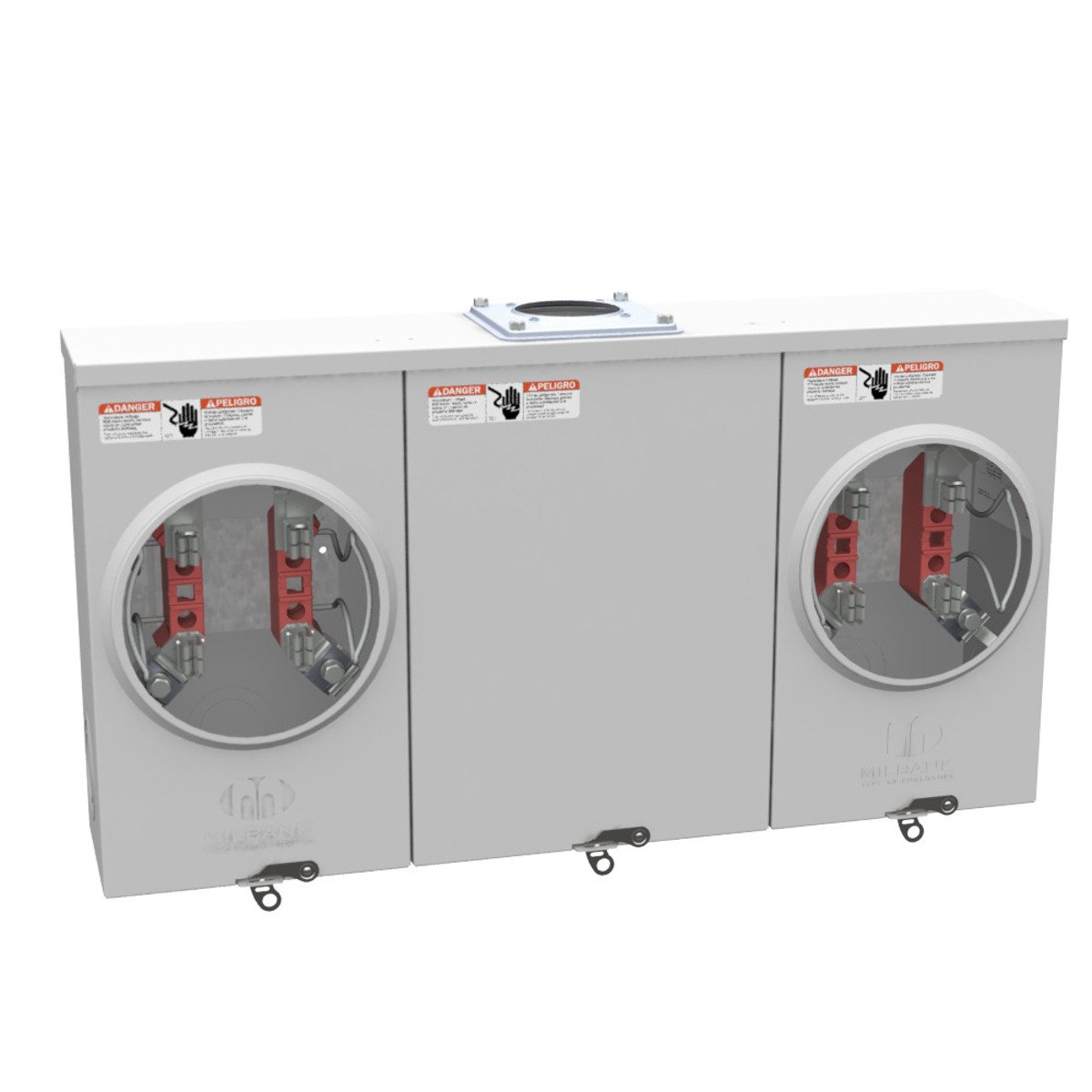

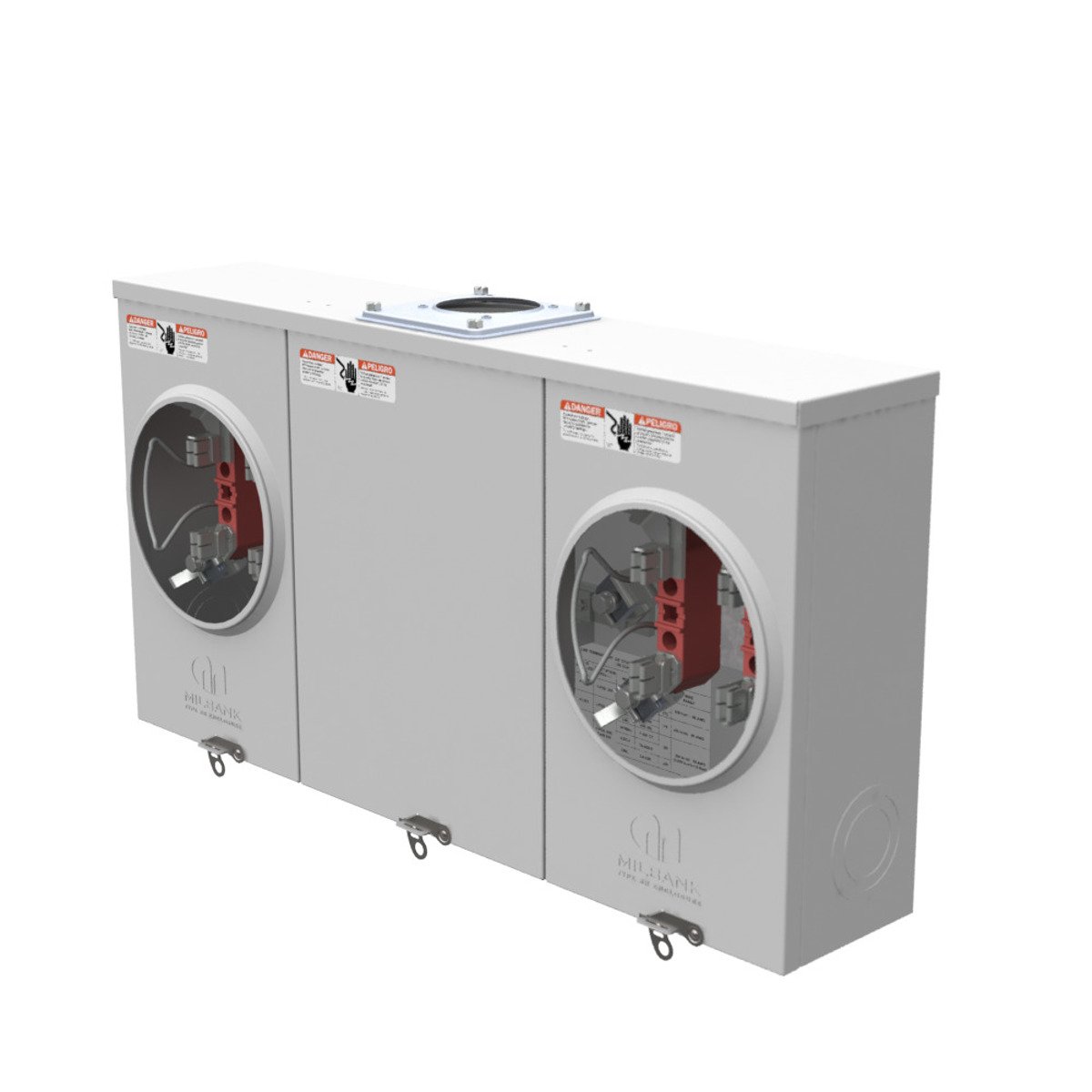

Milbank U1232-RRL-KK-K1 4 Term Ringless Large Hub Opening Adapt to Small Horn Bypass 2 Position Single Connector 6-350 kcmil 150 Amp

Product Description

The Milbank U1232-RRL-KK-K1 is a 4 terminal ringless meter socket designed for ease of installation. This meter socket has a large hub opening to adapt to small hub setups. It is suitable for use with a single connector and can accommodate cables ranging from six to three hundred fifty kcmil. With a rating of one hundred fifty amps, this meter is ideal for residential or light commercial applications.

• Designed for ringless applications
• Compatible with overhead or underground cable entry
• Constructed from G90 galvanized steel for durability

Product Highlights

This meter socket is a practical choice for those needing reliable and efficient power distribution. It features a horn bypass for easy functionality and ensures compliance with UL standards. The capacity to manage large cable sizes makes it a versatile option for contractors.

Product Information

Standard Information

• Catalog Number: U1232-RRL-KK-K1
• Manufacturer: Milbank
• UPC: 784572274013

Technical Specifications

• Voltage Rating: 300 Volts Alternating Current
• Amperage Rating: 150
• Frequency Rating: 60 Hertz
• Application: Meter Socket
• Bypass Type: Horn
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Phase: 1
